www.beko.com
Hood
User manual
HCA63640B
01M-8809853200-4119-10
EN
Comples wth the WEEE Drectve.
Ths product was manufactured usng the latest technology n envronmentally frendly condtons.
Please read this user manual first!
Dear Customer,
Thank you for preferring a Beko product. We hope that you get the best results from
your product which has been manufactured with high quality and state-of-the-art
technology. Therefore, please read this entire user manual and all other accompanying
documents carefully before using the product and keep it as a reference for future use.
If you handover the product to someone else, give the user manual as well. Follow all
warnings and information in the user manual.
Remember that this user manual is also applicable for several other models. Differences
between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
C
Important information or useful hints
about usage.
A
Warning for hazardous situations
with regard to life and property.
B
Warning for electric shock.
Does not contan PCB.
Hood / User Manual 3 / EN
CONTENTS
ENGLISH 04-17
Hood / User Manual
4 / EN
1 Important nstructons for safety and
envronment
This section contains safety in-
structions that will help protect
from risk of personal injury or prop-
erty damage. All warranties will be-
come void if you do not follow these
instructions.
1.1 General safety
•Always have the installation and
repairing procedures carried out
by the Authorised Service Agent.
Manufacturer shall not be held
responsible for damages arising
from procedures carried out by
unauthorised persons.
•This appliance is not intended for
use by persons (including chil-
dren) with reduced physical, sen-
sory or mental capabilities, or lack
of experience and knowledge.
Children should be supervised to
ensure that they do not play with
the appliance.
1.1.1 Electrcal safety
•Disconnect the product from the
mains during installation, main-
tenance, cleaning and repairing
procedures.
•If the power cable is damaged, it
must be replaced by the manufac-
turer, after sales service or a sim-
ilarly qualified person (preferably
an electrician) or someone desig-
nated by the importer in order to
avoid possible risks.
•Operating voltage is 220 to 240
volts.
•If the appliance has a failure, it
should not be operated unless
it is repaired by the Authorised
Service Agent. There is the risk of
electric shock!
•Do not route power cable close to
hobs. Otherwise power cable may
cause fire since it melts down eas-
ily.
•Never plug the hood before instal-
lation is completed.
•In order to obtain the best perfor-
mance, external conductor must
not be longer than 4 m. It must not
contain more than 2 perpendicu-
lar (90°) angles and its diameter
must be min. ø120 mm.
•Disconnect the appliance before
any intervention to the internal
parts of the appliance.
5 / EN
Hood / User Manual
1 Important nstructons for safety and
envronment
1.1.2 Product safety
•You can use a pipe with a diameter
of 120 mm or 150 mm on the flue
connection of the hood.
•Do not make connections to the
flues connected with stoves, ex-
haust shafts or flues with rising
flames. Observe the rules set by
authorities on the discharge of
exhaust air.
•The height between the lower
surface of the hood and upper
surface of the stove/oven should
not be less than 65 cm.
•Do not operate the hood without
aluminum filters and do not remove
the filters while it is operated.
•Never touch the hood's lamp after
they operated for a long time. Hot
lamps may burn your hand.
•Avoid big flames beneath the
product. Otherwise, particles on
oil filter may ignite and lead to a
fire.
•Turn on the hobs after placing
pans or pots on it. Otherwise, ris-
ing temperature may deform cer-
tain parts of your product.
•Turn off the hobs before taking
away pans or pots.
•Avoid inflammable materials
under the hood.
•Oil may ignite while frying foods.
Therefore, be careful about cloths
and curtains.
•Never leave the cooker unat-
tended when frying foods; other-
wise boiled oil may cause fire.
•There is the risk of fire if your
hood is not cleaned in the speci-
fied periods.
•Be extremely careful and wear
gloves when cleaning the hood.
•We advise you to operate the
appliance a few minutes before
starting to cook in order to in-
crease the suction power. Thus,
you shall have a continuous and
stable suction power when the
vapors arises.
•Operate your hood for 15 minutes
more after the end of cooking or
frying in order to remove smell
cooking vapour in the kitchen.
•When the hood is in use, espe-
cially together with gas cookers,
make sure that environment is
ventilated with clean air.
•Pay attention not to connect
the appliance to the flues used
by non-electrical devices. (E.g.:
Heater flue).
Hood / User Manual
6 / EN
1 Important nstructons for safety and
envronment
•When a non-electrical device is
concurrently used in the same
room together with the hood, the
negative pressure in the room
must be maximum 0.4 mbar in
order to prevent hood from suck-
ing other device's exhaust into the
room.
1.1.3 Chldren's safety
•Packaging materials are danger-
ous to children. Keep packaging
materials in a safe place out of
reach of children.
•Electrical appliances are danger-
ous to children. Keep children
away from the product. Do not
allow children play with the appli-
ance.
1.2 Intended use
•This appliance is intended for do-
mestic use. It is not suitable for
commercial use and it must not be
used out of its intended use.
•The manufacturer shall not be lia-
ble for any damage caused by im-
proper use or handling.
•The period required for the availa-
bility of spare parts for the correct
operation of the appliance is 10
years.
1.3 Complance wth WEEE
regulaton and dsposal of the
waste product
This product does not contain harmful
and forbidden materials described in the
"Directive on the Restriction of the Use
of Certain Hazardous Substances in
Waste Electrical and Electronic
Equipment" (WEEE) issued by the T.R. Ministry of
Environment and Urbanization.
Complies with the WEEE Directive.
This product has been manufactured with high
quality parts and materials which can be reused
and are suitable for recycling. Therefore, do not
dispose the product with normal domestic waste
at the end of its service life. Take it to a collection
point for the recycling of electrical and electronic
equipment. Please consult your local authorities
to learn the nearest collection point. Help protect
the environment and natural resources by recy-
cling used products.
1.4 Package nformaton
Ni-MH
The product package is made of recycla-
ble material as per the National
Legislation. Do not dispose of the pack-
age waste together with the household
waste or other waste and deliver them to the
package collection points indicated by the local
authority.
7 / EN
Hood / User Manual

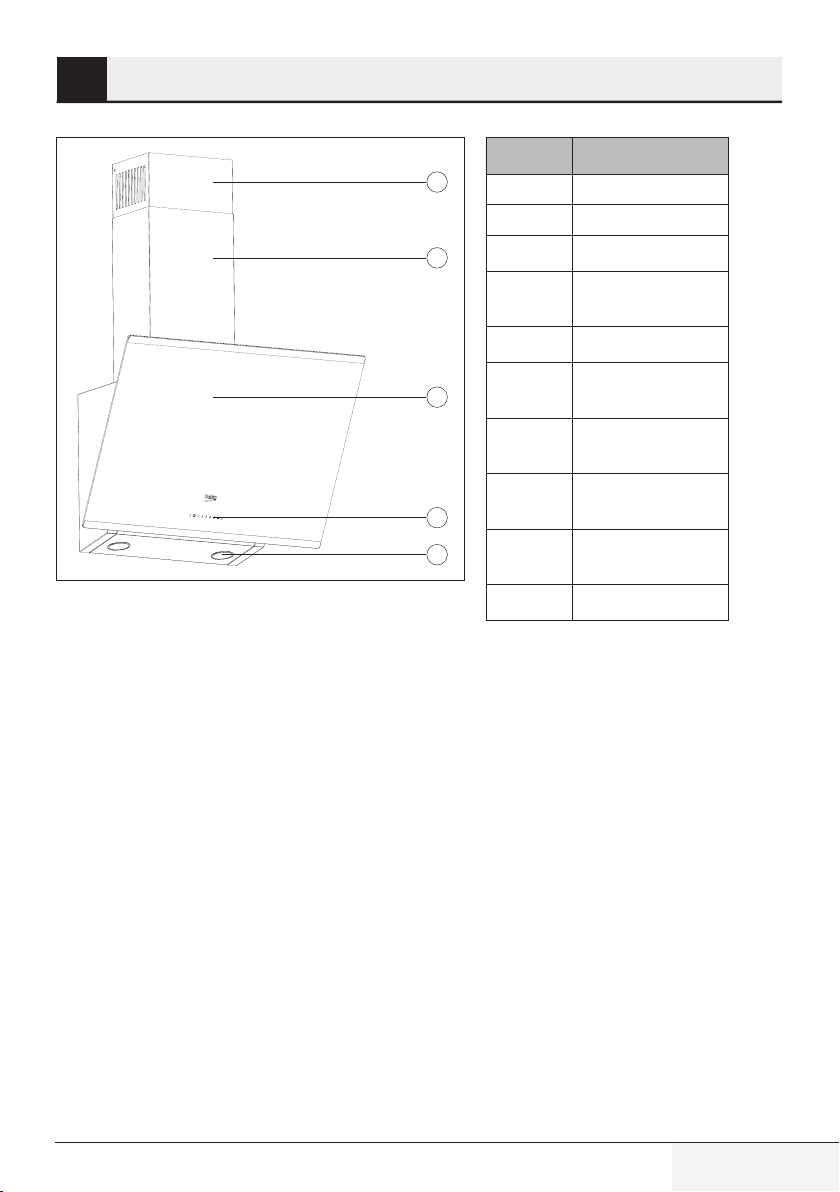

1. Internal flue
2. External flue
3. Glass cover
4. Control panel
5. Illumnaton
Values stated on the product labels or in the documentation accompanying it are obtained in laboratory
conditions in accordance with relevant standards. These values may vary depending on operational and
environmental conditions of the product.
2Techncal specfıcatons of your applance
(Figure 1)
1
2
3
4
5
HCA63640B
Wdth 596 mm
Depth 410 mm
Heght 750 mm/1080 mm
Supply
voltage 220 - 240 V~ 50 Hz
Control Wth 3 levels
Lamp
power 2 x 3 W
Ar outlet
ppe 120 / 150 mm
Motor
power 210 W
Total
power 216 W
Colour Black
Hood / User Manual
8 / EN
Please consult the nearest Authorised Service
Agent for the installation of your hood.
*Preparation of location and electrical installation
for the product is under customer’s responsibility.
A
Caution!
Remove the protective film (if any)
on the hood and flue surface after
the installation.
53 0
04 0
02
211
164
42
08
57:n M0 0801:xa
053
596
410
93 4
(Figure 2a)
3Installng your applance
(Figure 2b)
Distance between lower surface of the hood
and upper surface of the hob should be at least
65 cm.
Have a qualified electrician make the electrical
connection.
Install your appliance so that you can reach the
power connection (plug, outlet) easily after in-
stallation.
Dimensions are given in mm.
9 / EN
Hood / User Manual
3Installng your applance
3.1 Installaton accessores
1 x flue connection plate
1 x Ø120/150 mm plastic
flue adapter
Information required for the preparation of the in-
stallation place for your hood is given below.
3.2 Installng the hood onto
the wall
To install the hood onto the wall, loosen the
screws of hanger plates on the motor housing and
pull the plates upwards. Then, tighten the screws
of the hanger plates. (Figure 3a).
(Figure 3a)
Hanger plate
(Figure 3b)
External flue connection plate
If you will use Ø 120 mm flue pipe, install Ø 120
mm flue adapter onto it.
Hood / User Manual
10 / EN
3.2.1 Borng the hanger holes
Affix the installation template onto the installa-
tion place of the hood. Drill the points market with
(X,Y) (Figure 4) using a Ø 8 mm bit and points
market with (Z) (Figure 4) using a Ø 6 mm bit.
Z
Y
X
COOKING ZONE
Bottom surface of the appliance
3Installng your applance
Y
Y
Z
X
Z
X
8
8
8
8 mm plastic
wall plug
6 mm plastic
wall plug
(Figure 4)
