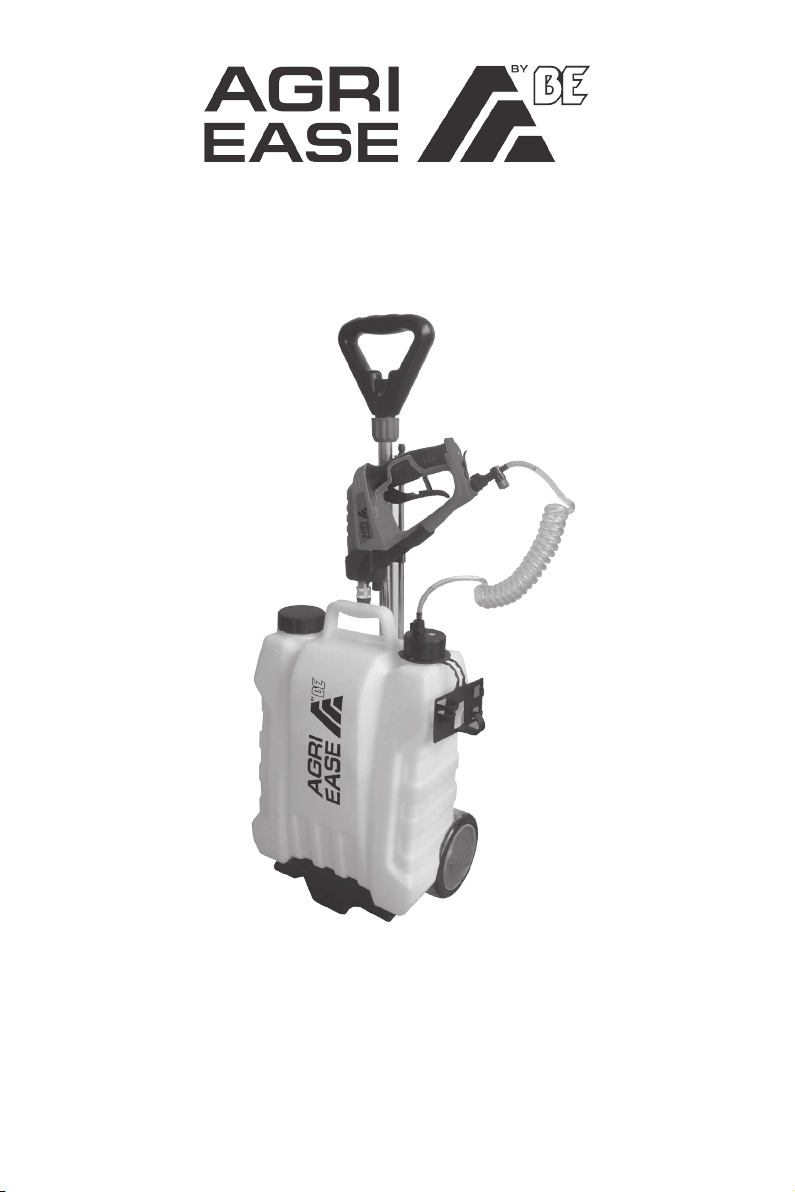

7.2V LITHIUM-ION CORDLESS SPRAYER
GS7.2R
operation manual
2
PARTS LIST
1. SPRAY GUN
2. EXTENSION NOZZLE
3. SPRING HOSE
4a. FIRST NOZZLE
4b. SECOND NOZZLE
5. SHOULDER STRAP
6. HANGING HOOK
7. TANK
8. SPRING CLIP
9. TANK LID
10. COUNTER FLOW DEVICE
11. CHARGER
12. ON/OFF AND SAFETY TRIGGER
13. MODE CHANGING SWITCH
14. CHARGING SOCKET
15. LED CHARGING INDICATOR
16. ON/OFF SWITCH
17. TROLLEY BASE
18. HANDLE
19. SPRAYER MACHINE STORAGE
20. METAL TUBE
3
PRODUCT SPECIFICATIONS
Model No.: GS7.2R
Input: 7.2V
Battery type: Lithium-ion
Lithium-ion battery capacity: 2600mAH
Charger/adaptor input: 100~240V, 50~60Hz AC
Battery charging time: 2 to 2.5 Hrs
Tank capacity: 4 Gallons (15 Liters)
QUALITY STATEMENT
This product has been engineered and manufactured to our high stadard for dependability,
ease of operation, and operator safety. Properly cared for, it will give you years of
rugged, trouble-free performance.
WARNING: READ MANUAL BEFORE USE
WARNING: To reduce the risk of injury, the user must read and understand the operator’s
manual before using this product. Battery must be fully charged before first use.
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
Thank you for your purchase.
IMPORTANT SAFETY SYMBOLS AND EXPLANATION
Warning notice
Read the Owner’s Manual
Do not expose the sprayer to rain or submersion
Only use the battery charger indoors
Battery charger contains a safety transformer
If you need assistance with the
assembly or operation of this Sprayer please visit
BRABEREQ.COM
4
SAFETY PRECAUTIONS
WARNING: Failure to read and follow all
safety Warnings and all Instructions may
result in electric shock, fire and serious
injury. Save all warnings and instructions for
future reference. The term "power tool" in
the warnings refers to your mains-operated
(corded) power tool or battery-operated
(cordless) power tool.
WORK AREA SAFETY
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive
atmosphere, such as in the presence
of flammable liquids, gases or dust.
Power tools create sparks which may
ignite the dust or fumes.
c) Keep children and bystanders away
while operating a power tool. Distractions
can cause you to lose control.
ELECTRICAL SAFETY
a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with
earthed (grounded) power tools.
b) Avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric shock
if your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool
will increase the risk of electric shock.
d) Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase
the risk of electric shock.
e) When operating a power tool oudoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable
for outdoor use reduces the risk of
electric shock.
CHARGING THE BATTERY
The battery should be fully charged before
using for the first time. The charging time
is about 2-2,5 hours. The battery charger
supplied matches the lithium battery installed
in the Roll & Spray garden sprayer.
Therefore DO NOT USE any other
charger to recharge the garden sprayer.
In order, to protect the lithium battery
against deep discharging, when the
battery is flat, the Roll & Spray garden
sprayer will automatically switch off via
a protective circuit.
WARNING: If the trigger is used continually
at this point, the lithium battery can be
damaged. Do not try to continue to use
the Roll & Spray garden sprayer before
recharging the battery.
CHARGING PROCEDURE
I. Insert the charger cable into charging
inlet (14) on the sprauer gun.
2. Making sure the wall outlet in your
home is normal household voltage
(CACI20V 60Hz).Insert the battery
charger plug into themainspower supply.
3. The red LED charging Indicator (15)
lights up to tell yuou that the battery
pack is on charge.
The battery is fully charged when the red
LED charging Indicator (15) turns off.
During the charging process, the spray
gun assembly will warm up, but this is
perfectly normal. When not using the
spray gun for extended periods, disconnect
the battery charger from the socket.
When the Roll & Spray garden sprayer is
charging, you MUST NOT ATTEMPT TO
USE the product.
Only charge the battery between 50ºF -110ºF
(IOºC-45ºC).
After prolonged use, allow battery to
cool down first before recharging.
NOTE: Numbers in brackets ( ) reference
the parts list in manual.
5
ELECTRICAL SAFETY
f) If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD) protected supply.
Use of an RCD reduces the risk of
electric shock.
PERSONAL SAFETY
a) Stay alert, watch what you are doing
and use common sense when operating
a powertool. Do not use a power tool
while you are tired or under the influence
of drugs, alcohol or medication.
A moment of inattention while operating
power tools may result in serious
personal injury.
b) Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing
protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or
battery pack, picking up or carrying
the tool. Carrying power tools with
your finger on the switch or energising
power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench
before turning the power tool on.
A wrench or a key left attached to a
rotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper
footing and balance at all times. This
enables better control of the power
tool in unexpected situations.
f) Dress properly. Do not wear loose
clothing or jewellery. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
BATTERY TOOL USE AND CARE
a) Recharge only with the charger specified
by the manufacturer. A charger that is
suitable for one type of battery pack
may create a risk of fire when used
with another battery pack.
b) Use power tools only with specifically
designated battery packs. Use of any
other battery packs may create a risk
of injury and fire.
c) When battery pack is not in use,
keep it away from other metal objects,
like paper clips, coins, keys, nails,
screws or other small metal objects,
that can make a connection from
one terminal to another. Shorting the
battery terminals together may cause
burns or a fire.
d) Under abusive conditions, liquid may
be ejected from the battery; avoid contact
with this fluid. If contact accidentally
occurs, flush with water. If liquid contacts
eyes, additionally seek urgent medical
help. Liquid ejected from the battery
may cause irritation or burns.
SERVICE
a) Have your power tool serviced by
a qualified repair person using only
identical replacement parts. This will
ensure that the safety of the power
tool is maintained.
6
Capacity scales
in liter Capacity
scales
in gallons
Water Inlet
with filter net
inside
Positions for
extension
nozzle
Position
for nozzle
Gun hook
HOOKS FOR SPRAYER GUN AND NOZZLES
ATTENTION: Pesticide or liquid fertilizer must be dissolved completely before pouring
into the tank in case that any solid material will block off the spraying.
Remove any solids on the filter after injection.
INTRODUCTION AND INSTALLATION
HOW TO USE THE WATER TANK
Rotate the lid of the water inlet as the photo shown below.
Pour the water, pesticide or liquid fertilizer, then tighten the lid.
Air valve
Outlet hole
7
Connect to the
sprayer gun
On
position Off
position
Connect to tank
ATTENTION: There are two same spring clips on both ends of the hose, each of
them will be connected to the sprayer gun and outlet hole of the tank. Press the clip
push in for connecting and pull out for detaching. Before use, you must open the
ON/OFF fluid valve first. Make sure to provide the sprayer fluid from the tank. When
you stop spraying turn the switch to the OFF position to avoid fluid back flow.
On/Off
Spring clip
Spring clip
Bend resistance spring

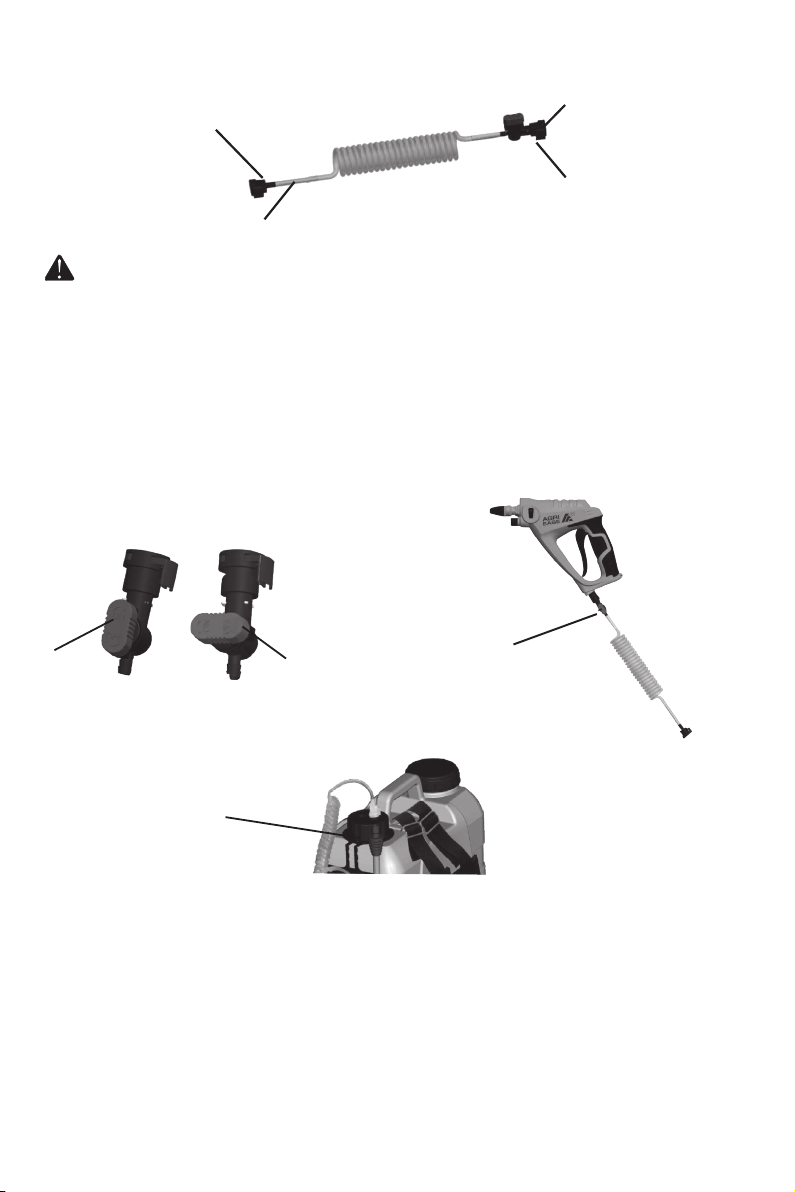

QUICK ADAPTOR SPRING HOSE
HOW TO USE THE SPRAYER GUN
This machine was designed with dual nozzles and can be switched for 3 different
modes: Mist, Jet and Fan shaped for different uses.
The first nozzle can spray 2 modes: mist and jet, these two modes are alternatively
changed by rotating the nozzle. Mist mode is mainly for large area spray job in close
distance. Jet mode is mainly for shooting to long distance. The second nozzle is for
Fan shaped spraying mode, this mode is especially suitable for large area spraying in
long distance, it can spray by max 6 meters distance. The two nozzles are convertible
randomly by rotate the changing switch in clockwise direction.
SPRING HOSE AND ON/OFF FLUID SWITCH DETAIL
8
OPERATION OF THE SPRAYER
ATTENTION: Please keep the safety lock in place when not in use to prevent from
switching the machine unintentionally. The LED light (shown below) can be used for
night time and low light areas.
LED light
ON/OFF
trigger
Safety lock
Extension nozzle
Changing
switch
Second
nozzle
First
nozzle
Quick
change
adapter
HOW TO USE THE EXTENSION NOZZLE
The extension nozzle is 40cm long, and also have to spray modes: Mist and Jet,
same as the first nozzle. Assemble it acording to above descriptions and adjust the
spray as intended. The extension nozzle can be rotated by 360 degrees making it
easier to get to hard to reach places.
EXTENSION NOZZLE ASSEMBLY
Press the copper nut same as above and then insert the extension nozzle in and lock it in place.
HOW TO CHANGE THE NOZZLES
The nozzles on this machine can be quickly changed. One can change the nozzle to extension
nozzle at any time. To detach the short nozzle: press the copper nut (quich change adapter) as
shown in below photo and then pull out the short nozzle.
9

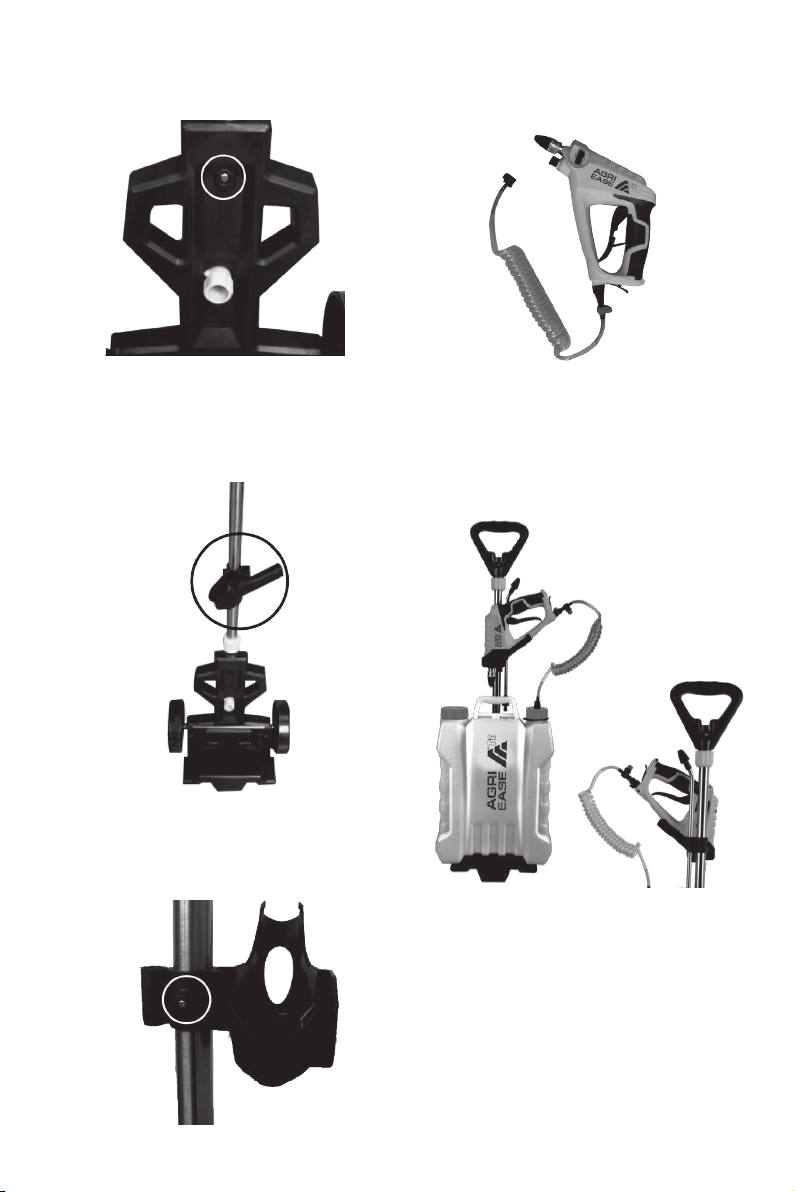

INSTALLATION INSTRUCTIONS
FOR TROLLEY
1. Open the package of handle, sprayer
machine storage, metal tube, lockbolt
and lockout..
2. Release fixed knob, take down the
water tank.
3. Release handle of trolley, put metal tube
in the hole of handle, alignment screw hole
and tightening the knob clockwise.
4. Put lockbolt in the hole as shown in
the diagram direction and lock the nut.
5. Put the sprayer machine storage in metal
tube as shown in the diagram direction.
6. Release fixed knob of base, put metal
tube in trolley base, align the screw hole
and tight the knob clockwise.
Adjust
height
10
7. Put lockbolt in the hole as shown in
the diagram direction and lock the nut.
8. Adjustment the sprayer machine storage
as show in the diagram position. Then
fixe to the tube by screw.
9. Take off extension nozzle, put it in the
opposite hole of trolley hanging hook.
10. Take out sprayer machine and spring
hose to connect to the water outlet lid of
tank securely. Put the sprayer machine in
sprayer machine storage.
OPERATION OF THE SPRAYER
1. Starting:
Push the safety lock down and squeeze
the trigger on the spray gun.
2. Stopping:
Release the trigger. Push the safety lock
up in the lock position when not in use.
3. Adjust nozzle:
Twist the nozzle to get stream or spray
functions.
Tabla de contenidos
