Please leave these Instructions with the user.
Baxi Windermere
Baxi Grasmere
Gas Stoves
Comp No242300 - Iss 5 - 5/00
Installation and
Servicing Instructions
Supplied By www.heating spares.co Tel. 0161 620 6677
Natural Gas Propane Gas
Baxi Windermere RF
G.C.No 32 075 26
Baxi Windermere TF
G.C.No 32 075 27
Baxi Grasmere RF
G.C.No 32 075 24
Baxi Grasmere TF
G.C.No 32 075 25
Baxi Windermere RF
G.C.No 32 075 28
Baxi Windermere TF
G.C.No 32 075 29
Baxi UK Limited is one of the leading
manufacturers of domestic heating products in
the UK.
Our first priority is to give a high quality service to
our customers. Quality is built into every Baxi
product -products which fulfil the demands and
needs of customers, offering choice, efficiency
and reliability.
To keep ahead of changing trends, we have
made a commitment to develop new ideas using
the latest technology - with the aim of continuing
to make the products that customers want to buy.
Baxi is also the largest manufacturing partnership
in the country. Everyone who works at the
company has a commitment to quality because,
as shareholders, we know that satisfied
customers mean continued success.
We hope you get a satisfactory service from Baxi.
If not, please let us know.
Baxi is a BS-EN ISO 9001
Accredited Company
Supplied By www.heating spares.co Tel. 0161 620 6677
Contents – Page 3
Section
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
13.0
Introduction
Technical Data
Site Requirements
Installation
Arranging the Coals
Commissioning the Stove
Checking for Spillage
Completion
Annual Servicing
Changing Components
Fault Finding
Short Parts List
Propane Models
Page
4
5
6
9
11
13
14
15
16
20
23
24
25
The following items are packed with the appliance:-
Literature
Controls Cover
Coal Pieces (Windermere 2 types)
(Grasmere 3 types)
Ceramic
Closure Plate (All RF models)
Coal Guard (Grasmere only)
Supplied By www.heating spares.co Tel. 0161 620 6677
1.0 Introduction – Page 4
1.1 Description
1. The Baxi Windermere RF and TF and Grasmere RF and
TF are gas fired stove - style appliances with heat inputs of
8.17 kW (27,876 Btu/h) and 6.5 kW (22,178 Btu/h)
respectively at maximum setting. They are designed to be
used on Natural Gas only at a setting pressure of 20mbar
on an installation with a governed meter. The appliances
are intended for heating and decorative purposes.
2. For details of Propane appliances see section 13.0
Propane Models.
3. They incorporate a safety feature in the form of a spillage
monitoring system which must not be adjusted or
bypassed.
4. The stove is controlled by a knob which is positioned at the
lower right hand side of the appliance (Fig1). The knob has
four positions:
OFF IGN LOW HIGH
5. The pilot will be lit at IGN.
1.2 Installation
1. Prior to installation, ensure that the local distribution
condition (identification of the type of gas and pressure)
and the adjustment of the appliance are compatible.
2. The appliance is suitable for installation only in GB. and
I.E. and should be installed in accordance with the rules in
force. For Ireland install in accordance with l.S.813
“INSTALLATION OF GAS APPLIANCES”. The
installation must be carried out by a CORGI Registered
Installer or other competent person and be in accordance
with the relevant requirements of the current GAS
SAFETY (Installation and Use) REGULATIONS (as
amended), the BUILDING REGULATIONS issued by the
Department of the Environment, BUILDING STANDARDS
(Scotland) (Consolidation) REGULATIONS issued by the
Scottish Development Department and the LOCAL
BUILDING REGULATIONS. Where no specific
instructions are given, reference should be made to the
relevant BRITISH STANDARD CODES OF PRACTICE.
2. This appliance must be installed in accordance with
the manufacturers instructions and the rules in force
and only used in a suitably ventilated location.
3. Read the instructions before installing or using this
appliance.
Notice
Discolouration of wall surfaces
Most heating appliances generate warm air convection currents
and transfer heat to any wall surface against which they are
situated.
Some soft furnishings (such as blown vinyl wallpapers) may not
be suitable for use where they are subject to temperatures
above normal room levels and the manufacturer’s advice should
be sought before using this type of wall covering adjacent to any
heating appliance.
The likelihood of wall staining from convected air currents will be
increased in environments where high levels of tobacco smoke
or other contaminants exist.
1.3 Important Information
This product contains Refractory Ceramic Fibres (R.C.F.) which
are man-made vitreous silicate fibres. Excessive exposure to
these materials may cause temporary irritation to eyes, skin and
respiratory tract. Care must be taken when handling these
articles to ensure the release of dust or fibres is kept to a
minimum.
To ensure that the release of fibres from these articles is kept to
a minimum, during installation and servicing it is recommended
that a H.E.P.A. filtered vacuum is used to remove any dust, soot
or other debris accumulated in and around the appliance. This
should be performed before and after working on the
installation.
It is recommended that any replaced item(s) are not broken up
but sealed within heavy duty polythene bags and clearly labelled
“R.C.F. waste”. This is not classified as ‘hazardous waste” and
may be disposed of at a tipping site licensed for the disposal of
industrial waste.
Protective clothing is not required when handling these articles
but it is recommended that gloves are worn and the normal
hygiene rules of not smoking, eating or drinking in the work area
are followed and always wash hands before eating or drinking.
Supplied By www.heating spares.co Tel. 0161 620 6677
2.0 Technical Data – Page 5
Grasmere Windermere
Category of Appliance I2H
The stove is set for Gas Type G20 at 20mbar. Category of Appliance I2H
The stove is set for Gas Type G20 at 20mbar.
Heat Input High Low Heat Input High Low
kW 6.5 5kW 8.17 5.6
Btu/h 22,178 17,060 Btu/h 27,876 19,107
Heat Output High Heat Output High
kW 4.96 kW 6.14
Btu/h 16,922 Btu/h 20,962
Inlet Setting Pressure Cold Inlet Setting Pressure Cold
mbar 9 ± 0.5 mbar 6.5 ± 0.5
in wg 3.6 ± 0.2 in wg 2.6 ± 0.2
Gas Connection 8mm OD tube, rigid or semi
rigid and 8mm compression
fitting at appliance inlet
Gas
Connection 8mm OD tube, rigid or semi rigid
and 8mm compression fitting at
appliance inlet
Controls &
Safety system Rotary gas tap with piezo
ignition to pilot.
Spillage monitoring system
Controls &
Safety system Rotary gas tap with piezo ignition
to pilot.
Spillage monitoring system
Gas Rate 0.63m3/h Gas Rate 0.80m3/h
(22.241 ft3/h) (24.01 ft3/h)
Lifting Weight RF TF Lifting Weight RF TF
38.2 kg 36.4 kg 54.1 kg 51.6 kg
Dimensions Height 555mm (RF) Dimensions Height 730mm (RF)
Height 580mm (TF) Height 758mm (TF)
Width 450mm Width 600mm
Depth 345mm Depth 410mm
Injector 82/600 Injector 82/850
B.S. Codes of Practice
STANDARD SCOPE
B.S. 5440: Pts 1 & 2 Flues & Air Supply.
B.S. 1251 Open Fireplace Components
B.S. 5871: Pt 2 & 3 Installation of inset live fuel effect &
decorative fuel effect appliances.
B.S. 715 Specification for metal flue pipes,
fittings etc.
B.S. 6391 Gas Installation.
B.S. 1289: Pts 1 & 2 Specification for precast & clay flues
and terminals.
Supplied By www.heating spares.co Tel. 0161 620 6677
3.0 Site Requirements – Page 6
3.1 Fireplace Surround and Hearth
1. A hearth of non-combustible material must be provided
within the fireplace opening on which material the stove
stands (where applicable) (Fig. 2).
2. A non-combustible hearth must also be provided in
front of the fireplace opening. This must be a minimum
of 20mm thick, the top surface of the hearth should be
a minimum of 50mm above floor level (Fig. 3).
3. The hearth should extend at least 75mm in front of the
stove legs and 150mm either side of the stove (Fig. 4).
4. If a fire surround is to be used, it must have a minimum
rating of 300oC. Any gaps between the wall and
surround must be sealed.
5. On no account should the stove be fitted directly
onto a combustible floor or carpet.
3.2 Ventilation
Grasmere
1. No purpose provided ventilation is required for the
appliance, normal adventitious room ventilation being
sufficient.
Windermere
1. A permanent air vent of 100cm2minimum is required.
The permanent vent may be directly into the room in
which the appliance is installed, or to an adjacent room
which has a vent to outside of at least the same area.
Supplied By www.heating spares.co Tel. 0161 620 6677
3.0 Site Requirements – Page 7

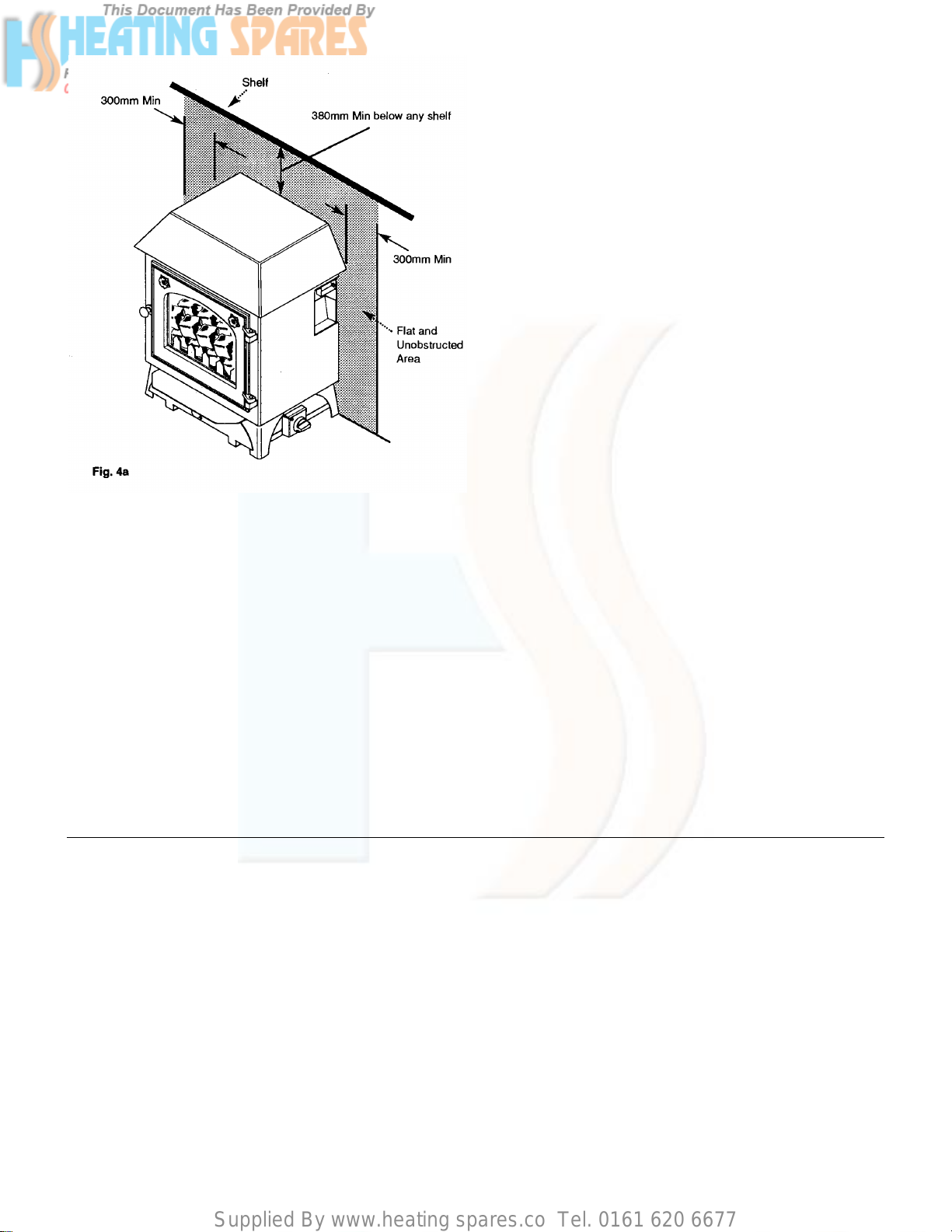

3.3 Clearances (Fig. 4a)
1. Any combustible material must be at least 300mm
away from the stove or flue pipe.
2. The wall or surround to each side of the stove must be
flat and unobstructed for at least 300mm.
3. Any shelf above the stove must be at least 300mm
away from the stove or flue pipe.
4. No curtains should be within 380mm of the stove or flue
pipe when they are in any position.
3.4 Flues
1. The chimney or flue system must be suitable for a
Class 1 or Class 2 appliance, as defined by the Building
Regulations.
2. It must have an internal diameter of minimum 125mm
or equivalent.
3. Generally brick or block built chimneys, pre-cast flues
or fabricated flues will meet these requirements.
4. The flue must be a minimum of 4m high, measured
from the hearth to the point of termination. The flue
must befitted with a suitable pot or cowl with an internal
diameter not less than 125mm.
5. Any obstructions, damper plates or flue restrictors must
be removed before installation.
6. If the flue is not sound or in good condition a liner of not
less than 125mm internal diameter and conforming to
BS 715 must be fitted.
7. The flue must be swept before installation and any
underfloor air supply beneath the stove sealed off.
8. It is essential that there is a positive pull up the flue or
chimney. If there is not, DO NOT fit the stove. Seek
expert advice before continuing with the installation.
Supplied By www.heating spares.co Tel. 0161 620 6677
3.0 Site Requirements – Page 8
3.5 Gas Supply & Connection
1. Determine where the gas supply is to be connected to
the appliance. This may be done from either the left or
right side, from the front, or a concealed fitting from the
rear.
Turn off any appliances that are fed by the meter and
isolate the gas supply by turning off at the meter.
2. The inlet elbow of the stove will accept 8mm OD tubing
(Fig. 5).
3. A suitable isolating cock and disconnecting union
should be always be fitted in the supply feed to the fire
to facilitate servicing.
Supplied By www.heating spares.co Tel. 0161 620 6677
4.0 Installation – Page 9
4.1 Initial Preparation
1. After unpacking the appliance, carefully remove all
items from inside the stove.
2. Care must be exercised when handling the appliance to
prevent damage to the paint finish. Avoid touching the
appliance with greasy or dirty hands
4.2 Top Flue Outlet Stoves
1. These models must be connected to the flue or
chimney with a suitable length of 125mm diameter
vitreous enamelled flue pipe fitted inside the spigot on
top of the stove.
2. The flue pipe must be fitted through a register plate of
fireproof material. All joints must be sealed.
4.3 Rear Flue Outlet Stoves (Fig. 6)
1. These models may be fitted to a builders opening, class
2 starter block or flue starter box, using the closure
plate supplied.
2. The closure plate must be sealed along all edges. No
air relief vent is necessary.
3. If necessary the closure plate can be cut down
providing the fireplace opening is fully covered.
4. A minimum clearance of 50mm is required between the
end of the flue spigot and rear face of the flue or
opening.
5. The rear of the stove must not touch the closure plate,
a gap of at least 15mm being required. The flue spigot
collar ensures this dimension.
Supplied By www.heating spares.co Tel. 0161 620 6677
4.0 Installation – Page 10
4.4 Fitting the Stove
1. Position the stove in the installation, and in the case of
top flue outlet models, connect the flue pipe.
2. When positioning the stove, care must be exercised not
to mark the hearth.
3. Purge the gas supply and connect it to the stove inlet
elbow (Fig. 7). Check for gas soundness with leak
detection fluid (to BS 6891).
Este manual sirve para los siguientes modelos
3
Tabla de contenidos
Otros manuales de Cocina de Baxi
Manuales populares de Cocina de otras marcas
Vermont Castings
Vermont Castings Intrepid 2 Manual de usuario
Italiana Camini
Italiana Camini CLASSICA Guía de inicio rápido
Avalon
Avalon Vashon Avanti DVS FS Manual de usuario
Spartherm
Spartherm ambiente a1 Manual de usuario
Dimplex
Dimplex MCFSTV12AU Manual de usuario
Warmlite
Warmlite WL46040 Manual de usuario
