OWNER GUIDE

This guide is intended to help you care for your gas fire. Please read thoroughly before

using and keep for future reference

This guide to be left with the owner

THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20)

WHEN CONVERTED USING CONVERSION KIT NO. 0595221 THIS

APPLIANCE IS FOR USE WITH PROPANE GAS (G31)

THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED

KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).

Classic 2

Model 719

(GC No. 32-032-53)

INSET LIVE FUEL EFFECT GAS FIRE

Manufactured exclusively for British Gas & Scottish Gas by Valor Heating

For Service Phone 0845 950 0400

Safety First.

This gas fire is CE Approved and designed to meet the appropriate British Standards

and Safety Marks.

Quality and Excellence at the heart of every fire.

This fire has been manufactured to the highest standards of quality and excellence and

are manufactured under a BS EN ISO 9001 quality system accepted by the British

Standards Institute.

The Highest Standards

The manufacturer is a member of the Society of British Gas Industries which works to

ensure high standards of safety, quality and performance.

Careful Installation

The manufacturer is a CORGI registered company. All our gas fires must be

installed by a competent CORGI Registered Installer in accordance

with our Installer Guide and should not be fitted directly on to a

carpet or floor of combustible material.

Valor Heating, Erdington, Birmingham B24 9QP

www.valor.co.uk

Because our policy is one of constant development and improvement, details may vary slightly from those

given in this publication

Page 2

OWNER GUIDE

LIST OF CONTENTS

Section Page

SAFETY 4

APPLIANCE DIMENSIONS 5

GAS CONSUMPTION 6

OPERATING YOUR FIRE 6

The Oxysafe flame sensing and flue blockage safety system. 6

To light the fire. 7

To turn the fire off. 8

Lighting with a taper. 8

CLEANING YOUR FIRE 8

Metal Parts 8

Ceramic fuel effect and rear wall. 8

Burner. 9

FUEL BED REFITTING 9

MAINTENANCE 11

Battery replacement. 11

Regular maintenance. 11

Servicing. 11

Owner replaceable parts 12

This gas fire is designed to meet the most stringent quality, performance and safety

requirements to provide you with many years’ trouble-free service.

This guide aims to improve your understanding and appreciation of your gas fire by

providing simple and informative instructions to ensure that you benefit from the

excellent performance and features it has to offer.

Page 3

OWNER GUIDE

SAFETY

have the fire installed by a competent person. In the United Kingdom, installation

must be in accordance with the latest edition of the Gas Safety (installation & use)

Regulations. In the Republic of Ireland, installation must be in accordance with all

national and local regulations in force.

have the chimney swept prior to installation if it was previously used for solid fuel.

Do have the fire installed in accordance with the installation instructions

provide a minimum clearance of 750mm from the top surface of the hearth to any

shelf made of wood or other combustible material where the shelf is not more than

150mm deep. For a shelf deeper than 150mm, add 12.5mm to the clearance for every

25mm of additional shelf depth (See graph1).

Do always use a fireguard complying with BS 8423 for the protection of young

children, the elderly or infirm.

Do wait three minutes before attempting to relight if the fire is switched off or the

flames are extinguished for any reason.(Your fire is fitted with a safety device that will

Page 4

OWNER GUIDE

IF YOU SMELL GAS

DON’T SMOKE

EXTINGUISH ALL NAKED FLAMES

DON’T TURN ELECTRICAL SWITCHES ON OR OFF

TURN OFF THE GAS SUPPLY AT THE METER

OPEN DOORS AND WINDOWS TO GET RID OF THE GAS

IMMEDIATELY CALL THE GAS EMERGENCY SERVICE – SEE YOUR LOCAL TELEPHONE

DIRECTORY

Graph 1. Combustible shelf clearances

automatically shut off the gas supply to the fire, if for any reason , the flame goes out)

Do get advice about the suitability of any wall covering near your fire. Soft wall

coverings (e.g. embossed vinyl, etc.) which have a raised pattern are easily affected by

heat. They may, therefore, scorch or become discoloured when close to a heating

appliance. Please bear this in mind whenever you are considering redecorating.

provide a minimum side clearance as detailed in figure 1. Please bear this in mind if

ever you are altering the room.

Don’t hang clothing, towels or any other fabrics over the fire.

Don’t

put more loose coals on the fire than the number given in this guide or use any

coals other than those authorised for this fire. Incorrect combustion could result.

Don’t put paper or other materials onto your fire.

Don’t use the fire with damaged base ceramics.

Don’t place any combustible material (rugs, carpet, plastic tiles, etc.) on the hearth

Don’t

attempt to clean or service the fire until it has been switched off and allowed to

cool completely.

APPLIANCE DIMENSIONS

Page 5

OWNER GUIDE

Figure 1. Appliance dimensions

GAS CONSUMPTION

Model 719

Has a maximum natural gas input of 6.0kW (Gross)

Has a maximum natural gas output of 3.5kW

Has a minimum natural gas input of 2.7kW (Gross)

Has a minimum natural gas output of 1.3kW

Model 719 when converted using kit number 0595221

Has a maximum propane gas input of 6.1kW (Gross)

Has a maximum propane gas output of 3.6kW

Has a minimum propane gas input of 4.3kW (Gross)

Has a minimum propane gas output of 2.1kW

OPERATING YOUR FIRE

The Oxysafe flame sensing and flue blockage safety system.

For your safety, this appliance is fitted with a flue blockage safety device which will

shut down the appliance in the event of abnormal flue conditions.

This device is NOT a

substitute for an independently mounted Carbon Monoxide detector.

The device will also automatically shut off the gas supply to the fire if the pilot flame

goes out due to lack of oxygen or for any other reason.

If this device starts to repeatedly shut off the gas, get expert advice.

This device incorporates a probe which senses that the heat from the pilot flame is

correct. If this probe is cool, the device will prevent any gas flow unless the control

knob is held at the ignition position.

If, for any reason, the flames go out when the fire is hot or if the fire is turned off when

hot, always wait at least three minutes before attempting to relight.

Page 6

OWNER GUIDE

PLEASE NOTE

When operating your fire for the first time, some vapours may be given off which may

cause a slight odour and could possibly set off any smoke alarms in the immediate

vicinity. These vapours are quite normal with new appliances. They are totally harmless

and will disappear after a few hours use.

To light the fire.

The slide control is shown in figure 2.

1. Slide the control button to the bottom (ignition) position

marked . In this position, the electronic ignition system

should cause a series of sparks which should light the pilot.

Within four seconds of the pilot igniting, the main burner

should light at its minimum setting.

If no sparks are produced to light the pilot, the battery may

need replacing. Details of battery replacement are given

further on in this manual.

Until you can obtain a replacement battery the fire can be lit with a taper as described

later in the instructions.

Keep the button at the ignition position for a further ten seconds. This will prevent

the flame-sensing device from shutting off the gas while its probe warms up as

explained above.

If low heat is required, release the button. The button will automatically spring up to

the low heat position shown in figure 2 (See note i).

For a higher heat level slide the button upwards. The burner flames and heat output

will gradually increase until the button reaches the high heat position shown in figure 2.

When the button reaches the high heat position you will feel a check to its movement.

Do not slide the button above the high heat position unless you want to turn the fire off

(See note i).

Notes:

If the flames go out while setting the control, repeat the full lighting procedure. If

the flames repeatedly go out have the fire serviced.

ii)

Please note. When first turned on the flames will appear predominantly blue. The

coals will take time to warm up. Although some glow will be seen after approximately

ten minutes, the full visual effect will only be apparent after a somewhat longer time.

iii)

The appliance will operate to its maximum potential if the flue is primed during

the first 20 - 30 minutes of operation. To do this, simply slide the control button to its

highest setting. This will also burn off any carbon deposits that may have formed during

previous operations.

iv)

If operating the appliance for long periods it is beneficial occasionally to change

the settings. This will also help to remove any carbon deposits that may form during

operation.

Page 7

OWNER GUIDE

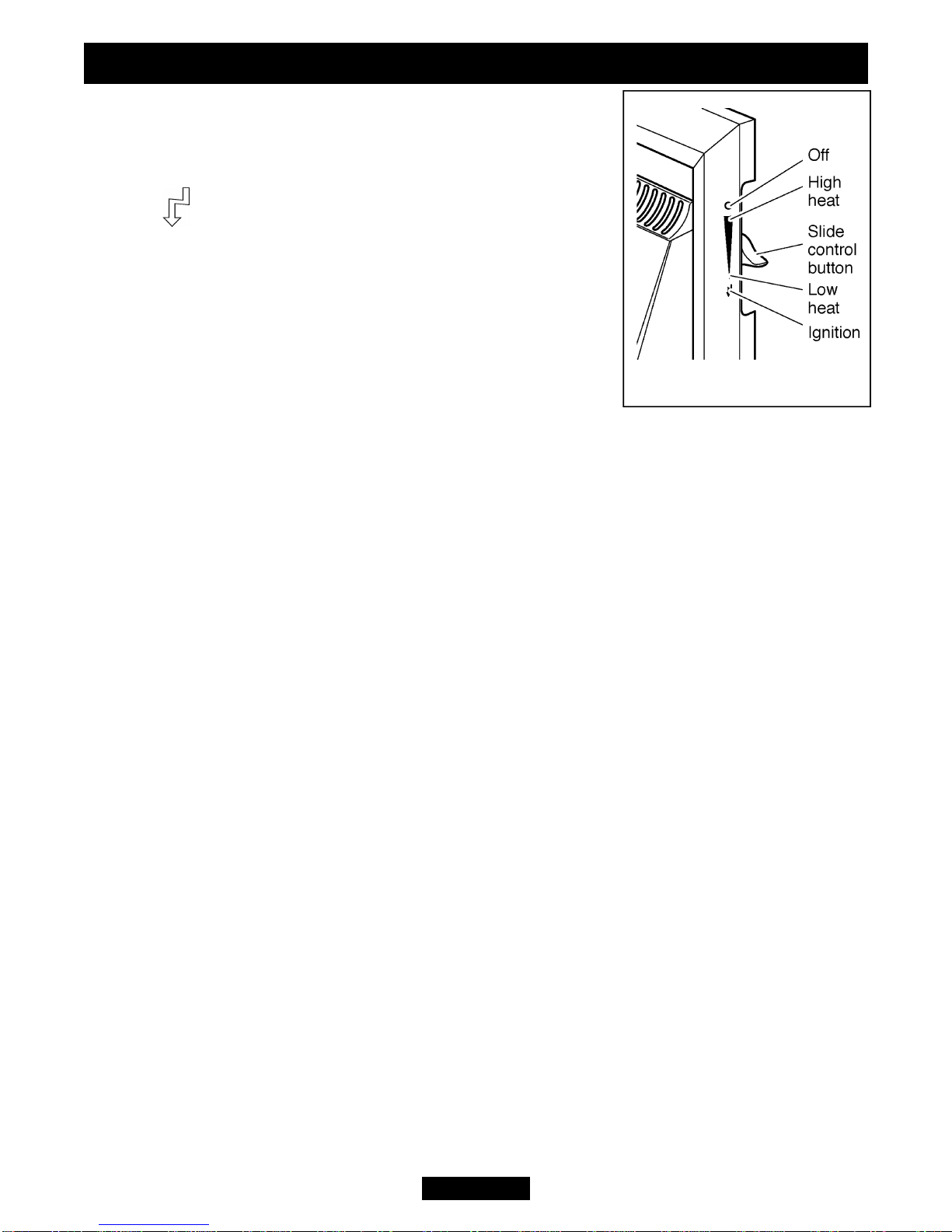

Figure 2.

To turn the fire off.

Slide the button up past the high heat position to the "O" position.

Both the main burner and the pilot should go out.

While cooling, the coals may make some crackling

noises. This is quite normal.

Lighting with a taper.

(See figure 3).

In the unlikely event of failure of the ignition

spark, the pilot can be lit by a taper or long spill.

Insert the taper or spill through the lower left hand

opening in the front of the fuel effect bed and

operate the slide control as described previously.

CLEANING YOUR FIRE

To maintain the high performance and quality finish of your appliance, please follow

these guidelines:

Before attempting to clean the fire, please remember to turn off the fire and wait for

the appliance to cool. The fire will retain heat for some time before cleaning can begin.

If any pieces of debris are found in the firebox, have the chimney inspected before

further use.

Metal parts

! Clean the metal parts with a slightly damp cloth and then dry.

! Do not use abrasive cleaners as these will scratch the fire surface.

Ceramic fuel effect and rear wall.

! This product uses fuel effect pieces and burner compartment rear wall

containing Refractory Ceramic Fibres (RCF), which are man-made vitreous

silicate fibres. Excessive exposure to this material may cause irritation to eyes, skin

and respiratory tract. Consequently, it is important to take care when handling

these articles to ensure that the release of dust is kept to a minimum.

Light coatings of soot will usually be burnt off during the normal operation of the

fire.

! Should any soot accumulation become excessive, the fuel effect pieces and walls

should be removed from the fire for cleaning.

Cleaning should be carried out in a well ventilated area or in the open air by gently

brushing with the pieces held away from your face so that you avoid inhaling the

dust.

We suggest that you remove the coals in the reverse order to that shown in the fuel

Page 8

OWNER GUIDE

Figure 3. Lighting with a taper

bed refitting instructions.

Burner.

! The burner surface can be carefully cleaned to remove any loose particles after

taking off the coals. Make sure that no particles are pushed into the burner holes.

FUEL BED REFITTING

The position of the fuel bed ceramic pieces is important. Do not alter the position of

the fuel bed ceramic pieces from that shown in this section of the owner guide.

1. Place the rear base coal in the firebox.

It should rest on the ledges at the rear

sides of the burner unit. When located

gently move the rear base coal so that it is

as far forward as possible. The amount of

movement will be negligible (See figure

4).

2. Place the front base coal in the firebox

with its bottom front locating over the

front rim of the firebox. Pull the coal

forward so that it locates immediately

behind the front rim of the firebox. (See

figure 5).The front base coal will touch

the rear base coal as it is located.

There are two types of loose coals. These are

identified with the letter “A” or “B” on the

underside of the coal.

There are three “A” coals and two “B” coals.

Page 9

OWNER GUIDE

Figure 4. Rear Base Coal Position

Figure 5. Front base

coal position

3. Place a type “A” coal between the

front and rear base coals with the

letter “A” upright and so that the coal

is against the left side of the firebox.

See figure 6.

4. Place a type “B” coal between the

front and rear base coals as shown in

figure 7. The letter “B” should be

upright.

5. Place a type “A” coal between the

front and rear base coals with the

letter “A” upright. The top of the

coal should rest against the centre

coal of the rear base coal as shown

in figure 8.

6. Place the remaining type “B” coal

at the right side of the firebox

between the front and rear base coals.

The letter “B” should be upright. The

coal should touch the right side of the

firebox. See figure 9.

7. Place the remaining type “A”

coal between the front and rear base

coals. The letter “A” should be

upside down with its rear face

between the right and centre coals

of the rear base coal. Angle the coal

so that the gap between it and the

type “B” coal to its right is

appreciably larger than the gap

between it and the type “A” coal to its

left but do not have it touching the

type “A” coal. This will give the best

flame effect. See figure 10.

Page 10

OWNER GUIDE

Figure 9.

Figure 10.

Figure 8.

Figure 7.

Figure 6.

Tabla de contenidos

Otros manuales de Chimenea de interior de Baxi

Baxi

Baxi Gallery Series Instrucciones de montaje

Baxi

Baxi Wentworth Deluxe Guía del usuario

Baxi

Baxi 946 Manual de usuario

Baxi

Baxi 748 Instrucciones de montaje

Baxi

Baxi 941 Manual de usuario

Baxi

Baxi EBONY SUPER Guía del usuario

Baxi

Baxi BERMUDA BBU HE Manual de usuario

Baxi

Baxi Bermuda RG3 Instrucciones de operación

Baxi

Baxi Bermuda SL3 Instrucciones de operación

Baxi

Baxi 946 Manual de usuario

Baxi

Baxi 940 Instrucciones de uso

Baxi

Baxi Harmony Instrucciones de montaje

Baxi

Baxi 748 Manual de usuario

Baxi

Baxi Gallery Series Instrucciones de montaje

Baxi

Baxi Bermuda Inset 3 Super Manual de usuario

Baxi

Baxi 961 Instrucciones de uso

Baxi

Baxi Wentworth Classic Guía del usuario

Baxi

Baxi 741FS Manual de usuario

Baxi

Baxi 949 Instrucciones de montaje

Baxi

Baxi BR660VA Manual de usuario

Baxi

Baxi Wonderfire AF16NV Manual de usuario

Baxi

Baxi 739 Manual de usuario

Baxi

Baxi 740FS Manual de usuario

Baxi

Baxi Gallery Series Instrucciones de montaje

Manuales populares de Chimenea de interior de otras marcas

Brigantia

Brigantia 35-DVRS31N-2 Manual del propietario

Nordpeis

Nordpeis Bergen Manual de usuario

Superior

Superior BCT2536TMN Manual de usuario

Quadra-Fire

Quadra-Fire 5100I-GD-B Manual de usuario

Renaissance

Renaissance RUMFORD 1000 Manual de usuario

Lacunza

Lacunza IV-800 Manual de usuario

Dru

Dru Maestro 60/2 Tall RCH Manual de usuario

Diamond Fireglass

Diamond Fireglass SS-O22 Manual de usuario

HearthStone

HearthStone Windsor Bay 8830 Manual de programación

Napoleon

Napoleon ASCENT B42 Manual de usuario

Enviro

Enviro E33GI Manual de usuario

Smeg

Smeg L30 FABE Instrucciones de montaje

KEDDY

KEDDY K700 Manual de usuario

Godin

Godin 3451 Manual de usuario

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manual de usuario

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manual de usuario

Desa

Desa CCFPDFT Manual de operación

Miles Industries

Miles Industries Vogue 1300IRN Manual
