Baumatic MG3 Manual de usuario

MG3/P35SS/SB3/TG3

Cooker Hood

User Manual for your Baumatic

MG3/P35SS/SB3/

TG3 Cooker Hood

90cm Cooker Hood

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 20/06/07

Contents Page

Environmentalnote 4

IMPORTANT SAFETY INFORMATION 5 – 7

Specifications of your cooker hood 8

Using your Baumatic cooker hood 9

Thecontrolpanel 9

Thetimerbutton 10

Grease filter maintenance alarm 10

Cleaning your Baumatic cooker hood 11

The grease filter 11

Maintenance 12

Removing and cleaning the grease filter 12 - 13

Changingalightbulb 14

Fitting the carbon filter 15

Installation 16

Electricalconnection 17

Before beginning installation 18

Extraction mode or recirculation mode? 19

Installing your cooker hood 20 - 24

Connecting to external ducting 24

Chimney section dimensions 25

Fitting the chimney section 26 - 27

Troubleshooting 28

Baumatic Ltd. conditions of guarantee 29

Contactdetails 30

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any

plug useless. Cut the cable off directly behind the appliance to

prevent misuse. This should be undertaken by a competent

person.

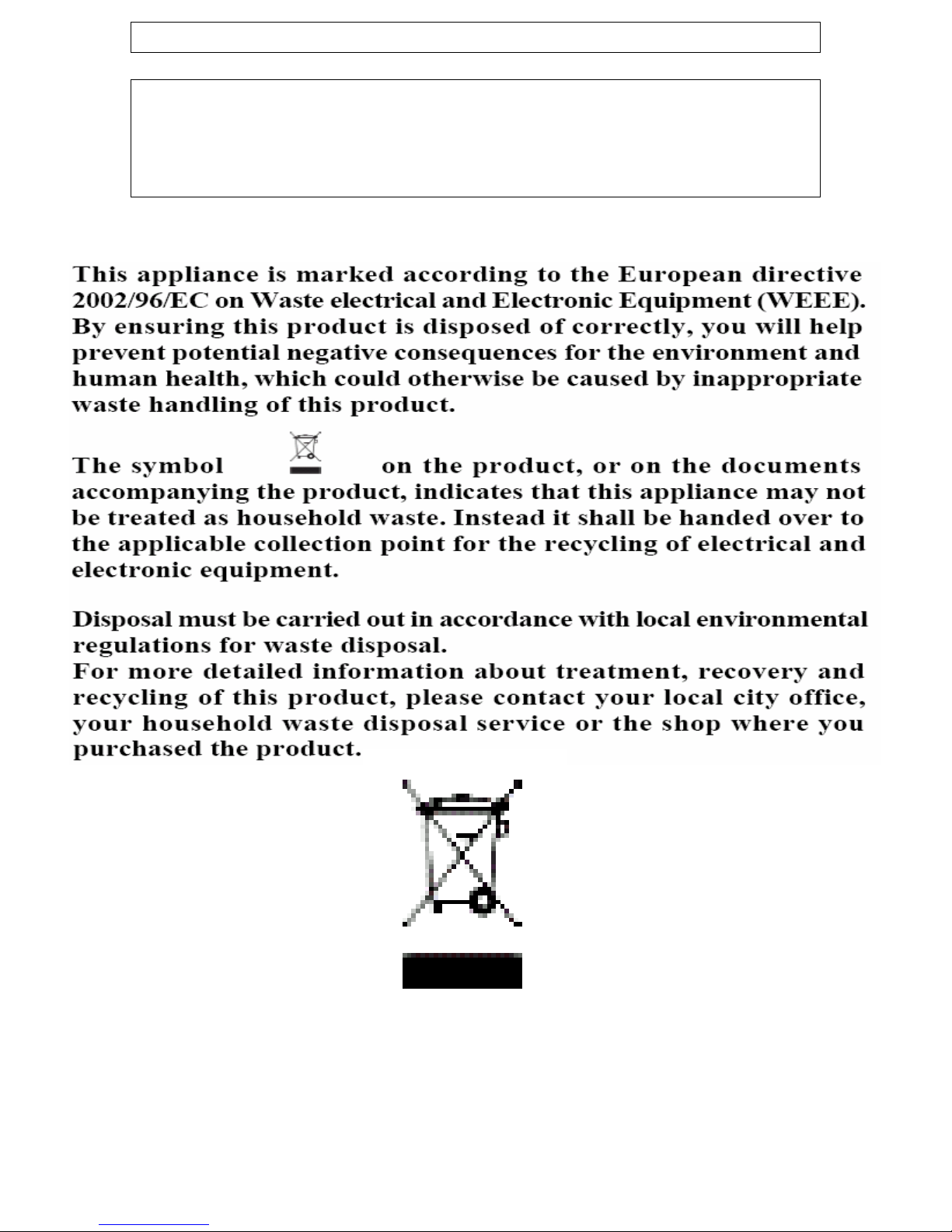

CONFORMITY TO W.E.E.E. DIRECTIVE

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

oPlease discard all packaging material with due regard for the

environment.

IMPORTANT SAFETY INFORMATION

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If

you are unsure of any of information contained in this

booklet, please contact the Baumatic Technical

Department.

IMPORTANT: Any installation work must be

carried out by a qualified electrician or

competent person.

oThe hood must be installed in accordance with the installation

instructions and all measurements followed.

oIf the cooker hood is installed for use above a gas appliance then

the provision for ventilation must be in accordance with the Gas

Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural

Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &

Use) Regulations, the Building Regulations issued by the

Department of the Environment, the Building Standards

(Scotland) (Consolidated) Regulations issued by the Scottish

Development Department.

oIt is dangerous to alter the specifications or to modify this

product in any way. Do not tamper with it or attempt to modify

the appliance in any way.

oWhen installing the hood, ensure that the following

recommended distances are observed between the highest point

on the hob top (including the burners) and the bottom of the

cooker hood:

¾Electric cookers: 700 mm

¾Gas cookers: 700 mm

¾Coal/ oil cookers: 800 mm

IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS

THAN 700mm ABOVE YOUR COOKER.

oWhen installed between adjoining wall cabinets, the cabinets

must not overhang the hob.

oThe edges of the cooker hood are sharp – be mindful of this as

you handle your appliance, especially during installation and

cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!

oIf the room where the cooker hood is to be used contains a fuel

burning appliance such as a central heating boiler then its flue

must be of the sealed or balanced flue type.

oIf other types of flue or appliances are fitted, ensure that there is

an adequate supply of air in the room.

oWhen the hood is being used in its extractor function, ensure

that the ducting is fire retardant and that there are no bends

sharper than 90 degrees as this will reduce the efficiency of the

hood.

oEnsure the ducting for the extractor function has the same

diameter as the outlet hole all the way through.

oKeep young children from using, playing with

or tampering with the cooker hood. Older

children and infirm persons should be

supervised if they are using the cooker hood.

oYour cooker hood is for domestic use only.

oPlease dispose of the packing material carefully – children are

especially vulnerable to it.

oDirty oil is an even greater fire risk.

oAlways put lids on pots and pans when cooking

on a gas cooker.

oThe manufacturer refuses to accept any responsibility for

damages arising to the hood or it catching on fire from failure to

observe fire safety advice in these instructions.

oRemember that when in extraction mode, your cooker hood is

removing air from your room. Ensure that proper ventilation

measures are being observed. Note that it removes odours

from your room, not steam.

oWarning - Always ensure that the cooker

hood has been disconnected from the

power supply before carrying out any work

on the hood, including replacing light bulbs.

oDo not connect the ducting system of this appliance to any

existing ventilation system which is being used for any other

purpose.

oDo not install above a cooker with a high level grill.

oNever leave frying pans unattended during use

as overheated fats and oils might catch fire.

oDo not leave naked flames under the cooker

hood.

oDo not attempt to use the cooker hood if it is damaged in any

way. Never attempt to use it without the grease filters fitted or

if the filters are excessively greasy!

oNever flambé cook under this cooker hood.

THE MANUFACTURER DECLINES ALL

RESPONSIBILITY IN THE EVENT OF FAILURE TO

OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR

INSTALLATION, MAINTENANCE AND SUITABLE

USE OF THE HOOD.

Specifications of your cooker hood

Congratulations on purchasing a Baumatic Cooker

Hood!

DIMENSIONS:

Width (canopy): 898 mm

Depth (canopy): 462 mm

Height (without chimney) 596 mm

Height (with chimney): 1575 mm

DIMENSIONS OF CHIMNEY SECTION:

260 mm x 263 mm

Your cooker hood is fitted with:

oSuperior extraction tangential motor

oTouch control operation

o4 Speeds

o2 Metallic grease filters

o3 halogen lights

Extraction capacity: 800 m³/hr

Noise level min/max: 39 – 64 dB

Optional Extra: 1 x SCS13 pair of carbon filters for

air recirculation mode

1 x CQ1SS pair of chimney sections

for external ducting

Using your Baumatic cooker hood

The control panel

oMake sure that it has been installed by a suitably qualified

person, as per the information contained in Baumatic’s

installation instructions.

oFind the control panel, which is located at the front right hand

side of the canopy.

oThere are several buttons on the control panel, which perform

separate functions.

(On/off button)

(Decrease speed)

(LED display)

(Increase speed)

(Timer button)

(Light ON/OFF button)

IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR

HOOD TEN MINUTES BEFORE YOU START TO COOK.

OR AT THE VERY LEAST WHEN YOU BEGIN COOKING.

YOU SHOULD ALSO RUN YOUR HOOD FOR TEN

MINUTES AFTER YOU HAVE FINISHED COOKING.

oUse the ON/OFF button to switch the cooker hood on.

oUse the plus and minus buttons to regulate the speed that the

motor is running at.

oThe speed level that you have selected will appear on the LCD

display.

oTo switch the cooker hood off, press the ON/OFF button.

oWhen you next switch the hood on, it will remember the speed

that it was running at when it was last used.

The timer button

oIf you press the timer button whilst the cooker hood is in

operation, then it will countdown for 15 minutes.

oDuring the countdown the number on the LCD display will flash.

oWhen the countdown has finished the cooker hood will switch

off.

oIf you press either the plus or minus button during the

countdown, the cooker hood will return to normal operation.

Grease filter maintenance alarm

oAfter approximately 30 hours of operation, the timer button will

glow red. This means that the grease filters need to be cleaned.

oYou should follow the grease filter cleaning operation that is

outlined on pages 11-13 of this instruction booklet.

oWhen the grease filters have been put back in position, turn on

the hood and then hold down the timer button until the red light

goes out.

oTurn the hood off and then back on again, to check that the

alarm has been reset.

IMPORTANT: TO MAINTAIN THE CORRECT

FUNCTIONING OF THE CONTROL PANEL, WE

RECOMMEND THAT YOU REGULARLY CLEAN THE

FRONT OF THE GLASS.
