BRCIF7535

266 Litre built-in combi

frost free fridge-freezer

USER MANUAL FOR YOUR BAUMATIC

BRCIF7535

266 Litre built-in combi

frost free fridge-freezer

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference, for

you or any person not familiar with the operation of the appliance.

JW 19/02/13

Contents

Environmentalnote 4

Important safety information 5–6

Specifications of your combi fridge freezer 7-9

Descriptionofyourappliance 8

Controlpanel 8

Description of the product features 9

Using your Baumatic combi fridge freezer 10-11

Beforeswitchingon 10

Duringfirstuse 10

Switching on the appliance and setting the thermostat 11

SuperCoolmode 12

Opendoorwarningalarm 12

Arranging and storing food in the fridge section 13-14

The freezer compartment 14-16

Freezing fresh food 14

Tipsonfreezing 15

Makingicecubes 15

Super Freeze mode 16

Saving energy when using your fridge-freezer 16-17

Cleaning and maintenance 18-20

Replacing the light bulb 18

Defrosting the freezer compartment 19

Installation 20-33

Electrical connection 20-21

Positioning 21

Reversing the doors of your appliance 22-23

Aperture dimensions and ventilation requirements 24

Installing your fridge freezer 25-33

Installing the door-on-door fittings 29-33

Troubleshooting 34-35

Baumatic consumables 36

Technicaldata 37

Contactdetails 39

Environmental note

Note

: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

IMPORTANT: Any installation work must be carried

out by a qualified electrician or competent person.

Use of the appliance

oYour appliance is only designed to be used in the

home. It is suitable for storing food that needs to

be chilled and refrigerated. If it is used for any

other purpose or it is not used correctly, then

Baumatic Ltd. will accept no liability for any

damage that may be caused.

oAltering the specification of the appliance must not be attempted

for reasons of safety.

Before using your appliance

oCheck the appliance for any signs of transport damage. If you

notice any damage, then you should not connect your appliance

to your mains supply and should contact your retailer.

Refrigerant

oYour appliance contains R600a refrigerant, which is a natural gas

that does not contain CFCs that can damage the environment.

However it is a flammable substance, therefore care should be

taken:

During the transportation and installation of the

appliance, make sure that the refrigeration pipe work

does not get damaged.

If it does become damaged then sources of ignition

and open flames should be avoided. Also the room

that the appliance is situated in should be thoroughly

ventilated.

oDo not place any objects on top of the

appliance, as this may damage the table top.

Child safety

oPackaging material should be kept away from

children.

oChildren should not be allowed to touch the

controls or play with the appliance.

General safety

oDo not pull on the power supply cable to remove the plug from

your mains supply socket.

oDo not pull out or insert the plug with wet hands.

oDo not attempt to use your appliance outdoors or

any place where it is likely to come into contact

with the elements.

oBefore cleaning the appliance or performing maintenance work,

ensure that the appliance has been disconnected from your

mains supply.

oNever allow the back coils of the appliance to come into contact

with the wall surface.

oAlways ensure that the location where you are installing your

appliance is free of stored items such as papers and other

flammable materials.

oNever block the ventilation openings of the appliance, either on

the inside or its exterior.

It is vital to keep your appliance well ventilated,

so that there is proper air flow between the

bottom of the unit and the plinth/kick plate which

it is sitting on. See the ventilation instructions on

page 25 of this manual.

oDo not place electrical devices inside of the appliance, such as

mixers and electric ice cream makers.

Service

You should not attempt to repair the appliance

yourself, as this could cause injury or a more serious

malfunction. If you require a service call then please

contact the Baumatic Service Department.

Specifications of your BRCIF7535 fridge freezer

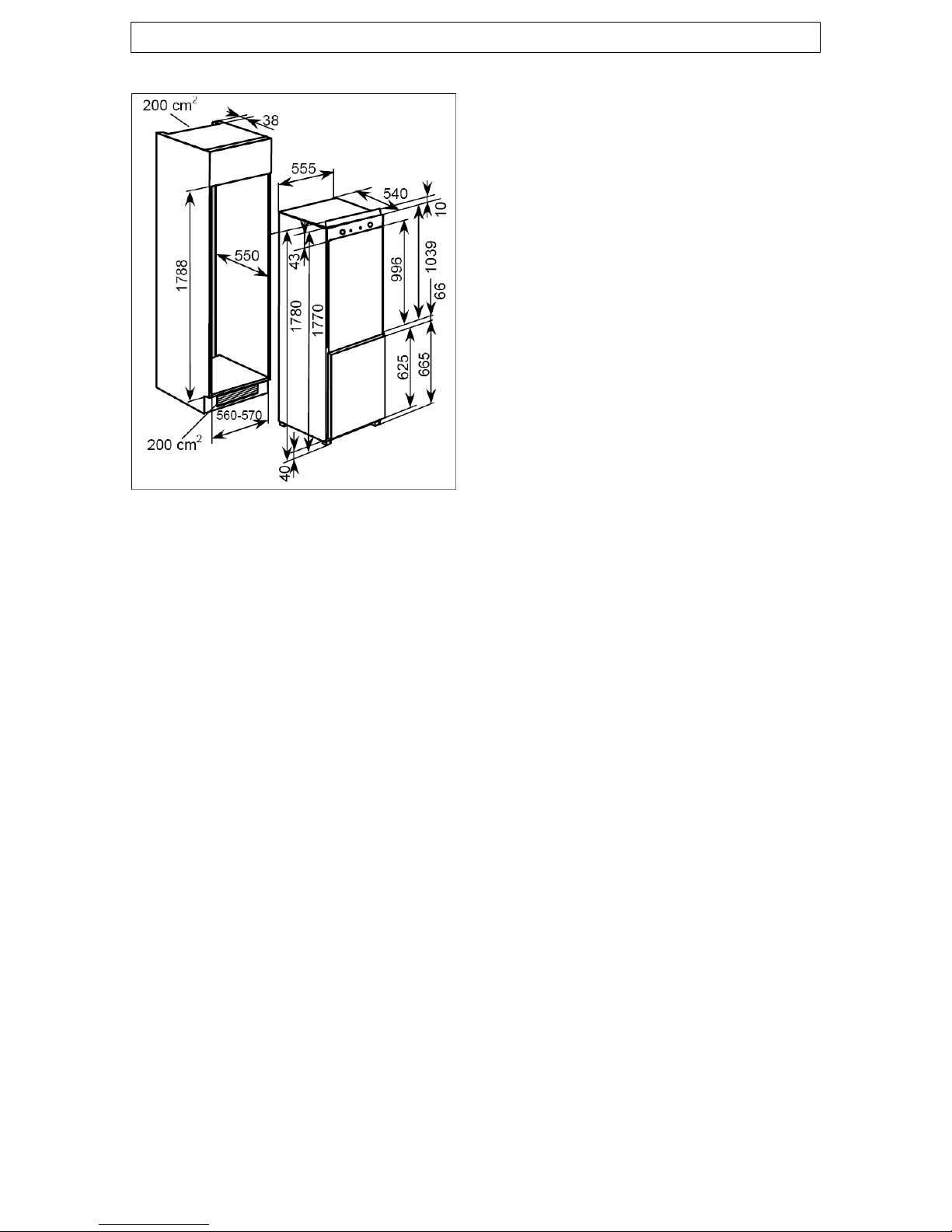

Dimensions of appliance

Height: 1780 mm

Width: 555 mm

Depth: 540 mm

Dimensions of aperture

Height: 1788 mm (min)

Width: 560 mm (min)

Depth: 550 mm

oFrost free fridge and freezer

oAdjustable thermostat

o4 star freezer

oFreezing capacity: 10 kg / 24 hours

oOpen door warning alarm

oReversible doors

oDoor-on-door fitting

oElectronic control operation

o4 Adjustable safety glass shelves

o1 Salad crisper cover (safety glass)

o1 Salad crisper

o2 General door racks

o1 Bottle rack

o2 Egg racks

oSuper Cooling switch

oSuper Freezing switch

o3 Freezer drawers

oIce cube tray

Cubic capacities

oTotal gross / net capacity: 266 / 241 litres

oGross fridge / freezer capacity: 186 / 80 litres

oNet fridge / freezer capacity: 179 / 62 litres

Energy efficiency class

Energy class: A+

IMPORTANT: When you install your appliance it is important to bear

in mind its climatic rating.

In order to find out the climatic rating of your appliance, you should

check the rating plate. The rating plate is located on inside the fridge

section, behind the salad crisper drawer. You will need to open the

fridge door of your appliance to be able to find it. The rating plate will

indicate the ambient temperature range that your appliance will

function correctly within.

Description of the BRCIF7535 fridge freezer

Control panel

A) Power button. Press and hold for 3 seconds to turn appliance off/on.

B) Refrigerator temperature adjustment knob.

C) Freezer temperature adjustment knob.

Description of the product features

Safety glass shelves

oThe shelves may be placed in any of the guide slots within the

interior of the appliance. They are protected from sliding out.

oTo remove a shelf: Take off all of the items that are stored on

the shelf that you want to remove. Then lift the back of the shelf

and carefully pull it out of the grooves.

Salad crisper drawer and cover

oThe crisper drawer is in the bottom of your refrigerator and there

is a cover that goes over it.

oThe cover helps to prevent fruit and vegetables from drying out

prematurely.

General door racks

oThe door liner holds various racks, which are suitable for storing

eggs, cheese, butter and yogurt. As well as smaller packages,

tubes, cans etc.

Bottle rack

oThe middle door rack should be used for storing reasonably sized

bottles.

oIMPORTANT: IT IS IMPORTANT THAT NONE OF THE

SHELVES THAT SIT IN THE DOOR ARE OVERLOADED, AS

THIS WILL DRASTICALLY REDUCE THEIR WORKING LIFE.

Freezer compartment

oA freezer section, with a net capacity of 62 litres.

Using your Baumatic combi fridge freezer

Before switching on

oMake sure that it has been installed by a suitably qualified

person, as per the information contained in Baumatic’s

installation instructions.

oAfter delivery, wait for eight hours before connecting the

appliance to your mains supply. This will allow any refrigerant

gasses that may have been disturbed during the transportation

process to settle.

oThe outside of the appliance and the removable accessories

contained within it, should be cleaned with a solution of liquid

detergent and water.

oThe interior of the appliance should be cleaned

with a solution of sodium bicarbonate dissolved in

lukewarm water. The interior and accessories

should be thoroughly dried, after the cleaning

process has been completed.

oThere can be an odour when you first switch on the appliance. It

will lessen as the appliance starts to cool.

During first use

oYou should set the thermostat dial to its maximum setting

(S.Cool/S.Frz) for 24 hours, after switching on the appliance for

the first time.

oWhen you first switch on the appliance, the compressor will run

continuously for approximately 24 hours or until the fridge

freezer reaches a cool enough temperature.

oDuring this period of time, you should try not to open the door

frequently or place a large amount of food within the appliance.

oYou should then adjust the thermostat dial down to its normal

operating position.

oIf the unit is switched off or unplugged, you must allow at least 5

minutes before restarting the appliance on the thermostat or

connecting it to your mains supply.
