USER MANUAL FOR YOUR BAUMATIC

BRB2713.5

264 Litre built-in

combi fridge-freezer

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference, for

you or any person not familiar with the operation of the appliance.

JW 02/01/13

Contents

Environmentalnote 4

Important safety information 5–6

Specifications of your fridge freezer 7-10

Specifications 7

Description 8

Controlpanel 9

Features 10

Using your Baumatic combi fridge freezer 11-12

Beforeswitchingon 11

Duringfirstuse 11

Switching on the appliance and setting the thermostat 12

Arranging and storing food in the fridge section 13-14

The freezer compartment 14-17

Freezing fresh food 14

Tipsonfreezing 15

Makingicecubes 16

Freezing using the super frost setting 16

Warningalarm 17

Saving energy when using your fridge-freezer 17

Cleaning and maintenance 19-22

Thedefrostdrainhole 19

Defrosting the freezer compartment 20

Replacing the light bulb 22

Installation 23-33

Electricalconnection 23

Positioning 24

Reversing the doors of your appliance 24

Aperture dimensions and ventilation requirements 31

Installing your fridge freezer 33

Troubleshooting 37

Baumatic consumables 39

Technical Data 40

Contactdetails 41

Environmental note

Note

: Before discarding an old appliance, switch off and

disconnect it from the power supply. Cut off and render any plug

useless. Cut the cable off directly behind the appliance to prevent

misuse. This should be undertaken by a competent person. Disable

the door lock to make sure that children cannot get stuck inside

the appliance.

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

booklet, please contact the Baumatic Advice Line.

IMPORTANT: Any installation work must be carried

out by a qualified electrician or competent person.

Use of the appliance

oYour appliance is only designed to be used in the

home. It is suitable for storing food that needs to

be chilled and refrigerated. If it is used for any

other purpose or it is not used correctly, then

Baumatic Ltd. will accept no liability for any

damage that may be caused.

oAltering the specification of the appliance must not be attempted

for reasons of safety.

Before using your appliance

oCheck the appliance for any signs of transport damage. If you

notice any damage, then you should not connect your appliance

to your mains supply and should contact your retailer.

Refrigerant

oYour appliance contains R600a refrigerant, which is a natural gas

that does not contain CFCs that can damage the environment.

However it is a flammable substance, therefore care should be

taken:

During the transportation and installation of the

appliance, make sure that the refrigeration pipework

does not get damaged.

If it does become damaged then sources of ignition

and open flames should be avoided. Also the room

that the appliance is situated in should be thoroughly

ventilated.

oDo not place any objects on top of the appliance,

as this may damage the table top.

Child safety

oPackaging material should be kept away from

children.

oChildren should not be allowed to touch the

controls or play with the appliance.

General safety

oDo not pull on the power supply cable to remove the plug from

your mains supply socket.

oDo not pull out or insert the plug with wet hands.

oDo not attempt to use your appliance outdoors or

any place where it is likely to come into contact

with the elements.

oBefore cleaning the appliance or performing

maintenance work, ensure that the appliance has been

disconnected from your mains supply.

oNever allow the back coils of the appliance to come into contact

with the wall surface.

oAlways ensure that the location where you are installing your

appliance is free of stored items such as papers and other

flammable materials.

oNever block the ventilation openings of the appliance, either on

the inside or its exterior.

It is vital to keep your appliance well

ventilated, so that there is proper air flow

between the bottom of the unit and the

plinth/kick plate which it is sitting on. See

the ventilation instructions on page 32 of this manual.

oDo not place electrical devices inside of the appliance, such as

mixers and electric ice cream makers.

Service

You should not attempt to repair the appliance yourself,

as this could cause injury or a more serious malfunction.

If you require a service call then please contact the

Baumatic Service Department.

Specifications of your BRB2713.5 fridge freezer

Dimensions of appliance

Height: 1773 mm

Width: 540 mm

Depth: 565 mm

Dimensions of aperture

Height: 1776 mm – 1782 mm

Width: 560 mm

Depth: 570 mm

oAdjustable thermostat

oLED control panel

oIndependent fridge and freezer temperature settings

oTemperature rise warning indicator

oFast freeze switch

oFast freeze indicator light

oAutomatic defrost (fridge section only)

oAdjustable feet

oReversible doors

oBottle rack

o3 General door racks

o3 Adjustable safety glass shelves

oSalad crisper cover (safety glass)

o2 salad crispers

oEgg rack

oButter and cheese compartment

o4 star freezer

o3 Transparent freezer drawers

oIce cube tray

Cubic capacities

oTotal gross/net capacity: 264/251 litres

oGross capacity: (fridge/freezer) 196/68 litres

oNet capacity: (fridge/freezer) 191/60 litres

Energy efficiency class

Energy class: A+

IMPORTANT: When you install your appliance it is important to bear

in mind its climatic rating.

In order to find out the climatic rating of your appliance, you should

check the rating plate. The rating plate is located on the inside of the

fridge section, behind the salad crispers. You will need to open the

door of your appliance to be able to find it. The rating plate will

indicate the ambient temperature range that your appliance will

function correctly within.

Description of the BRB2713.5 fridge freezer

1. Control panel 6. Butter/Cheese

compartment2. Fridge light

3. Safety glass shelves (x 4) 7. Upper door rack

4. Salad crisper drawers 8. Bottle rack and general

door racks5. Freezer drawers

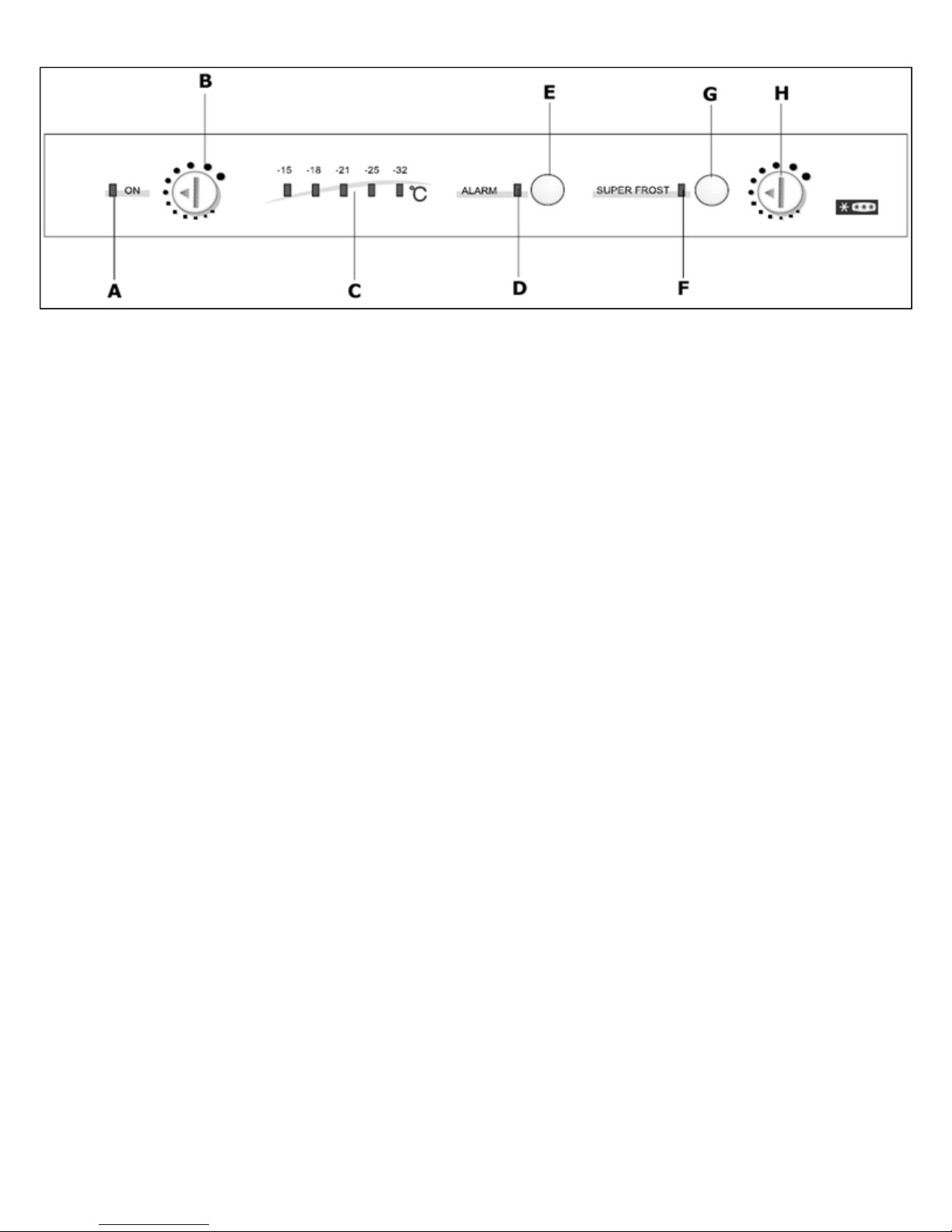

Control panel

A) Power indicator neon (green)

B) Fridge thermostat dial

C) Freezer temperature indicator (orange)

D) Warning alarm neon (red)

E) Warning alarm off button

F) Super frost indicator neon (yellow)

G) Super frost on/off button

H) Freezer thermostat dial

Power indicator neon (green)

oThis will light as soon as the appliance is connected to your

mains supply.

Freezer temperature indicator (orange)

oThese neons indicate what temperature is currently being

achieved by the freezer section.

Warning alarm neon (red)

oThis neon will light if the warning alarm has activated.

Super frost neon (yellow)

oThis neon will light if the super frost setting has been activated.

Description of the product features

Safety glass shelves

oThe shelves may be placed in any of the guide slots within the

interior of the appliance. They are protected from sliding out.

oTo remove a shelf: Take off all of the items that are stored on

the shelf that you want to remove. Then lift the front of the shelf

and carefully pull it out of the grooves.

Defrost water outlet

oThe interior of the refrigerator is cooled by the cooling plate that

is on the rear wall. Beneath this there is a channel and an outlet

for the defrost water.

oIt is important that this channel never becomes clogged (see

“The defrost drain hole” section for a detailed explanation of how

to keep the channel clear).

Salad crisper drawers and cover

oThe crisper drawers are in the bottom of your refrigerator and

there is a cover that goes over them.

oThe cover helps to prevent fruit and vegetables from drying out

prematurely.

General door racks

oThe door liner holds various racks which are suitable for storing

eggs, cheese, butter, yogurt, as well as smaller packages, tubes,

cans etc.

Bottle rack

oThe lower door rack should be used for storing reasonably sized

bottles.

oIMPORTANT: IT IS IMPORTANT THAT NONE OF THE

SHELVES THAT SIT IN THE DOOR ARE OVERLOADED, AS

THIS WILL DRASTICALLY REDUCE THEIR WORKING LIFE.
