Baumatic Pythagora P61SS Manual de usuario
1
P61SS/P62SS Pythagora 60cm
gas hob
P67SS/P68SS Pythagora 70cm
gas hob
2
User Manual for your Baumatic
P61SS/P62SS Pythagora 4 burner 60cm
gas hob
P67SS/P68SS Pythagora 5 burner 70cm
gas hob
You will be mine
NOTE:This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 27/10/06
3
Contents
Environmental note 4
Important safety information 5 – 7
Specifications 8
Product & Aperture dimensions 8
Product specifications 8
Standard accessories 8
Electrical details 8
Gas details 9
Gas hob surface layout 9
Using the gas hob 10
Before first use 10
Turning the hob on 10
Automatic electric ignition 10
Energy saving tips 11
Cleaning 12
Cleaning the hob top 12
After each use 12
Cleaning the hob burners 12 - 13
Installation 13
Positioning 14
Unpacking the appliance 15
Installing the appliance 15 – 17
Gas connection 17
Ventilation requirements 18
Gas Safety (Installation and Use) Regulations 18 – 19
Gas Adjustment (Conversion to LPG and flow adjustment) 19 – 20
Gas tap maintenance 20 - 21
Electrical connection 21
Replacing the mains supply cable 22
My appliance isn’t working correctly 23
Baumatic Ltd. Conditions of Guarantee 24
Contact details 25
4
Environmental note
oThe packaging materials that Baumatic uses are environmentally
friendly and can be recycled.
oPlease discard all packaging material with due regard for the
environment.
5
Important safety information
Your safety is of the utmost importance to Baumatic.
Please make sure that you read this instruction booklet
before attempting to install or use the appliance. If you
are unsure of any of the information contained in this
booklet, please contact the Baumatic Technical
Department.
General Information
oThis appliance is designed for domestic household use and for
the cooking and frying of domestic foodstuffs.
oIMPORTANT: The adjacent furniture and all materials used in
the installation must be able to withstand a minimum
temperature of 85°C above the ambient temperature of the
room it is located in, whilst in use.
oCertain types of vinyl or laminate kitchen furniture are
particularly prone to heat damage or discolouration at
temperatures below the guidelines given above.
oAny damage caused by the appliance being installed in
contravention of this temperature limit, will be the liability of
the owner.
oYour new appliance is guaranteed against electrical or
mechanical defects, subject to certain exclusions that are noted
in Baumatic’s Conditions Of Guarantee. The foregoing does not
affect your statutory rights.
oThe use of this appliance for any other purpose or in any other
environment without the express agreement of Baumatic Ltd.
will invalidate any warranty or liability claim.
oYou should not use this appliance to store items on or as a work
surface.
oNo modifications to the appliance are permitted by Baumatic Ltd.
oYou should not store or place flammable or highly flammable
liquids/materials on top of or near the appliance. Items made
from aluminium, plastic or plastic film should also be kept away
from the appliance, as they may fuse to the surface.
oRepairs may only be carried out by Baumatic Service
Engineers or their authorised service agent.
6
Child Safety
oBaumatic strongly recommend that babies and young children
are prevented from being near to the appliance and not allowed
to touch the appliance at any time. During and after use, all
surfaces will become hot.
oIf it is necessary for younger family members to be in the
kitchen, please ensure that they are kept under close supervision
at all times.
oOlder children should only be allowed to utilise the appliance
when supervised.
General Safety
The appliance should only be installed and connected by a
CORGI registered installer.
Care should be taken to ensure that the units and work surfaces
that you build the appliance into, meet with the relevant
standards.
During use
Any film or stickers that are present on the hob surface when it
is delivered should be removed before use.
Care should be used when utilizing the appliance, otherwise
there is a risk of burns being caused.
oYou should not allow the electrical connection cables to come
into contact with the hob surface when it is hot or any hot
cookware.
oIf fat and oil overheats, then it can ignite extremely quickly. For
this reason, when cooking with fat and oil the appliance should
not be left unattended.
Make sure that all of the cooking zones are switched off after
use.
Cleaning
oCleaning of the hob should be carried out on a regular basis.
oIMPORTANT: Before attempting to clean the appliance, it
should be disconnected from the mains and cool.
7
oGreat care should be taken whilst using this appliance and when
following the cleaning procedure.
oYou should not use a steam jet or any other high pressure
cleaning equipment to clean the appliance.
Installation
This appliance must be correctly installed by a
CORGI registered installer, strictly in accordance
with the manufacturer’s instructions and the
relevant British Standards. Please see the specific
section of this booklet that refers to installation.
oBaumatic Ltd. declines any responsibility for injury or
damage, to person or property, as a result of improper
use or installation of this appliance.
oIf the appliance is being used in a Leisure Accommodation
Vehicle, the requirements of N 721 MUST be followed.
oBaumatic Ltd. DO NOT recommend that this appliance is
installed on any type of marine vessel.
Declaration of conformity
This appliance complies with the following European Directives:
-73/23/EEC dated 19/02/1973 Low Voltage Directive.
-89/336/EEC dated 03/05/1989 EMC Directive inclusive of
Amending Directive 92/31/EEC.
-93/68/EEC dated 22/07/1993 CE Marking Directive.
-89/109/EEC dated 25/01/1992 Materials that can touch food.
-90/396/EEC Gas Products.
-EN60335-1, EN60335-2, EN301-1 Safety Standards.
The manufacturer declares that the hob is built using certified
materials and requires the appliance to be installed in accordance with
the standards currently in force. This appliance must be used by a
trained person for domestic purposes only.
8
Specifications
P61SS & P62SS
Product dimensions:
Height: 500 mm
Width: 585 mm
Depth: 35 mm
Aperture dimensions:
Height: 480 mm
Width: 560 mm
P67SS & P68SS
Product dimensions:
Height: 500 mm
Width: 685 mm
Depth: 35 mm
Aperture dimensions:
Height: 480 mm
Width: 560 mm
Product specifications:
o1 x 3.30 kW triple crown wok burner
o2 x 1.75 kW semi-rapid burners
o1 x 1.00 kW auxiliary burner
o1 x 3.00 kW rapid burner (P68SS only)
oFlame failure safety device on each burner
oFront control operation
oHeavy duty cast-iron pan stands
oUnderknob auto-ignition
Standard accessories:
oLPG Conversion jets
oWok Stand
Electrical details
Rated Voltage: 230 Vac 50 Hz
Supply Connection: 3 A (double pole switched fused outlet with
3mm contact gap)
Max Rated Inputs: 0.008 to 0.02 kW (depending on model)
Mains Supply Lead: 3 core x 0.75mm²
9
Gas details
Connection: Rp ½ (ISO R7)
Type: Natural Gas (20.9 mbar), alternative LPG G30
(28-30 mbar), town gas G110 – 120 (8 mbar)
to order.
For future reference please record the following information which can
be found on the rating plate and the date of purchase which can be
found on your sales invoice. The rating plate of your hob is located on
the underneath of the appliance. Therefore it is a good idea to record
this information before you install your appliance.
Model Number ……………………………….
Serial Number ……………………………….
Date of Purchase ……………………………….

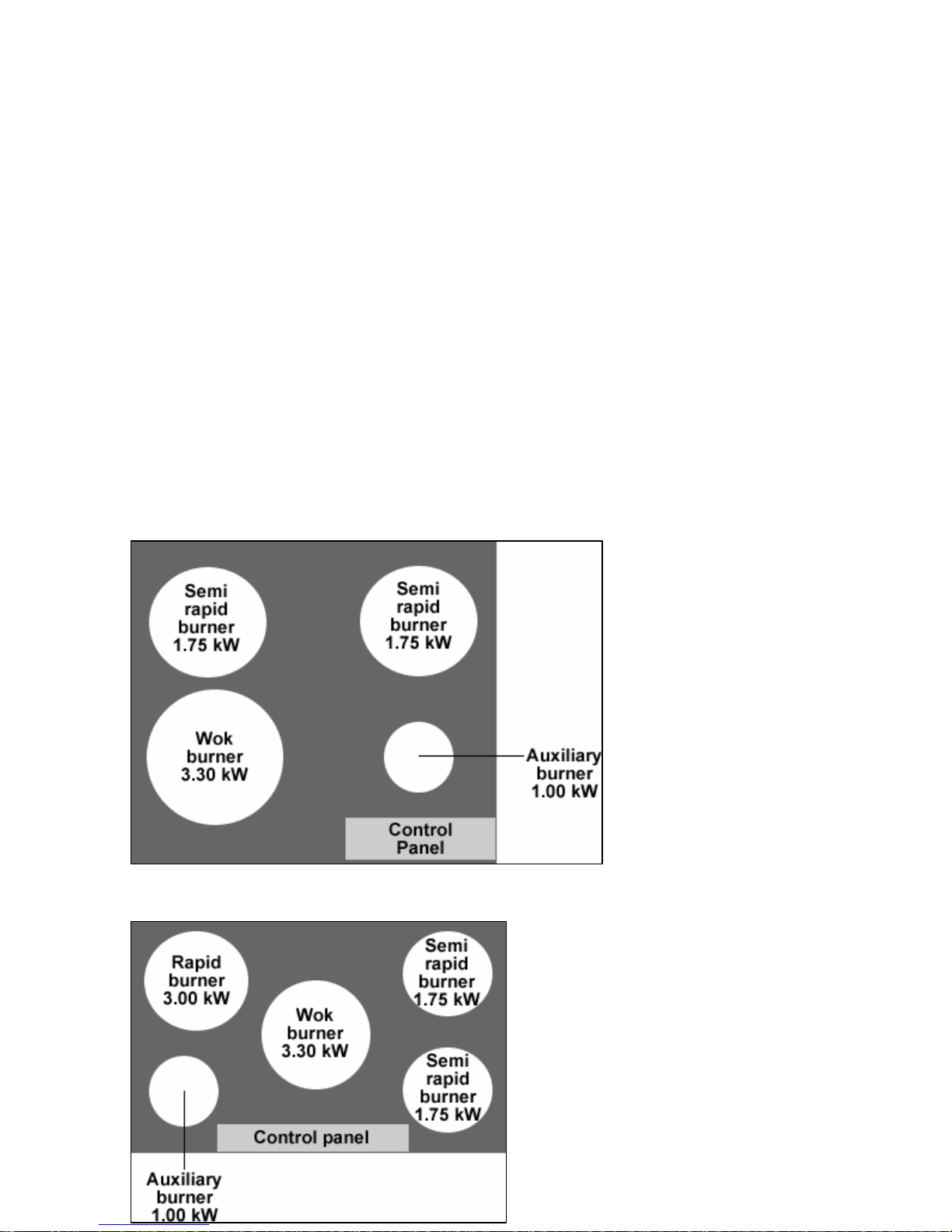

Gas hob surface layout
P61SS & P62SS
P67SS & P68SS
10
Using the gas hob
IMPORTANT: You should clean the hob surface (see
“Cleaning and maintenance” section).
The following symbols will appear on the control panel, next to each
control knob:
Black circle: gas off
Large flame: maximum setting
Small flame: minimum setting
oThe minimum setting is at the end of the anti-clockwise rotation
of the control knob.
oAll operation positions must be selected between the maximum
and minimum positions.
oNever select a knob position between the maximum and off
position.
Automatic electric ignition
To ignite a burner:
oPress in the control knob of the burner that you wish to light and
turn it anti-clockwise to the minimum position.
oIf you keep the control knob depressed, the automatic ignition
for the burner will operate.
oAs each burner has a flame failure safety device, once the burner
has lit, you will need to keep the control knob pressed in for
approximately 10 seconds.
oIf after you let go of the control knob, the flame goes out, you
should repeat the above process.
oIn case of power failure, the burners can be lit by carefully using
a match.
oIf the burner flame goes out once it is lit, then the flame failure
safety device will cut the supply of gas to the burner.
