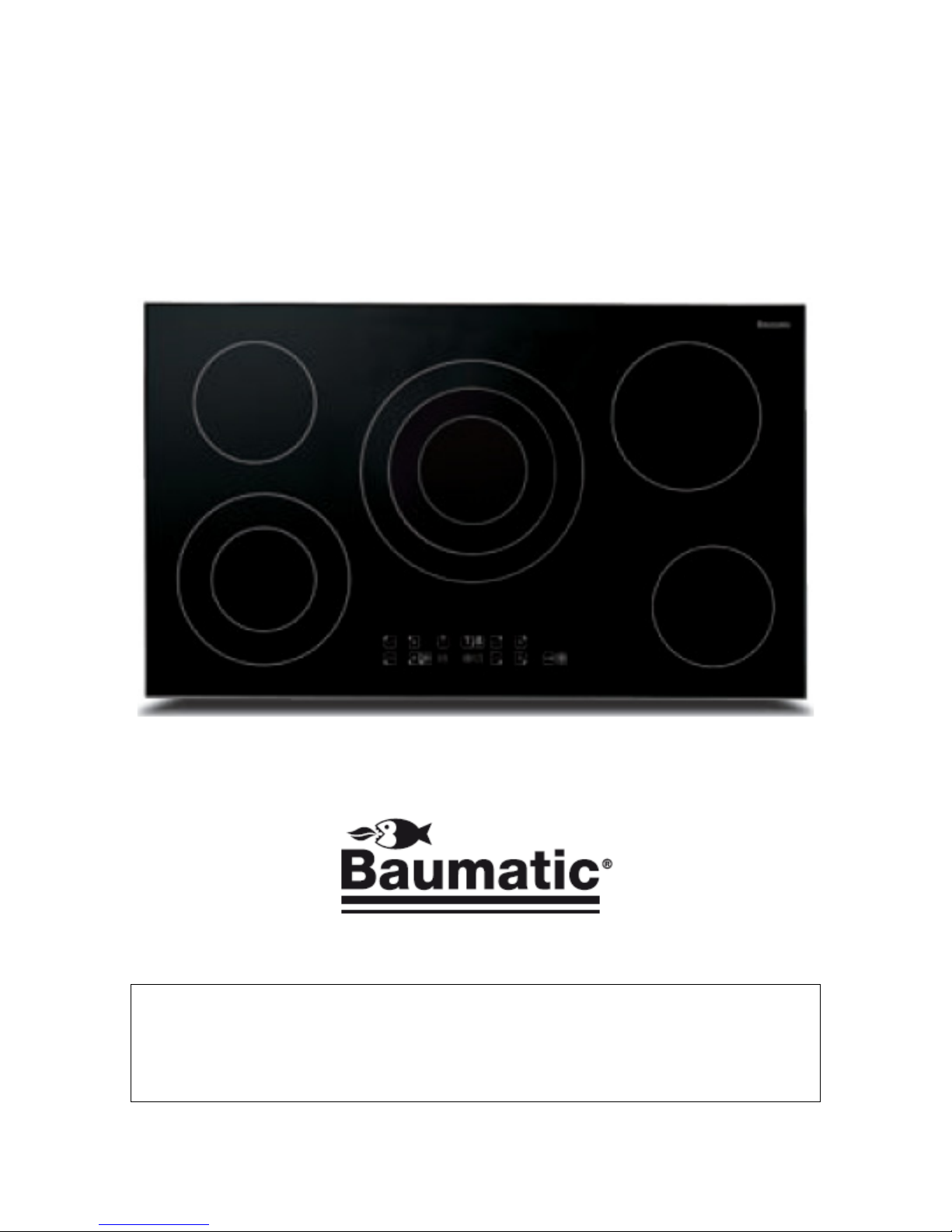

Baumatic BHC925SS Manual de usuario

BHC925SS 90 cm

Front touch control

ceramic hob

User Manual for your Baumatic

BHC925SS

90 cm Front touch control 5 hyperspeed

zone ceramic hob.

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 23/03/10

Contents

Environmental note 4

Important safety information 5 – 8

Specifications 8 - 10

Product and aperture dimensions 8

Product specifications 8

Standardaccessories 9

Electricaldetails 9

Ceramichobsurfacelayout 9

Control panel layout 10

Cooking zone indicators and neon’s 10

Usingtheceramichob 11 - 23

Before first use 11

Touchcontrols 11

Turningthehobon 11

Turning on a zone and setting a power level 12

Turning on the multi circuit zones 12 - 13

Turning off the outer circuit of a multi circuit zone 13 - 14

Turning off a zone gradually 14

Turning off a zone instantly 14

Turningthehoboff 15

Residualheatindicator 15

Lockingthehobtop 16

Safety cut-off 16 - 17

Automatic pre-heating 17 – 18

Increasing the power level during automatic pre-heating 18

Switching off automatic pre-heating 19

Thepausefunction 19

Therecallfunction 20

The hob timer (countdown mode) 20 - 21

The hob timer (switching a zone off) 21

The hob timer (switching multiple zones off) 22

Hobguidelines 22-23

Cleaning and maintenance 24 - 25

Cleaning the ceramic hob top 24

Aftereachuse 24

Cleaning table 24

Using a ceramic hob scraper 25

Using a specialist ceramic hob cleaner 25

Installation 25 - 31

Positioning 26

Unpacking the appliance 26

Installing the appliance 27 – 28

Electricalconnection 29

Connecting the mains supply cable 29 – 30

Replacing the mains supply cable 30 - 31

My appliance isn’t working correctly 31 – 32

Contact details 33

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

all packaging material with due regard for the

environment.

oPlease discard

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

ooklet, please contact the Baumatic Advice Line.

ehold use and for

ambient temperature of the

scolouration at

of this temperature limit, will be the liability of

Guarantee. The foregoing does not

t of Baumatic Ltd.

ld not use this appliance to store items on or as a work

kept away

atic service

General Information

This appliance is designed for domestic houso

the cooking and frying of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used in

the installation must be able to withstand a minimum

temperature of 85°C above the

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or di

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention

the owner.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of

affect your statutory rights.

oThe use of this appliance for any other purpose or in any other

environment without the express agreemen

will invalidate any warranty or liability claim.

oYou shou

surface.

oNo modifications to the appliance are permitted by Baumatic Ltd.

oYou should not store or place flammable or highly flammable

liquids/materials on top of or near the appliance. Items made

from aluminium, plastic or plastic film should also be

from the appliance, as they may fuse to the surface.

oRepairs may only be carried out by Baum

engineers or their authorised service agent.

hild Safety

any time.During and after use, all

surfaces will become hot.

se ensure that they are kept under close supervision

at all times.

uld only be allowed to utilise the appliance

when supervised.

eneral Safety

oBaumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowed

to touch the appliance at

oIf it is necessary for younger family members to be in the

kitchen, plea

oOlder children sho

The appliance should only be installed and connected by a

suitably qualified person.

Care should be taken to ensure that the units and work surfaces

that you build the appliance into, meet with the relevant

standards.

If you notice any scratches, splits or cracks in the ceramic glass,

you should immediately switch off the appliance and disconnect

it from your mains supply. Otherwise there is the risk of electric

shock occurring.

uring use

Any film or stickers that are present on the hob surface when it

is delivered should be removed before use.

Care should be used when utilising the appliance, otherwise

there is a risk of burns being caused.

t with the hob surface when it is hot or any hot

cookware.

ng with fat and oil the appliance should

not be left unattended.

oYou should not allow the electrical connection cables to come

into contac

oIf fat and oil overheats, then it can ignite extremely quickly. For

this reason, when cooki

Make sure that all of the cooking zones are switched off after

use.

leaning

Cleaning of the hob should be carried out on a regular basis.

appliance, it

should be disconnected from the mains and cool.

using this appliance and when

following the cleaning procedure.

other high pressure

cleaning equipment to clean the appliance.

section of this booklet that refers to

stallation.

aresult of improper

use or installation of this appliance.

eclaration of conformity

This appliance complies with the following European Directives:

89 EMC Directive inclusive of

9/109/EEC dated 25/01/1992 Materials that can touch food.

must be used by a trained person for domestic purposes only.

o avoid damaging your appliance

The ceramic glass can be damaged by objects falling onto it.

ic glass edge can be damaged by knocks from

cookware.

may scratch the ceramic surface if they are dragged across it.

oIMPORTANT: Before attempting to clean the

oGreat care should be taken whilst

oYou should not use a steam jet or any

Installation

This appliance must be correctly installed by a

suitably qualified person, strictly in accordance

with the manufacturer’s instructions. Please see

the specific

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as

-73/23/EEC dated 19/02/1973 Low Voltage Directive.

-89/336/EEC dated 03/05/19

Amending Directive 92/31/EEC.

-93/68/EEC dated 22/07/1993 CE Marking Directive.

-8

oThe manufacturer declares that the hob is built using certified

materials and requires the appliance to be installed in

accordance with the standards currently in force. This applian

oThe ceram

oCast iron and cast aluminium cookware with damaged bas

oPans should be lifted on and off the hob surface and not

dragged.

oCooking zones should not be switched on without cookware

placed on them. Also the cookware should not be empty.

Specifications

Product dimensions: Aperture dimensions:

Height: 510 mm Height: 490 mm

Width: 900 mm Width: 880 mm

Depth: 50 mm

Product specifications:

o1 x 0.70/1.70 kW double hyperspeed zone (diametre 120/180

mm)

o1 x 1.05/1.96/2.70 kW triple hyperspeed zone (diametre

140/210/270 mm)

o1 x 1.80 kW hyperspeed zone (diametre 180 mm)

o1 x 1.50 kW hyperspeed zone (diametre 160 mm)

o1 x 1.20 kW hyperspeed zone (diametre 140 mm)

oFront touch control operation

o5 individual residual heat indicators

oTimer

oSafety lock

oWrap around designer frame

oPause function

oRecall function

oAutomatic pre-heating

Standard accessories

oCeramic hob scraper

Electrical details

Rated Voltage: 230 Vac 50 Hz

Supply Connection: 40 A (double pole switched fused

outlet with 3mm contact gap)

Max Rated Inputs: 8.90 kW

Mains Supply Lead: 3 core x 6 mm² (not supplied)

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate of your hob is located on

the underneath of the appliance. Therefore it is a good idea to record

this information before you install your appliance.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Ceramic hob surface layout

1) 0.70/1.70 kW double hyperspeed zone (diametre 120/180 mm)

2) 1.20 kW hyperspeed zone (diametre 140 mm)

3) 1.05/1.96/2.70 kW triple hyperspeed zone (diametre

140/210/270 mm)

4) 1.50 kW hyperspeed zone (diametre 160 mm)

5) 1.80 kW hyperspeed zone (diametre 180 mm)

Control panel layout

1. ON/OFF button

2. Safety lock button

3. Safety lock neon

4. Minus button

5. Plus button

6. Cooking zone indicator

7. Cooking zone display (single/dual/triple circuit)

8. Multi circuit ON/OFF button

9. Multi circuit indicator neon

10. Timer minus button

11. Timer plus button

12. Timer display

13. Timer indicator neon

14. Egg timer indicator neon

15. Timer display decimal point

16. Pause/recall button

17. Pause/recall indicator neon

Cooking zone controls and indicators
