Baumatic BHC609 Manual de usuario

avecf

BHC609 60 cm

Front touch control

ceramic hob

User Manual for your Baumatic

BHC609

60 cm Front touch control

4 zone ceramic hob

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

JW 30/01/13

Contents

Environmental note 4

Important safety information 5 – 8

Specifications 8 – 10

Product and aperture dimensions 8

Product specifications 8

Electricaldetails 9

Ceramichobsurfacelayout 9

Control panel layout 10

Usingtheceramichob 10 - 13

Before first use 10

Touchcontrols 11

Switchingthehobon 11

Switching on a cooking zone and setting a power level 11

Switching off a cooking zone gradually 11

Switching the hob off 12

Residualheatindicator 12

Safetycut-off 12

Hobguidelines 13

Cleaning and maintenance 14 - 15

Cleaning the ceramic hob top 14

Aftereachuse 14

Cleaning table 14

Using a ceramic hob scraper 15

Using a specialist ceramic hob cleaner 15

Installation 15 - 21

Positioning 16

Unpacking the appliance 16

Installing the appliance 17 - 18

Electricalconnection 19

Connecting the mains supply cable 19 – 20

Replacing the mains supply cable 21

My appliance isn’t working correctly 22 – 23

Baumatic Consumables 24

Contact details 25

Environmental note

oThe packaging materials that Baumatic uses are environmentally

friendly and can be recycled.

all packaging material with due regard for the

environment.

oPlease discard

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If you

are unsure of any of the information contained in this

ooklet, please contact the Baumatic Advice Line.

ehold use and for

ambient temperature of the

scolouration at

of this temperature limit, will be the liability of

Guarantee. The foregoing does not

t of Baumatic Ltd.

ld not use this appliance to store items on or as a work

kept away

atic service

rs or their authorised service agent.

General Information

This appliance is designed for domestic housothe cooking and frying of domestic foodstuffs.

oIMPORTANT: The adjacent furniture and all materials used in

the installation must be able to withstand a minimum

temperature of 85°C above the

room it is located in, whilst in use.

oCertain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or di

temperatures below the guidelines given above.

oAny damage caused by the appliance being installed in

contravention

the owner.

oYour new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of

affect your statutory rights.

oThe use of this appliance for any other purpose or in any other

environment without the express agreemen

will invalidate any warranty or liability claim.

oYou shou

surface.

oNo modifications to the appliance are permitted by Baumatic Ltd.

oYou should not store or place flammable or highly flammable

liquids/materials on top of or near the appliance. Items made

from aluminium, plastic or plastic film should also be

from the appliance, as they may fuse to the surface.

oRepairs may only be carried out by Baum

enginee

e at any time. During and after use, all surfaces

under close supervision at all

nce when

Child Safety

oBaumatic strongly recommend that babies and young children are

prevented from being near to the appliance and not allowed to

touch the applianc

will become hot.

oIf it is necessary for younger family members to be in the kitchen,

please ensure that they are kept

times.

Older children should only be allowed to utilise the appliaosupervised.

General Safety

The appliance should only be installed and connected by a suitably

qualified person.

Care should be taken to ensure that the units and work surfaces

that you build the appliance into, meet with the relevant standards.

If you notice any scratches, splits or cracks in the ceramic glass,

you should immediately switch off the appliance and disconnect it

from your mains supply. Otherwise there is the risk of electric shock

occurring.

During use

Any film or stickers that are present on the hob surface when it is

delivered should be removed before use.

Care should be taken when utilising the appliance, otherwise there

at and oil the appliance should not be

is a risk of burns being caused.

You should not allow the electrical connection cables to come intoocontact with the hob surface when it is hot or any hot cookware.

oIf fat and oil overheats, then it can ignite extremely quickly. For this

reason, when cooking with f

left unattended.

Make sure that all of the cooking zones are switched off after use.

oe, it should

be disconnected from the mains and allowed to cool.

Cleaning

oCleaning of the hob should be carried out on a regular basis.

IMPORTANT: Before attempting to clean the applianc

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oYou should not use a steam jet or any other high pressure cleaning

equipment to clean the appliance.

Installation

This appliance must be correctly installed by a suitably

qualified person, strictly in accordance with the

manufacturer’s instructions. Please see the specific

section of this booklet that refers to installation.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper use

or installation of this appliance.

Declaration of conformity

This appliance complies with the following European Directives:

-2006/95/CE General regulations / Low tension

-1935/2004/CE 90/128/EEC This appliance is suitable to come in

contact with food

-2004/108/CE Electromagnetic compatibility

oThe manufacturer declares that the hob is built using certified

materials and requires the appliance to be installed in accordance

with the standards currently in force. This appliance must be used

by a trained person for domestic purposes only.

To avoid damaging your appliance

oThe ceramic glass can be damaged by objects falling onto it.

oThe ceramic glass edge can be damaged by knocks from cookware.

oCast iron and cast aluminium cookware with damaged bases may

scratch the ceramic surface if they are dragged across it.

oPans should be lifted on and off the hob surface and not dragged.

oCooking zones should not be switched on without cookware placed

on it. Also the cookware should not be empty.

Specifications

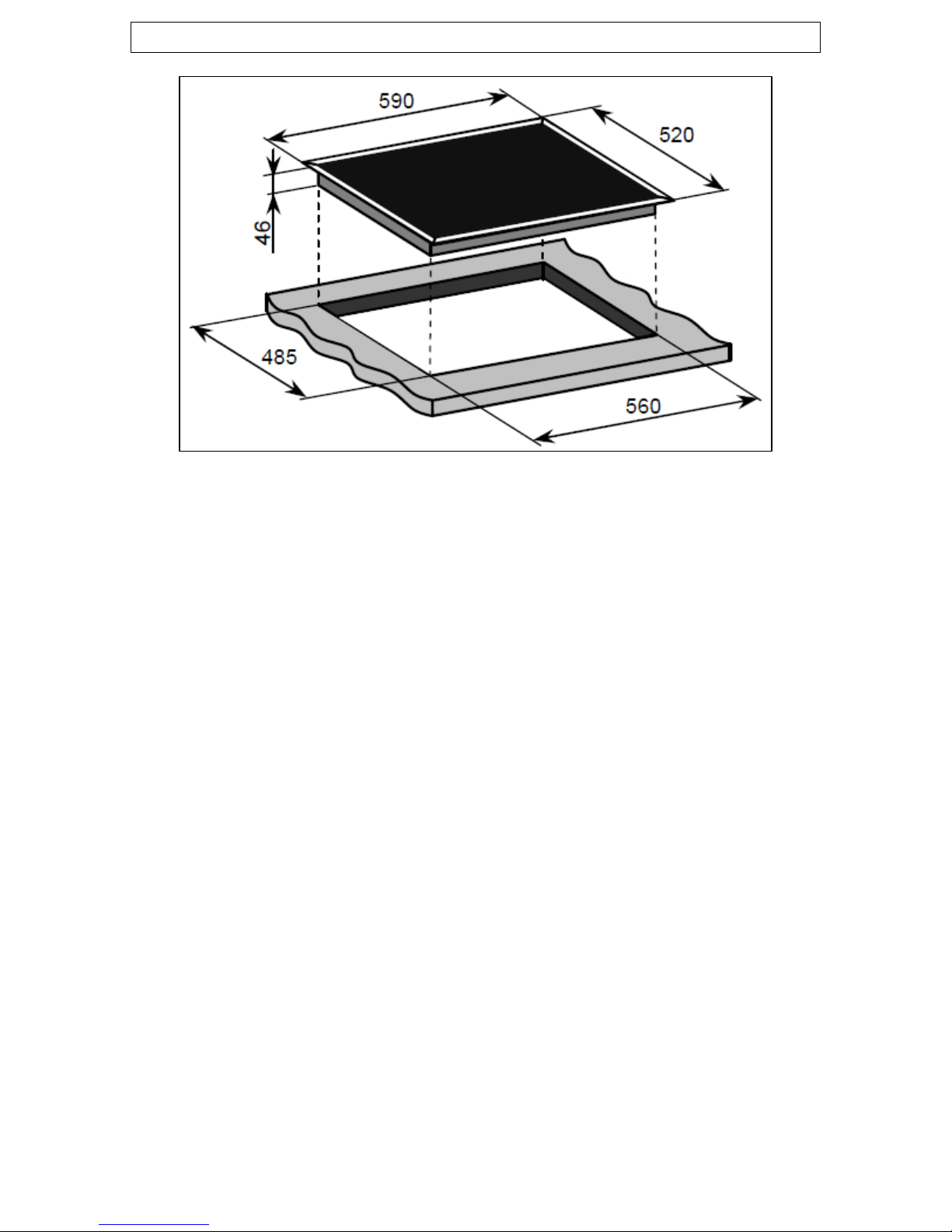

Product dimensions Aperture dimensions

Depth: 520 mm Depth: 485 mm

Width: 590 mm Width: 560 mm

Height: 46 mm

Product specifications:

o1 x 2.30 kW zone (Ø 230 mm)

o1 x 1.80 kW zone (Ø 180 mm)

o2 x 1.20 kW zones (Ø 145 mm)

oFront touch control operation

o4 individual residual heat indicators

oFrameless

lectrical details

Supply Connection: used

ith 3mm contact gap)

ains Supply Lead: 3 core x 6 mm² (not supplied)

good idea to record

is information before you install your appliance.

odel Number ……………………………….

erial Number ……………………………….

ate of Purchase ……………………………….

eramic hob surface layout

a = 1.20 kW zone (Ø 145 mm)

Rated Voltage: 220-240 Vac 50-60 Hz

30 A (double pole switched f

outlet w

Max Rated Inputs: 6.5 kW

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate of your hob is located on

the underneath of the appliance. Therefore it is a

1a = 2.30 kW zone (Ø 230 mm)

2a = 1.20 kW zone (Ø 145 mm)

3a = 1.80 kW zone (Ø 190 mm)

ontrol panel layout

)

. Cooking zone temperature display (x 4)

sing the ceramic hob

1. On/Off button

2. Cooking zone selection button (x 4

3. Cooking zone minus button (x 1

4. Cooking zone plus button (x 4)

Before first use

ramic hob surface (see

Cleaning and maintenance” section).

umidity that has formed on

the heating elements during transit.

oDo not burn off more than one zone at once.

alf full with cold water on

each cooking zone as you burn it off.

IMPORTANT: You should clean the ce

“

oYou should switch on one cooking zone at a time, for 5 minutes

at the maximum setting. This will help to eliminate any new

smell that exists and evaporate any h

oYou must place a saucepan filled h
