Baumatic B72BL Manual de usuario

B72BL 60 cm 4 burner glass gas hob

B77BL 70 cm 5 burner glass gas hob

B78BL 70 cm 5 burner gas glass hob

with thermocouples.

User Manual for your Baumatic

B72BL 60 cm 4 burner gas glass hob

B77BL 5 burner gas glass hob

B78BL 5 burner gas glass hob with

thermocouples

NOTE: This User Instruction Manual contains important

information, including safety & installation points, which will

enable you to get the most out of your appliance. Please keep it

in a safe place so that it is easily available for future reference; for

you or any person not familiar with the operation of the appliance.

DD 07/08/08

Contents

Environmentalnote 4

Important safety information 5 – 7

Specifications 8

Product & aperture dimensions (B72BL) 8

Product specifications (B72BL) 8

Standard accessories (B72BL) 8

Product & aperture dimensions (B77BL & B78BL) 9

Product specifications (B77BL & B78BL) 9

Standard accessories (B77BL & B78BL) 9

Electricaldetails 10

Gasdetails 10

Gas hob surface layout (B72BL) 10

Gas hob surface layout (B77BL & B78BL) 11

Using the gas hob 11

Beforefirstuse 11

Turning the hob on 11 – 12

Turning the hob on (B78BL) 12

Energysavingtips 13

Cleaning 13

Cleaning the hob top 13 - 14

Aftereachuse 14

Cleaning the hob burners 14

Installation 15

Positioning 16

Unpacking the appliance 17

Installing the appliance 17 - 19

Gasconnection 19

Ventilation requirements 20

Gas Safety (Installation and Use) Regulations 21

Gas Adjustment (Conversion to LPG) 22

Minimum flow adjustment for hob gas taps 23

Gastapmaintenance 24

Electricalconnection 25

Replacing the mains supply cable 25

My appliance isn’t working correctly 26

Contactdetails 27

Environmental note

oBaumatic uses are environmentally

friendly and can be recycled.

oall packaging material with due regard for the

environment.

The packaging materials that

Please discard

Important safety information

Your safety is of the utmost importance to Baumatic.

Please make sure that you read this instruction booklet

before attempting to install or use the appliance. If yo

are unsure of any of the information contained i

booklet, pleas

n this

e contact the Baumatic Technical

ent.

old use and for

oin

ient temperature of the

on at

oof this temperature limit, will be the liability of

uarantee. The foregoing does not

f Baumatic Ltd.

old not use this appliance to store items on or as a work

ept away

oService

Departm

G neral Information

This appliance is designed for domestic househothe cooking and frying of domestic foodstuffs.

IMPORTANT: The adjacent furniture and all materials used

the installation must be able to withstand a minimum

temperature of 85°C above the amb

room it is located in, whilst in use.

Certain types of vinyl or laminate kitchen furniture are

particularly prone to heat damage or discolouratio

temperatures below the guidelines given above.

Any damage caused by the appliance being installed in

contravention

the owner.

Your new appliance is guaranteed against electrical or

mechanical defects, subject to certain exclusions that are noted

in Baumatic’s Conditions Of G

affect your statutory rights.

The use of this appliance for any other purpose or in any other

environment without the express agreement o

will invalidate any warranty or liability claim.

You shou

surface.

oNo modifications to the appliance are permitted by Baumatic Ltd.

You should not store or place flammable or highly flammable

liquids/materials on top of or near the appliance. Items made

from aluminium, plastic or plastic film should also be k

from the appliance, as they may fuse to the surface.

Repairs may only be carried out by Baumatic

Engineers or their authorised service agent.

hild Safety

ny time. During and after use, all

surfaces will become hot.

ose ensure that they are kept under close supervision

at all times.

old only be allowed to utilise the appliance

when supervised.

eneral Safety

Baumatic strongly recommend that babies and young children

are prevented from being near to the appliance and not allowe

to touch the appliance at a

If it is necessary for younger family members to be in the

kitchen, plea

Older children shou

e installed and connected by a

CORGI registered installer.

The appliance should only b

rfaces

ild the appliance into, meet with the relevant

standards.

uring use

Care should be taken to ensure that the units and work su

that you bu

ob surface when it

is delivered should be removed before use.

Any film or stickers that are present on the h

appliance, otherwise

there is a risk of burns being caused.

with the hob surface when it is hot or any hot

cookware.

g with fat and oil the appliance should

not be left unattended.

Care should be used when utilizing the

You should not allow the electrical connection cables to com

into contact

If fat and oil overheats, then it can ignite extremely quickly. For

this reason, when cookin

sure that all of the cooking zones are switched off after

use.

leaning

Cleaning of the hob should be carried out on a regular basis.

oiance, it

should be disconnected from the mains and cool.

Make

IMPORTANT: Before attempting to clean the appl

oGreat care should be taken whilst using this appliance and when

following the cleaning procedure.

oYou should not use a steam jet or any other high pressure

cleaning equipment to clean the appliance.

Installation

This appliance must be correctly installed by a

CORGI registered installer, strictly in accordance

with the manufacturer’s instructions and the

relevant British Standards. Please see the specific

section of this booklet that refers to installation.

oBaumatic Ltd. declines any responsibility for injury or

damage, to person or property, as a result of improper

use or installation of this appliance.

oIf the appliance is being used in a Leisure Accommodation

Vehicle, the requirements of N 721 MUST be followed.

oBaumatic Ltd. DO NOT recommend that this appliance is

installed on any type of marine vessel.

Declaration of conformity

This appliance complies with the following European Directives:

-73/23/EEC dated 19/02/1973 Low Voltage Directive.

-89/336/EEC dated 03/05/1989 EMC Directive inclusive of

Amending Directive 92/31/EEC.

-93/68/EEC dated 22/07/1993 CE Marking Directive.

-89/109/EEC dated 25/01/1992 Materials that can touch food.

-90/396/EEC Gas Products.

-EN60335-1, EN60335-2, EN301-1 Safety Standards.

The manufacturer declares that the hob is built using certified

materials and requires the appliance to be installed in accordance with

the standards currently in force. This appliance must be used by a

trained person for domestic purposes only.

Specifications

B72BL

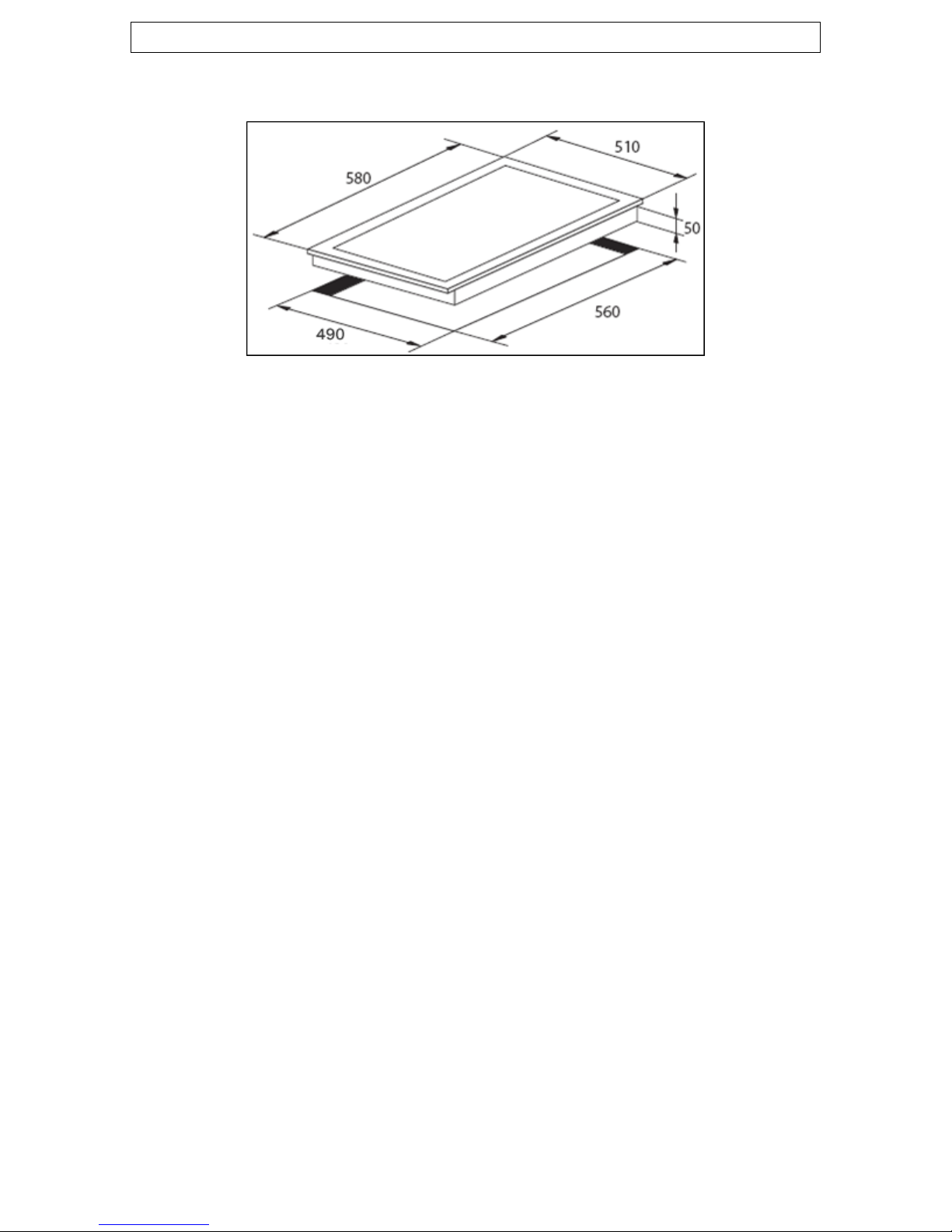

Product dimensions: Aperture dimensions:

Height: 510 mm Height: 490 mm

Width: 580 mm Width: 560 mm

Depth: 50 mm

Product specifications:

o1 x 3.50 kW triple-crown (wok) burner

o2 x 1.75 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

oFront control operation

oRANA design cast iron pan-stands

oUnderknob auto-ignition

Standard accessories:

oLPG conversion jets

B77BL & B78BL

Product dimensions: Aperture dimensions:

Height: 510 mm Height: 510 mm

Width: 680 mm Width: 562 mm

Depth: 50 mm

Product specifications:

o1 x 3.50 kW triple crown (wok) burner

o1 x 3.00 kW rapid-burner

o2 x 1.75 kW semi-rapid burners

o1 x 1.00 kW auxiliary burner

oFront control operation

oRANA design cast iron pan stands

oUnderknob auto-ignition

oFits into a standard 60 cm cut out

oFlame failure safety device on each burner (B78BL)

oTextured mirror glass with bevelled front edge (B78BL)

Standard accessories:

oLPG conversion jets

Electrical details

Rated Voltage: 230 Vac 50 Hz

Supply Connection: 3 A (double pole switched fused outlet with

3mm contact gap)

Max Rated Inputs: 0.008 to 0.02 kW (depending on model)

Mains Supply Lead: 3 core x 0.75mm² (Type RR-F <HAR> marked)

Gas details

Connection: Rp ½ (ISO R7)

Type: Natural Gas (20.9 mbar),

Alternative LPG G30 (28-30 mbar),

Town gas G110 – 120 (8 mbar) to order.

For future reference please record the following information which can

be found on the rating plate and the date of purchase which can be

found on your sales invoice. The rating plate of your hob is located on

the underneath of the appliance. Therefore it is a good idea to record

this information before you install your appliance.

Model Number ……………………………….

Serial Number ……………………………….

Date of Purchase ……………………………….

Gas hob surface layout

B72BL
