Batribike Dash Manual de usuario

Owner

Manual

LCD Range

MODEL:-

SERIAL NUMBER:-

PURCHASE DATE:-

DAY MONTH YEAR

IMPORTANT PLEASE READ THIS MANUAL FULLY

PRIOR TO ASSEMBLY AND USE

For your safety and to ensure a long and trouble free life of your Batribike

bicycle, check the operation of brakes, lights, bell and gears,

and check tyre pressures are correct.

Also check all fasteners, including quick release mechanisms,

before every ride.

DEALERSTAMP

DASH

Thank you for purchasing a BATRIBIKE Electric Bicycle

With care and correct usage your bicycle

will give many years of service.

Important

PLEASE CHARGE THE BATTERY

BEFORE FIRST USING THE BICYCLE

Even though the battery indicator will show charge this cannot be

relied upon until the battery has had the initial full charge.

PACKAGE CONTENTS

1 ELECTRIC BICYCLE

1 BATTERY

1 BATTERY CHARGER with UK Mains Lead

1 MANUAL

Contents

Parts Identification ............................................ PAGE 4

Battery Charging ............................................... PAGE 6

Using the Power Assistance ............................. PAGE 8

Cycle Computer Functions ............................... PAGE 16

Standard Bicycle Functions .............................. PAGE 18

Maintenance Schedule ..................................... PAGE 22

Warranty ........................................................... PAGE 24

Specifications ................................................... PAGE 26

Detail view of

Battery Components

PARTS IDENTIFICATION

We continually strive to ensure that we provide you with the best possible products, therefore

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

LCD

Thumb Throttle

Rear Brake Lever

Front Brake Lever

Motor Cutout Switch

Gear Selector

Bell

Handlebar Adjustment

Handlebar Folding Lock

Frame Folding Clamp

Suspension Forks

Battery

Battery Meter

Charging Socket

Rear Hub Motor

Controller Box

Luggage Rack

6 Speed Shimano Gears

Front Tyre 20 x 1.75

Rear Tyre 20 x 1.75

Seat Height Adjuster

Suspension Seat Post

Front LED Light

Rear LED Light

Folding Pedals

Rear Vee Brake

Front Vee Brake

Battery Power Switch

Chain Wheel 52T

Magnetic Fold Clip

Side Stand

Comfort Saddle

CHARGING THE BATTERY

The battery can be charged on or off the bike.

To remove the battery, unlock by pushing the

key and turning anti-clockwise.

Remove the Saddle

To remove the battery, unfold the handle and

slide the battery upwards.

When refitting the battery ensure that it is fully

seated and lock back into position using the key.

Switch off the battery at the Key Switch before charging.

Plug the charging lead into the battery.

The charging lead is plugged in to the charging socket located behind the sliding

cover on the side of the battery.

IMPORTANT

It is important to plug the charger into the

battery before switching on at the mains.

Similarly, switch off at the mains before

unplugging the charger from the battery.

Sliding Cover

Charging Socket

Plug the charger into the mains socket and switch on at the wall outlet.

The light on the charger will illuminate after a few seconds.

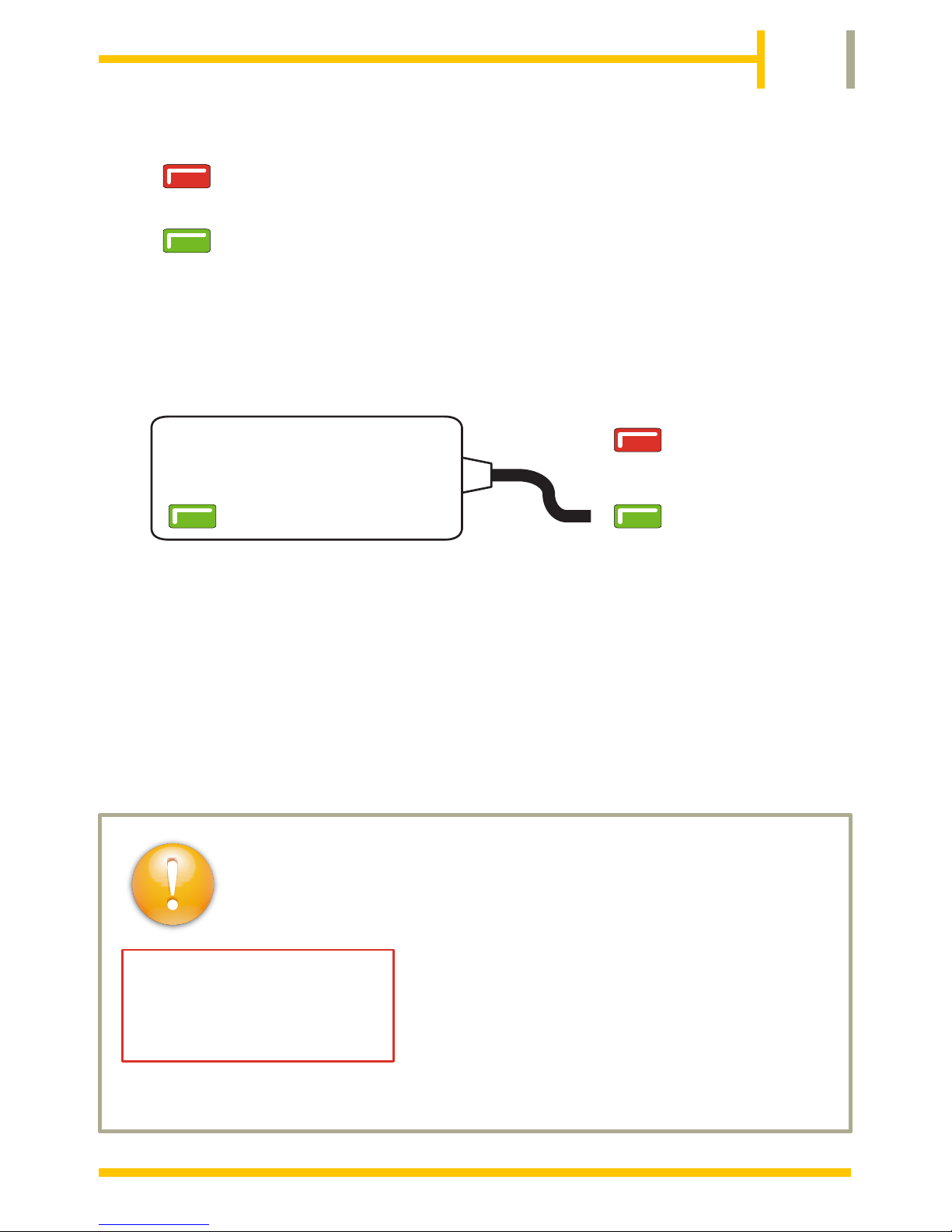

The light will show RED whilst charging is taking place. This

may take up to six hours for a flat battery.

When the battery is charged the RED light will change to

GREEN.

Once charged, switch off at the wall outlet and unplug. Unplug the charging lead

from the battery and rotate the sliding cover back over the charging socket.

USE ONLY THE CHARGER SUPPLIED

CHARGE

CHARGING IN

PROGRESS

CHARGE

COMPLETE

If your BATRIBIKE is not in use for an extended period it is

imperative that you charge the battery before storage and then

charge the battery once a month to prevent deterioration.

When not in use, store the battery in a warm, dry place.

If Lithium batteries are left flat for an

extended period then they may no

longer be functional and a new

replacement will be required.

With correct User Care as outlined above your battery should give many miles

of assisted riding.

FAILURE TO FOLLOW

THIS PROCEDURE WILL

INVALIDATE YOUR

BATTERY WARRANTY

The battery does not have to be completely discharged before it is recharged.

The Lithium battery has no "memory" and therefore can be charged at any time.

It is perfectly acceptable to recharge the battery after a short ride so that the

battery is fully charged before the next ride.

Buttons

Display Information Areas

SET

DOWN

ASSISTANCE

LEVEL

BATTERY STATUS

CYCLE

COMPUTER

SPEED

Display Information Areas

Your BATRIBIKE Electric

Bicycle can be used as a normal

pedal cycle by simply not

switching on the battery.

(or using in Assist

Level 0 - see below)

Usage

POWER

To use under electric power, switch on the

battery with the key switch located on the

left side of the battery. Then press the

POWER button on the handlebar LCD

display for two seconds.

Control Buttons

By means of the other three buttons, SET, UP

and DOWN, on the handlebar mounted display

unit, the various functions of the power controller

and Cycle Computer can be utilised.

See the following sections for details.

To turn off the LCD and the power to the

bike, press and hold the POWER button for

2 seconds.

If the power is left on for an extended period

and the bike is not used, then the power will

automatically be turned off.

Switching Off

Switching On

ELECTRIC BICYCLE FUNCTIONS

The LCD has a backlight

for night time use. This is

switched on by

momentarily pressing the

POWER button.

To turn the backlight off, again press the POWER button.

The LCD shows the charge remaining in the

battery in the upper left of the display. The

indicators will gradually go out as the battery

power is used up. Refer to the table below

for details.

Battery Meter

Display Backlighting - Night Mode

80 - 100%

SYMBOL

DISPLAYED

CHARGE

REMAINING

BATTERY METER DISPLAYS THE CHARGE REMAINING IN THE BATTERY

BATTERY IS

EXHAUSTED AND

SHOULD BE

RECHARGED AS

SOON AS POSSIBLE

60 - 80%

40 - 60%

20 - 40%

10 - 20%

EMPTY

0 - 10%
