Bartscher TT2000 Guía del usuario

TT2000

300187

Bartscher GmbH

Franz-Kleine-Str. 28

D-33154 Salzkotten

Germany

Phone: +49 5258 971-0

Fax: +49 5258 971-120

Service hotline: +49 5258 971-197

www.bartscher.com

Version: 2.0

Date of preparation: 2022-09-02

Original instruction manual

300187 3 / 8

Technical Data

Name:

Tray trolley TT2000

Art. No.:

300187

Material:

stainless steel

Number of guide rail pairs:

Distance between guide rail pairs, in mm:

120

Load-bearing capacity per guide rail pair,

max. in kg:

Dimensions of utility surface (W x D),

in mm:

450 x 560

Railing height, in mm:

154

Load-bearing capacity of utility surface,

max. in kg:

Total load-bearing capacity, max. in kg:

Number of swivel casters:

Locking swivel casters:

Diameter of casters in mm:

100

Number of caster dampers:

Material of caster dampers:

plastic

Dimensions (W x D x H), in mm:

1.155 x 680 x 1.840

Weight, in kg:

39,6

We reserve the right to implement technical modifications.

Version / Characteristics

•Delivery form: self-assembly set, simple assembly

•Area of application: transport, clearing

•Version: guide rails

•Designed for:

–standard canteen norm trays (443 x 343 mm)

–GN container, 1/1 GN, minimum depth of 40 mm (not suitable for GN

trays)

•May be loaded from both sides

4 / 8 300187

Intended Use

As described below, every use of the appliance for a purpose differing and/or

diverging from its intended standard use, is prohibited and considered to be an

unintended use.

The following is an intended use:

–clearing trays,

–transport of GN containers.

Scope of Delivery / Part Name

•Unpack the tray trolley and remove the packing material pursuant to

environmental regulations.

•Check completeness of delivery according to the list below:

Component

Number

Name

Lateral section with 10 preinstalled tray

guide rails and a lateral wall

Middle section with 10 preinstalled tray

guide rails at both sides

Railing shelf

300187 5 / 8

Front railing

Lateral railing

Crossbar

Allen wrench

M8*55 bolt

Square washer

Damper for swivel caster

Locking swivel caster

Non-locking swivel caster

M5*10 bolt (fixed in lateral wall)

M5 nut

6 / 8 300187

Assembly

1. First, assembly the railings for top shelf.

Use M5 nuts to connect railings with each

other.

Fig. 1

2. Insert the assembled railings on the shelf.

Bolt the railings with the shelf using M5

nuts.

Fig. 2

3. Assemble 2 crossbars (at the bottom) to

the lateral section of the tray trolley.

4. Place one each square washer between

the bottom crossbar and the lateral

section, and between the lateral section

and each M8*55 bolt; tighten with Allen

wrench.

5. Connect 2 crossbars (at the bottom) with

the middle section and the second lateral

section, using washers and nuts, as

described above.

Fig. 3

300187 7 / 8

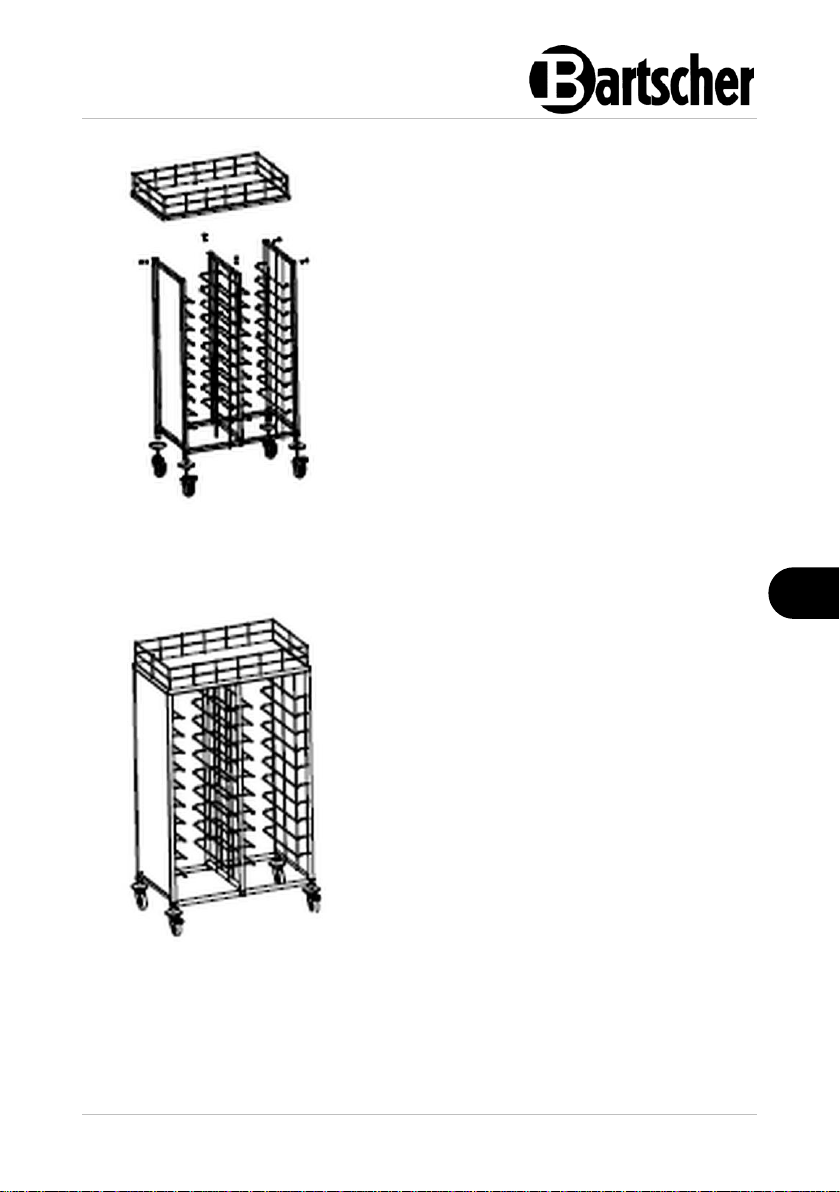

6. Place the tray trolley on its side.

7. Mount 4 swivel caster dampers onto

square tubing of lateral sections.

8. Finally, screw swivel casters into square

tubing of lateral sections.

9. Set the tray trolley on swivel casters.

10.Insert folded shelves with railing (point 2)

on the tray trolley frame.

11.Screw the shelf with railing to the tray

trolley frame.

Fig. 4

Setting

1. Check the stability of the tray trolley.

2. Level the tray trolley through screwing in

and out swivel casters.

3. After setting the tray trolley in a designated

place, lock 2 swivel casters with lockings

to prevent accidental relocation or overturn

of the tray trolley.

Fig. 5

8 / 8 300187

Tray Trolley Loading

The tray trolley can be loaded from both

sides.

1. Insert the required number of suitable

trays in guides.

2. Place cups, glasses, etc. on the top

shelf.

The shelf railings prevent dishware from

falling down.

lli

Fig. 6

Cleaning

ATTENTION!

Scrubbing agents, washing agents with solvents or caustic substances

may damage the surface.

For cleaning, use only agents suitable for stainless steel.

1. Clean the tray trolley regularly with warm water and a soft, damp cloth. Use a

mild cleaning agent if required.

2. Wipe dry the tray trolley with a soft cloth.
