- 16 -

1. General information

1.1 Information about the instruction manual

This instruction manual contains information about the installation, operation and

maintenance of the device and should be consulted as an important source of

information and reference guide.

Awareness of the safety instructions and instructions for use in this manual will ensure

the safe and correct use of the device.

In addition to the information given here, you should comply with any local Health and

safety Controls and generally applicable safety regulations.

The instruction manual forms part of the product and should be kept near the device and

easily accessible for anyone carrying out the installation, servicing, maintenance or

cleaning.

1.2 Key to symbols

In this manual, symbols are used to highlight important safety instructions and any

advice relating to the device. The instructions should be followed very carefully to avoid

any risk of accident, personal injury or material damage.

WARNING!

This symbol highlights hazards, which could lead to injury.

Please follow the instructions very carefully and proceed with particular attention

in these cases.

WARNING! Electrical hazard!

This symbol draws attention to potential electrical hazards. If you do not follow

the safety instructions, you may risk injury or death.

CAUTION!

This symbol highlights instructions, which should be followed to avoid any risk of

damage, malfunctioning and/or breakdown of the device.

NOTE!

This symbol highlights tips and information, which have to be followed for

an efficient and trouble-free operation of the device.

WARNING! Hot external surface!

This symbol is a warning that the unit surface is hot when in use. Ignoring this

warning may result in burns!

- 17 -

1.3 Liability and Warrantees

All the information and instructions in this manual take into account standard safety

regulations, current levels of technical engineering as well as the expertise and

experience we have developed over the years.

The instruction manual was translated with all due care and attention. However, we do

not accept liability for any translation errors. The German version of this instruction

manual is definitive.

If the delivery consists of a special model, the actual scope of delivery may differ from

the descriptions and illustrations in this manual. This is also the case for special orders

or when the device has been modified in line with new technology. If you have any

questions, you should contact the manufacturer.

NOTE!

Read the instruction manual carefully before using the device. The manufacturer

does not accept liability for any damage or malfunction resulting from not

following the instructions for use.

The instruction manual should be kept near the device, easily accessible for anyone

wishing to work with or using it. We reserve the right to make technical changes for

purposes of developing and improving the useful properties.

1.4 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is

or by any means without permission in writing from the manufacturer. Any person who

commits any unauthorized act in relation to this publication shall be liable to claims for

NOTE!

The contents, texts, drawings, pictures and any other illustrations are copyright

and subject to other protection rights. Any person unlawfully using this

publication is liable to criminal prosecution.

1.5 Declaration of conformity

The device complies with the current standards and directives of the EU.

We certify this in the EC declaration of conformity.

If required we will be glad to send you the according declaration of conformity.

- 18 -

2. Safety

This section provides an overview of all important safety aspects.

In addition every chapter provides precise safety advice for the prevention of dangers

which are highlighted by the use of the above mentioned symbols.

Furthermore, attention should be paid to all pictograms, markers and labels on the

device, which must be kept in a permanent state of legibility.

By following all the important safety advice you gain an optimal protection against all

hazards as well as the assurance of a safe and trouble-free operation.

2.1 General Information

This device is designed in accordance with the presently applicable technological

standards. However, the device can pose a danger if handled improperly and

inappropriately.

Knowing the contents of the instruction manual as well as avoiding mistakes and thus

operating this device safely and in a fault-free manner is very essential to protect

yourselves from the hazards.

To prevent hazards and to ensure optimum efficiency, no modifications or alterations to

the device that are not explicitly approved by the manufacturer may be undertaken.

This device may only be operated in technically proper and safe condition.

2.2 Safety instructions for use of the device

The specifications regarding the industrial safety are based on the Regulations of the

European Union applicable at the time of manufacturing the device.

If the device is used commercially, the user is obliged to ensure that the said industrial

safety measures concur with the state of the rules and regulations applicable at the time

in question for the entire period of use of the device and to comply with the new

specifications.

Outside the European Union, the industrial safety laws applicable at the place of

installation of the device and the regional territorial provisions must be complied with.

Besides the industrial safety instructions in the instruction manual, the general safety and

accident prevention regulations as well as environment protection regulations applicable

for area of application of the device must be followed and complied with.

- 19 -

CAUTION!

oThe unit is not intended for use by individuals (including children) with physical or

mental disabilities, insufficient experience, and/or insufficient knowledge unless

such persons are under the care of a person responsible for their safety or have

received instructions regarding appropriate use of the unit.

oChildren should be observed to ensure that they are not playing with the unit.

oPreserve this manual safely. When passing on/selling the device to a third party, the

manuals must be handed over along with the device.

oEvery person using the device must act in accordance to the manuals and under

consideration of the safety advice.

oThe device is to be used indoors only.

2.3 Intended use

CAUTION!

This device has been designed and built for commercial use only and should be

operated by qualified personnel only.

Safe operation is only guaranteed when using the device for its intended purpose.

Any technical interventions, as well as assembly and maintenance are to be made by a

qualified customer service only.

The electric contact grill is meant only for grilling dishes.

CAUTION!

Any use going beyond the intended purpose and/or any different use of the device

is forbidden and is not considered as conventional.

Any claims against the manufacturer or his authorized representative as a

consequence of experiencing damages resulting from unconventional use are

impossible.

The operator is liable for all damages resulting from inappropriate use.

- 20 -

3. Transport, packaging and storage

3.1 Delivery check

Please check the delivery upon completeness and transport damage immediately after

receipt.

In case of visible damage do not accept or accept the delivery with reservation only.

Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint.

Hidden damages should be reclaimed immediately after notice, as claims for damages

can only be asserted within the effective period for complaints.

3.2 Packaging

Please do not throw away the covering carton of your device as it might be useful for

storage purposes, when moving or, in case of damages, when the device must be sent

back to a repair center. The outer and inner packing material should be removed

completely from the device before installation.

NOTE!

If you liked to dispose the packing, consider the regulations applicable in your

country. Supply re-usable packing materials to the recycling.

Please inspect the device upon completeness. In case any part is missing please

contact our customer service center immediately.

3.3 Storage

Keep the package closed until installation and under consideration of the outside

indicated positioning- and storage markings.

Packages should be stored under consideration of the following:

-Do not store outdoors.

-Keep it dry and dust-free.

-Do not expose it to aggressive media.

-Do not expose it to direct sunlight.

-Avoid mechanical shocks and vibration.

-In case of longer storage (> 3 months) make sure you check the state of the

packaging and the parts regularly. If required refresh or renew.

- 21 -

4. Technical data

4.1 Technical data

Description Electric contact grill

Order no.:

A150.670 A150.669 A150.668

Grill plates performance: grooved smooth Upper grooved,

lower smooth

Performance: The housing made of chromium and nickel steel,

plates made of cast iron

Temperature range: 50°- 300°C

Power: 230 V ~ 50 Hz 1800 W

Dimensions: W 290 x D 370 x H 200 mm

Dimensions top grill plate: W 214 x D 214 mm

Dimensions bottom grill

plate: W 220 x D 235 mm

Weight: 14 kg

Description Electric contact grill double

Order no.:

A150.671 A150.672 A150.673

Grill plates performance: grooved smooth Upper grooved,

lower smooth

Performance: The housing made of chromium and nickel steel,

plates made of cast iron

Temperature range: 50°- 300°C

Power: 230 V ~ 50 Hz 3600 W

Dimensions: W 570 x D 370 x H 200 mm

Dimensions top grill plate: W 215 x D 215 mm

Dimensions bottom grill

plate: W 470 x D 230 mm

Weight: 26 kg

We reserve the right to make technical changes!

- 22 -

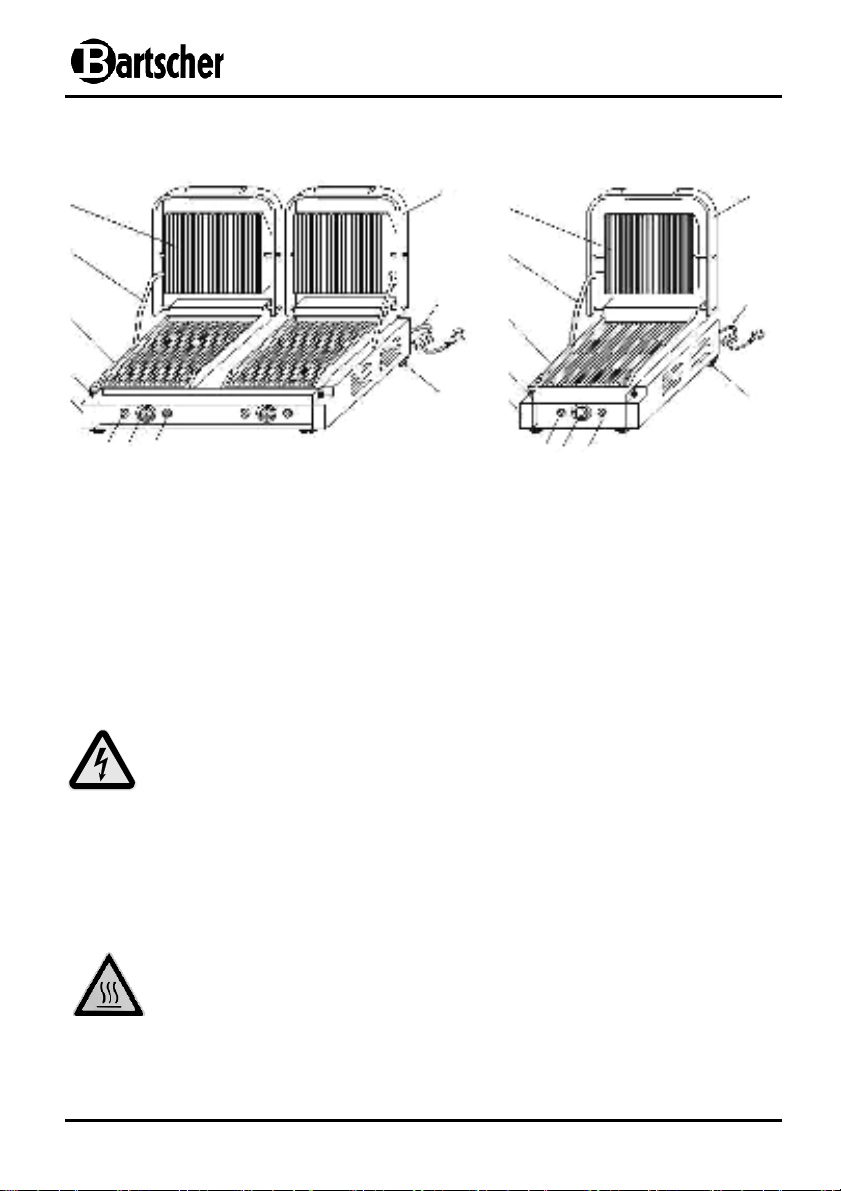

4.2 Overview of parts

1. Temperature indicator light (red)

2. Temperature control knob

3. Network connection indicator light (green)

4. Bottom casing

5. Fat collection compartment

6. Bottom grill plate

7. Cable duct

8. Top grill plate

9. Handle

10. Mains connection cable

11. Rubber feet

5. Installation and operation

5.1 Safety instructions

WARNING! Electrical hazard!

The device must only be connected to a properly installed single socket with

protective contact.

Never yank cord to disconnect from outlet.

Cable must not touch any hot parts.

•

See that the cable does not touch any heat sources or sharp edges. Do not let the

cable dangle over the counter edge.

WARNING! Hot surface!

During operation some elements of the unit very become hot. To avoid burns, do

not touch hot elements!

⑤

④

②

①

③

①

⑥

⑦

⑧

⑨

⑩

⑪

⑤

④

- 23 -

•

Do not use the device in case it does not function properly, has been damaged or

dropped.

•

Do not use any accessory or spare parts that have not been recommended by the

manufacturer. These can be dangerous for the user or lead to damages of the

device or personal injury, and further, the warranty expires.

•

Do not lay the cable over carpets or heat insulations. Do not cover the cable. Keep

away the cable from operating range and do not dunk it into water.

•

Do not move or tilt the device when in operation.

•

In case of thunderstorms and similar, disconnect the device from the mains

immediately! This prevents damage to the device by lightning.

CAUTION! Risk of injury!

Never remove the casing and never modify the degvice yourself! Modifying the

device may lead to sever damage to persons and objects!

WARNING! Hazard via electrical current!

The device can cause injuries due to improper installation!

Before installation the local power grid specification should be compared with that

of the device (see type label).

Connect the device only in case of compliance!

Take note of the security advice!

5.2 Installation and connection

CAUTION!

The installation and maintenance of the device should only be carried out by

trained personnel!

•

Discard the complete packing material after unpacking the device.

•

Remove the protective film from the unit. If any glue remains, remove it with an

appropriate solvent.

•

Place the device on top of an even and safe surface which supports the weight of the

device and is not heat sensitive.

•

Not at any time should you place the device on an inflammable surface (such as:

table cloth, carpet, etc.).

•

You must not position the device near open fireplaces, electric ovens/arc furnaces,

furnaces/electric heaters or other heat sources.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Parrilla de Bartscher

Bartscher

Bartscher Panini 1RDIG Manual de usuario

Bartscher

Bartscher 70 Series Manual de usuario

Bartscher

Bartscher VP3000 1R Manual de usuario

Bartscher

Bartscher 200.641 Manual de usuario

Bartscher

Bartscher Salamander 500 Manual de usuario

Bartscher

Bartscher E-6p Manual de lista de piezas

Bartscher

Bartscher GP1200 Manual de usuario

Bartscher

Bartscher S40 Manual de usuario

Bartscher

Bartscher 2500 1R Manual de usuario

Bartscher

Bartscher SNACK 115141 Manual de programación

Bartscher

Bartscher Panini A150679 Manual de usuario

Bartscher

Bartscher Panini A150.676 Manual de usuario

Bartscher

Bartscher TB1000PF Manual de usuario

Bartscher

Bartscher CHEF IDEE 2006533C Manual de usuario

Bartscher

Bartscher GG740 Instrucciones de uso

Bartscher

Bartscher Panini 1R Guía del usuario

Bartscher

Bartscher 70 Series Guía de inicio rápido

Bartscher

Bartscher 101552 Manual de usuario

Bartscher

Bartscher 370037 Manual de usuario

Bartscher

Bartscher Panini Manual de usuario

Bartscher

Bartscher GG740 Instrucciones de uso

Bartscher

Bartscher Panini Manual de usuario

Bartscher

Bartscher Panini-T A150774 Manual de usuario

Bartscher

Bartscher 650 Series Manual de programación

Manuales populares de Parrilla de otras marcas

Orbegozo

Orbegozo GR 2300 Manual de usuario

bora

bora PT11 Manual de usuario

Klarstein

Klarstein 10031664 Manual de usuario

Garland

Garland MWE3W Manual de usuario

Char-Broil

Char-Broil 463722714 Manual de usuario

Nexgrill

Nexgrill 720-0830HK Manual de usuario

Kenmore

Kenmore 415.16123800 Manual de usuario

Camp Chef

Camp Chef PG24CLAU Manual de usuario

Tucker Barbecues

Tucker Barbecues GTR Series Instrucciones de montaje

Monogram

Monogram ZGG540NCP1SS Manual de usuario

Equipex

Equipex Sodir Savoy Manual de usuario

Gaggenau

Gaggenau VR 414 610 Manual de usuario

Miele

Miele KM 408-1 Manual de usuario

George Foreman

George Foreman GGR50B Manual de usuario

AOG

AOG T series Manual de usuario

Gorenje

Gorenje TG2000CB Manual de instrucciones

Weber

Weber Genesis Silver-B Permamount NG 051701 Manual de usuario

Glen

Glen SA 3037 Manual de usuario
