Bartec Auto ID TECH300 Manual de usuario

Bartec Auto ID Ltd. SW Version: R.55.2 (English) 2017

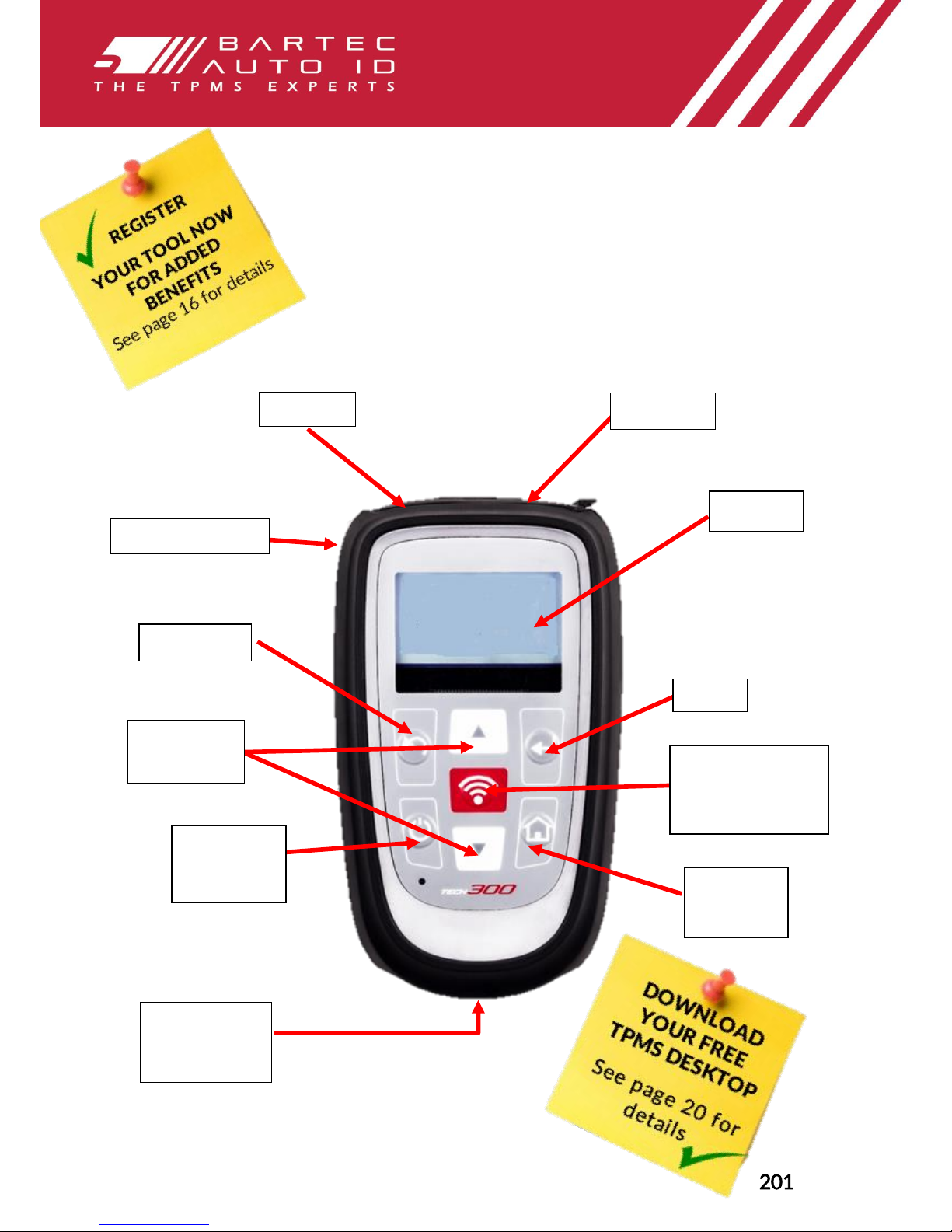

TECH300

Tyre Pressure Monitoring System Tool

User Guide

Mini USB

SD Card

Display

Rubber housing

Enter

Test:

commence a TPM

test, only works on

Vehicle Audit Screen

Home:

returns to

Home menu

On/Off:

hold down for

a few seconds

Up/Down

navigation

Back/Esc

OBD cable

connector

(optional)

T e c h 3 0 0 User Guide R.55.2 2017

2 | P a g e

FOREWORD

Dear customer,

Thank you for having chosen one of our tools. We are certain that it will give the utmost

satisfaction and be a great help on the job.

Please become fully familiar with the instructions in this user’s manual. It should be

kept ready to hand for consultation whenever required.

CE COMPLIANCE

Type Designation: Tech300SDE

Description/Intended Use: Hand Held Tyre Pressure Measurement Tool/used to activate, decode data

from, and display information about tyre pressure monitoring devices. Also used to communicate with

some vehicles OBD2 ports (optional).

Hereby, Bartec declares that the product referenced above is in compliance with the essential

requirements of Directive 1999/5/EC, on the approximation of the laws of the member states

relating to Directive 1999/5/EC.

T e c h 3 0 0 User Guide R.55.2 2017

3 | P a g e

LIST OF CONTENTS

FOREWORD........................................................................................ 2

LIST OF CONTENTS ............................................................................ 3

IMPORTANT NOTICES ........................................................................ 4

SAFETY PRECAUTIONS ....................................................................... 4

BEFORE GETTING STARTED ............................................................... 6

VEHICLE CHECK ................................................................................. 7

VEHICLE AUDIT SCREEN .................................................................... 8

POSSIBLE READING SCENARIOS......................................................... 9

SUCCESSFUL SENSOR READ............................................................. 10

VEHICLE CHECK TOOLKIT................................................................ 10

VIEW VEHICLE INFORMATION .........................................................10

REVIEW VEHICLE DATA ...................................................................10

PROGRAM SENSOR .......................................................................... 11

RELEARN ..........................................................................................12

HISTORIC DATA ...............................................................................14

TOOLKIT........................................................................................... 14

MY TOOL .........................................................................................15

REGISTRATION .................................................................................16

UPDATING YOUR TOOL VIA USB CABLE ......................................... 18

CHANGING FROM EU TO US VEHICLE COVERAGE .......................19

TPMS DESKTOP ..............................................................................20

APPENDIX......................................................................................... 22

TECHNICAL SPECIFICATION .............................................................23

BARTEC PRODUCT RANGE &ACCESSORIES....................................24

T e c h 3 0 0 User Guide R.55.2 2017

4 | P a g e

IMPORTANT NOTICES

SAFETY DEFINITIONS

All Danger, Warning, Important, and Note messages must be followed for your safety. These

safety messages are in the following form

DANGER: Means you may risk possible loss of life.

WARNING: Means you may risk possible bodily harm.

CAUTION: Means you risk damage to the vehicle or the tool.

These safety messages cover situations Bartec is aware of. Bartec cannot know, evaluate and

advise you as to all the possible hazards. You must be certain that any conditions or service

procedures encountered do not jeopardise your personal safety.

No part of this manual may be reproduced, stored in a retrieval system or transmitted, in any

form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without

the prior written permission of Bartec.

DISCLAIMER

All information, illustrations, and specifications contained in this technical instruction manual

are based on the latest information available at the time of publication. The right is reserved to

make changes at any time without obligation to notify any person or organization of such

revisions or changes. Further, Bartec shall not be liable for errors contained with the furnishing,

performance or use of this material.

SAFETY PRECAUTIONS

Read carefully the installation, operating and maintenance instructions in the Operator’s

manual.

Do not allow unqualified persons to use this equipment. This will prevent injury to persons and

damage to the equipment.

The work place must be dry, sufficiently lit and well ventilated.

Do not forget that breathing carbon monoxide (odourless) can be very dangerous and even

fatal.

When working on the vehicle:

Wear suitable clothing and act in such a way as to prevent industrial accidents.

Before starting, check to be certain the gear shift is in neutral (or in PARK (P) if the

transmission is automatic) and put the handbrake on and check to be sure the wheels

are completely locked.

Do not smoke or use naked flames when working on a vehicle.

Wear safety glasses to protect your eyes from dirt, dust or metal chips.

T e c h 3 0 0 User Guide R.55.2 2017

5 | P a g e

Disposing of equipment

Do not dispose of this equipment as miscellaneous solid waste but arrange to have

collected separately.

The re-use or correct recycling of electronic equipment (EEE) is important in order to

protect the environment and human health.

In accordance with European Directive WEEE 2002/96/EC, special disposal points are

available for waste electrical and electronic equipment.

Public administrators and producers of electrical and electronic equipment are involved

in facilitating the re-use and recovery of waste electrical and electronic equipment

through these collection activities and use of appropriate planning arrangements.

Unauthorised disposal of waste electrical and electronic equipment is punishable by

law with appropriate penalties.

Disposing of batteries

The Tech300 contains a Lithium Polymer rechargeable battery which is not accessible

to the user.

Batteries must be recycled or disposed of properly. Do not throw batteries away as part

of normal refuse disposal.

Do no throw batteries on to an open fire

Correct use of the tool

Do not expose the tool to excessive moisture.

Do not use the tool near sources of heat or polluting emissions (stoves, ovens, etc.).

Do not drop the tool.

Do not allow the tool to come into contact with water or other liquids.

Do not open the tool or attempt to perform maintenance or repair operations on any

internal parts.

You are advised to keep the packaging and to re-use it if the tool is moved to another

site.

When using the tool remember:

Do not subject the tool to magnetic or electric interference.

Reception, maintenance and guarantee:

Inspect the tool when delivered. Damage sustained during shipment is not covered by the

guarantee. Bartec will accept no responsibility for material or bodily harm resulting from

inappropriate use of the product, failure to maintain it, or incorrect storage conditions.

Bartec provides training for clients desirous of acquiring the knowledge required for the correct

use of its products.

Only personnel authorized by Bartec are permitted to make any repairs that may be necessary.

This tool is guaranteed against any manufacturing fault for 12 months as of date of invoice

(parts and labour) only if product has been correctly used. Serial number must stay readable

and proof of purchase must be retained for presentation upon request.

Bartec Auto ID Ltd

Unit 9

Redbrook Business Park

Wilthorpe Road

Barnsley

S75 1JN

+44 (0) 1226 770581

T e c h 3 0 0 User Guide R.55.2 2017

6 | P a g e

BEFORE GETTING STARTED

1. Charging

NOTICE: Only use the power supply or USB cable that is included in the TECH300 tool kit to

charge this tool. The use of un-approved power supplies may damage it and will void the tool

warranty.

2. Registration

The Bartec TECH300 can be registered at https://tools.bartecautoid.com/ . Follow the on-

screen prompts filling in the information and tool serial number. A valid serial number and

supplier is required to process the registration, which can take up to 24hrs once submitted.

3. Update

Once the tool is registered, verify the software level loaded to the level available online and

update the tool if necessary.

KIT COMPONENTS

The TECH300SDE kit inside the tool box includes:

TPMS activation tool

OBD II cable (optional)

USB cable

Battery charger

Bluetooth Stick

User Manual

Identifying Kit Components and Features

The TECH300SDE tool is battery operated and generates a low-frequency magnetic field to

activate tyre sensors. It receives UHF radio signals from the tyre sensors typically at 434MHz.

User

manual

USB

Cable

OBD II

cable

(optional)

TPMS

activation

tool

Bluetooth

Stick

Battery

charger

T e c h 3 0 0 User Guide R.55.2 2017

7 | P a g e

CHARGING TOOL

The TECH300 is shipped with a charged battery. It is recommended that the tool is charged 2+

hours before first use. For optimum performance, always keep it sufficiently charged.

When there is an insufficient amount of power remaining in the battery, the TECH300 will

flash its battery icon for two seconds, save all of the TPM Data and then power itself off.

POWER ON/OFF SEQUENCE

Auto power off is after 5 minutes of inactivity.

The unit automatically powers up when the charger or USB port is in use –auto power off is

not operational. The tool cannot be operated when plugged in.

HOME MENU

Vehicle Check

Used when doing a service check.

Program Sensor

Used for just programming universal sensors.

Relearn

Used when relearning the sensor ID’s to the vehicle.

Historic Data

Used when reviewing read data.

Toolkit

Used to test the remote car key or to use the UHF Monitor.

My Tool

Used for settings and tool info.

VEHICLE CHECK

To verify the year of manufacture, it is possible to use the VIN.

Enter Vehicle Registration

This can be enabled or disabled in My Tool > Workflow.

Select by Make

Lexus

Lincoln

Lotus

Maserati

Maybach

Mazda

25/41

Lotus

Elise

Evora

Exige

1/3

Lotus Elise

01/2008>

1/1

T e c h 3 0 0 User Guide R.55.2 2017

8 | P a g e

VEHICLE AUDIT SCREEN

Tool Positioning

Do NOT touch the metal rim. The tool needs to point through the rubber at the sensor.

Sensor Activation/ Test

1. LF activated sensors

To test a sensor the tool should be placed alongside the valve stem and the ‘Test’ key

pressed.

(Note with Ford Banded sensor’s, the tool should be held 180°away from the stem.)

2. Non-LF activated sensors (some Beru sensors up to 2009)

If the tool requires rapid tyre deflation (of the order of 10psi or 0.5bar), then deflate the tyre

and place the tool alongside the stem while pressing the test key.

During testing, the screen confirms the sensor type being tested and displays a progress bar.

Different makes of TPM respond at different speeds/ time intervals.

Details on page 10

Use the Up and Down arrows to navigate.

Press Test To Activate

Left Front

Selected tyre,

processing order:

Left Front,

Right Front,

Right Rear,

Left Rear

Review

Vehicle

Data

View Vehicle

Information

Vehicle Check

Toolkit

T e c h 3 0 0 User Guide R.55.2 2017

9 | P a g e

POSSIBLE READING SCENARIOS

Note that if a faulty TPM sensor has been replaced, some method of relearn procedure will

need to be followed, as explained later in this manual.

Successful Sensor Read

TPMS sensor was successfully activated and

decoded. Displays pressure (in Bar or PSI) at

wheel location.

Failed Sensor Read

No Sensor Activation or Decode. May be wrong

sensor fitment or non-functioning sensor. Tool will

prompt to attempt reading the sensor 3 times.

Duplicate ID

A sensor with a duplicate ID has been read. Tool will

direct to re-read those sensors.

Wrong Sensor Type

A TPMS sensor was activated and decoded, but

does not match the protocol for the Make Model

Year that the tool was set-up for.

No Pressure

Sensor IDs read from ECU.

Low Sensor Battery

Sensor’s internal battery has dropped below a

certain voltage threshold.

T e c h 3 0 0 User Guide R.55.2 2017

10 | P a g e

SUCCESSFUL SENSOR READ

When all four wheels have been read, there are several different things which could happen.

If “OBD Required” is enabled in My Tool > Workflow and OBD is available for this vehicle, the

OBD prompt message will be displayed.

Save

Allows storage of the data in the tool that can later be transferred to a computer.

Sends the data immediately to the Bluetooth printer that will print out the report.

Send

Sends the data to the TPMS Desktop via Bluetooth.

Edit

Allows the user to mark a wheel which has a mechanical problem such as a

corroded valve stem.

VEHICLE CHECK TOOLKIT

OBD

This option only appears for some vehicles. It allows to read information

from the vehicle such as the VIN, DTCs (Diagnostic Trouble Codes) and

the IDs of the sensors.

Sensor Search

The tool tries to read all possible sensor types that could be fitted to

the selected Make. The search will identify that the sensor is working,

although it may not be the correct sensor for a particular Make, Mode

and Year.

RKE Test

Allows to test the signal strength emitted by a remote keyless entry.

Select RKE Test, hold the Key Fob and press the function buttons on

the Fob. The TECH300 will indicate the strength of the signal. When

performing relearn processes that use the Key Fob it is important to

verify that the Key Fob is transmitting.

VIEW VEHICLE INFORMATION

Sensors do not have to have been read to access the information.

This selection gives access to detailed information about replacement parts, service kits,

sensors, vehicles and service tips.

REVIEW VEHICLE DATA

Sensors and OBD need to have been read for data to be shown.

The menu gives direct access to specific screens that display the TPM data. This option is

helpful if the user wants to have a second look at the Sensor Data, OBD Data or wants to print

the data from the last processed vehicle via the Bluetooth printer.

Otros manuales para TECH300

Tabla de contenidos

Otros manuales de Herramientas de Bartec Auto ID

Bartec Auto ID

Bartec Auto ID TAP100 Manual de usuario

Manuales populares de Herramientas de otras marcas

Martor

Martor SECUNORM 175 Manual de usuario

ERKCO

ERKCO 1000 Manual de usuario

jbc

jbc N4473 Manual de usuario

FEINMETALL

FEINMETALL FZWZ-SET-001 Manual de usuario

Worx Professional

Worx Professional Sonicrafter WU676 Manual de usuario

Gage Bilt

Gage Bilt GB713SH Manual de usuario

Hilti

Hilti DX 9-ENP Manual de usuario

norbar

norbar NORTRONIC 34399 Manual de usuario

BGS technic

BGS technic 8578 Manual de usuario

Makita

Makita DHR241 Manual de usuario

Motor Guard

Motor Guard JMB-1250 Manual de usuario

Power Adhesives

Power Adhesives 805-12 Manual de usuario

Clemco

Clemco 24189 Manual de usuario

VVG

VVG VNG 903 Series Manual de usuario

Hilti

Hilti FX 3-A Manual de usuario

Grizzly

Grizzly H6472 Manual de usuario

axing

axing BWZ 5-02 Manual de usuario

Dh-Robotics

Dh-Robotics RGI-100 Cómo utilizar
