Barrett 912 Manual de usuario
BARRETT 912 Single Wire Broadband Dipoles are ideal for base stations that require operation on
multiple frequencies through out the HF spectrum using a single antenna. The 912 single wire
broadband P/N BC 91201, can be mounted either in a horizontal or inverted 'V' configuration as
illustrated in the following diagrams. In the horizontal configuration the minimum distance between
the masts is 49 metres and the recommended mast height is 15 metres.
In locations with limited space the antenna can be mounted with the ends past the load resistors
drooped down towards the ground. White nylon supports located just past the load resistors are
provided to attach halyards for this configuration. In this configuration the minimum distance
between masts is reduced to 33 metres.
BARRETT
912 Singlewire broadband dipole antenna - 125 W
P/N BC91201
BCM91201/4
In the horizontal configuration the major radiation direction is broadside to the antenna.
In the inverted 'V' configuration the recommended mast height is 15 metres and at this height
the 2 metre stub masts are each installed at a minimum of 19 metres from the mast base.
BARRETT
912 Singlewire broadband dipole antenna - 125 W
P/N BC91201
BCM91201/4

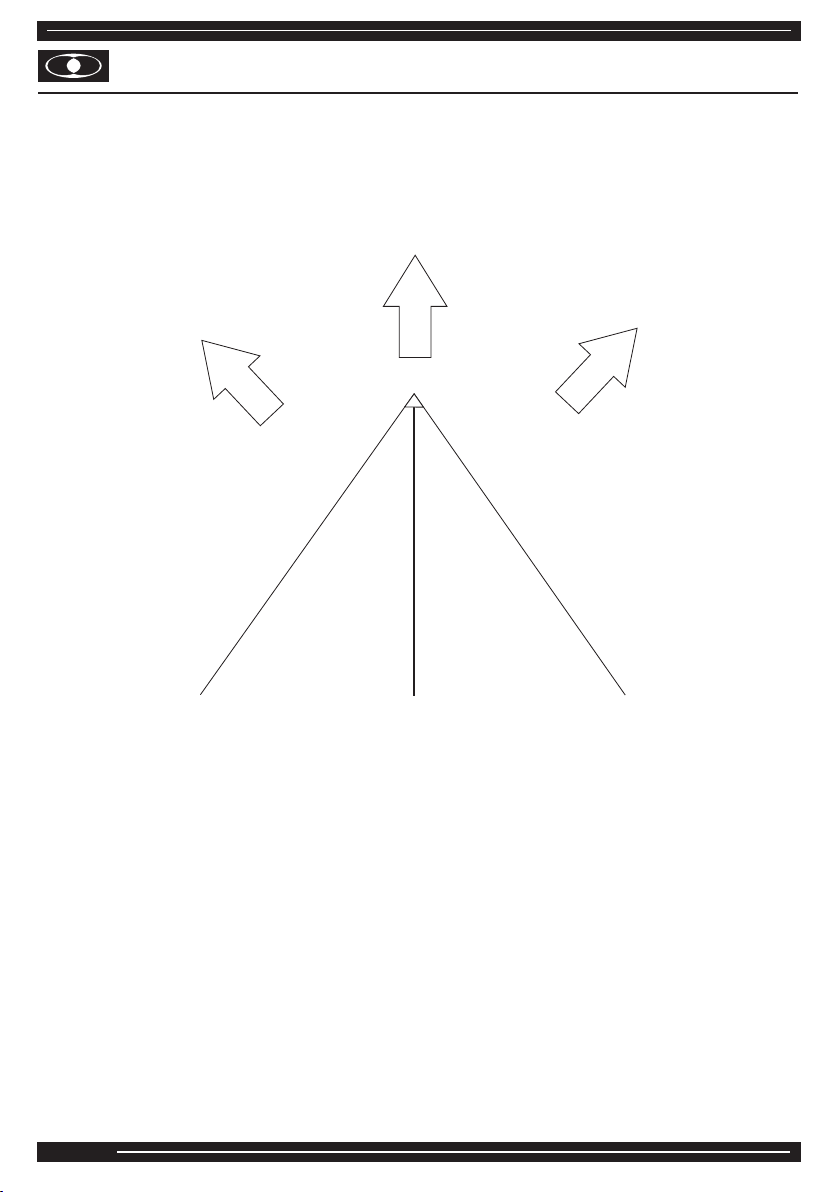

In the inverted 'V' configuration the antenna becomes more suitable for NVIS, with radiation
being directed at high angles, but omnidirectional around the antenna horizontally.
Support towers may be either lattice masts as illustrated, tubular telomasts or other support
structures that may be available locally.
It is recommended that the halyards used to support the antenna be either UV stabilised dacron
chord or wire rope and that pulleys should be of stainless steel construction.
As with all antenna installations ensure the antenna is as far from sources of electrical
interference as possible and in a position that makes it impossible for the antenna to come in
contact with high voltage overhead mains wiring
BARRETT
912 Singlewire broadband dipole antenna - 125 W
P/N BC91201
BCM91201/4
912 Single Wire ANTENNA
UNPACKING INSTRUCTIONS
Note: Do not unroll antenna wires until the antenna is onsite in a large area
1. Remove the antenna from the box so that the load resistor hangs downwards below the
antenna.
2. Spread the antenna on the ground as shown below
3. Remove all masking tape.
4. Starting at the ends, gently with wire cutters or scissors, remove the cable ties from the first
set of three coils of wire. Extend this antenna section as far as possible. Move onto the inner
rolls and repeat.
When all cable ties have been removed, the wires must be extended to full length to
prevent them becoming tangled.
If twisting or crossing of the wire occurs during unpacking don't panic and reach for the wire
cutters. Instead try to trace the crossed or twisted wire and correct the problem.
BARRETT
912 Singlewire broadband dipole antenna - 125 W
P/N BC91201
BCM91201/4
HORIZONTAL CONFIGURATION
Installation Instruction
1. Unpack the antenna (see unpacking instructions) and lay it out on the ground between two
mounting poles.
2. Attach rope to each insulator (one at each end) and slowly hoist between the two mounting
points (tower/poles even a tree or to the roof) ensuring the wires do not tangle. Raise to
about eye level.
3. Balun (black box) connection: Once the antenna has been raised to a convenient height,
attach the balun and coax cable as shown below. All stainless steel nuts and washers
required are provided with the balun. Remember to use the strain relief on the back of the
balun box (wrap the RG58 coax in the little “channel” under the washer and tighten the
wing nut).
4. Raise the antenna to the desired height and secure ropes. A slight curve in the antenna is
normal.
BARRETT
912 Singlewire broadband dipole antenna - 125 W
P/N BC91201
BCM91201/4
INVERTED “V” CONFIGURATION
Installation instructions
1. Unpack the antenna and lay on the ground making sure the wires do not tangle.
2. Attach a hoisting cord to the Balun. Slowly raise to about eye level ensuring that the wires
do not tangle.
3. When at a convenient working height, connect the coax cable to the plug at the base of the
balun. Remember to use the strain relief on the back of the balun box (wrap the RG58 coax
in the little “channel” under the washer and tighten the wing nut).
4. Raise the centre of the antenna to the required height. The ends of the antenna now need to
be secured. Attach cord to the insulator at each end of the antenna. Apply sufficient tension
to straighten the antenna cables. A slight curve in the antenna is normal. Tie these cords to
convenient points to secure the antenna in position. Ideally these should be tied at a height,
or in a safe area to avert possible contact and risks of minor shocks or burns.
BARRETT
912 Singlewire broadband dipole antenna - 125 W
P/N BC91201
BCM91201/4
