Warranty and Safety Instructions
Opening your Barracuda Networks appliance or removing its warranty label unless instructed to
do so by Barracuda Networks support will void your warranty and hardware support.
Barracuda Networks Appliance Safety Instructions
Always use the power supply shipped with the appliance. To prevent damage, connect the DC
plug to the appliance before plugging the power adapter into the AC outlet.
Default Port Configuration
Port Label OS Notation Speed/Type Management Port
1 p1 10/100/1000 MBit RJ45 X
2 p2 10/100/1000 MBit RJ45
3 p3 10/100/1000 MBit RJ45
4 p4 10/100/1000 MBit RJ45
5 p5 10/100/1000 MBit RJ45
The CloudGen Firewall hardware appliances ship with a Quick Start Guide. Follow this guide to
connect to your firewall. To protect your network, follow the instructions for the standard
deployment.
Barracuda CloudGen Firewall
F18 Revision B 2 / 6
Hardware Specifications
Interface
RJ45 Ethernet NICs 5x10/100/1000
USB 3.0 2
Serial console 1 [RJ45]
Data Storage
CPU Intel Apollo Lake
RAM [GB] 4
Mass Storage
Type SSD
Size [GB] 80 or higher
Size, Weight, Dimensions
Appliance weight [kg] 2,0
Carton weight with appliance [kg] 3,5
Appliance size: width x depth x height [mm] 232 x 153 x 44
Carton size: width x depth x height [mm] 310 x 260 x 180
Form factor Desktop
Hardware
Display -
Cooling Fanless
Power supply Single, external
L-Shape rack mount bracket No (to be ordered separately)
Wall mount bracket No
Environmental
Noise emission [db/A] N/A
Operating temperature [°C] 0 to +40
Storage temperature [°C] -20 to +70
Operating humidity (non-condensing) 5% to 95%
Certifications & Compliance
CE emissions Yes
CE electrical safety Yes
FCC emissions Yes
Barracuda CloudGen Firewall
F18 Revision B 3 / 6
ROHS compliant Yes
Power & Efficiency
Power Supply Single, external
Power Supply Input Voltage 100 – 240 V, AC
Power Supply Output Voltage 12 V, DC
Power Supply Voltage 50 Hz – 60 Hz
Power Supply Watts 45 W
MTBF [yrs.] > 5
Max. heat dissipation [W] 26.7
Max. heat dissipation [BTU] 90.9
Energy efficiency [average] > 93%
Energy efficiency [average] > 85%
Packaging Content
Appliance Yes
Serial cable Yes
Straight network cable Yes
External power brick and cable Yes
USB flash drive for recovery & installation Yes
Wireless Antenna No
Quick Start Guide Yes
The hardware specifications list was valid at the time this manual was published. The listed
components are subject to change at any time, as Barracuda Networks may change hardware
components due to technological advancements. Therefore, the list may not reflect the current
hardware configuration of the Barracuda appliance it was delivered with.
Wall Mount Kit
This appliances is shipped with a wall mount kit. Print the Barracuda CloudGen Firewall Wall Mount Jig
to use as a template when drilling the required holes. Do not scale the PDF when printing.
LEDs and Acoustic Signals
Your appliance is equipped with a variety of LEDs and acoustic signals. The front panel of
the Barracuda CloudGen Firewall F18 B contains one power LED (blue), one disc LED (green), one
Barracuda CloudGen Firewall
F18 Revision B 4 / 6
status LED (red), and 4 port LEDs. On the back panel, you can see one power button LED and various
port LEDs. Two acoustic signals indicate status of installation. The tables below show the different
meanings of the different glowing states and acoustic signals:
LED Color Status Meaning Installation Meaning Operation
All LEDs Off Off
Appliance is powered off or
installation has not initialized
far enough for LED control
when installation is started.
Appliance is powered off.
Power LED front side -
BLUE Steady - Appliance is plugged in and is
on.
Status LED front side -
RED Off Installation has finished
successfully. Box is running normally.
Status LED front side -
RED Steady
After a hotfix installation, the
LED turns to red until the next
reboot in case the hotfix
installation failed. This feature
requires firmware 7.1.3 or
higher OR 7.2.2 or higher.
Appliance is halted and may
be disconnected, or an error
occurred preventing the
appliance from entering the
up state.
Status LED front side -
GREEN
Blinking
slowly (1/s
interval)
Normal installation.
Appliance is either booting,
shutting down, or performing
a system update.
Status LED front side -
RED
Blinking fast
(4/s interval) Error during installation. Appliance is in ART mode.
Disc LED - GREEN Blinking Appliance is reading or writing
on storage.
Appliance is accessing the
internal storage.
Port LEDs -
GREEN/YELLOW
Left blinking Data transfer – Yellow (10/100
Mbps) Port in use.
Right steady - Port is on.
PSU LEDs - GREEN
Steady PSU modules connected and
running
Power supply unit is up and
running.
Off Power defective, standby, or
shutdown
Power supply unit is off or in
standby mode.
Acoustic Signal Frequency Meaning
Beep 1 time
(.) Appliance is booting.
Beep 3 times
(...)
Installation was completed successfully; appliance is halted for
reboot. After reboot, one beep will again indicate booting.
Beep 3 times long
(_ _ _) Error during installation.
LED and acoustic signals may vary between different appliance models.
Barracuda CloudGen Firewall
F18 Revision B 5 / 6
Serial Console Port
In order to establish a console connection to the appliance using an RJ45 serial cable, you need to
configure the serial port on the terminal using the following parameters:
Parameter Value
Baud 19200
Bits 8
Stop bit 1
Parity None
Handshake None
Barracuda CloudGen Firewall
F18 Revision B 6 / 6
Figures

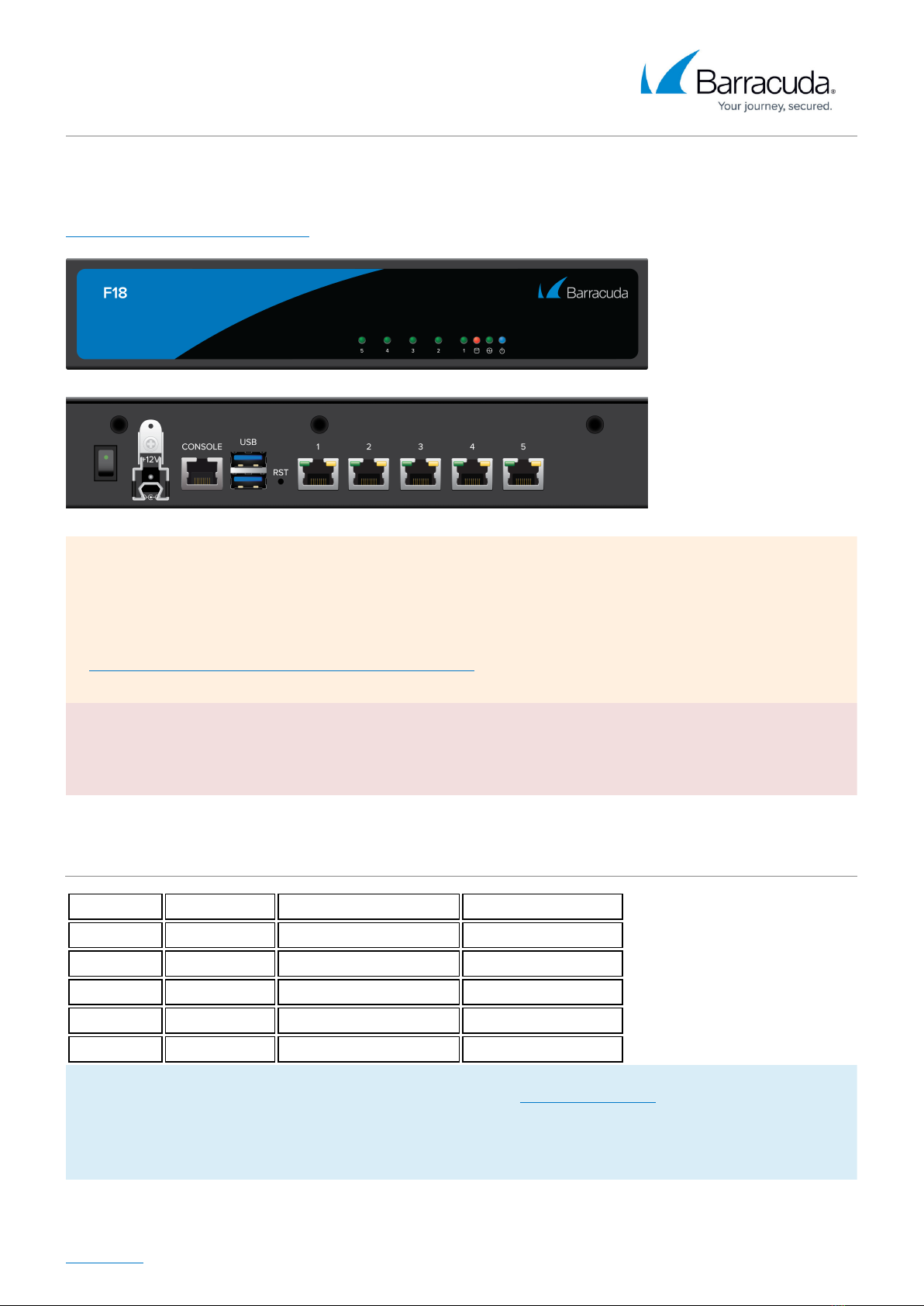

F18b.front.png1.
F18b.back.png2.
© Barracuda Networks Inc., 2021 The information contained within this document is confidential and proprietary to Barracuda Networks Inc. No
portion of this document may be copied, distributed, publicized or used for other than internal documentary purposes without the written consent of
an official representative of Barracuda Networks Inc. All specifications are subject to change without notice. Barracuda Networks Inc. assumes no
responsibility for any inaccuracies in this document. Barracuda Networks Inc. reserves the right to change, modify, transfer, or otherwise revise this
publication without notice.
