QW SERIES

GEOTHERMAL R-410A

STAGED CAPACITY

PACKAGED HEAT PUMP

INSTALLATION

INSTRUCTIONS

Models:

QW2S1 QW3S1

QW4S1 QW5S1

Manual No.: 2100-532B

Supersedes: 2100-532A

File: Vol II Tab 14

Date: 07-19-10

Bard Manufacturing Company, Inc.

Bryan, Ohio 43506

Since 1914...Moving ahead, just as planned.

MIS-2736

Earth Loop Fluid

Temperatures 25 – 110

Ground Water Temperature 45 – 75

Manual 2100-532B

Page 2 of 46

CONTENTS

Getting Other Information and Publications

For more information, contact these publishers:...... 4

QW General Information

QW Model Nomenclature ........................................ 5

Shipping Damage .................................................... 7

Unit Removal From Skid .......................................... 7

Handling Unit After Removal From Skid .................. 7

Removal of Wall Bracket from Shipping Location ... 8

General .................................................................... 8

Minimum Installation Height..................................... 8

Duct Work ............................................................... 11

Filters ...................................................................... 11

Condensate Drain ........................................... 11 – 13

Mist Eliminator Service .................................. 13 & 14

Installation Instructions

Mounting the Unit .................................................. 15

Wiring – Main Power ............................................. 18

Wiring – Low Voltage Wiring ................................. 18

General .................................................................. 18

Low Voltage Connections ...................................... 19

Start Up

Description of Standard Equipment ....................... 23

Compressor Control Module .................................. 23

Adjustments ........................................................... 23

Optional CFM ........................................................ 24

Important Installer Note ......................................... 24

Phase Monitor ....................................................... 24

Service Hints ......................................................... 24

Sequence of Operation .................................. 24 & 25

Pressure Service Ports .......................................... 25

Pressure Tables ..................................................... 28

Optional Accessories ............................................. 29

Closed Loop (Earth Coupled Ground Loop Applications)

Circulation System Design .................................... 30

Copper Water Coil Application ............................... 30

Start Up Procedure for Closed Loop System ......... 31

Open Loop (Well System Applications)

Water Connections ................................................ 33

Well Pump Sizing .................................................. 34

Start Up Procedure for Open Loop System ... 34 & 35

Water Corrosion .................................................... 35

Remedies of Water Problems ................................ 35

Lake and Pond Installations .................................. 36

Cooling Tower / Boiler Application ......................... 38

Service

Unbrazing System Components ............................ 41

Troubleshooting GE ECM™ Blower Motors ... 42-43

Quick Reference Troubleshooting Chart for

Water to Air Heat Pump.......................................... 44

Ground Source Heat Pump

Performance Report .......................................... 45-46

Manual 2100-532B

Page 3 of 46

Figures

Figure 1 Unit Dimensions ..................................... 6

Figure 2 Removal of Unit From Skid .................... 7

Figure 3 Proper Handling of Unit After Removal

from Skid ................................................ 8

Figure 4 Installation of Unit w/Wall Sleeve .......... 9

Figure 5 Installation With Free Blow Plenum ..... 10

Figure 6 Ducted Application ............................... 10

Figure 7 Supply Duct Connections ..................... 11

Figure 8A Condensate Drain ................................ 12

Figure 8B Optional Rear Drain ............................. 12

Figure 8C Rear Drain (Top View) .......................... 13

Figure 9 Removal of Q-TEC ERV ........................ 14

Figure 10 Remove Locking Screws from Wheels 15

Figure 11 Unit Mounting Without Wall Sleeve ..... 16

Figure 12 Component Location ............................ 17

Figure 13 Low Voltage Wire Harness Plug .......... 19

Figure 14 Remote Thermostat Wiring "X" Option 20

Figure 15 Remote Thermostat Wiring "D" Option 21

Figure 16 Remote Thermostat Wiring "H" Option 22

Figure 17 Fluid Connections w/Ventilation

Wall Sleeve .......................................... 26

Figure 18 Fluid Connections w/o Ventilation

Wall Sleeve .......................................... 27

Figure 19 Circulation System ............................... 30

Figure 20 Water Temperature and Pressure

Test Procedure .................................. 31

Figure 21 Performance Model WGPM-1C ........... 32

Figure 22 Performance Model WGPM-2C ........... 32

Figure 23 Piping Diagram .................................... 33

Figure 24 Cleaning Water Coil ............................. 36

Figure 25 Water Well System .............................. 37

Figure 26 Water Source H/P Cooling Cycle ......... 39

Figure 27 Water Source H/P Heating Cycle ........ 40

Figure 28 Control Disassembly ............................ 43

Figure 29 Winding Test ........................................ 43

Figure 30 Drip Loop ............................................. 43

Tables

Table 1 Electrical Specifications ........................... 5

Table 2 Operating Voltage Range ....................... 18

Table 3 Wall Thermostats ................................... 18

Table 4 Indoor Blower Performance ................... 25

Table 5 Pressures ............................................... 28

Table 6 Optional Accessories ............................. 29

Table 7 Constant Flow Valves............................. 33

Table 8 Water Flow and Pressure Drop .............. 38

CONTENTS

Manual 2100-532B

Page 4 of 46

GETTING OTHER INFORMATION AND PUBLICATIONS

These publications can help you install the air

conditioner or heat pump. You can usually find these at

your local library or purchase them directly from the

publisher. Be sure to consult current edition of each

standard.

National Electrical Code ...................... ANSI/NFPA 70

Standard for the Installation .............. ANSI/NFPA 90A

of Air Conditioning and Ventilating Systems

Standard for Warm Air ...................... ANSI/NFPA 90B

Heating and Air Conditioning Systems

Load Calculation for Residential ....... ACCA Manual J

Winter and Summer Air Conditioning

Duct Design for Residential ............. ACCA Manual D

Winter and Summer Air Conditioning and Equipment

Selection

Closed-Loop/Ground Source Heat Pump ........ IGSHPA

Systems Installation Guide

Grouting Procedures for Ground-Source ......... IGSHPA

Heat Pump Systems

Soil and Rock Classification for the Design .... IGSHPA

of Ground-Coupled Heat Pump Systems

Ground Source Installation Standards ............. IGSHPA

Closed-Loop Geothermal Systems – Slinky .... IGSHPA

Installation Guide

FOR MORE INFORMATION, CONTACT

THESE PUBLISHERS:

ACCA Air Conditioning Contractors of America

1712 New Hampshire Avenue

Washington, DC 20009

Telephone: (202) 483-9370

Fax: (202) 234-4721

ANSI American National Standards Institute

11 West Street, 13th Floor

New York, NY 10036

Telephone: (212) 642-4900

Fax: (212) 302-1286

ASHRAE American Society of Heating Refrigerating,

and Air Conditioning Engineers, Inc.

1791 Tullie Circle, N.E.

Atlanta, GA 30329-2305

Telephone: (404) 636-8400

Fax: (404) 321-5478

NFPA National Fire Protection Association

Batterymarch Park

P.O. Box 9101

Quincy, MA 02269-9901

Telephone: (800) 344-3555

Fax: (617) 984-7057

IGSHPA International Ground Source

Heat Pump Association

490 Cordell South

Stillwater, OK 74078-8018

Manual 2100-532B

Page 5 of 46

QW SERIES GEOTHERMAL R-410A STAGED CAPACITY GENERAL INFORMATION

QW MODEL NOMENCLATURE

FILTER OPTIONS

X - 2-Inch Pleated

(MERV6)

STEP CAPACITY |

CAPACITY |

2 - 2 Ton

3 - 3 Ton

4 - 4 Ton

5 - 5 Ton

MODEL NUMBER |

Q-Tec™ Model

REVISION |

COLOR

4 - Buckeye Gray paint

X - Beige paint

V - Platinum w/Slate

Front (Vinyl)

INTERNAL CONTROLS

• High Pressure Switch

• Low Pressure Switch

• Compressor Control Module

w/Time Delay

• Phase Monitor (3-PH)

VOLTS &

PHASE

A - 230/208/60/1

B - 230/208/60/3

C - 460/60/3

COIL OPTIONS

C - Copper (water)

N - Cupronickel

0Z - OKW

CLIMATE CONTROL

Standard -

X - None

D - Electronic/Prog/Man/Auto

H - Electronic/Prog with CO2control

QW 3 S 1 A 0Z B X 4 X C X

SPECIALTY

PRODUCTS

1Maximum size of the time delay fuse or HACR type circuit breaker for protection of field wiring conductors.

2These “Minimum Circuit Ampacity” values are to be used for sizing the field power conductors. Refer to the National Electric

Code (latest revision), article 310 for power conductor sizing.

CAUTION: When more than one field power conductor circuit is run through one conduit, the conductors must be derated.

Pay special attention to Note 8 of Table 310 regarding Ampacity Adjustment Factors when more than three

conductors are in a raceway.

VENTILATION OPTIONS

B - Blank-off Plate

V - Commercial Room Ventilator w/Multi-Position Control.

Can also be modulating with CO

control.

R - Energy Recovery Ventilator w/Independent Intake/Exhaust

Control.

TABLE 1

ELECTRICAL SPECIFICATIONS

LEDOM

DETAR zH,STLOV ESAHP&

TIUCRICELGNIS

DLEIF.ON REWOP STIUCRIC

MUMINIM TIUCRIC YTICAPMA

MUMIXAM LANRETXE ROESUF TIUCRIC REKAERB

Z0A-1S2WQ Z0B-1S2WQ Z0C-1S2WQ

1-06-802/032 3-06-802/032 3-06-064

9141

030251

Z0A-1S3WQ Z0B-1S3WQ Z0C-1S3WQ

1-06-802/032 3-06-802/032 3-06-064

6202

040351

Z0A-1S4WQ Z0B-1S4WQ Z0C-1S4WQ

1-06-802/032 3-06-802/032 3-06-064

137211

050402

Z0A-1S5WQ Z0B-1S5WQ Z0C-1S5WQ

1-06-802/032 3-06-802/032 3-06-064

939271

065452

Manual 2100-532B

Page 6 of 46

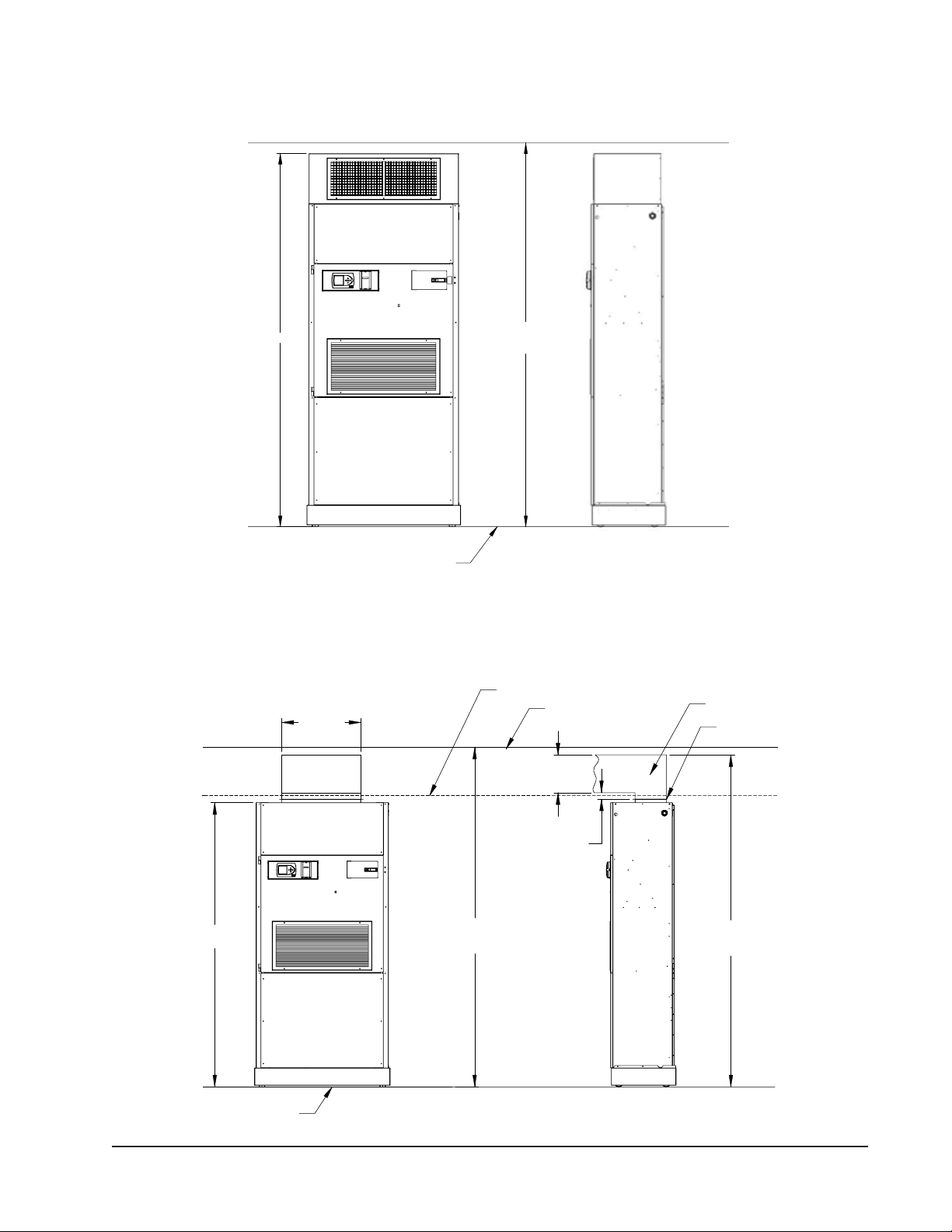

FIGURE 1

UNIT DIMENSIONS

36 1/16" 36 7/8"

68 3/4"

UNIT DIM. "A" DIM. "B" DIM. "C" DIM. "D"

QW2S, QW3S 8 5/8" 42" 30" 43"

QW4S, QW5S 8 3/4" 48" 40" 49"

MIS-2737 B

(OPTIONAL)

FILTER

ACCESS

DOOR

SUPPLY AIR

THERMOSTAT

RETURN AIR

CO2 SENSOR GRILLE

GRILLE

(OPTIONAL)

DOOR

CONDENSER

CIRCUIT BREAKER

ACCESS AND LOCKING

COVER

FRONT VIEW

16 5/8"

14"

"D"

15 5/8"

"C"

11 3/4"

"C"

104"37 1/8"

1 1/8"

"B" (OPTIONAL)

PLENUM BOX

RIGHT SIDE VIEW

(OPTIONAL) HIGH VOLTAGE

ELECTRICAL ENTRANCE

BACK VIEW

FREEBLOW

(OPTIONAL) LOW VOLTAGE

ELECTRICAL ENTRANCE

1 11/16"

3 3/4"

3 1/16"

3 3/8"

VENT

(OPTIONAL) HIGH

INTAKE

VOLTAGE

VENT

EXHAUST

ENTRANCE

ELECTRICAL

ACCESS

FOR FLUID

CONNECTION FOR

DORFC PUMP

APPLICATION

20"

5 1/4"

5 15/16"

19"

1 15/16"

6 7/8"

3 3/8"

33 9/16"

FLUID CONNECTION

POINTS FOR FACTORY

INSTALLED PUMP OPTIONS

3, 4, OR 5 (INLET ON LEFT,

OUTLET ON RIGHT AS VIEWED

FROM BACK OF UNIT)

ELECTRICAL ENTRANCE

SUPPLY AIR OPENING

ELECTRICAL ENTRANCE

FREEBLOW PLENUM)

(SHOWN WITHOUT

(OPTIONAL) LOW VOLTAGE

(OPTIONAL) HIGH VOLTAGE

TOP VIEW

LOW VOLTAGE

ELECTRICAL ENTRANCE

(DUCT SIZE)

"A"

24 15/16"

3 3/16"

2 1/16" 2 15/16"

1 3/4"

6 3/4"

7/8"

20 3/8" 9 15/16"

2 7/16"

Manual 2100-532B

Page 7 of 46

SHIPPING DAMAGE

Upon receipt of equipment, the carton should be

checked for external signs of shipping damage. The

skid must remain attached to the unit until the unit is

ready for installation. If damage is found, the receiving

party must contact the last carrier immediately,

preferably in writing, requesting inspection by the

carrier’s agent.

It is recommended that the unit not be removed from the

skid with a forklift.

The shipping brackets on each side of the unit must be

removed and discarded. See Figure 2-A. The return air

grille panel can be removed to provide a place to hold

the unit. The unit can be slid forward on the skid until

the front wheels hang over the edge of the skid. See

Figure 2-B. The unit can be tipped forward and slid

down the edge of the skid until the front wheels touch

the ground. See Figure 2-C. The wheels will not roll.

They are shipped from the factory locked so they will

not roll. The back of the skid will have to be held down

to keep it from tipping up. The skid can be slid out from

under the unit. The unit can then be set upright.

FIGURE 2

REMOVAL OF UNIT FROM SKID

The unit will have to be turned sideways and removed

from the skid to fit through a 36" doorway. If the door

height allows, the unit can be slid sideways through the

door.

If the unit can not be slid through the door, then the unit

will have to be put on a cart and tipped down to roll

through the door. It is recommended that an appliance

cart be used with a strap to hold the unit on the cart.

The wheels of the unit must be locked. If the wheels

were allowed to roll, the unit could roll off the cart. The

unit should always be carted from the left side. This is

the side where the compressor is located. See Figure 3.

The blade of the appliance cart should be slid under the

wheels of the unit. The strap of the appliance cart

should be placed around the unit and strapped tightly.

Help will be required to tip the unit back onto the cart.

The unit can be leaned far enough back to be rolled

through the door. Be careful when setting the unit back

up to keep from damaging the unit.

UNIT REMOVAL FROM SKID

HANDLING UNIT AFTER REMOVAL FROM

SKID

WARNING

This unit is heavy and requires more than one

person to handle and remove from the skid.

Check unit wheels to ensure that wheels are

locked before removing from skid. Extreme

caution must be taken to prevent injury to

personnel and damage to the unit.

WARNING

Exercise extreme caution when pushing the

unit on the rollers. Handle and push from the

lower 1/3 of the unit. Insure that debris is not

on the floor where the unit is to be moved on

the rollers. Failure to do so could result in

the unit tipping over and causing bodily injury

and/or damage to the unit.

HOLD SKID DOWN

ASHIPPING BRACKETS BFRONT WHEELS OVER EDGE CFRONT WHEELS ON FLOOR

Manual 2100-532B

Page 8 of 46

REMOVAL OF WALL BRACKET FROM

SHIPPING LOCATION (UNITS WITH

BLANK OFF PLATE ONLY)

The wall brackets are attached to the back of the unit.

Remove and retain the wall brackets for use when

attaching the unit to the wall. In units equipped with a

ventilator a wall sleeve is required and these two wall

brackets are not included. A different style bracket is

supplied with the sleeve assembly.

GENERAL

The equipment covered in this manual is to be installed

by trained, experienced service and installation

technicians.

The unit is designed for use with or without duct work.

For use without duct work, Plenum Box QPB** is

recommended.

These instructions explain the recommended method to

install the water source self-contained unit and the

electrical wiring connections to the unit.

These instructions and any instructions packaged with

any separate equipment required to make up the entire

air conditioning system should be carefully read before

beginning the installation. Note particularly “Start

Procedure” and any tags and/or labels attached to the

equipment.

While these instructions are intended as a general

recommended guide, they do not supersede any national

and/or local codes in any way. Authorities having

jurisdiction should be consulted before the installation is

made. See Page 4 for information on codes and

standards.

Size of unit for a proposed installation should be based

on heat loss calculation made according to methods of

Air Conditioning Contractors of America (ACCA). The

air duct should be installed in accordance with the

Standards of the National Fire Protection Systems of

Other Than Residence Type, NFPA No. 90A, and

Residence Type Warm Air Heating and Air

Conditioning Systems, NFPA No. 90B. Where local

regulations are at a variance with instructions, installer

should adhere to local codes.

MINIMUM INSTALLATION HEIGHT

The minimum installation height of the unit with a Free

Blow Plenum is 8 ft. 9 in. This provides enough

clearance for the plenum to be removed. See Figure 5.

The minimum installation height for ducted applications

is 8 ft. 9 in. This provides enough clearance to install

the duct work. See Figure 6.

FIGURE 3

PROPER HANDLING OF UNIT

AFTER REMOVAL FROM SKID

APPLIANCE

CART

COMPRESSOR

Q-Tec UNIT

(RIGHT SIDE)

STRAP

Manual 2100-532B

Page 9 of 46

MIS-2739 A

AIR DIVIDER

ELIMINATOR

WALL SLEEVE

MIST

TRIM PIECE

SUPPLY AIR

ROLLERS

BOTTOM

RETURN AIR

CIRCUIT BREAKER, ROTARY,

OR TOGGLE DISCONNECT

ELECTRICAL ACCESS

BLOW PLENUM BOX

(TOP-SIDE)

AND LOCKING COVER

LOW VOLTAGE

OPTIONAL FREE

ELECTRICAL ENTRANCE

(TOP-REAR-SIDE)

VENTILATION

PERMANENT

HIGH VOLTAGE

QW2S, QW3S - 42.000"

QW4S, QW5S - 48.000"

28 7/8"

33 7/8"

103 7/8" 84 1/4"

(X) 18 9/16"

35"

29 1/2"

33"

6 1/8"

17 9/16"

14" to 5"

FIGURE 4

INSTALLATION OF UNIT THROUGH WALL WITH WALL SLEEVE

Manual 2100-532B

Page 10 of 46

FIGURE 6

DUCTED APPLICATION

INSTALLATION HEIGHT

8 FT. - 9 IN.

MINIMUM REQUIRED

MIS-2740

FLOOR

8 FT. - 8 IN.

INSTALLATION HEIGHT

9 FT.

MINIMUM REQUIRED

UNIT HEIGHT

7 FT. - 6 IN.

MINIMUM

25 IN.

TO DUCT BOTTOM

2 IN. MINIMUM

FROM DUCT FLANGE

INSTALLATION HEIGHT

8 FT. - 9 IN.

MINIMUM REQUIRED

MINIMUM

12 IN.

MIS-2741

FLOOR

DUCT

FIXED CEILING

DUCT FLANGE

SUSPENDED CEILING

FIGURE 5

INSTALLATION WITH FREE BLOW PLENUM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bomba de calor de Bard

Bard

Bard Q-TEC Q30H3DA Manual de usuario

Bard

Bard 11EER QH Series Manual de usuario

Bard

Bard WH184 Manual de usuario

Bard

Bard QW2S-QW5S Water-to-Air H Manual de usuario

Bard

Bard SH381D Series Manual de usuario

Bard

Bard WH242D Manual de usuario

Bard

Bard WH185 Manual de usuario

Bard

Bard QTEC QH243 Manual de usuario

Bard

Bard Q-TEC Q24H1 Manual de usuario

Bard

Bard WH301D Manual de usuario

Bard

Bard C24H2-A Manual de usuario

Bard

Bard MULTI-TEC W18ABP Series Manual de usuario

Bard

Bard C36H1-A Manual de usuario

Bard

Bard WH183 Manual de usuario

Bard

Bard Q-TEC QH Series Manual de usuario

Bard

Bard WH423D Manual de usuario

Bard

Bard T24H1 Manual de usuario

Bard

Bard WH302D Manual de usuario

Bard

Bard T30S1-A Manual de usuario

Bard

Bard CH4S1 Manual de usuario

Bard

Bard I30H1 Manual de usuario

Bard

Bard T36S1-A Manual de usuario

Bard

Bard PH13242-A Manual de usuario

Bard

Bard QW242D Manual de usuario

Manuales populares de Bomba de calor de otras marcas

MICROWELL

MICROWELL HP 1000 GREEN Manual de usuario

Sanyo

Sanyo SAP120FCH Manual de usuario

Daikin

Daikin EHYHBH05AA Manual de usuario

Panasonic

Panasonic WH-SDF03E3E5 Guía

Bryant

Bryant 544B Manual de usuario

Airxcel

Airxcel 45000 Series Manual

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manual de usuario

Dimplex

Dimplex LI 16I-TUR Guía del usuario

Carrier

Carrier WSHP Open v3 Guía de configuración rápida

TGM

TGM CTV14CN018A Manual de usuario

Carrier

Carrier 38MGQ Series Manual de usuario

Kokido

Kokido K2O K880BX/EU Guía de solución de problemas

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guía rápida

Carrier

Carrier 48EZN Manual de usuario

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Instrucciones de funcionamiento

Ariston

Ariston NIMBUS Manual de usuario

Weishaupt

Weishaupt WWP L 7 Guía del usuario

GE Zoneline AZ85H09EAC Manual de usuario
