Barco RLM W8 Manual de usuario

-1-

SERVICE MANUAL

BARCO RLM W8

-2-

Version Description Date

00 Initiation Aug. 17, 2010

-3-

BARCO RLM W8 Projector

PLEASE NOTE

The information contained herein is based on the experience and knowledge relating

to the subject matter gained by Barco prior to publication. No patent license is

granted by this information.

Barco reserves the right to change this information without notice, and makes no

warranty, express or implied, with respect to this information. Barco shall not be

liable for any loss or damage, including consequential or special damages, resulting

from any use of this information, even if loss or damage is caused by Barco’s

negligence or other fault.

This equipment includes parts and assemblies sensitive to damage from

electrostatic discharge. Use caution to prevent damage during all service

procedures.

-4-

Table of Contents

zIntroduction of the product & Safety precautions

zUnpack the unit

zBlock Diagram

zRemote control use

zBoard location

zFan location

zCleaning unit procedure

zKits definition & Pictures

zReplacing procedures

zRS-232 communication

zRecommended Spare Part List

zSoftware download process

zTiming chart

-5-

zIntroduction of the product & Safety precautions

BARCO (RLM W8) is compact WUXGA (1920 x 1200 Widescreen Ultra Extended Graphics

Array), and 3-Chip DLPTM high-definition images projector. It shares a common

mechanical, electrical, and optical platform.

BARCO (RLM W8) is designed with 0.67” DMD (Digital Micro mirror Device) with 330W

dual lamp.

1. Cleaning the Projector

A). Cleaning the projector to remove dust and grime will help ensure trouble-free

operation.

1). Be sure to turn off and unplug the projector at least 30 minutes before cleaning.

Failure to do so could result in a severe burn.

2). Use only a dampened cloth when cleaning.

Do not allow water to enter the ventilation openings on the projector.

3). If a little water gets into the projector interior while cleaning,

leave unplugged in a well-ventilated room for several hours before using.

4). If a lot of water gets into the projector interior when cleaning, have the projector serviced.

B). Cleaning the Projection Lens

*When dust and fingerprints, etc. are on the lens surface, use

the designated glass cleaner (toraysee) to remove it as shown in the

figure at the right. For fingerprints and other soiling that are difficult

to remove with a dry cloth, use a designated glass cleaner (toraysee)

which has been moistened in water and then use a dry cloth

to dry it off. Or, apply a little optic lens cleaner to a clean soft cloth.

(Do not apply the cleaner directly to the lens.) Then, lightly wipe the lens

in a circular motion.

-6-

Caution:

*The projection lens surface has a special coating.

1. Do not use abrasive cleaners and detergents or solvents on the

surface.

2. To prevent discoloration or fading, avoid getting cleaner on the

projector case

C). Cleaning the Main Unit

1. Clean with a soft fuzz-free cloth. In case of severe soiling, use

a well-wrung cloth dipped in a neutral agent to remove soiling

and then finish with a dry cloth.

*Do not clean with thinner, benzene or similar agents as this

could lead to deterioration or peeling of paint.

2. In case of dust in suction or exhaust holes or the interior,

disassemble the main unit and use air to remove the dust from

the inside.

D). Cleaning the filters

In order to keep the interior of the projector clean, the projector is equipped with a filter to

keep out dust and other small particles. Normally, it is recommended that you change the

projector's filter around 500 hours of projector operation at least. If you are operating the

projector in a dusty environment, it is recommended that you clean the filter more often.

When used in fog machine environment, a filter change is recommended on a regular base.

-7-

The interval is depending on the smoke density.

Dust clogs at the filter will prevent the projector from drawing cool air to lower the internal

temperature. This could lead to overheating and cause the projector to malfunction or

become damaged.

Use a vacuum cleaner to clean the ventilation slots.

To clean the filter at the ventilation slots, refer to the following illustration:

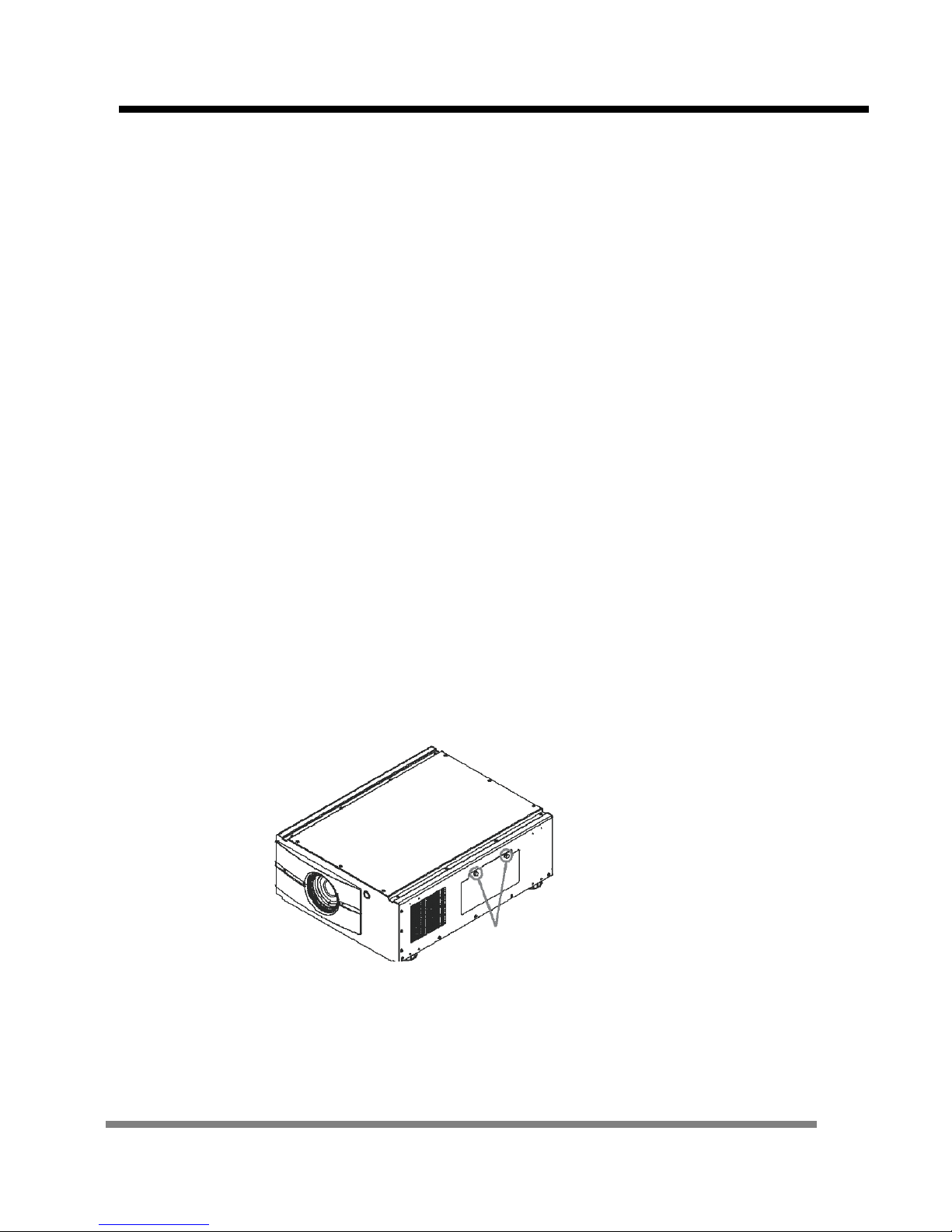

Step1: Loosen the two screws on the cover of the ventilation slot.

Loosen the 2 screws

-8-

Step2: Remove the dirty filter; you can clean it directly using water. Leave it to dry

before replacing it for further use. If the filter is broken or greasy, please replace it by a

new one. (Filter Part nr: R9899704).

Take out the filter and clean it

Step3: Insert the clean filter.

Put the clean filter inside the cover

-9-

Step4: Reattach the filter cover and tighten the two screws.

Close the filter cover

Then, fasten the two screws

-10-

E). Lamp Replacement

The lifecycle of ordinary projection lamp typically lasts for 1500 hours before requiring

replacement (different lamp configurations will affect lamp life). From the OSD Menu, you can go

to LAMPS

ÆLamp1 or 2 Run Time to check how long a lamp has been used. You should also replace the

lamp when the projected image gets noticeably darker. Contact your local dealer to purchase new

certified lamps for your projector.

To replace the projector lamp

Step1: Turn off the projector and unplug the power cord. Let the projector cool for

approximately 15 minutes before removing the lamp module for replacement.

When you turn off the projector, the lamp inside the projector will still be very hot (approximately 200 ~ 300°C).

If you attempt to replace the lamp without allowing the projector to cool, you could risk scalding yourself. This

is why you should wait for no less than 15 minutes for the lamp to cool down in order to perform the

replacement safely.

Step2: Loosen the Lamp cover.

Loosen the 2 screws
