INSTALLATION MANUAL

3-D Polar/Optical Soft Edge Kit for Projector SLM Series

Art.No.:R5976401Rev:00

OSEM/3-D Kit

SLM Series

Due to constant research, the information in this manual is subject to change without notice.

Produced by BARCO NV, November 2001.

Trademarks are the rights of their respective owners.

BARCOn.v./ProjectionSystems

Noordlaan5

B-8520Kuurne

Belgium

Tel:+32/56/368211

Fax:+32/56/351651

E-mail : [email protected]

Visite Barco at the web : http://www.barco.com

Printedin Belgium

BARCO  3  Projection Systems

Description and Contents of the kit

Purpose of the

Kit

The kit is designed to be mounted on SLM projectors to support the polarizer and/or soft

edge glass in front of the lens.

Application of the

Kit

The 3D/OSEM kit allows the user to display 3D application using passive stereo

technology and/or optical soft edging which may be necessary in case of large

screen multiple channel projections.

To be continued on next page

Illustration of the

Kit

To find out which spares to use :

OSEM: R8.... number located as shown on the illustration below (A).

The number is hidden by the frame, refer to page 15 to see how to remove the

frame.

3D: The name of the polar is located as shown on the illustration below (B):

Contents of the

Kit

Depending on the kit ordered the following features may be included.

- Polarizer LEFT

- Polarizer RIGHT

-Optical Soft Edge Matching (OSEM) LEFT

-Optical Soft Edge Matching (OSEM)RIGHT

-Polarizer LEFT+Optical Soft Edge Matching (OSEM) LEFT

-Polarizer RIGHT +Optical Soft Edge Matching (OSEM) RIGHT

-Custom OSEM

R8 - - - - - - -

3D FRONT R

3D FRONT RC

3D FRONT L

3D FRONT LC

BARCO  4  Projection Systems

B358674

R816851

G115520

R312010

R366242

R819615

V3673796

R312010

R366243

R823626

RV3620756

V3673796

B361138

R823625

B361138 B361138

Back view polar holder

Front view polar holderl

Holder fixation bars:

Description and Contents of the kit (Continued)

Spare List

To be continued on next page

fixation screws: R3631649

BARCO  5  Projection Systems

Some adjustment are more indicated in one application than another.

For instance the horizontal fine adjustment is more indicated for OSEM where it lines up

the soft edge and the edge of the image, whereas it becomes superfluous for polarizer

setup where the aim is to adjust roughly the image on the polarizer.

Each chapter mentions where the adjustment is recommended.

Table below gives an overview of the adjustments.

I: adjustment is required

0: adjustment is not required

Remark on the

adjustments

Description and Contents of the kit (Continued)

Adjustment Polarizer set up OSEM OSEM + Polarizer

Holder dist adj

Hor shift adj

Vertical adj

Hor fine adj

Tilt

Application

WRRVPDOO

WRRELJ

p10

p11

p12

p13

Page

II I

BARCO  6  Projection Systems

Mounting the fixation bars

What has to be

done

Two fixation bars have to be mounted on the projector frame.

Necessary Tools M6 spanner (n° 10)

To be continued on next page

Mounting the

fixation bars

To mount the bars, follow the next procedure:

Take the two bars to be mounted

Check the distances between the nuts.

If the distances do not coincide at all, slide the nuts A to

reposition them.

Put one of the the bars into the housing of the frame B

and push until the nut C is lined up with the farrest hole D

in the housing. Pull the housing plate a little upwards if the

insertion of the bar turns out to be difficult.

Insert and tighten one of the delivered bolts in the hole D

Dont tighten the bolts too hard because a horizontal

adjustment of the polarizer may be necessary afterwards.

Do the same for the nut E. If the nut is not in front of the

hole, slide the bar to line up the nut and the hole.

Try to obtain an outcoming distance as shown on image 4

Follow the same procedure for the other bar

Step Action Image

Illustrations

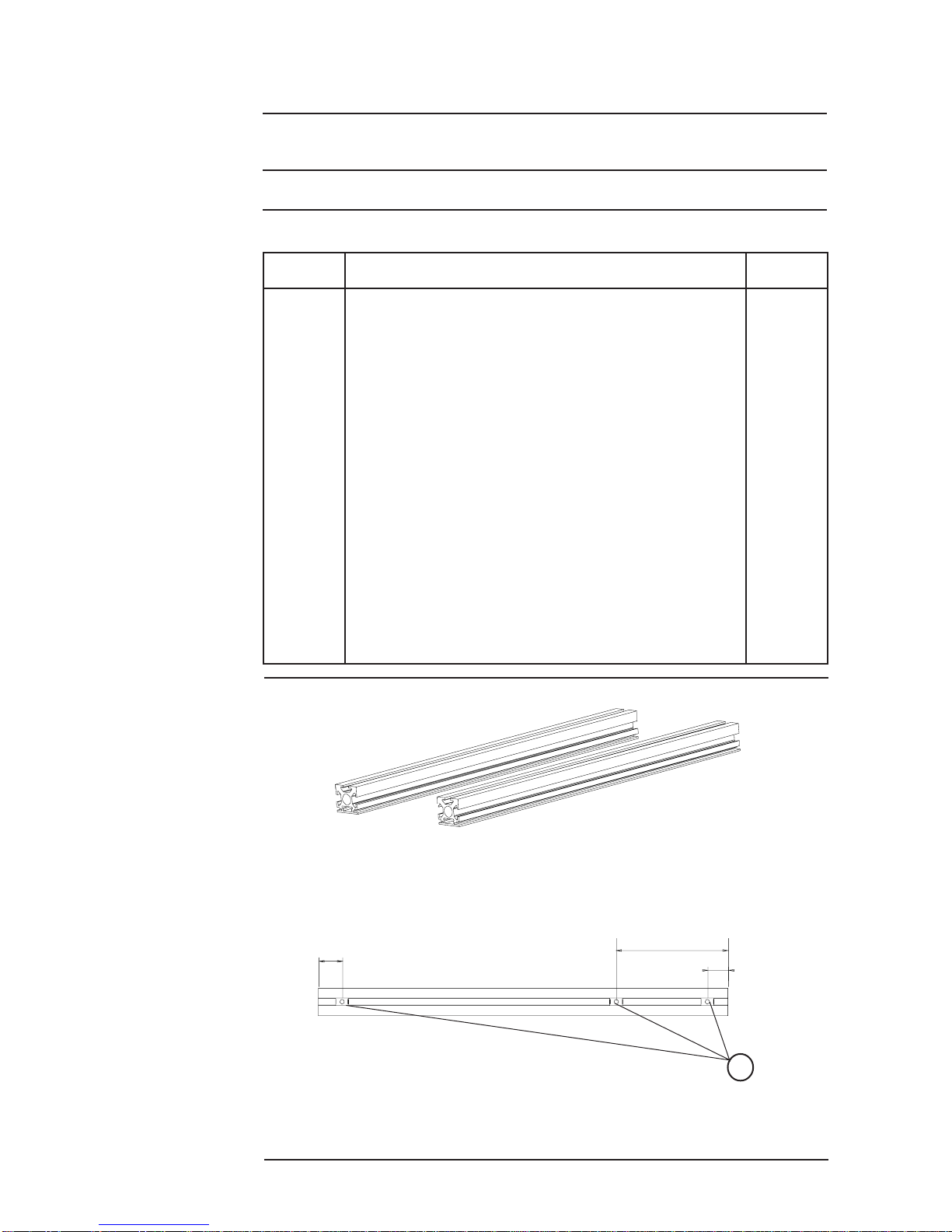

Image 1

26 23

123

Image 2

BARCO  7  Projection Systems

250

Mounting the fixation bars

Image 3

Image 4

Illustrations

BARCO  8  Projection Systems

Mounting the polarizer holder

What has to be

done

The polarizer holder has to be mounted on the bars.

Necessary Tools M6 spanner (n° 10)

Mounting the

holder

To mount the holder, follow the next procedure:

Place the holder on the fixation bars, the two holes must be

in front of the remaining nuts in the bars.

Tighten the bolts to secure the position.

Step Action Image

Illustrations

Image 1

BARCO  9  Projection Systems

Holder distance adjustment

What has to be

done

The distance between the holder and the lens has to be adjusted.

This adjustment is necessary for the image to cover the largest area on the polarizer.

Necessary Tools M6 spanner (n°10)

Distance adjust To perform the adjustment, follow the next procedure:

Loosen (if necessary) the 4 bolts.

Slide the holder to the desired position.

Secure the position by tightening the 4 bolts.

Step Action Image

Illustrations

Image 1

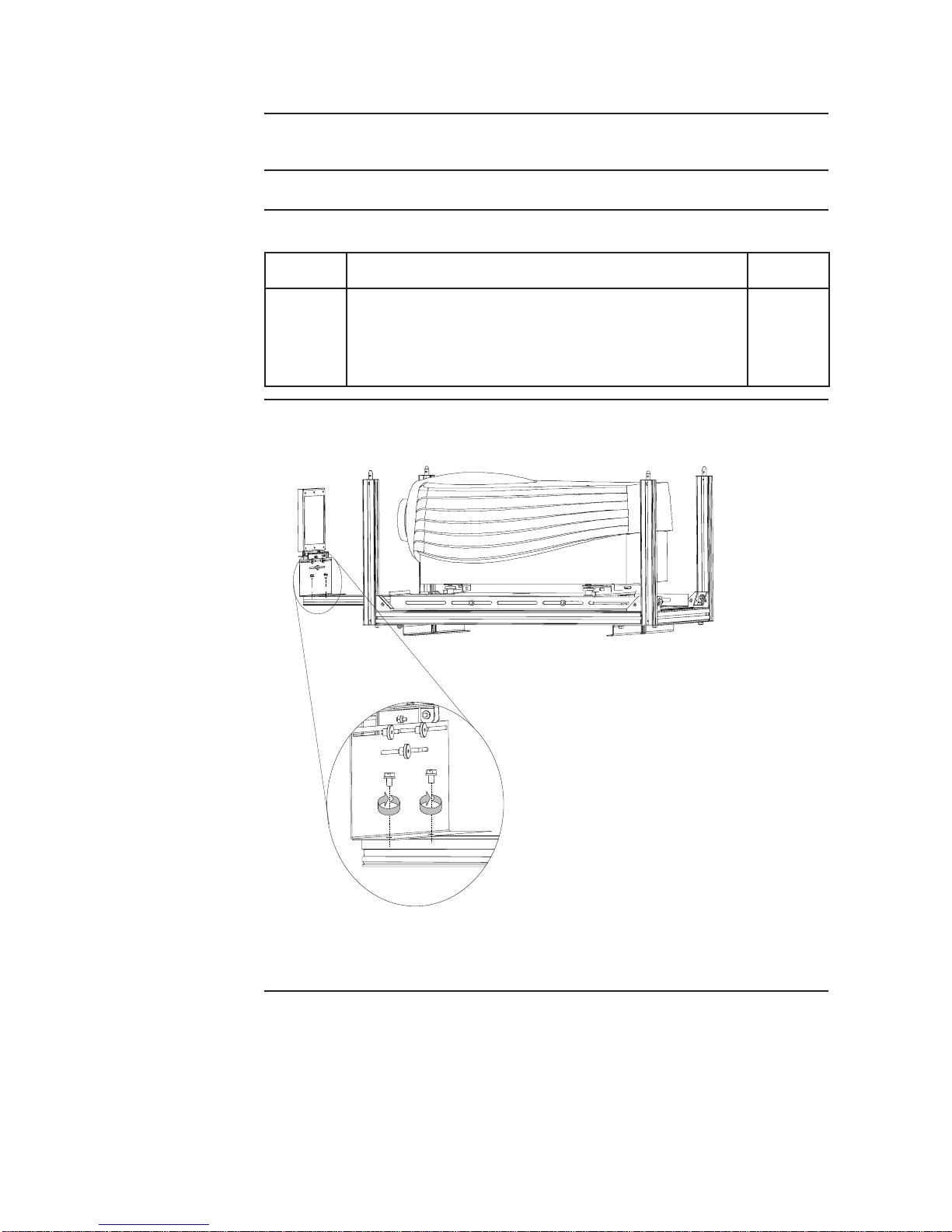

Adjustment for max. spot sizeonthepolarizer area

WRRVPDOO WRRELJ

Image 2

BARCO  10  Projection Systems

Horizontal Shift of the holder

What has to be

done

Horizontal shift adjustment of the polarholder.

This adjustment is necessary to center the image (lightbeam) on the polarizer.

Necessary Tools none

Horizontal shift To perform the horizontal shift, follow the next procedure:

Loosen the 3 bolts as shown on image 1.

Slide the polarholder horizontally to the desired position.

Secure the position by tightening the 3 bolts.

Step Action Image

Illustrations

Image 2

$GM+25SRVLWLRQRIWKHOLJKWVSRWRQWKHSRODUL]HU

Image 1
