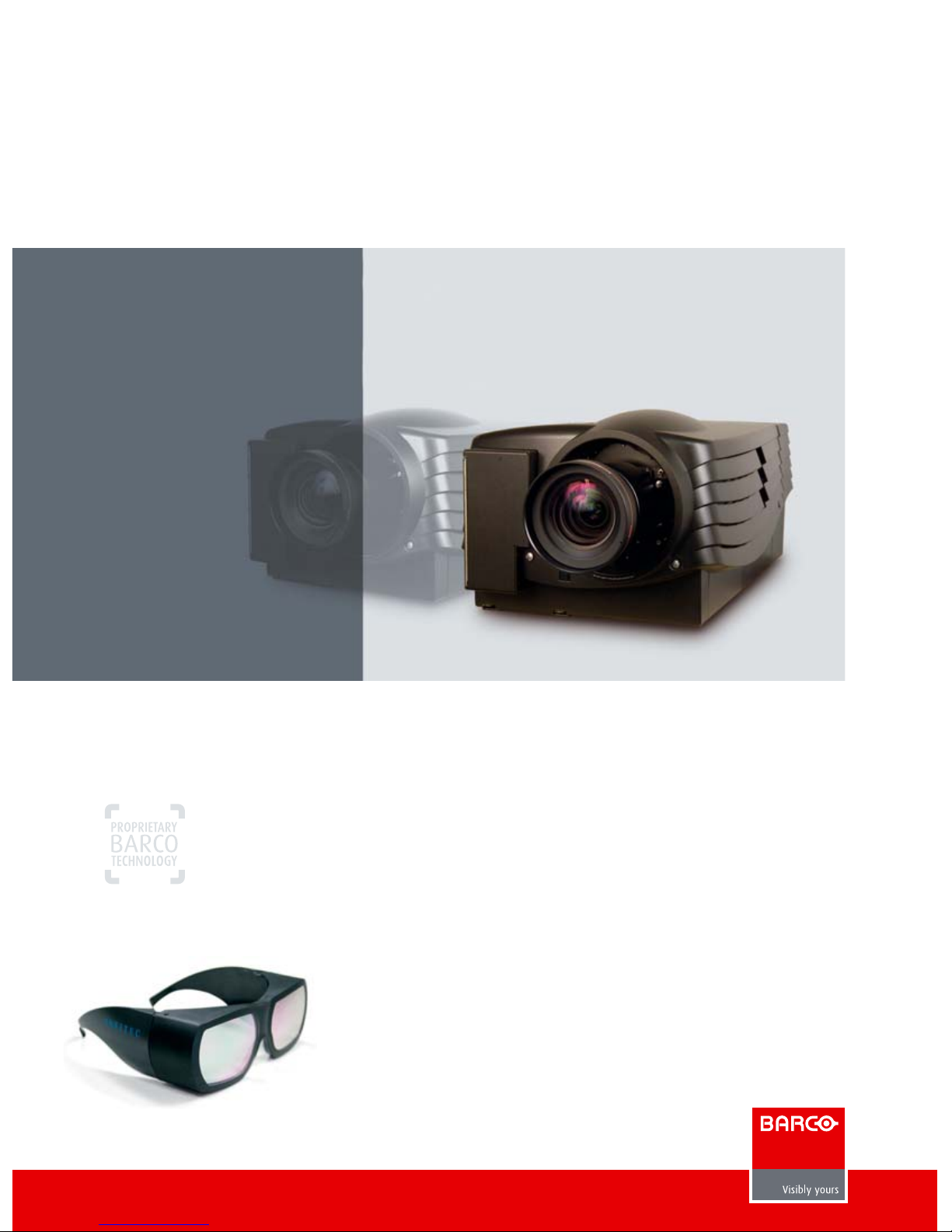

Barco Galaxy 12 HB+ Manual de usuario

Stereo dedicated 3-chip DLP™ projectors

with built-in color matching and WARP™ predistortion

The Barco Galaxy Family

The Barco GALAXY family has a proven record for active and passive stereo

technology. It is the only 3-chip DLP™ projector offering the unrivaled platform

for Infitec+™, the superior stereo separation technology combining high contrast

with excellent stereo separation. These stereo projectors are also available in

mono version.

•SXGA+ resolution (1400x1050)

•4:3 aspect ratio: compatible with all widely used resolutions

•Built-in STEREO-CREATOR™, including DVI sources

•I-Blend™ supports up to three channels

Classic

GALAXY 7 Classic+

•7000 / 4650 lumens

•1600:1

High Brightness

GALAXY 12 HB+

•12000 / 9000 lumens

•1600:1 / 1800:1

Two optical filters (illustrated by a thick and a dotted line) split the color

spectrum in two parts: one for the left and one for the right eye.

Barco positioned the Infitec+™ filters at the ideal location

inside its DLP™ and LCD projectors. The matching Infitec+™

filters in the pair of Infitec+™ glasses make sure the correct

information passes through to the corresponding eye.

Active Infitec+™ achieves its optimal performance with

3-chip DLP™, an exclusive Barco development. Infitec+™ is

completely free of flickering.

GALAXY with Active Infitec+™: 13% overall efficiency

GALAXY with DLP™ active stereo: Extra fast refresh rate

(118 Hz) allows for high-resolution active stereo with

minimal flicker.

GALAXY with DLP™ active stereo: 16% overall efficiency

Barco GALAXY with passive circular or linear polarization.

Especially suited for stereo presentation to large audiences.

Different brightness versions depending on room size and

environmental lighting conditions.

Blue area Green area Red area

Filter 2

T= transmission

wavelength

T= transmission

Filter 1

Unrivaled stereo separation

Barco’s optimized Infitec+™

Full freedom of motion. No ghosting

Projection on standard screen, no need for non-depolarizing screen

Barco Galaxy family...

One consistent projection platform

Classic

GALAXY 7 Classic+

•7000 ANSI lumens

•1600:1

High Brightness

GALAXY12 HB+

•12000 ANSI lumens

•1600:1

Two choices for optimum performance

3 mm afsnijden

Optimal multi-

channel geometry

Thanks to WARP™, all GALAXY projectors can be used with flat screens

(CADWalls) cylindrical and conical screens (e.g. Decision Centers) and

hemispherical screens (Dome constructions, planetariums).

Test charts scaled using generic bilinear

algorithm as used in most common projectors.

Test charts scaled using WARP™ algorithm with

proprietary bi-cubic interpolation to preserve fine

detail in the image and suppress resampling

artifacts.

Optimized Soft Edge Matching

Multi-channel setups of light valve projectors lead to brighter

overlap zones. Barco’s standard ELECTRONIC SOFT EDGE MATCHING

technology allows you to adjust edge blending to uniform level.

Barco’s proprietary OPTICAL SOFT EDGE MATCHING blending

maintains the black level in the overlap zone to that of the

separate images. This solution is preferred when deep blacks

are very important e.g. in planetariums.

The Barco Galaxy family: Developed for high-

Left Right

Optical Soft Edge Matching:

Black level in overlap zone is

equivalent to seperate images

Left Right

Pro

ector blac

Electronic adjustable blac

SXGA+ resolution

(1400x1050)

Enhanced contrast ratio

from 1600:1 to 1800:1

Constant Light Output (CLO) option

An integrated, calibrated light meter measures and controls

the light output. A projector set at e.g. 4000 lumen maintains

this brightness over time, independent of lamp life.

•New and used lamps can be mixed, brightness controlled

•Not all lamps need to be changed at the same time

With the Linked CLO the brightness of all linked projectors is

monitored and adjusted to the lowest value.

DynaColor™color matching

DYNACOLOR™ provides the ultimate electronic fine tuning to

digitally set the primary and secondary color coordinates to

obtain perfect color matching across a system. Part of

DYNACOLOR™ is the improved grayscale tracking controlling

the black, white and grays across the different channels of

the multi-channel setup.

Linked DYNACOLOR™automatically aligns the projector to a

common color triangle. This ensures that all projectors in the

entire system have exactly the same primary and secondary

color coordinates. The system auto-senses the addition of a

new projector to a system and updates the common color

triangle as required.

The linked DYNACOLOR™ option is enabled with the linked CLO option

i-Blend™: Three channels with a single PC

A single high-bandwidth PC or workstation output (>170 MHz)

generates a wide high-resolution image, that is fed to all

projectors. Each then selects the area to display - including

overlap - using the I-BLEND™ functionality. Depending on the

application, ELECTRONIC or OPTICAL SOFT EDGE MATCHING can be used.

The initial low-refresh rate image is upconverted to 112 Hz

using the built-in Stereo-Creator.

Unique visualization syst

-resolution, multi-channel visualization

Light output:

from 4650 to 12000 ANSI lumens

e.g. 40 Hz

Stereo-Creator™

112 HZ

Photo courtesy of Sivax - Japan

3 mm afsnijden

As Barco develops and manufactures all of its system

components (projectors, screens, mirrors) in-house, products

with almost identical color gamut can be selected to obtain

optimal color uniformity in a single system and even

between various systems.

Barco’s Optocolor™ software tool calculates optimal

common color values for multiple systems. Using DYNACOLOR™

existing color uniformity can then be further enhanced to

reach an optimal match between all systems.

A GISCU™ maintenance contract covers the multi-system

and multi-site color matching, including:

•the Color Gamut Matching of all new systems

•the color matching initialization of all systems

•regular tune-up and color adjustment of all systems

em upgrades

Barco’s Global Inter System Color Uniformity

(GISCU™) guarantees that all colors (e.g.

sapphire black metallic on a car) are perfectly

matched on all Barco systems, even if located

in geographically different sites.

Stereo-Creator™: Three channel stereo with a single-pipe IG. Native SXGA+ resolution

The STEREO-CREATOR™ is a market-leading, patented Barco

technology, which enables you to drive up to three blended

stereo GALAXY projectors in native SXGA+ resolution with a

single pipe image generator, without any need for external

equipment.

A major advantage for the user is the GALAXY SXGA+

projectors’ direct feed of native SXGA+ high-resolution

information. It contains far more detail while omitting

possible artifacts and delays caused by external scalers,

warping or blending boxes.

GISCU™: Multi-system and multi-site color matching

3 channels

with overlap

bandwidth scaler

WARP™ &

blend box

matrix switch

output at 1024 x 768

1400 x 1050

native resolution

1400 x 1050

AC Power

230V (tolerance 180V - 255V)

Weight lbs kg

Net weight 124 56

Shipping weight 210 95

Dimensions Inch mm

W 20.84 529

L 31.29 795

H 16.05 408

Shipping

dimensions Inch mm

W 31.50 800

L 47.24 1200

H 29.52 750

www.barco.com/virtualreality

Barco Simulation division

US Headquarters:

600 Bellbrook Avenue - Xenia, OH 45385-4053

Tel. +1 (937) 372-7579 • Fax +1 (937) 372-8645

email: vr.us@barco.com

European Headquarters:

Noordlaan 5, B8520 Kuurne - Belgium

Tel. +32 56 36 82 11 • Fax +32 56 36 86 51

email: info.vr@barco.com

Ref.no. R599785 September 2006

Barco Simulation is an ISO 9001 registered company.

The information and data given are typical for the equipment described.

However any individual item is subject to change without any notice.

The latest version of this product sheet can be found on www.vr.barco.com.

WARP, Stereo-Creator, i-Blend, DynaColor, Lamp Flicker Reduction (LFR) are trademarks of Barco n.v.

Infitec is a trademark from DaimlerChrysler Research and Technology Ulm, licensed to Barco

DLP, Digital Micromirror Device, DMD are trademarks of Texas Instruments.

Other, non-Barco product names appearing in this brochure are trademarks/registered trademarks of

their respective owners.

DESIGNED UNDER

ISO

Digital Micromirror Device™

3 high-resolution SXGA+ active stereo DMD™’s

Native resolution

1400 x 1050 (SXGA+)

Standard features

•Bi-cubical WARP™

•Synchronous and asynchronous active

stereo display

•DYNACOLOR™/ Linked DynaColor™

•STEREO-CREATOR™ on RGB and DVI

•i-Blend™ (three-channel)

•Economy mode

•Shutter

Optional features

•OPTICAL SOFT EDGE MATCHING (OSEM)

•INFITEC™ (switchable)

•External polarization (linear or circular)

•GISCU™: multi-system and multi-site color

matching

Compatibility

•Active Stereo capabilities up to SXGA+ at

118 Hz

•WARP 6™ based pixel map processor

using bi-cubic interpolation algorithms for

advanced geometry correction up to a

pixelclock of 205 MHz

•All current video sources in RGB or DVI

Noise level

< 60 dBA at 40°C

< 54 dBA at 20°C

Fixed analog inputs

1 multifunctional 5-Cable input (high band

width) for the connection of:

•RGB analog signals with standard sync

(BNC connectors), sync on green or

separate sync

•1 Stereo sync input (mini din)

•2 Stereo sync outputs (coax)

•1 DVI input

Communication

•RS232 or RS422 loop-through input (D9-

connector) for PC-based projector control

•Communication input (D9 connector) for

peripherals

Lens type Throw ratio

Fixed Lens (Manual Focus)

TLD (0.8:1) HB* - 9842040 0.75

TLD+ (1.2:1) - 9840775 1.23

Motorized Zoom and Focus

TLD (1.6-2.0:1) HB* - 9842060 1.5 to 1.8

TLD (2.0-2.8:1) HB* - 9842080 1.8 to 2.6

TLD (2.8-5.0:1) HB* - 9842100 2.6 to 4.6

TLD (5.0-8.0:1) HB* - 9842120 4.6 to 7.3

* High brightness lens

Shift

Motorized V shift: up to 100%

Motorized H shift: up to 65%

Specifications

GALAXY 7 Classic+ GALAXY 12 HB+

Normal Economy Normal High Contrast

Light output (ANSI lumens) 7000 4650 12000 9000

Brightness uniformity (for the total screen area) >90% >90% >90% >80%

Contrast ratio (full white/full black) 1600:1 1600:1 1600:1 1800:1

Lamp power (Xenon illumination system) 1.2 kW 800 W 2.2 kW 2.2 kW

•Typical lifetime 1200 hours 1700 hours 800 hours 800 hours

•Max. lifetime 1500 hours 2000 hours 1200 hours 1200 hours

CLO/Linked CLO yes yes

Power consumption 1700 Watts 1400 Watts 2750 Watts 2750 Watts

Ambient temperature Max. 35°C Max. 35°C Max. 35°C Max. 35°C

Order number R9040361 R9040371

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Proyector de Barco

Barco

Barco R9002040 Manual de usuario

Barco

Barco DATA 2100 R9001070 Manual de usuario

Barco

Barco DP2K-20CLP Guía del usuario

Barco

Barco Athena Manual de usuario

Barco

Barco REALITY 9200LC R9001227 Manual de usuario

Barco

Barco OverView cDG67-DL Manual de usuario

Barco

Barco BarcoReality SIM6 Ultra R9040150 Manual de usuario

Barco

Barco GRAPHICS 808s Manual de usuario

Barco

Barco RETRO GRAPHICS 2100 Manual de usuario

Barco

Barco CLM HD8 Manual de usuario

Barco

Barco F90 series Manual de usuario

Barco

Barco CV series Manual de usuario

Barco

Barco Athena Manual de usuario

Barco

Barco DP2K-12C Manual de usuario

Barco

Barco F32 Manual de usuario

Barco

Barco CLM HD8 Manual de usuario

Barco

Barco SIM 7Q Manual de usuario

Barco

Barco UDX 4K22 Manual de usuario

Barco

Barco R9002380 Manual de usuario

Barco

Barco R5976907/00 Manual de usuario

Barco

Barco HDF W22 Manual de usuario

Barco

Barco DP2K8S Manual de usuario

Barco

Barco Prometheus I Instrucciones de montaje

Barco

Barco FLM HD14 Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario
