Barco service bulletin
Serial Number: 1160
Date: 27/05/2014
Product: DP2K/DP4K-32B, HDQ 2K40 and
Galaxy 4K-32
Priority code*: B
A. ”Must” modification, Barco will provide the necessary components to perform this modification
at no charge.
B. Improves the reliability of the product.
C. Improves the general working conditions of the product.
D. For information only.
1. POSSIBLE CONTRIBUTION TO INCREASED
LAMP BLACKENING AND TO REDUCED
LIFETIME OF THE LAMP
1.1 General
Phenomenon
Increased change of lamp blackening and possible reduced lifetime of the lamp. This issue
may occur on units delivered from February 2012 onwards.
Cause
Wrong orientation of the magnet inside the XL Lamp House.
Solution
Perform the procedure described in this document.
• For a manual Lamp House, perform this procedure: "Validating the correct orientation
of the magnet in the manual XL Lamp House", page 3
• For a motorized Lamp House, perform this procedure: "Validating the correct orientation
of the magnet in the motorized XL Lamp House", page 7
Scope
•HDQ 2K40 projector (R9004570)
Barco nv
Noordlaan 5, B-8520 Kuurne
www.barco.com
Page 1 of10
Barco service bulletin
•DP2K-32B projectors:
- R9005900
- R9005904 (3D)
- R90059045 (3D, Track 1)
- R90059002
- R900590024 (Track 2)
- R90059003 (with IMB)
- R90059004 (Track 2)
- R90059005 (Track 1)
- R90059008 (Alchemy)
- R90059009 (Alchemy LT)
•DP4K-32B projectors:
- R9005910
- R90059103 (with IMB)
- R90059104 (Track 2)
- R90059105 (Track 1)
- R90059108 (Alchemy)
- R90059109 (Alchemy LT)
- R9005913 (3D)
- R90059135 (3D, Track 1)
•Galaxy 4K-32 projectors:
- R9040460
- R90404601 (Left/A)
- R90404602 (Right/B)
- R9040630 (HFR)
- R9040660 (HFR Infi.3D)
•XL Lamp Houses:
- R9856002 (Track 0)
- R8685301K (Track 1)
- R8685301FK (Track 1)
- R8685303FK
- R8685305K (Track 2)
- R868530K
- R868530RK (Refurbished)
- R868530RK (Refurbished)
- R8685308 (HDQ 2K40)
1.2 Approvals
Modification approved by:
Escalation Manager R&D Manager Product Manager Quality Manager
InfoT: 1160 Page 2 of10
Kurt De Mesel
Stijn Cuvelier
Alexis Skatchkoff
Stephanie Buyck
27 May 2014
27 May 2014
27 May 2014
Barco service bulletin
If you should have any more questions, or remarks, please do not hesitate to contact our
technical support team via the following web site www.Barco.com/esupport.
1.3 Validating the correct orientation of the magnet in the manual
XL Lamp House

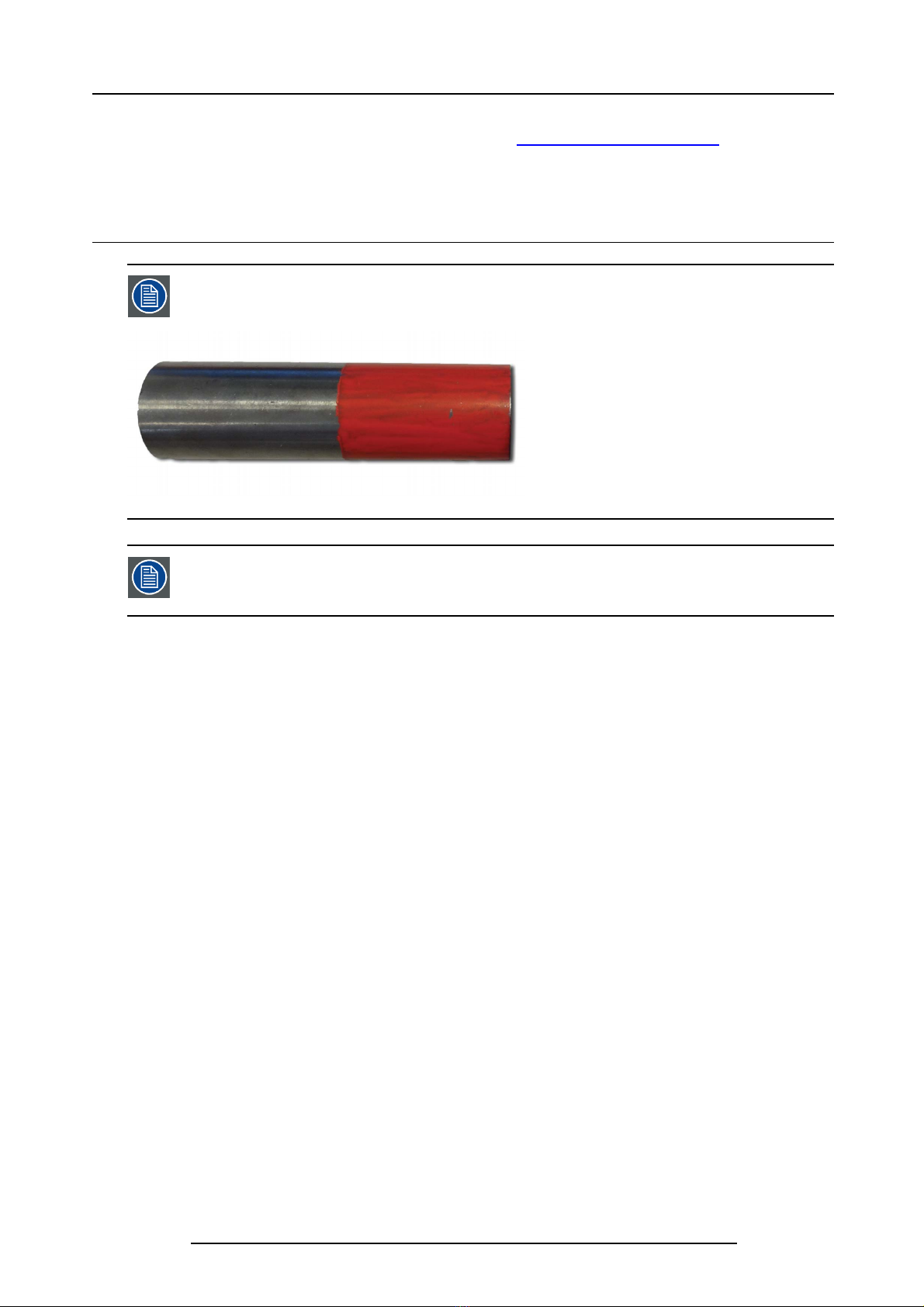

Contact the Barco helpdesk to receive the caliber magnet.
Image 1-1
To validate the correct orientation of the magnet, the XL Lamp House
must be removed from the projector. This procedure assumes that the
Lamp House is already removed from the projector.
Necessary tools
• Caliber magnet (north side of the magnet is painted in red)
• 3 mm Allen wrench
How to validate a manual Lamp House?
1. Position the Lamp House on a flat and stable table, with the UV filter side resting on
the table.
Page 3 of10 InfoT: 1160
Barco service bulletin
1
Image 1-2
The magnet is located (1) on the bottom side of the Lamp House near the handle, but is
not visible at this moment.
2. To validate the magnet orientation, approach the red side (2) of the caliber magnet to
the left side of the Lamp House magnet.
- If the caliber magnet attracts to the Lamp House, the magnet is oriented correctly.
Nothing needs to be done.
- If the caliber magnet repels from the Lamp House, the magnet is oriented incorrectly.
Themagnetneedstobeturned.
InfoT: 1160 Page 4 of10
Barco service bulletin
2
LEFT SIDE
LEFT SIDE
RIGHT SIDE
RIGHT SIDE
FORCE
FORCE
Image 1-3
Note:Only proceed with the next steps if the magnet is oriented incorrectly.
3. Remove the 4 screws (3) of the cover (with handle) and remove the cover. Use a 3 mm
Allen wrench.
3
33
3
Image 1-4
The magnet is now visible.
4. Take out the magnet (4) and turn it 180°. Place the magnet back in the Lamp House.
Page 5 of10 InfoT: 1160
Barco service bulletin
4
Image 1-5
5. Check the orientation of the magnet. Approach the red side (5) of the caliber magnet to
the left side (6) of the Lamp House magnet. Both magnets should attract to each other.
5
6
FORCE
FORCE
Image 1-6
6. After correcting the orientation of the magnet the lamp arc behavior can be different. A
realignment of the lamp in its reflector is necessary. See service manual of your projector
for the detailed procedure.
InfoT: 1160 Page 6 of10
Barco service bulletin
1.4 Validating the correct orientation of the magnet in the motorized
XL Lamp House
To validate the correct orientation of the magnet, the XL Lamp House
must be removed from the projector. This procedure assumes that the
Lamp House is already removed from the projector.

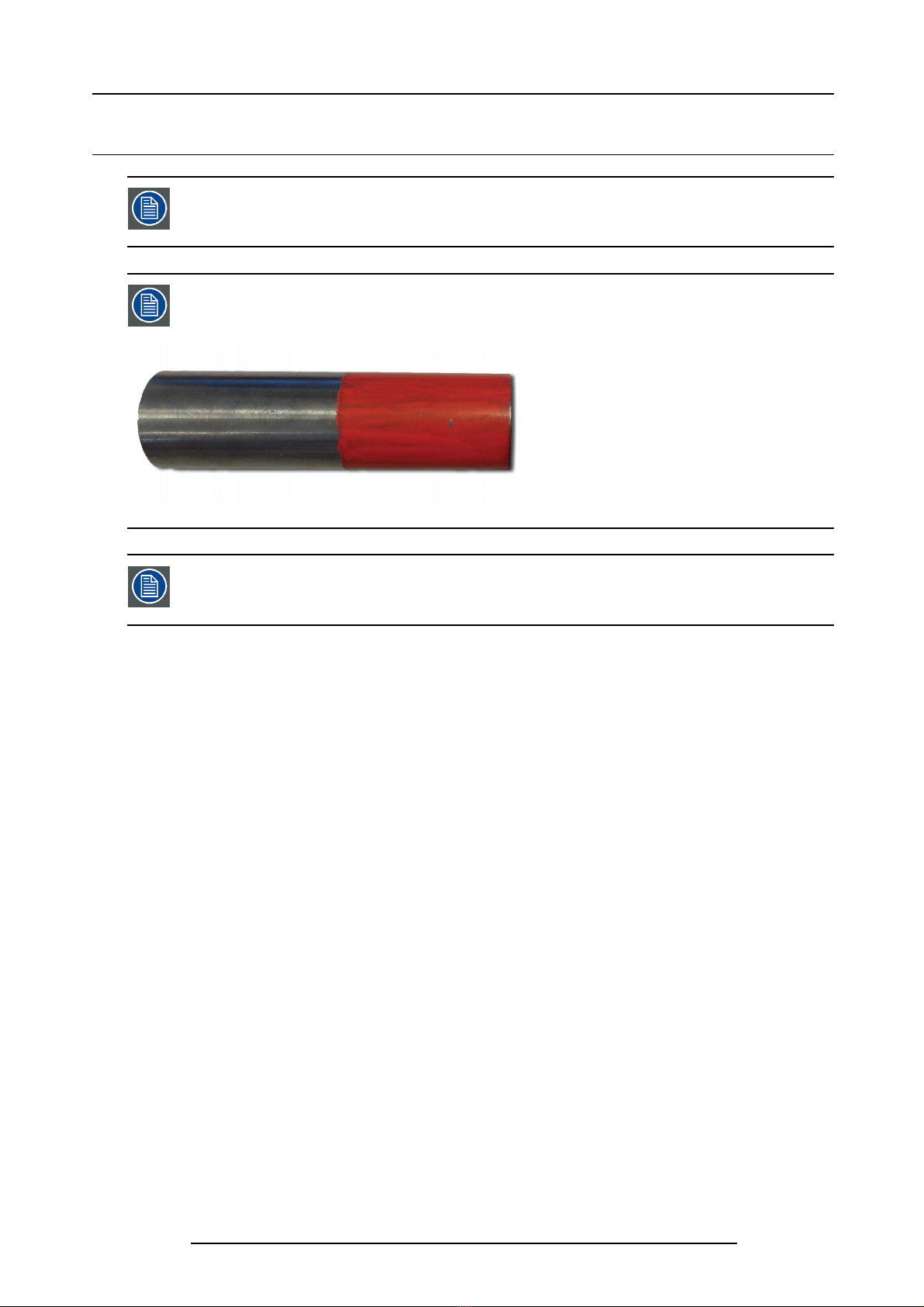

Contact the Barco helpdesk to receive the caliber magnet.
Image 1-7
The look of the Lamp House in the pictures can differ from the look of
your own Lamp House. However, the procedure to perform is exactly the
same.
Necessary tools
• Caliber magnet (north side of the magnet is painted in red)
• 3 mm Allen wrench
How to validate a motorized Lamp House?
1. Position the Lamp House on a flat and stable table, with the UV filter side resting on
the table.
Page 7 of10 InfoT: 1160
Barco service bulletin
Image 1-8
2. Remove the 4 screws (2) of the cover (with handle). Use a 3 mm Allen wrench.
2
2
2
2
Image 1-9
3. The handle with cover (3) can not be removed completely.
Instead, move up the handle with cover (3) a few centimeters, until the magnet becomes
reachable (4).
InfoT: 1160 Page 8 of10
Barco service bulletin
3
4
Image 1-10
4. Take out the magnet (5) from the Lamp House.
5
Image 1-11
5. Check the orientation of the magnet.
Use the caliber magnet for that: approach the red side (6) of the caliber magnet to the
left side (7) of the Lamp House magnet.
Page 9 of10 InfoT: 1160
Barco service bulletin
6 7
LEFT SIDE
LEFT SIDE
RIGHT SIDE
RIGHT SIDE
FORCE
FORCE
Image 1-12
Both magnets should attract to each other.
If this is not the case, switch the orientation of the magnet.
6. Place the magnet (8) back in the Lamp House.
8
LEFT SIDE
LEFT SIDE
RIGHT SIDE
RIGHT SIDE
Image 1-13
7. After correcting the orientation of the magnet the lamp arc behavior can be different. A
realignment of the lamp in its reflector is necessary. See service manual of your projector
for the detailed procedure.
InfoT: 1160 Page 10 of10
