Barco B-10 Manual de usuario

Barco's B-10 gets you out on the road

High quality video anywhere, anytime.

™

Barco B-10

High-quality LED screen on the move

Have large screen LED video and graphics anywhere you want.

The Barco B-10 is a completely mobile outdoor LED display solution that can play-back concerts, live video,

sports events or virtually any kind of image you can imagine.

Use it during a cycling tour during daytime and roll it to a concert that evening...

The LED-wall comes in a trailer that can be pulled by a vehicle with a 9500kg towing capacity, so all

electronics are stored properly and compact when travelling.

Discover how the B-10's large-screen video adds to the excitement of the event. Your crowd attendance

and participation will increase along with your revenue from the concession stand. Catch all the action at

sporting events or concerts and replay the highlights, or put advertising and promotions for upcoming

activities onto the screen, so that your audience never misses an event.

Get your message out anywhere, any time - through Barco's B-10!

PRELIMINARY

Cost -effective and highly profitable LED screen

Promotional cladding can be put on the trailer of the B-10, offering better visibility to your brand or third party advertising. This way,

you can either personalize your B-10 or generate extra advertising revenues.

Cost-effective

Factor in sponsorships or local advertising payments and affording the Barco B-10 quickly becomes a reality. Short set-up and tear

down times allow the user to maximize the utilization rate of the B-10, ensuring optimum return on investment. You'll see that your

rental and advertising revenues easily cover your monthly lease payment and expenses, and will allow you to make attractive profit

next to covering the expenses.

Let Barco show you how to get your message out at any time and any place, with the world's best video technology at a price you

can afford.

High-quality LED screen

The LED tiles that come in this flexible total display solution, are Barco's well

known 10mm pixel pitch outdoor SLite 10 tiles, in a 4x4 configuration.

Fully engineered and manufactured by Barco, they offer cutting-edge LED display

technology and design quality. An extremely stringent selection of the LED

components together with Barco's extensive experience in image processing and

generation guarantees ultimate picture quality, color uniformity and total system

reliability. Furthermore, the SLite tiles are designed to perform in any weather

condition: they are IP65 rated and TUV approved.

Total display solution, easy as 1-2-3

Ready to operate in 15 minutes

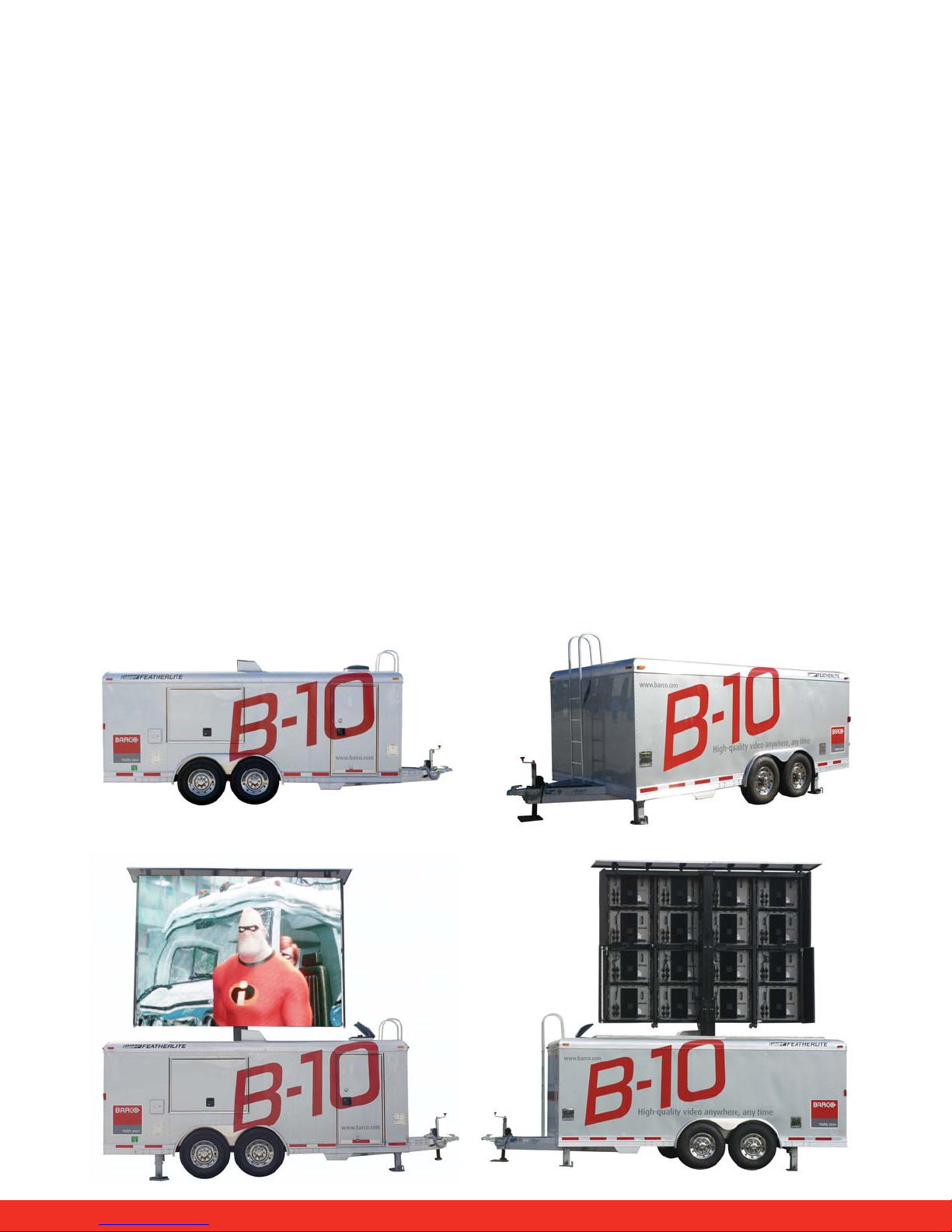

Barco's B-10 works according to the "Drive and Play" principle: you drive to the

event location, you pull out the screen, and the show is on in no time. No need

for trusses and structures to be set up, no need for technical people on-site.

The LED-wall can easily be put out of the trailer by means of a simple lever-

control. Only one person is needed to perform this set-up, and the B-10 can be

ready to operate in 15 minutes.

Flexible and independent

The screen can turn around 360 degrees,

allowing you to adjust the display to face your

audience, whatever the setting.

The B-10 is completely self-contained so no

external power supply is needed. A diesel-

fueled generator provides 28 hours of

continuous operation (at half load) and power

outputs via CEE 32A plugs.

The B-10 comes with a Barco LED-PRO for high

quality image processing. Flexibly choose the

source needed for the application, connect to

the LED-PRO, and you are on the road. The

LED-PRO also allows for easy LED-wall and

source configuration, as well as effects pan &

zoom, freeze, logo store (transition to/from

stored logo).

www.barco.com

Barco B-10 Specifications

LED DISPLAY

Barco Media and Entertainment

11101 Trade Center Drive Rancho Cordova, CA 95670

Tel. 916 859 2500 Fax 916 859 2515

EQUIPPED TRAILER

A/V ROOM

GENERATOR

16 SLite-10 tiles (10mm pixel pitch in 4 x 4 configuration)Type

Dimensions ( W x H) 141" x 105" display size

Extended size

Aspect Ratio

Video Processing

Content creation / sources

4:3

Rack-mounted LED-PRO

Not included

Total Weight / Tongue Weight 9500 lbs. / 800 lbs.

Dimensions (W x D x H) 8' x 20' x 7'

Brake System/ Axle / Wheels

46 mph max wind load when extended

Lift Hydraulic pump to raise and lower mast

Lift Rotation 360 degrees of rotation, in 15 degree increments

Wind Load

Dimensions

Temperature

Type

Noise level

18' at the top / 8' at the bottom

Electric Braking system / 2 axle / 4 wheels, 235-85R16 / 1 spare tire included

Warranty 1 year warranty on all of trailer / 6 years warranty on trailer chassis/frame

Additional Information Aluminium walls / Locked door to A/V room / Locked door to main trailer

Internal room lights and outlets

Level 4 stabilizers to level trailer and give load support

Ball Coupler 2 5/16"

Seperate A/V room with 20U 19" equipment rack

Electronic controlled vent

Kohler 20KW

Fuel Tank 50 gallon diesel tank / fuel and oil guages / external fuel filler door

Power 3 phase, 208V output

Warranty 2 years

installed in insulated compartment for noise reduction
