Barbas ATLANTA Manual técnico

INSTRUCTIONS FOR USE INSTALLATION INSTRUCTIONS

ATLANTA

SAVANNAH

ECO 550

ECO 650

ECO 750

COUNTRY NATURAL GAS PROPANE

Great-Britain/ ATLANTA/ SAVANNAH NG ATLANTA/ SAVANNAH PG

Ireland ECO 550 / ECO 650 / ECO 750 NG ECO 550 / ECO 650 / ECO 750 PG

Italia ATLANTA/ SAVANNAH NI ATLANTA/ SAVANNAH PI

ECO 550 / ECO 650 / ECO 750 NI ECO 550 / ECO 650 / ECO 750 PI

España ATLANTA/ SAVANNAH NE ATLANTA/ SAVANNAH PE

ECO 550 / ECO 650 / ECO 750 NE ECO 550 / ECO 650 / ECO 750 PE

Portugal ATLANTA/ SAVANNAH NP ATLANTA/ SAVANNAH PP

ECO 550 / ECO 650 / ECO 750 NP ECO 550 / ECO 650 / ECO 750 PP

ENGLISH

ATLANTASAVANNAH

ECO 550

ECO 650

ECO 750

CONTENTS

1. INSTRUCTIONS FOR USE......................................................

2. INSTALLATION INSTRUCTIONS...............................................

3. MAINTENANCE......................................................................

4. FAULTS.................................................................................

5. DISASSEMBLY/ ASSEMBLY

OF THE REGULATOR AND BURNER.......................................

6. DIMENSIONS.........................................................................

7. TECHNICAL DETAILS/REGULATIONS......................................

8. REPLACEMENT PARTS LIST..................................................

Page

ECO 550

ECO 650

ECO 750 SAVANNAH ATLANTA

ENGLISH

ATLANTASAVANNAH

ECO 550

ECO 650

ECO 750

1INSTRUCTIONS FOR USE

1.1 INTRODUCTION

Congratulations on your purchase of this modern BARBAS gas fire. This quality

product will provide you with many years of enjoyment due to the flame effect and

warmth that it provides. Please read the instructions for use carefully before using

the appliance for the first time. Keep this booklet in a safe place.

1.2 BUILT-IN PROTECTION OF THE APPLIANCE

The appliance is fully protected by means of a thermo-electric pilot light shut off in

the event of a gas escape from the main burner. Additionally, the gas fire is fitted

with a thermal one-way protection safety system. This system shuts off the

appliance if the flue gas is not exhausted.

1.2.1 Safety

The gas fire must never be used with the door open or the

door glass removed.

Never place flammable material on the ceramic log set.

Do not place easily-flammable materials, such as nylon

clothing or flammable liquids, in the vicinity of the gas fire.

Children and others unfamiliar with the operation of a gas fire

should be allowed in the vicinity of the gas fire only under

supervision.

Use a fire guard to protect children and other persons

mentioned above against possible burns.

ECO 550

ECO 650

ECO 750 SAVANNAH ATLANTA

1.3 OPERATION GENERAL

The gas regulating block, with which the fire is operated, is located behind the flap.

Opening the operating knob:

ATLANTA, SAVANNAH, ECO 650 : Panel can be opened by pulling forwards.

ECO 550, ECO 750 : Lift the right-hand side of the panel

slightly and pull it forwards

The fire has one main burner which can be operated by the thermostatic knob and/

or the sliding knob.

The thermostatic knob is used to choose the correct setting and the modulating

thermostat ensures that the set temperature (13 - 38°C) is maintained.

The slider, is used to select the desired position, the burner will now continueously

burn as an atmospheric burner until the setting is changed.

Both operating knobs can be used in combination.

Figure 1: Operation

“OFF” POSITION

SLIDER SLIDER “OFF” POSITION

THERMOSTATKNOB “IGNITION” “IGNITION” KNOB

POSITION

ENGLISH

ATLANTASAVANNAH

ECO 550

ECO 650

ECO 750

1.4 IGNITING THE FIRE

lOpen the gas supply valve in the gas pipe to the fire.

lLock the slider into “ll

l” position.

lTurn the thermostat knob to the ignition position “««

««

«” and then push the knob in.

lWhile keeping the thermostat knob pushed in, press the ingition button a few

times to ignite the pilot light. Check through the glass that the pilot light has

been lit.

lWhen the pilot light is lit, keep the thermostat knob pushed in for a further 10

seconds, after which it can be released.

IMPORTANT:If the pilot flame goes out, then wait for at

least 5 minutes before repeating the above

procedure.

lBy turning the thermostat knob to the required setting and/or pushing the slider

into an downward position: the burner will now ignite.

1.5 TURNING OFF THE FIRE

lTurn the thermostat knob to the ignition position “««

««

«”.

lLock the slider to the “ll

l” position.

The burner will now be fully extinguished.

If the thermostat knob is turned back to the “1” position, then the burner will

continue to operate for as long as the room temperature remains below 13°C.

1.6 EXTINGUISHING THE PILOT LIGHT

lExtinguish the pilot by setting the thermostat knob to the “ll

l” position.

lIf the gas fire is not going to be used for a long period of time, it is

recommended to close the gas supply valve to the fire.

IMPORTANT:If the pilot flame goes out for any reason,

wait for 5 minutes before attempting to

re-light it.

lIf the pilot light frequently goes out, then please contact your installer.

ECO 550

ECO 650

ECO 750 SAVANNAH ATLANTA

1.7 USING THE APPLIANCE FOR THE FIRST TIME

The gas fire is coated with a lacquer layer resistant to high temperature. During

the first hours of operation, the burning in of the lacquer may result in an

unpleasant smell. This is harmless, however. Operating the gas fire at full capacity

for a few hours, while ventilating the room, will eliminate the smell. Moreover,

deposits may form on the inside off the glass; these can be removed with a dry

cloth when the gas fire has cooled down.

1.8 DAILYMAINTENANCE

lRegulary check that the air supply is still open.

lEnsure that as little dust, and as few particles of cigarette smoke, candles

and oil lamps as possible pollute the air in the room in which the appliance is

used. Heating of these particles by the convection system of the appliance

could lead to discoloration of the walls and ceiling. It is therefore very

important to ensure that the room in which the appliance is located is

sufficiently ventilated. Regularly remove any dust deposits from behind the

control flap by means of a vacuum cleaner.

If the glass is broken or cracked, it must be

immediately replaced before operating the

gas fire again.

lIf anything is spilt on the fire, switch it off immediately and wait for it to cool

down sufficiently before cleaning. Never use scouring powder, aggressive

cleaners or fire polish on the gas fire. Use only a dry lint free cloth.

lBarbas heat resistant lacquer in aerosols can be obtained from your

distributor. During the yearly maintenance, the lacquer can be used to repair

small areas of damage.

•Stains on soap stone can be removed by rubbing gently with a washing-up

sponge and drying with a tea towel.

IMPORTANT

The installation must only be carried out by a

CORGI registered installation engineer.

ENGLISH

ATLANTASAVANNAH

ECO 550

ECO 650

ECO 750

2INSTALLATION INSTRUCTIONS

2.1 GENERAL

The appliance has a decorative fire.

The gas fire must be positioned and connected as a “open” appliance by a CORGI

registered gas installation engineer in accordance with the following installation

instructions, nationally and locally applicable regulations (see “Technical Details/

Regulations” at the rear of this manual).

If you have any queries regarding the installation, please consult your local gas

company.

If an existing chimney is to be used, please consult your installer first. If the

chimney was previously used for a wood or coal fire, then it should be cleaned by

an expert. Achimney draw of approximately 5 Pa (= 0,05 mbar) is sufficient for full

load of the appliance. If the chimney draw is more than 20 Pa (= 0,2 mbar), then it

is recommended to reduce it.

IMPORTANT:Before beginning the installation, check that the details

on the rating plate correspond to the gas type and

pressure to which the appliance will be connected.

2.2 FLUE PROTECTION

This appliance is supplied with a security system T.T.B. It is a thermostat which

shuts off the pilot light and main burner under any of the following circumstances:

linsufficient chimney draw.

lunder-pressure in the house due to a mechanical exhaust system.

lbad connection between the appliance and the flue.

lpartial or total blockage of the flue, for instance, due to falling debris.

linsufficient external air supply in an entirely closed house.

lflue down draught due to wind.

After the problem has been rectified, the appliance can be put back into operation.

It is not permitted to bypass the security system. Always call your installer in

case of any problem.

Replace the security system only with parts identical to those originally supplied!

NEDERLANDS

ECO 550

ECO 650

ECO 750 SAVANNAH ATLANTA

2.3 PREPARATIONS BEFORE INSTALLATION

The following preparation must be carried out before the gas fire can be installed.

2.3.1 The most important considerations according to the regulations:

1. NATURALLYVENTILATED HOUSE (see Figure 2).

•The room in which the appliance is to be fitted must have a non-

closable combustion air supply opening. The minimum dimensions

are detailed in “Technical Details/Regulations” at the rear of this

manual (see also Paragraph 2.4, point 2).

•The flue gas exhaust must exit at “outlet area I”.

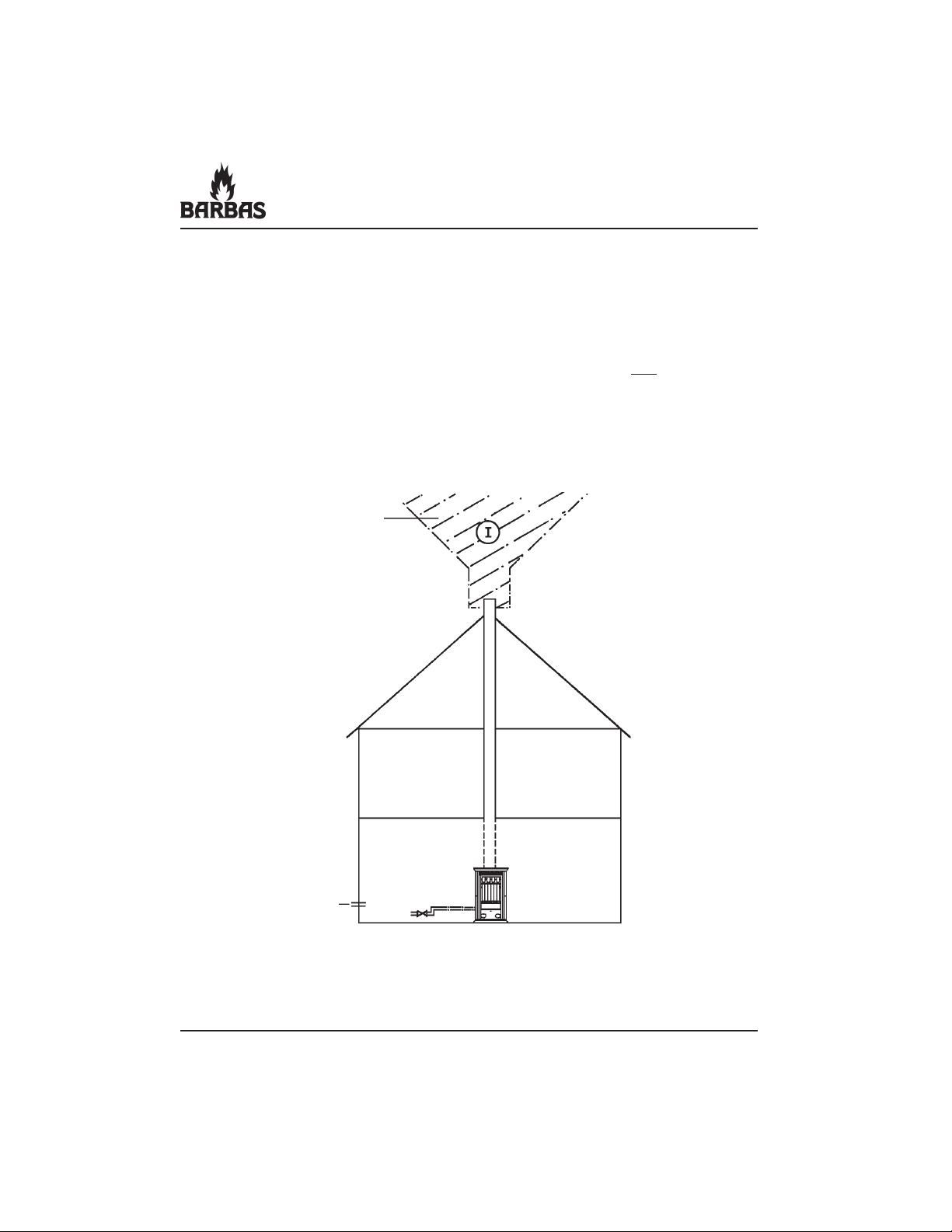

Figure 2: Naturally ventilated house

GAS

OUTLET AREA I

AIR SUPPLY

OPENING

ENGLISH

ATLANTASAVANNAH

ECO 550

ECO 650

ECO 750

2MECHANICALLYVENTILATED HOUSE (see Figure 3)

•The room in which the appliance is to be fitted must have a non-

closable combustion air supply opening. The minimum dimensions

are detailed in “Technical Details/Regulations” at the rear of this

manual (see also Paragraph 2.4, point 2).

•The flue gases must be extracted by means of a flue extraction fan.

Figure 3: Mechanically ventilated house

GAS

AIR SUPPLY

OPENING

FLUE EXTRACTION

FAN
