Bajaj Auto The Invincible V12 Manual de usuario
Foreword
Welcome to the 'V' family! You are now the proud owner of the new Bajaj V15 / V12.
Bajaj V is more than just a bike. It contains the metal of INS Vikrant, making it the embodiment of
unshakable solidity. So, take a moment to soak in that undeniable sense of pride as you take seat
on a bike that epitomizes strength. With a solid build and stand-tall stance, prepare to ride like
you're invincible
Before you ride out, please read this Owner's Manual carefully and familiarize yourself with the
operating mechanism, controls and maintenance requirements of your “V15 / V12”. This will ensure
you a safe and trouble free ownership experience.
To keep your bike in perfect running condition and deliver consistent performance, we have
specially programmed the periodic maintenance services which includes 3 free services and
subsequent paid services, as per the schedule contained in this booklet. We earnestly advise you
to avail all these services at any of our Bajaj Dealers or Authorised Service Dealer, who are well
equipped with all necessary facilities / genuine parts / oil and trained manpower to ensure the best
care for your / V12 . Your / V12 comes with a warranty of 2 Years or 30,000 Kms “V15 ” “V15 ”
whichever occurs earlier from the date of sale. For details please refer to “Warranty : Scope &
Limits” given in this manual.
Should you require any additional information feel free to contact us on our toll free no.:
www.bajajauto.com
Rev up, shift gears and enjoy the V15 experience…
SERVICE DEPARTMENT
BAJAJ AUTO LIMITED
Notice:
The description and illustration in this booklet
are not to be taken as binding on the
manufacturers. The essential features of the
type described and illustrated herein remaining
unaltered. Bajaj Auto Limited reserves the right
to carry out at any moment without being
obliged to bring this booklet upto-date & to do
modifications on the vehicle, parts or
accessories as may be convenient and
necessary.
Safety and Warning information :
Caution : This indicates that a potential
hazard that could result in vehicle damage.
Follow the Advice provided with the
caution.
Warning : This indicates that a potential
hazard or injury to you or other persons &
to the vehicle can happen if advice
provided is not followed.
Description
1. Technical Specifications 1
2. Identification Data 3
3. Location of Parts 4
4. Steering cum Ignition lock 5
5. Fuel Tank Cap / Fuel Tap 6
6. Speedometer Details 7
8. Control Switches 8
9. Removal & Fitment of Side Cover LH 10
10. Removal & Fitment of Seat Assembly 11
11. Removal & Fitment of Pillion Seat Cover 12
12. Location of Battery, Tool Kit & First Aid Kit 13
13. Daily Safety Checks 14
14. How to ride your Bike 15
15. Safe Riding Tips 18
16. Engine Oil 19
17. Wheels - Tube less Tyre 20
18. Battery 21
19. Periodic Maintenance Information 22
20. Brake Fluid 24
21. Free Service Guidelines 25
22. Periodic Maintenance & Lubrication Chart 26
23. Non Use Maintenance 32
24. Delivery Certificate 33
25. Warranty Scope & Limit 34
26. Battery Warranty Card
Table of Contents
1
Engine : 4 Stroke
Bore x Stroke : 57mm x 58.6mm (V15)
: 52mm x 58.6mm (V12)
Engine Displacement : 149.5 cc (V15)
: 124.45 cc (V12)
Compression Ratio : 9.8 : 1
Idling Speed : 1400 +/- 100 RPM
Max. Net Power (V15) : 12 PS at 7500 RPM
(V12) : 10.75 PS at 7500 RPM
Max. Net Torque(V15) : 13 Nm at 5500 RPM
(V12) : 11 Nm at 5500 RPM
Ignition System : DC
Spark Plug : 2 Nos
: BOSCH or Champion
Spark Plug Gap : 0.7 ~ 0.8 mm
Transmission : 5 speed constant mesh
Gear Shifting Pattern : All Up
Engine Lubrication : Forced lubrication
Starting Aid : Self start / Kick start
Front Brake : Disc brake (V15)
: Drum / Disc (V12)
Rear Brake : Drum brake
Fuel Tank Capacity
Full : 13 liters
Usable Reserve : 1.7 liters
Unusable Reserve : 1.1 liters
Dimensions : V15 V12
Length : 2044 mm 2040 mm
Width : 780 mm 780 mm
Height : 1069 mm 1066 mm
Wheel base : 1315 mm 1315 mm
Ground clearance : 165 mm 165 mm
Tyre Size Front (V15) : 90/90-18 Tubeless
(V12) : 2.75-18, 42P with Tube
Technical Specifications
2
Tyre Size Rear (V15) : 120/80-16 Tubeless
(V12) : 100/90-16,54P with Tube
Tyre Pressure
2
Front :1.75 kgf/cm (25 PSI)
2
Rear (Solo) :2.00 kgf/cm (28 PSI)
2
Rear (with pillion) :2.25 kgf/cm (32 PSI)
Electrical System : 12V DC
Battery : 12V, 4 Ah VRLA
Head Lamp : 60/55W (V15)
: 35/35W (V12)
Position Lamp : 3W (2 nos.)
Tail /Stop Lamp : LED
Rear No. Plate lamp : 3W
Side Indicator lamp : 10W (4 Nos.)
Neutral Indicator : 2W
Hi Beam Indicator : 2W
Turn Signal Indicator : 2W
Technical Specifications
Speedometer Lamp : 2W (2 nos.)
Low Battery Indicator : 2W
Bajaj Logo : 2W
Horn : 12V DC
Vehicle Kerb Weight : 137 Kg. (V15)
: 133 Kg. (V12)
Vehicle Gross Weight : 267 Kg. (V15)
: 263 Kg. (V12)
Note :
• All dimensions are under UNLADEN condition.
• Above information is subject to change without any
notice.
• This vehicle complies to BS IV standards.
• AHO is government regulation.
3
The Frame and Engine serial numbers are used to register the motorcycle. They are the unique
alpha-numeric codes to identify your particular vehicle from others of the same model and type.
Frame Number Location
On LH side of Steering Tube
(Alpha-Numeric - 17 Digits)
Engine Number Location
On LH Side Crankcase
Near Gear Change Lever
(Alpha-Numeric - 11 Digits)
Identification Data
4
Pillion
Seat
Cover
Tail
Lamp
Seat Front Brake Lever
Nitrox
Shock
Absorber
Pillion
Footrest
Rear Brake
Pedal
Oil Level
Guage
Front
Disc
Brake
Silencer Assembly
Note : Photograph is of V15.
Petrol Tank
Cap
Location of Parts
To Lock the Steering : To lock the steering,
turn the handle bar to the left / right side. Push
& release the key. Turn the key to “LOCK”
position and remove the key.
To Unlock the Steering : To unlock steering,
insert the key in steering cum ignition lock &
turn it clockwise to “OFF” or “ON” position.
Key : A common key is used for ‘Steering cum
Ignition lock’, ‘Fuel tank cap’ & ‘Side Cover
LH’.
Steering cum Ignition Lock :
It has three positions.
LOCK: Steering locked. Ignition OFF.
OFF: Steering unlock. Ignition OFF.
ON: Steering unlock. Ignition ON.
5
Steering cum Ignition Lock
Fuel Tank Cap
• To open the fuel tank cap, open the flap.
• Insert the key in lock & turn it clockwise.
• Lift fuel tank cap.
• To lock ‘Fuel Tank Cap’, insert key in lock &
turn it clockwise. Press fuel tank cap. ‘Click’
sound ensures cap is fully locked.
6
Fuel Tap
Fuel tap lever has following positions.
ON : When fuel level is above
reserve position.
RES : When fuel level is below
reserve position.
OFF : When fuel supply is to be
cut off.
Fuel Tap
OFF
ON
RES
Fuel Tank Cap
Fuel Tank Cap / Fuel Tap
Caution : In case petrol is spilled out on
white/light colour petrol tank, it is to be
immediately cleaned with clean soft cotton
cloth to prevent permanent stain marks on
petrol tank.
Precaution :
Dont attach metallic ‘Key chain’ as it may
damage paint of petrol tank cover.
7
Speedometer Details
V12V15
1. Speedometer: Vehicle speed will be displayed in
digital form in Km / Hr.
2. Odometer : The Odometer shows the total distance
that the vehicle has covered. Odometer can not be
reset to ‘Zero’.
3. Turn Signal Indicator (LH & RH): When Turn signal
switch is turned to Left or Right, Turn pilot Indicator -
LH or RH will flash.
4. Neutral Indicator: When the transmission is in Neutral,
Neutral indicator will glow.
5. Fuel Level Indicator: It shows fuel level in fuel tank.
6. Low Fuel Indicator (V15) : It blinks in red colour
incase of low fuel level (1 bar or less). All bars blinks
in red colour incase of mul-function in connection .
7. Hi Beam Indicator: When Headlight is ‘ON’ & Hi
beam is selected, Hi beam indicator will glow.
8. Low Battery Indicator : It indicates battery needs
charging.
9. Bajaj Logo : Bajaj logo flying ‘B’ continuously glow.
Note: Speedometer photograph shown is of V15.
1
2
3
8
9
5
6
7
4
A
D
C
B
E

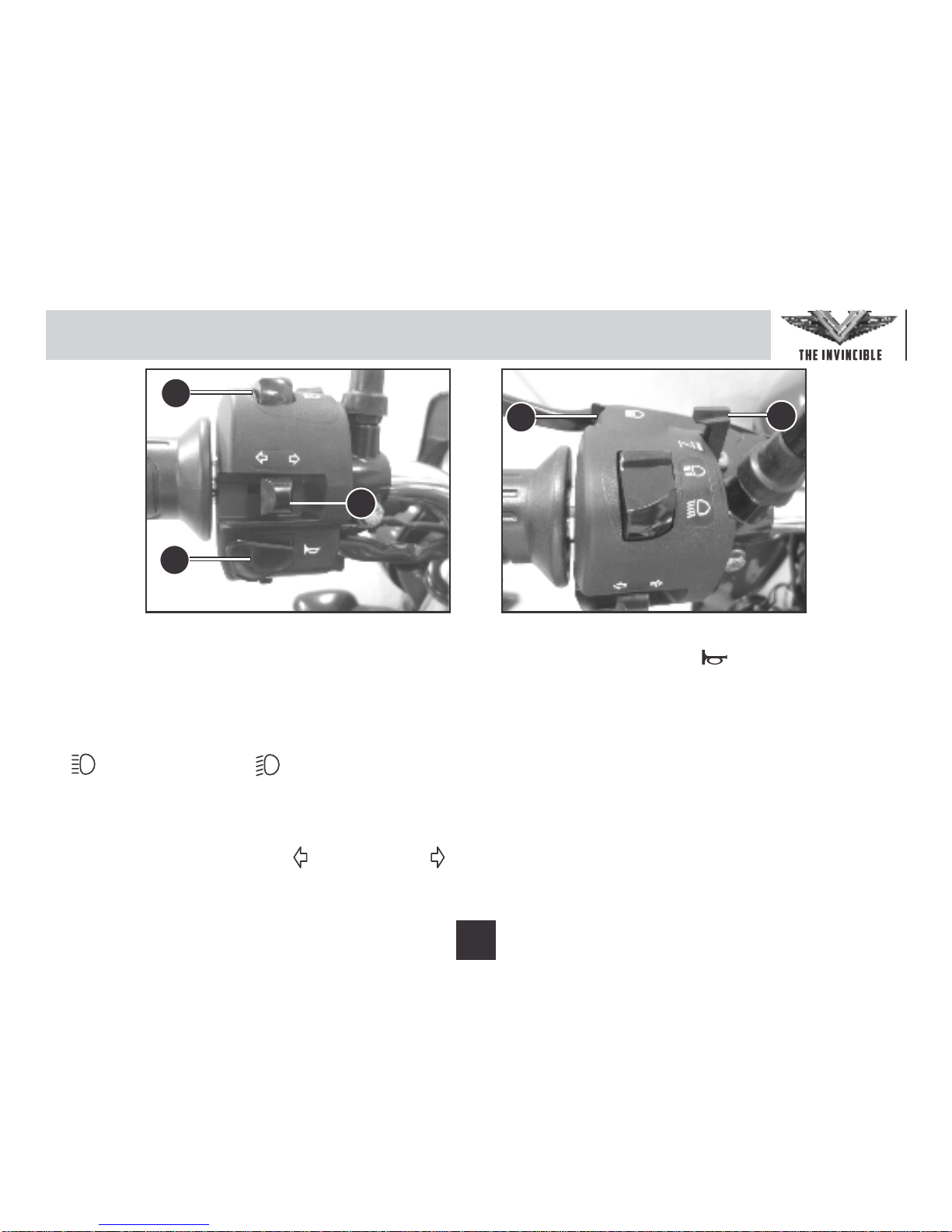

C. Horn Button : ( ) Press button for
sounding horn.
D. Pass Switch : Press the switch to flash
the head light in High beam mode. It is
used to give signal to vehicles coming
from opposite side while overtaking.
E. Choke Lever : When engine is in cold
condition choke lever to be operated for
easy starting.
Left Handle Bar Switches
A. Dipper Switch : When headlight is ON,
High or Low beam can be selected with the
dipper switch.
: High Beam : Low beam
B. Turn Signal Switch : When the turn signal
knob is turned to Left ( ) or Right ( )
respective indicator will start blinking, to
stop blinking push the knob in & release.
8
Control Switches
