Backyard Creations OFW107S-M Manual de usuario

SIENNA 34" SLATE TOP FIRE PIT

MODEL #OFW107S-M

Questions, problems, missing parts? Before returning to your retailer,

call our customer service department at 1-877-447-4768,

8:30 a.m.-4:30 p.m., CST, Monday-Friday or email us at

[email protected].

30-10-061 Rev 9/29/14

PACKAGE CONTENTS

PART DESCRIPTION QUANTITY

A Handle 1

B Mesh Cover 1

C Wood Grate 1

D Fire Bowl 1

E Ash Catcher 1

F Slate Top 1

G Legs 4

H Side Panels 4

I Poker 1

HARDWARE LIST

Please read and understand this entire manual before attempting to assemble, operate or install the

product.

WARNINGS:

• FOR OUTDOOR USE ONLY! Burning wood orcharcoal indoors can kill you. It gives off carbon

monoxide, which has no odor.

• NEVER LEAVE FIRE UNATTENDED!

• DO NOT allow children or pets near the re pit without supervision.

• NEVER place a cover on re pit when in use. Ensure the re pit and mesh cover have cooled before

placing a cover over the re pit.

• NEVER burn in vehicles, tents or indoors. CARBON MONOXIDE HAZARD.

• When the re pit is in use, the handle on the mesh cover can reach extreme temperatures that

can cause serious injury to an unprotected hand. Use a poker when handling.

• DO NOT touch surface of re pit while in use.

CAUTIONS:

• Burn only wood, charcoal or re logs in the re pit.

• Always ensure that the mesh cover is secured over re bowl while in use.

• DO NOT place or use re pit under a canopy of trees.

• DO NOT use gasoline or kerosene to start the re in your re pit.

• DO NOT use this unit on a wood deck, long or dry grass and/or leaves, or on combustible surfaces.

• DO NOT attempt to move the re pit while it is hot or in use.

• Place the re pit no closer than 8 feet/ 2.4 meters from walls or combustibles during use.

• Adequate re extinguishing material should be readily available.

• Poker handle may become hot during and after use.

• Use heat-resistant gloves to handle hot tools.

CALIFORNIA PROPOSITION 65 WARNING: Fuels used in wood or charcoal burning appliances and the

products of combustion of such fuels, contain chemicals known to cause cancer, birth defects or other

reproductive harm.

Consumers should check State and Provincial, in addition to local codes and regulations regarding the

use of the product.

SAFETY INFORMATION

M5x10mm

Bolt

Qty. 3

M6x10mm

Bolt

Qty. 16

M5 Nut

Qty. 3

AA BB CC DD EE

M6 Nut

Qty. 4

M6 Flange

Nut

Qty. 1

M6/M5

Wrench

Qty. 1

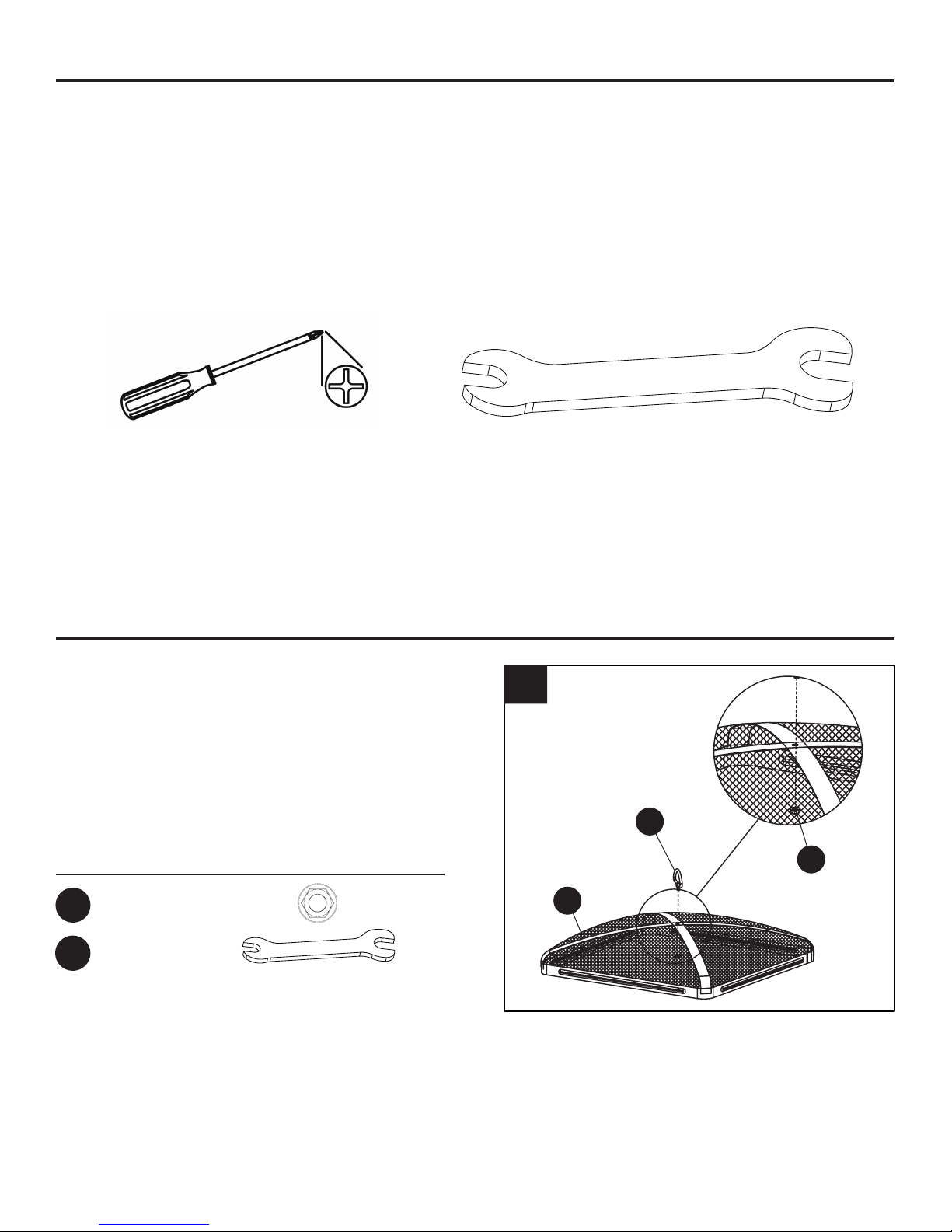

PREPARATION

ASSEMBLY INSTRUCTIONS

1. Insert handle (A) into hole in mesh cover (B).

Use wrench (CC) to secure M6 ange nut (DD) to

the underside of the mesh cover (B).

Before beginning assembly of product, make sure all parts are present. Compare parts with package

contents list and hardware contents above. If any part is missing or damaged, do not attempt to

assemble the product. Contact customer service for replacement parts.

Estimated Assembly Time: 25 minutes

Tools Required for Assembly: Phillips Screwdriver (Not Included) and Wrench (Included)

Hardware Used

DD M6 Flange Nut x 1

Wrench

2. Attach ash catcher (E) to re bowl (D) by

inserting three M5x10mm bolts (AA) into

predrilled holes and secure with M5 nuts (BB).

Tighten with wrench (FF) and screwdriver.

3. Attach leg (G) to slate top (F) using two M6

Nuts (EE). Repeat using remaining three legs.

Secure all hardware with wrench (FF), but do not

tighten at this time.

4. Attach Side Panels (H) to the Legs (G) using

M6x10mm Bolts (CC).

Tighten all hardware. including parts from step 3,

with screwdriver and wrench (FF).

ASSEMBLY INSTRUCTIONS

Hardware Used

EE M6 Nut x 4

Hardware Used

AA M5x10mm Bolt x 3

BB M5 Nut x 3

Wrench

Hardware Used

CC M6x10mm Bolt x 16

ASSEMBLY INSTRUCTIONS

5. Turn completed base and slate top assembly

right side up. Place re bowl (D) into base

as illustrated. Place wood grate (C) into re bowl

as illustrated. Place mesh cover (B) over re

bowl as illustrated.

Keep poker (I) near re pit for use as needed.

CARE AND MAINTENANCE

• To extend the life of your re pit, clean it after each use.

• To protect re pit nish, use a soft cloth to wipe re pit and poker.

• Do not attempt to clean while hot.

• Clean ash catcher after each use once ashes have cooled.

• Store in a cool, clean, dry place.

1-YEAR LIMITED FRAME WARRANTY

If within one year from the date of original purchase, this item fails due to a defect in material or

workmanship, we will replace or repair at our option, free of charge. To order parts or to obtain

warranty service, call 1-877-447-4786, Monday - Friday, 8:30 - 4:30 p.m. CST. This warranty does

not cover defects resulting from improper or abnormal use, misuse, accident, or alteration.

Failure to follow all instructions in the owner's manual will also void this warrranty. The

manufacturer will not be liable for incidental or consequential damages, or common erosion of

outdoor products. Some states do not allow the exclusion or limitation of incidental or

consequential damages, so the above limitation may not apply to you. This warranty gives you

specic legal rights, and you may also have other rights which vary from state to state

GHP Group Inc. 6440 W. Howard St. Niles, IL, USA 60714-3302, USA

REPLACEMENT PARTS LIST

For replacement parts, call our customer service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m.,

CST, Monday – Friday.

PART DESCRIPTION PART #

A Handle 40-07-453

B Mesh Cover 40-08-113

C Wood Grate 40-08-114

D Fire Bowl 30-01-008

E Ash Catcher 40-08-116

F Slate Top 30-01-009

G Legs 30-06-297

H Side Panels 30-06-002

I Poker 40-04-409

DESCRIPTION PART #

Hardware Pack 30-09-002

Printed in China

#30-09-002

AA BB EE

Model/Modelo/Modéle

#OFW104SC/ #OFW104SC-1

#OFW104S/ #OFW104S-KR/

#OFW107S-M
