Bachmann Williams GP-9 Manual de usuario

– Page 1 of 2 –

Bachmann Industries, Inc.

1400 East Erie Avenue, Philadelphia, PA 19124 USA

www.bachmanntrains.com

Customer Service Telephone 800-356-3910

GP-9 DUMMY DIESEL LOCOMOTIVE INSTRUCTIONS

Thank you for purchasing a Williams by Bachmann® locomotive. This locomotive has been manufactured to provide

years of use and enjoyment. Please follow the simple instructions below.

Before operating, please lightly lubricate the points shown in the diagram below. Do not over-lubricate and take extra care

to avoid getting lubricants on the wheel surfaces.

1. For the axles and coupler pivot points Marked A, we recommend that you lubricate with a small amount of light

oil such as Bachmann E-Z Lube® #99984 Light Gear Oil. Do not over-lubricate.

2. For areas that require electrical flow, such as roller pick-ups Marked B, please use Bachmann E-Z Lube®

#99981 Conductive Contact Lube. Never use any Teflon® based oil on these areas because this type oil has

insulating properties.

– Page 2 of 2 – Printed In China

OPERATION

After unpacking the locomotive, make sure that the uncoupling plunger is in the correct position with the pin inserted in

the knuckle (see figure 1). Failure to do so will allow the uncoupling plunger to contact the center rail and a direct short

will occur when power is applied to the track.

Uncoupling

This dummy locomotive is equipped with operating knuckle couplers at both ends. To uncouple, position the uncoupling

plunger over the center of electro-magnetic track uncoupling section and activate the magnet.

PERIODIC MAINTENANCE

Disassembly Instructions

You will have to remove the body shell for bulb replacement, or to install a power upgrade kit. The body shell is attached

with two screws located on each end of the body shell. When you re-attach body shell, please be careful not to over-

tighten the screws.

Lubrication

We recommend that you lubricate as directed on page 1 every 10 hours of operation.

Light Bulb Replacement

This locomotive uses a 12 volt bayonet style bulb. The standard replacement bulb number is 53.

Power Upgrade Kit

A power upgrade kit, Williams by Bachmann® #00241, is available to convert this dummy unit into a powered unit.

Please follow the installation instructions that are included with the kit.

Bachmann Industries, Inc.

GP- 9 Dummy Parts List Rev 07.20.08 Printed in China

1400 East Erie Ave, Philadelphia, PA 19124 USA

www.bachmanntrains.com

Customer Service Tele

hone 800-356-3910

art

escr

GP-9 BODY & BODY PARTS

808-M001 Metal Frame 1

30080DPM

Screw(Mounts Body to Frame)

30080DPM

Screw(Mounts

Body

Frame)

808-01-01 Body Shell 1

293-04-01 Ornamental Horn 2

808-02-02 Headlight / number board lens 2

808-02-01 Window Glass 2

293-02-01 Fuel Tank 1

1-30070DPA Screw(Mounts Fuel Tank to Frame) 4

K PART

TRUCK

PARTS

293-M023FR1 Flanged Wheel 8

293-M029NR5 Axle 4

1-30140DPM Truck Mounting Screw 2

293-E001 Operating Coupler Assembly 2

322-04-01 Pilo

1-35060DFM Pilot Mounting Screw 2

293-E002R1 Roller Pickup Assembly 1

293 01 02

T I l t f R ll Pi k

293-01-02 Top Insulator for Roller Pickup 2

293-01-03 Bottom Insulator for Roller Pickup 2

1-26220DPM Roller Pickup Mounting Screw 2

293-06-01 Sideframe 4

1-30060DPM Sideframe / Bolster Mounting Screw 10

293-10-03BR1 Truck Mount 2

293-M013R1B Truck Bolster 2

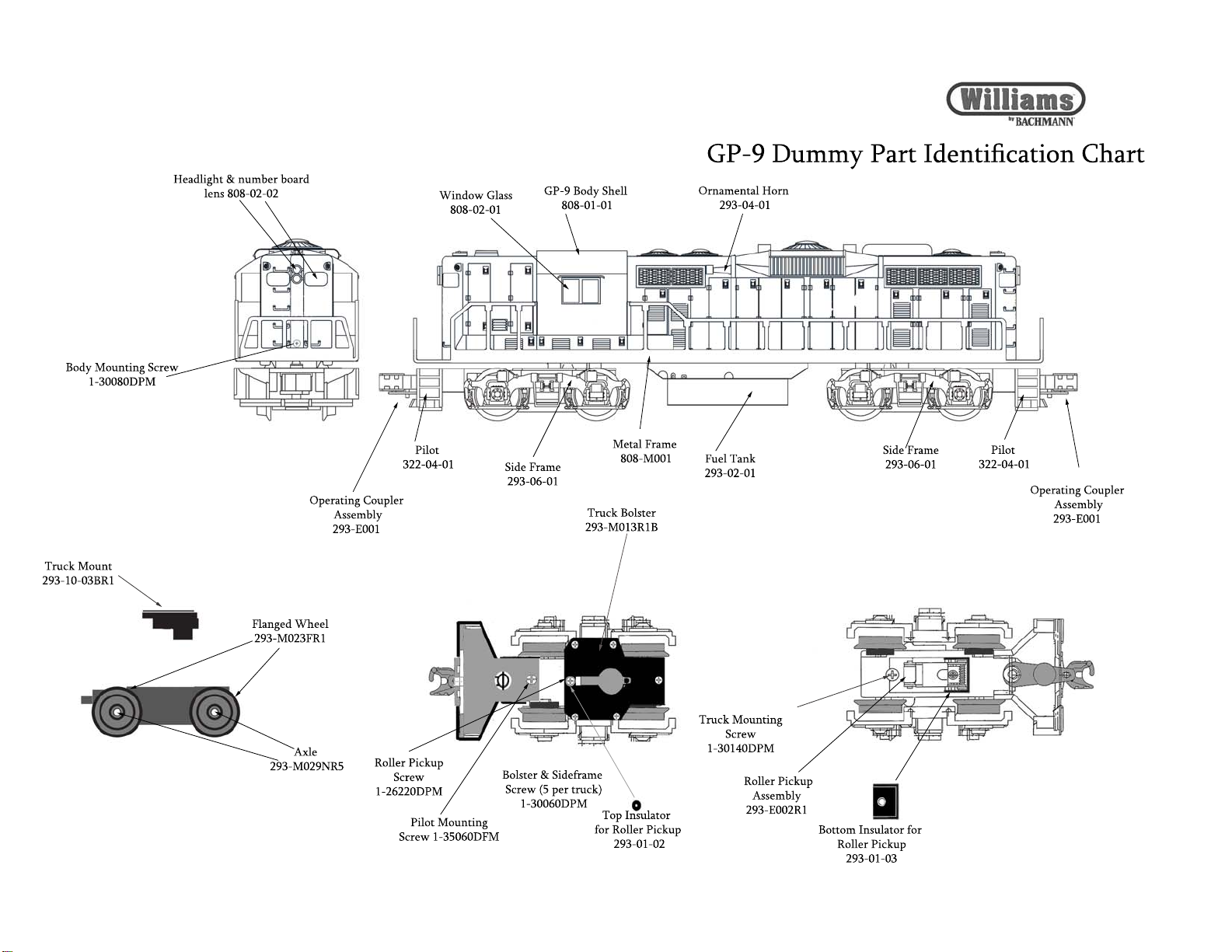

See Diagram on opposite side for identification. Parts shown in Italics are not illustrated.

GP- 9 Dummy Parts List Rev 07.20.08 Printed in China
