Bachmann Williams E7A Manual de usuario

– Page 1 of 2 –

Bachmann Industries, Inc.

1400 East Erie Avenue, Philadelphia, PA 19124 USA

www.bachmanntrains.com

Customer Service Telephone 800-356-3910

E7A DUMMY DIESEL LOCOMOTIVE INSTRUCTIONS

Thank you for purchasing a Williams by Bachmann® locomotive. This locomotive has been manufactured to provide

years of use and enjoyment. Please follow the simple instructions below.

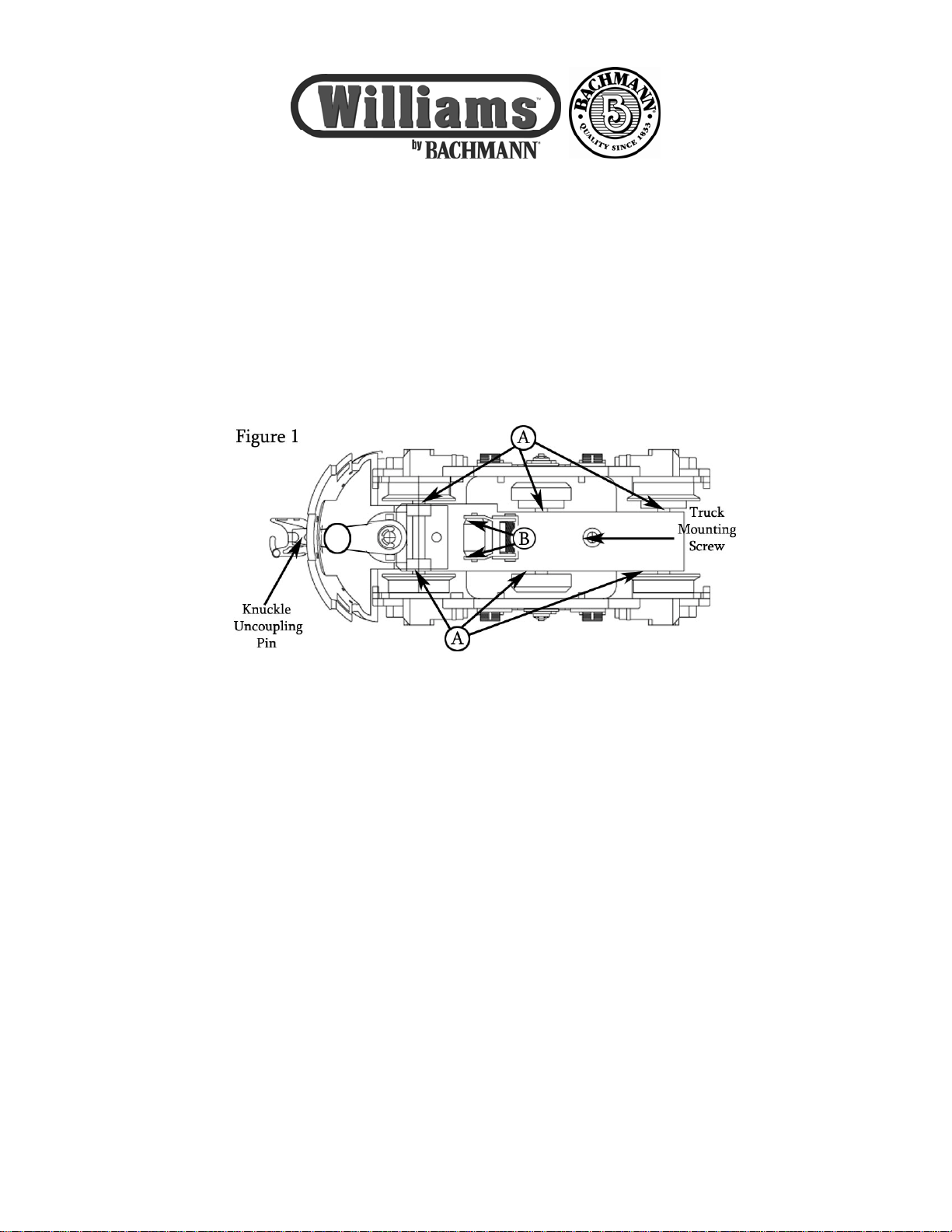

Before operating, please lightly lubricate the points shown in the diagram below. Do not over-lubricate and take extra care

to avoid getting lubricants on the wheel surfaces.

1. For the axles and coupler pivot points Marked A, we recommend that you lubricate with a small amount of light

oil such as Bachmann E-Z Lube® #99984 Light Gear Oil. Do not over-lubricate.

2. For areas that require electrical flow, such as roller pick-ups Marked B, please use Bachmann E-Z Lube®

#99981 Conductive Contact Lube. Never use any Teflon® based oil on these areas because this type oil has

insulating properties.

– Page 2 of 2 – Printed In China

OPERATION

After unpacking the locomotive, make sure that the uncoupling plunger is in the correct position with the pin inserted in

the knuckle (see figure 1). Failure to do so will allow the uncoupling plunger to contact the center rail and a direct short

will occur when power is applied to the track.

Uncoupling

This dummy locomotive is equipped with an operating knuckle coupler at the pilot end. The rear end of the locomotive

has a fixed coupler, to allow close coupling with the matching powered unit. To uncouple, position the uncoupling

plunger over the center of electro-magnetic track uncoupling section and activate the magnet.

PERIODIC MAINTENANCE

Disassembly Instructions

You will have to remove the body shell for bulb replacement, or to install a power upgrade kit. The body shell is attached

with four screws on the bottom of the locomotive frame. The screws are located in each corner of the frame. After

removing the four screws, you will need to GENTLY spread the body skirt that covers the fuel tank to release the body

from the molded fuel port on the side of the fuel tank. When you re-attach body shell, please be careful not to over-tighten

the screws.

Lubrication

We recommend that you lubricate as directed on page 1 every 10 hours of operation.

Light Bulb Replacement

This locomotive uses a 12 volt bayonet style bulb. The standard replacement bulb number is 53.

Power Upgrade Kit

A power upgrade kit, Williams by Bachmann® #00243, is available to convert this dummy unit into a powered unit.

Please follow the installation instructions that are included with the kit.

Bachmann Industries, Inc.

1400 East Erie Ave, Philadel

hia, PA 19124 USA

E-7 A (Dummy) Parts List Rev 10.22.08 Printed in China

1400

East

Erie

Ave,

Philadelphia,

19124

USA

www.bachmanntrains.com

Customer Service Tele

hone 800-356-3910

art

escr

E7 DUMMY A UNIT BODY & BODY PARTS

1027-E003 Body Shell - complete 1

1-30100DFT Screw(Mounts Body to Frame) 4

293-04-01 Ornamental Hor

1027 03 01 / 1027 03 02

Upper / Lower Headlight lens

1 each

1027

pper

ower

dli

ens

eac

309-01-01 Red Marker Lens 2

1027-X004R1 Windshield 1

1027-X003 Cab Window Glass 2

1027-X002 Side & Rear Window Glass 7

1027-M001R5E Metal Chassis 1

315-05-01 Fuel Tank 1

1-25060DPS Screw(Mounts Fuel Tank to Frame) 4

()

TRUCK PARTS

293-10-02B Truck Mount 2

293-M023FR1 Flanged Wheel 8

293-M12B Unflanged Wheel 4

293-M029NR5 Axle 6

1-30060DPM Truck Mounting Screw 2

293-E001 Operating Coupler Assembly 1

343-06-01 Non-Operating Couple

pgp

885-M013R1 Spring for non-operating couple

1-26060DPWM

ounting Screw for non-operating couple

1027-02-01 Pilot 1

1-30180DFM Pilot / Rear Ladder Mounting Screw 2

322-E003 Roller Pickup Assembly 1

322-08-01 Top Insulator for Roller Pickup 2

322-08-02 Bottom Insulator for Roller Pickup 2

1-26180DPM Roller Pickup Mounting Screw 2

330-05-01 Sideframe - Left 2

330-05-02 Sideframe - Righ

293-M021B Front Truck Ladder 1

1027-M003R3B Rear Truck Ladder 1

1-30060DPM Mounting Screw for sideframe & Front Truck Ladder 10

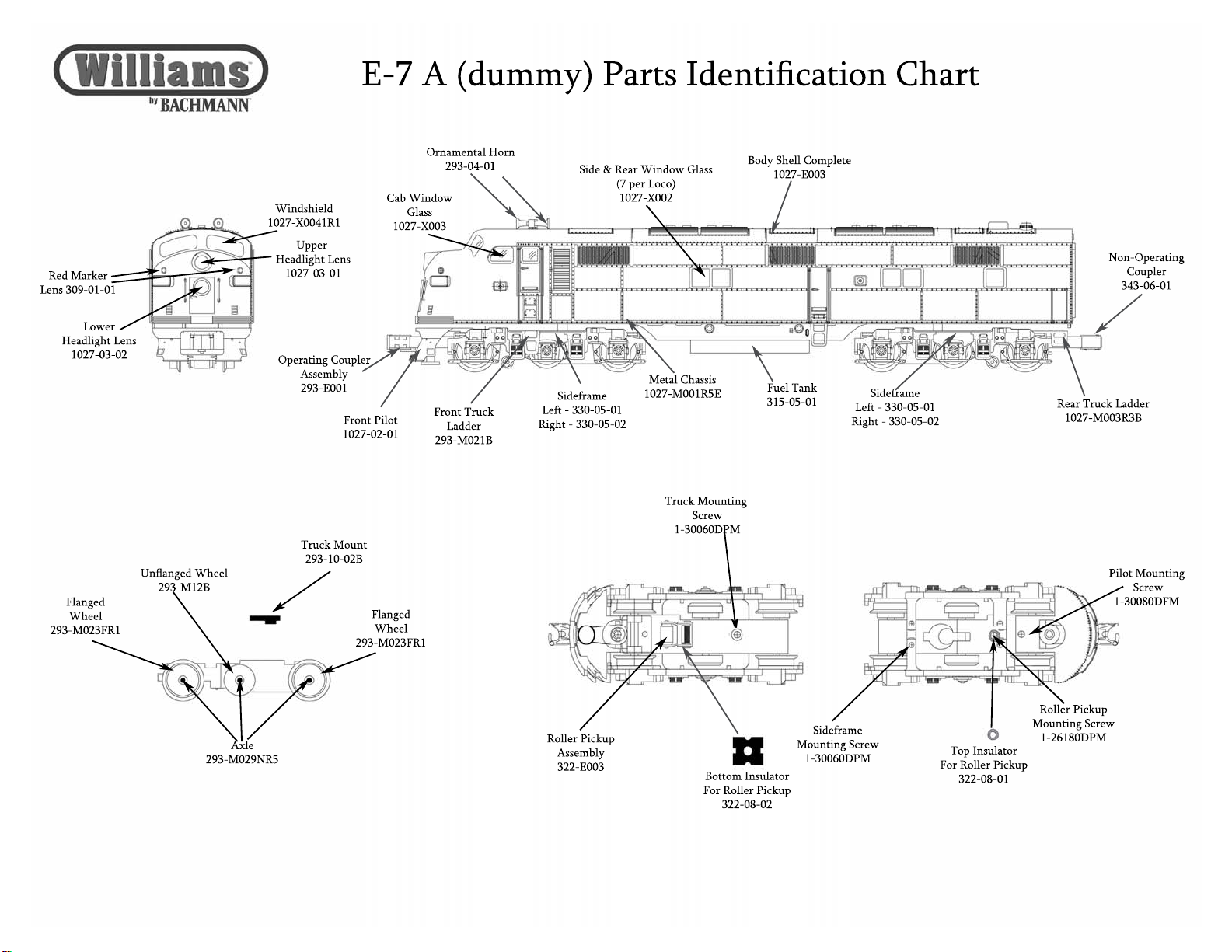

See Diagram on opposite side for identification. Parts shown in Italics are not illustrated.

E-7 A (Dummy) Parts List Rev 10.22.08 Printed in China

Otros manuales de Juguete de Bachmann

Bachmann

Bachmann Williams NW-2 Manual de usuario

Bachmann

Bachmann Williams ELC Manual de usuario

Bachmann

Bachmann On30 Davenport Gears Instrucciones de funcionamiento

Bachmann

Bachmann Williams O-27 ALCO DUMMY Manual de usuario

Bachmann

Bachmann Daisy Manual de usuario

Bachmann

Bachmann Spectrum Manual de usuario

Bachmann

Bachmann Branch-Line OO Scale DCC Train Set Manual de usuario

Bachmann

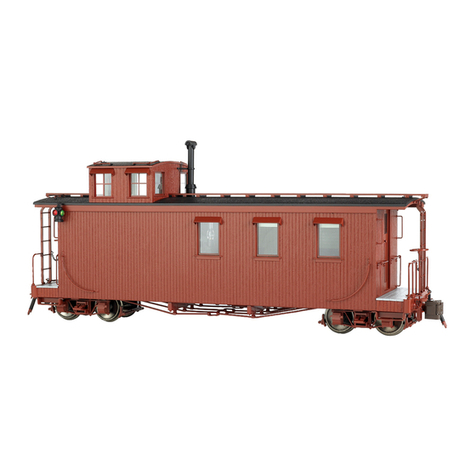

Bachmann Long Caboose Manual de usuario
