Baby Lock Altair BLTA Guía de instalación

Baby Lock

BLTA Altair

Technical Training Manual

Altair Control Setting Pages

A Refresh Tab has

been added to each

Setting page to reset

the default for that

page.

If the Width Control

is on, the Foot

Control must be

used.

1

Altair Control Setting Pages

A change to the Free

Motion Foot Height

position could have a

an effect on the

stitching. There should

be little space between

the foot and the fabric.

If Needle Position is

set to stop with needle

up, the customer will

not be able to activate

‘ Pivot Feature ‘

If Stitch Placement is

on, the customer will

not be able to activate

‘Edge Guide Sewing’

Feature.

2

Altair Control Setting Pages

SCS Should be reset

to ‘0’ in the test

mode after servicing.

The machine should

be updated to the

latest Version.

Please document

the stitch count on

the customers

paperwork, as you

will delete it in test

mode.

3

Altair Control Setting Pages

Embroidery Tension

is to change the

overall default

setting for the upper

thread tension

during Embroidery.

A change in the

Embroidery Foot

Height, could effect

the stitching during

embroidery.

4

Altair Control Setting Pages

5

BLTA Disassembly

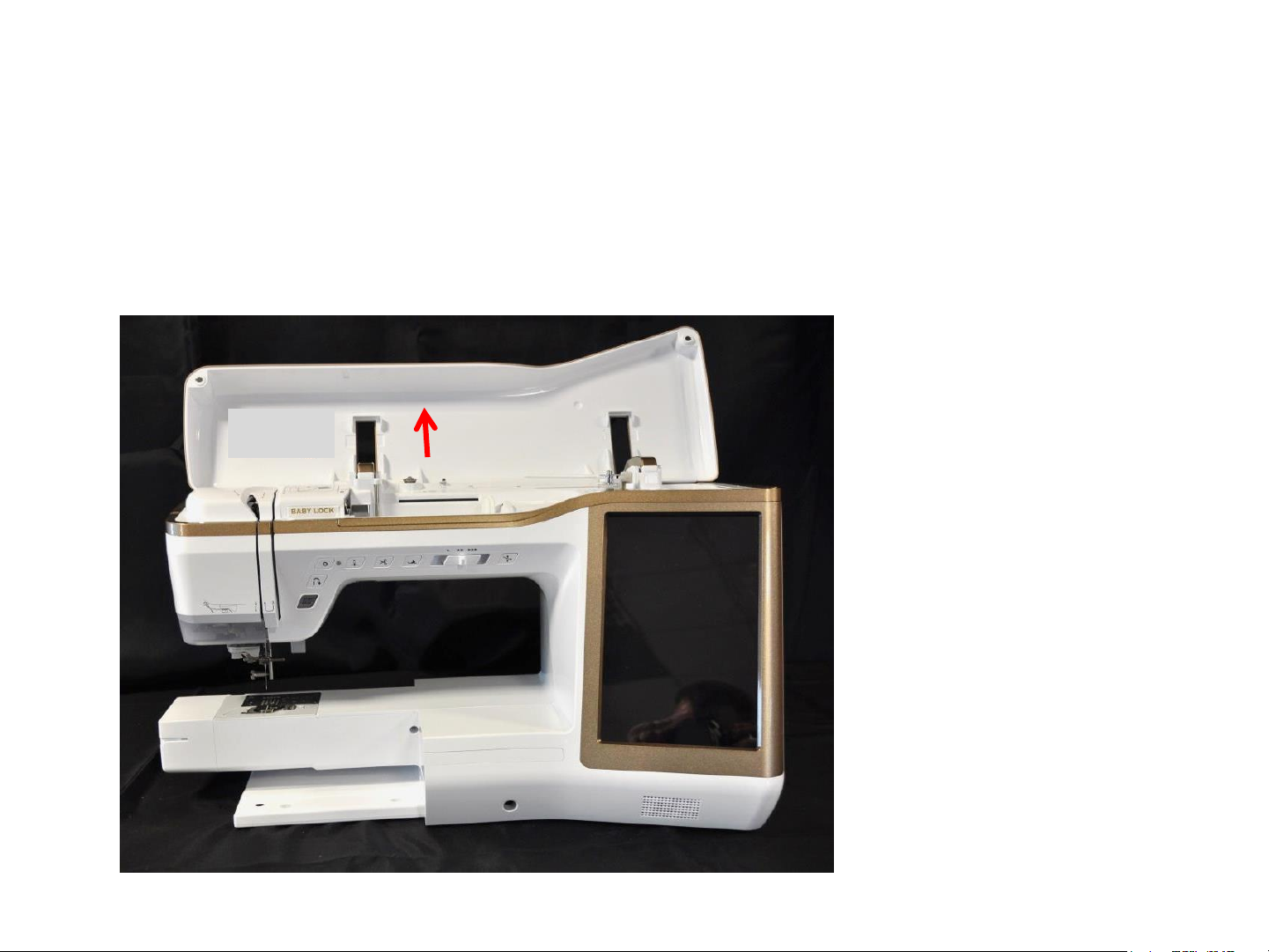

Top Cover

Remove the

lid by raising

straight up

6

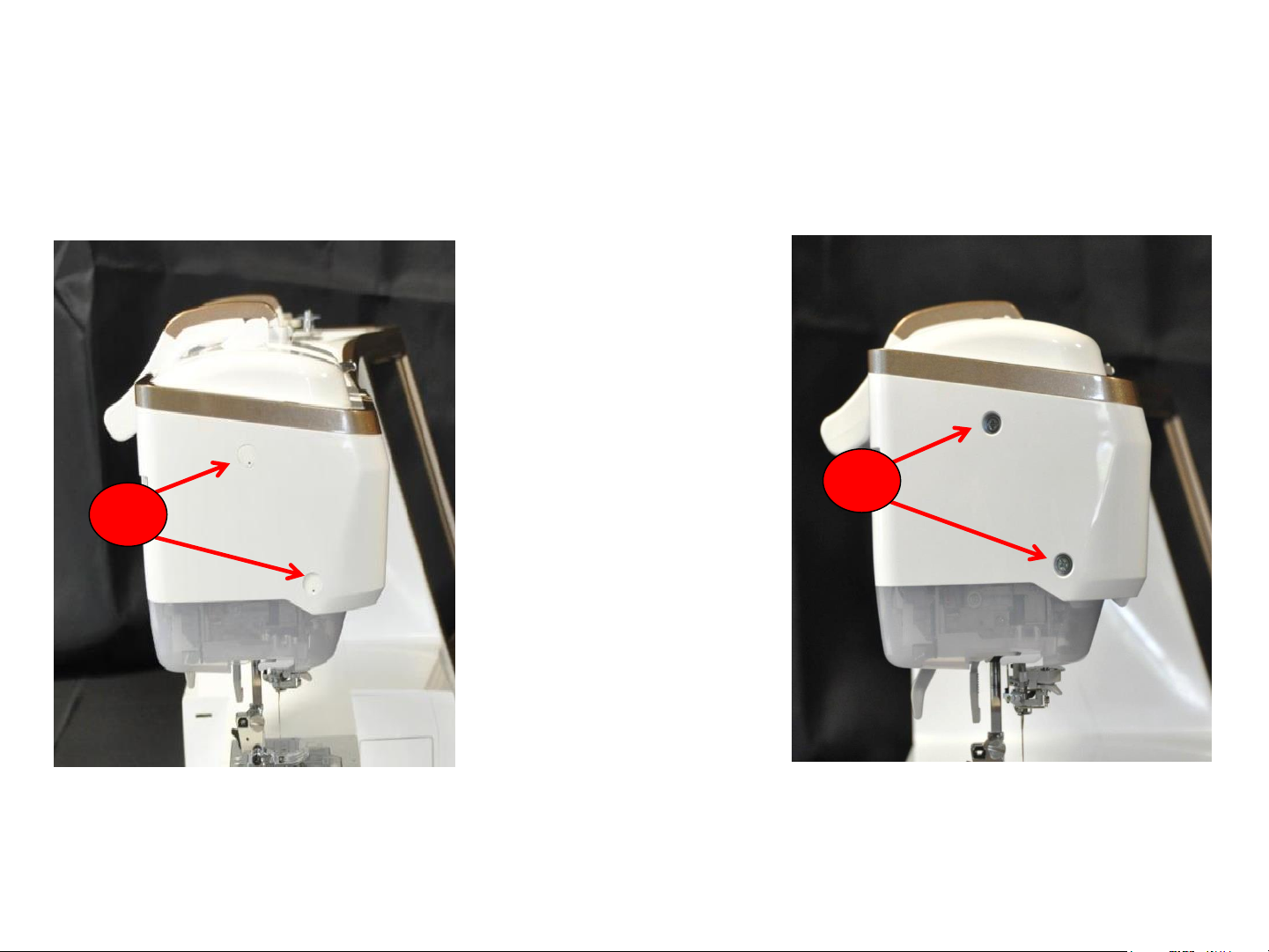

Face Plate

A

Remove the

Screw

covers ‘A’

Remove 2

screws ‘B’

and slide

cover to left

B

7

Free Arm Cover

Detach Needle Plate Cover Detach Free Arm Cover

8
