Baby Jogger Double Jogging Manual de usuario

Important, Keep for

Future Reference

Assembly

Instructions

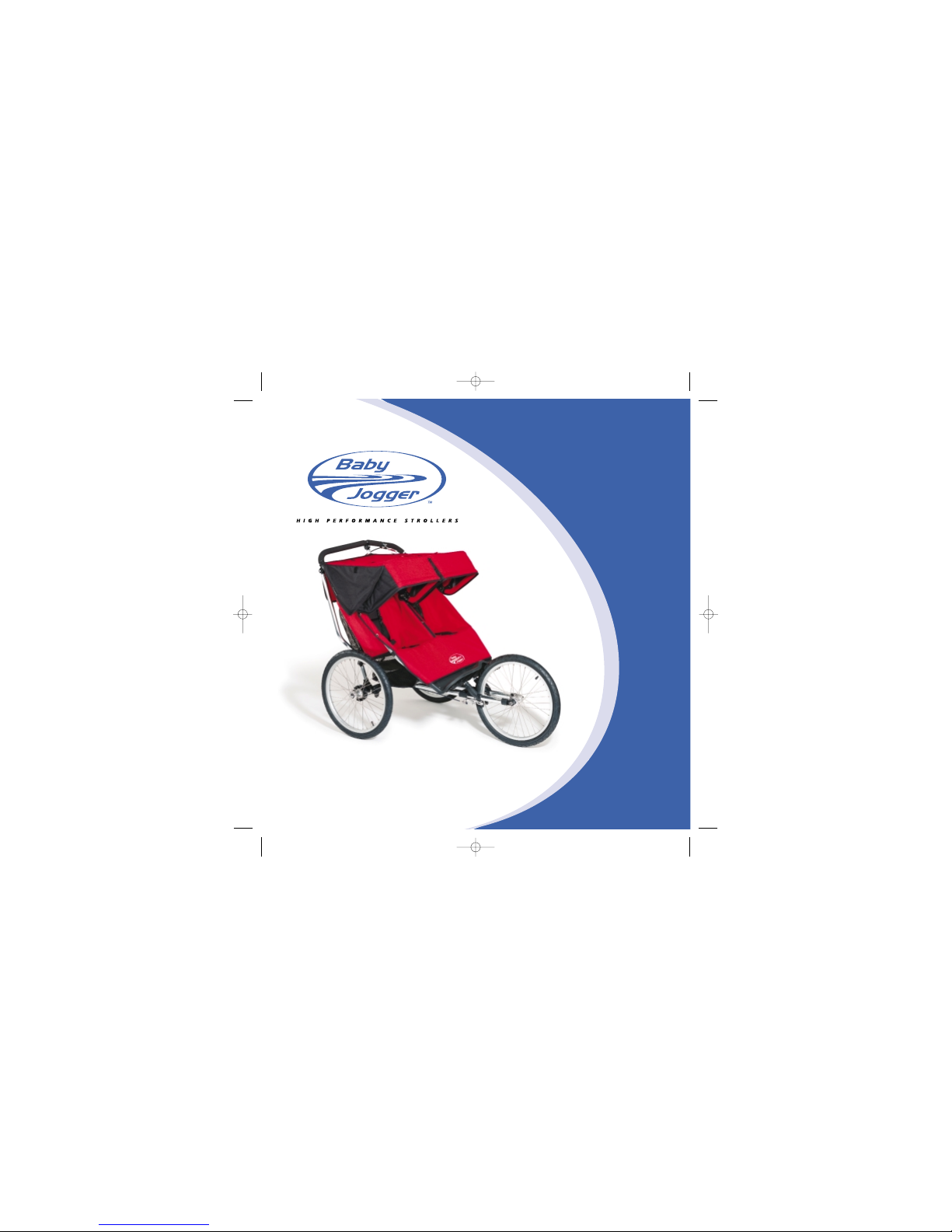

The Ultimate High Performance Double Jogging Stroller

Performance Double

Performance Double (Assem) 12/16/04 4:08 PM Page 1

2 1

• To assemble, simply unfold frame and insert the front of handle assembly into Base Bracket

and lock together, securing with Snap Locks.

Frame

Snap

Locks

• Important, keep this booklet for future reference.

• Accessories which are not approved by the manufacturer or distributor

should not be used.

• WARNING: Prevent serious injury to your child by always using the

safety harness.

• WARNING: Any load attached to the handle affects the stability of the stroller.

• WARNING: It may be dangerous to leave child unattended.

• Always use your wrist strap – these strollers can really roll, and the

wrist strap gives you control if you should slip or fall down.

• The passenger should remain seated (no standing in the stroller).

• Watch out for cars – never assume that a driver can see you and your child.

• Never use Roller Blades while using a Baby Jogger Stroller.

• Intended for passengers up to five years of age weighing no more

than 150 pounds.

• This Jogger seats two passengers.

• WARNING: Recommended weight for seat pocket is 2 pounds and basket

is 10 pounds. Excessive weight may cause a hazardous unstable

condition to exist.

• It may be unsafe to use replacement parts other than those supplied or

approved by the manufacturer.

For the sake of your precious cargo, please read

these warnings before using your Baby Jogger.

Performance Double (Assem) 12/16/04 4:08 PM Page 2

2 3

Frame

• Slide side braces located under seat into Jawslides by pulling up on Camlock and securing

into place.

REMOVE ALL PROTECTIVE CAPS FROM WHEELS AND

THE PLASTIC FORKTIP PROTECTOR PRIOR TO ASSEMBLY

Jawslide Camlock

3Velcro canopy straps to

back of sun canopy.

2Snap canopy strap to frame

on each side.

1 Thread the center canopy connection through the seat to secure to the frame

using a phillips head screwdriver, attach canopy to frame on all three

connections.(Assistance may be helpful to hold in position while attaching screws)

Canopy

4Secure center sun canopy

velcro strap around the

center bar of jogger frame.

Forktips Plastic Protector

Performance Double (Assem) 12/16/04 4:08 PM Page 2

4 5

• To install, gently slide the

wheel’s axle into the hole

in the axle end until you

hear it click into place.

• To remove, simply push in

the spring lock while

pulling out the wheel.

Rear Wheels

1 To install front wheel, lay

stroller back so handle is

resting on floor. Open the

calipers by flipping the

caliper lever toward the

rear wheels.

2 Insert the front wheel into

the fork tips by aligning

the axle flats with the

fork tip flats.

3 Tighten by turning the

wheel lever while holding

the opposite side.

4 Close the wheel lever

making sure that it is

facing toward the back

of the stroller.

5 Close caliper by flipping

the caliper lever toward

the fork tips.

Front Wheel

Caliper

Lever

Wheel

Lever

Spring

Lock

Spring

Lock

Performance Double (Assem) 12/16/04 4:08 PM Page 4

6 7

Adjusting safety harness:

• Loosen the shoulder straps from their plastic guides.

• Slide the end of each strap through pair of seat loops closest to your child’s shoulder.

Safety Harness

• Slide the end of the shoulder strap back into plastic guide.

Please note: If you feel the straps are too tight, you may adjust their length by sliding the

plastic guides toward the top of the seat.

• Lock both sides of the strap mechanism into the center buckle. To adjust the center strap,

move its plastic guide up or down.

WARNING: Avoid serious injury from falling or sliding out.

Always use safety harness!

Performance Double (Assem) 12/16/04 4:08 PM Page 6

8 9

• If you don’t have good braking

action, simply squeeze the brake

handle five or six times. If the

problem persists, loosen the

brake’s cylinder ring to adjust the

small ring, and then move the

small ring away from the handle

to tighten the cable. (Please do

not over tighten!) To lock the

rings, tighten the cylinder ring

against the handle while holding

the small ring in place.

Hand Brake with

Parking Button

• To use the parking button feature, simply squeeze

the brake handle and push the park brake button.

Brakes

Small Ring

Cylinder

Ring

JOGGER IS PACKAGED

WITH THE HAND BRAKE

ASSEMBLY LOOSE.

TIGHTENING IS NECESSARY

FOR SAFE OPERATION!

• Rotate hand brake assembly upward to a comfortable

position then tighten bolt (clockwise) on the hand

brake assembly with supplied allen wrench as shown.

Adjusting the Brake

Rear Wheel

Parking

Brakes

• Simply push brake

pedal down to

engage brake and

lift up to release. Brake Pedal

Parking

Button

1 Snap seat to frame. 2 Attach bottom part of seat

to footplate with the velcro.

3 Wrap bottom straps around

frame, thread strap through

D-ring and secure.

4 Snap center anchor strap. 5 Attach seat anchor straps

to rear frame uprights.

Seat

NOTE: Some Joggers are shipped

with the Canopy, Seat and Basket

pre-assembled. Assembly

instructions are given if any

pre-assemble items are removed

for cleaning or replacement.

Performance Double (Assem) 12/16/04 4:08 PM Page 8

1110

1 Snap front basket straps to seat’s

bottom straps.

Basket

2 Snap the rear snap strap around upright.

1 Simply adjust seat straps

to desired degree of

recline.

2 Pull on strap when you

want to return the seat

to its upright position.

3 Rear flap serves as sun

canopy when seat is in

reclined position.

Reclining Seat

4 Jogger is packaged with seat support board and can be easily removed

or inserted into the seat back if additional support is desired.

Be sure to remove the board from the back of the seat before washing.

Note: The rear of basket has the mesh material and the front doesn’t.

Performance Double (Assem) 12/16/04 4:08 PM Page 10

12 13

Washing

• You can machine wash your stroller’s seat in cold water with a mild detergent.

To minimize shrinkage, simply reattach the seat to the frame to dry.

(Please do not put the seat in the dryer!)

• Be sure to remove the board from the back of the seat

before washing.

• You may clean the stroller frame using a soft, dry cloth, and an

occasional spray of household wax will maintain its healthy glow.

Wheel Care

• Moisture – especially from the beach – can rust the wheel bearing case.

Spraying regularly with a silicone lubricant will keep your wheels looking healthy.

• Also, if you jog massive amounts of miles, your stroller will benefit from

a yearly visit to the bike shop for wheel alignment. Refer to the number

on the tire wall for the optimum pressure for your tires.

Storing

• Sunshine can fade seat fabric and dry out tires, so storing your

stroller indoors will prolong its good looks. However, if you do

store it outside, using a tarp will protect against weather wear.

Stroller Care

Steering

• Steering your stroller is simple: it’s balanced to

turn with just a light touch on the handlebar.

For tighter turns, push down on the handlebar

and raise the front wheel to steer.

Wrist Strap

• Make sure wrist strap is around your wrist whenever

your baby is in the stroller. The Baby Jogger is lightweight

and ready to roll – with or without you – and the wrist strap

helps you gain control over your stroller.

In the Dark

• Since we are concerned about the safety of you and your

baby, we recommend that you not use your stroller at

night. However, if you choose to, please attach

reflective strips to the wheel spokes and the seat.

Bicycle lights can also be mounted on the handlebar.

In Motion

Performance Double (Assem) 12/16/04 4:08 PM Page 12

We wish you many happy journeys with your new

Baby Jogger! Your stroller is a great product, and

we are proud to manufacture it. If you have any

questions or comments, please give us a call at.

1.800.241.1848

Baby Jogger is a Division of Dynamic Brands

2042 Westmoreland Street • Richmond, VA 23230

T: 800.241.1848 • F: 804.262.6277

www.babyjogger.com

Thank You!

BJC P/SD 08.10.04 (R1–12/04)

Performance Double (Assem) 12/16/04 4:08 PM Page 14
