B-Tech SYSTEM X BT9909 Manual de usuario

B-TECH aV mounts

B-TECH PROFESSIONAL For More Information Visit www.btechavmounts.com

The BT9909 is a pop-out mounting solution that is ideal for portrait

mounting LG's 86BH5C Ultra Stretch Signage in a recessed wall.

Tool-less, micro-adjustment allows mounted screens to sit perfectly

ush with the wall and the pop-out mechanism provides access to

the rear of the screen for easy installation and maintenance. Safety

screws come as standard to help prevent unauthorised removal of

the screen and height adjustment screws allow the screen to be

levelled perfectly after installation.

FEATURES

 Ideal for mounting a screen in a recess

 Features pop-in, pop-out function to allow access to the rear of screens

for servicing and maintenance and to aid installation

 Tool-less micro-adjustment for seamless display alignment

 Arms feature levelling screws to adjust the screen height

 Arms include locking screw to prevent accidental pop-out of screens

 Pole mounted version for ceiling and oor mounting is available on request

 Safety screws help prevent unauthorised removal of screens

 High-end aesthetic quality with stylish end caps for a neat and tidy install

 All mounting hardware included

IDEAL FOR

lg's 86bh5c

Ultra stretch

signage

Tool-less micro-adjustment for seamless

display alignment

Pole mounted version for ceiling and oor

mounting is available on request

Arms include locking screw to prevent

accidental pop-out of screens

Ideal for mounting screens in a recess

SPECIFICATION

Recommended screen size 86" Ultra-stretch screens

Max load 50kg

VESA® compatibility 600 x 200

Depth (at) 110mm (+/-10mm with micro-adjustment)

Depth (popped out) 279mm (+/-10mm with micro-adjustment)

Screen Height Adjustment +/-20mm

Colour (horizontal rail) Silver

Colour (interface arms) Black

MANUFACTURER OF THE YEAR

BT9909

system xTm Pop-Out

Ultra Stretch

Signage Mount

For Lg®86Bh5c

B-TECH av mounts

B-TECH PROFESSIONAL For More Information Visit www.btechavmounts.com

technical drawings

The information in this specication sheet reects the current technical specications at the time of print.

We reserve the right to change the technical or physical specications without prior notice. The B-Tech name and the B-Tech logo are registered trademarks of B-Tech International Design & Manufacturing Ltd.

All other brands and products are trademarks of their respective owners. All B-Tech images and symbols are exclusive property of B-Tech International Design & Manufacturing Ltd.

B-Tech accept no liability for loss or damage caused by improper installation or mounting on unstable structures. Any reproduction or retransmission or republication of any part of this

specication sheet is strictly prohibited, unless prior written permission has been granted by B-Tech International Design & Manufacturing Ltd. E&OE.

ACCESSORIES and RELATED PRODUCTS

Ultra-Stretch Signage Mount for use

when landscape mounting

BT9905

SS-V1.3-BT9909-120919

Ultra-Stretch Signage Mount for use

when portrait mounting

BT9906 BT7007

Digital Signage Kiosk for LG's 88BH7D

88" Ultra-Stretch signage screen

BT8390-VESA400MAP

Pop-Out Interface Arms allow access to

the rear of screens for easy servicing and

mainteance

TOP VIEW

INTERFACE ARM

FRONT VIEW

SIDE VIEW - EXTENDED

SIDE VIEW - CLOSED

PACKING INFORMATION

Colour: Order Ref: EAN Code: Carton Qty: Inner Carton Qty: Master Carton Weight: Master Carton Cube:

Black / Silver BT9909/BS 5019318087530 1 0 8kg 0.05cbm

WALL PLATES AND RAIL

8.2mm

MAX VESA 200mm

200mm

400mm

600mm

20mm

300mm

(Excluding End Cap)

90.1mm 90.1mm

34.8mm

37.7mm

305mm

100mm

200mm

300mm

400mm

8.4mm

6.4mm

51.1mm

100.7mm

23.2mm

14.8mm

50mm

150mm

250mm

350mm

383mm

B-Tech International Design & Manufacturing Limited

Part of the B-Tech International Group

UNLESS

93mm

186mm

255mm

210mm

2 x

8.4mm

45mm

2 x R 4.2mm

2 x R 8mm

158mm

6mm

110.4mm

+/- 10mm Depth

Adjustment

104.4mm

+/- 10mm Depth Adjustment

620mm

451.6mm

5.8mm

279mm

+/- 10mm Depth Adjustment

273mm

+/- 10mm Depth Adjustment

Otros manuales de Soporte de TV de B-Tech

B-Tech

B-Tech BT7004 Manual de usuario

B-Tech

B-Tech SYSTEM X BT8340 Manual de usuario

B-Tech

B-Tech BT9340-FM Manual de usuario

B-Tech

B-Tech BT8385-190 Manual de usuario

B-Tech

B-Tech Mountlogic BT8210 Manual de usuario

B-Tech

B-Tech SYSTEM X BT8372 Manual de usuario

B-Tech

B-Tech BTB441 Manual de instrucciones

B-Tech

B-Tech BT8582 Manual de usuario

B-Tech

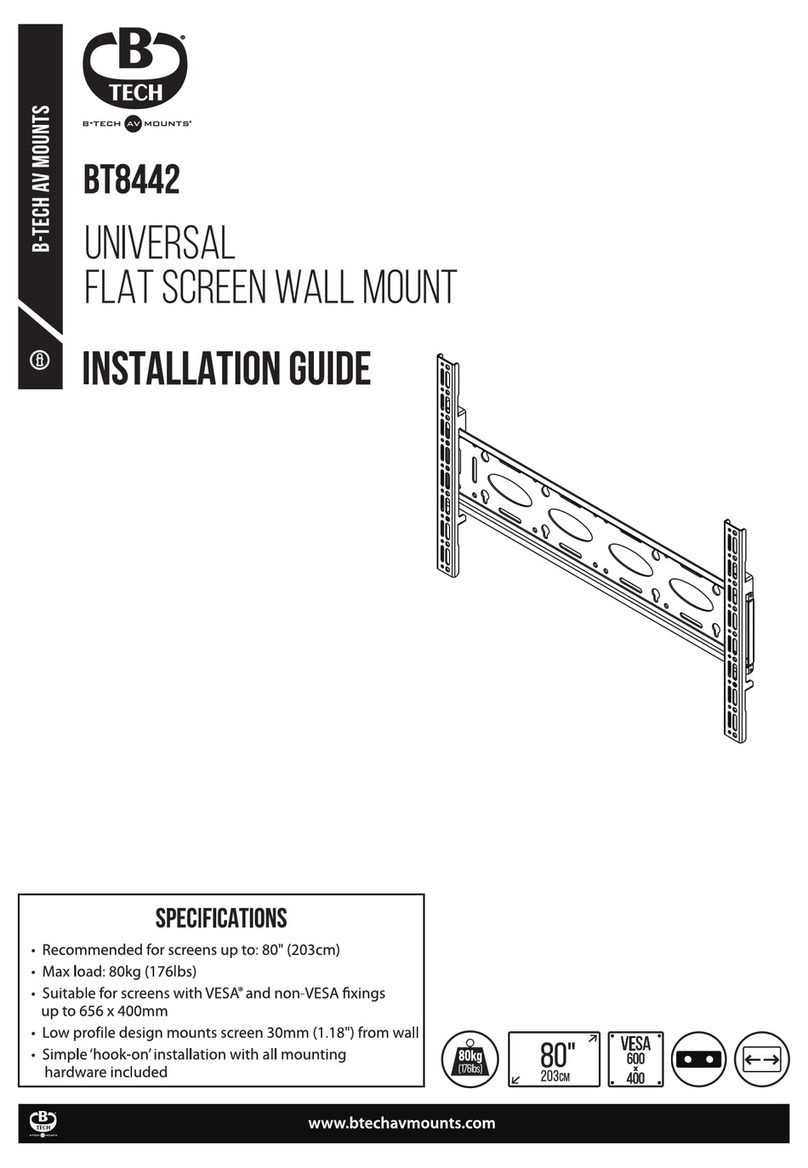

B-Tech BT8442 Manual de usuario
