AZZA Celesta 340 Manual de usuario

Celesta 340

Installation Instructions

1. Specifications

2. Chassis Parts

3. Control Panel Functions

4. 3.5”/2.5” HDD/SSD Installation

5. Cooling System Installation

6. ARGB Control Modes Switching

7. Fan Installation

Specifications

Model

Model Name:

Model Number:

Specifications

Type: ATX Mid Tower

Color: Black/Black(interior)

Side Panel Window: Leside panel: tempered glass with rubber mounts

Max CPU Cooler Height: UP to 165mm

Max Video Card Length:

Power Supply: Not included

Motherboard Compability: <275mm EATX、ATX、Micro ATX、ITX

External 5.25" Drive Bays: 0

Internal 2.5" Drive Bays: Up to 4

Internal 3.5" Drive Bays: Up to 2

Expansion Slots: 7

Top Ports:

Physical Specifications

Case Dimension (HxWxD)

Weight: 6kg /13.2lbs

Tempered Glass Sides Window: High-quality tempered glass side window allows for clear visuals to inner components

Addressable RGB Light Eects:

All ARGB light sync. devices connected to the 5pin ARGB control hub, allowing the LED





Available Fan Ports:

The available fan Included:

3x120mm or 3x140mm Fan ports in the front(3xBlack Fan inclouded)

2x120mm or 2x140mm Fan ports on the top

1x120mm Fan port in the rear(1xARGB Fan inclouded)

Water Cooling: Supports radiators up to 280/360mm in the Front

Supports radiators up to 240mm in the Top

CSAZ-340F: Rear - 1 x Black fan

CSAZ-340 : Case only

CSAZ-340M: Front - 3 x Black fan ; Rear - 1 x ARGB fan

Dust Filters: Removable (magnetic) dustproof net on the top, steel dust filter on bottom of chassis.

Power Supply Support: Boom mounted ATX Power Supply

Expansion

Features

478X210X400mm/18.8X8.3X15.7 inches

CELESTA 340

CSAZ-340M

Up to 320mm long video card

Power buon, reset buon,led buon, HD Audio, USB 3.0 x 2, USB2.0x1

Chassis Parts

589

1Removable (magnetic) dustproof mesh

22.5" SSD metal tray x 2

3Right side metal panel

4Front panel

5ARGB led light strip

6Led light guide mesh

7Multifunctional hard disk bracket

Multifunctional hard disk cage

Steel dust filter

Sliding tempered glass panel

Control Panel Functions

USB 3.0 (Blue)

USB 2.0 (Black)

Audio

Mic

POWER

RESET

LED

3.5 ˝/ 2.5˝ HDD/SSD Installation

3.5″3.5″

2.5″2.5″

▪Supports up to 320mm long video cards.

▪2.5" SSD metal tray support 2.5” SSD x 2

( )

▪Multifunctional hard disk cage support

3.5” HDD or 2.5” SSD x 1( )

CE FD

E F

MAX 320mm video cardMAX 320mm video card

▪

3.5” HDD or 2.5” SSD x 1 ( )

Cooling System Installation

Front

120mm x3

140mm x3

Max Height of

Radiator

360 mm

Cooling System Installation

Rear

120mm x1

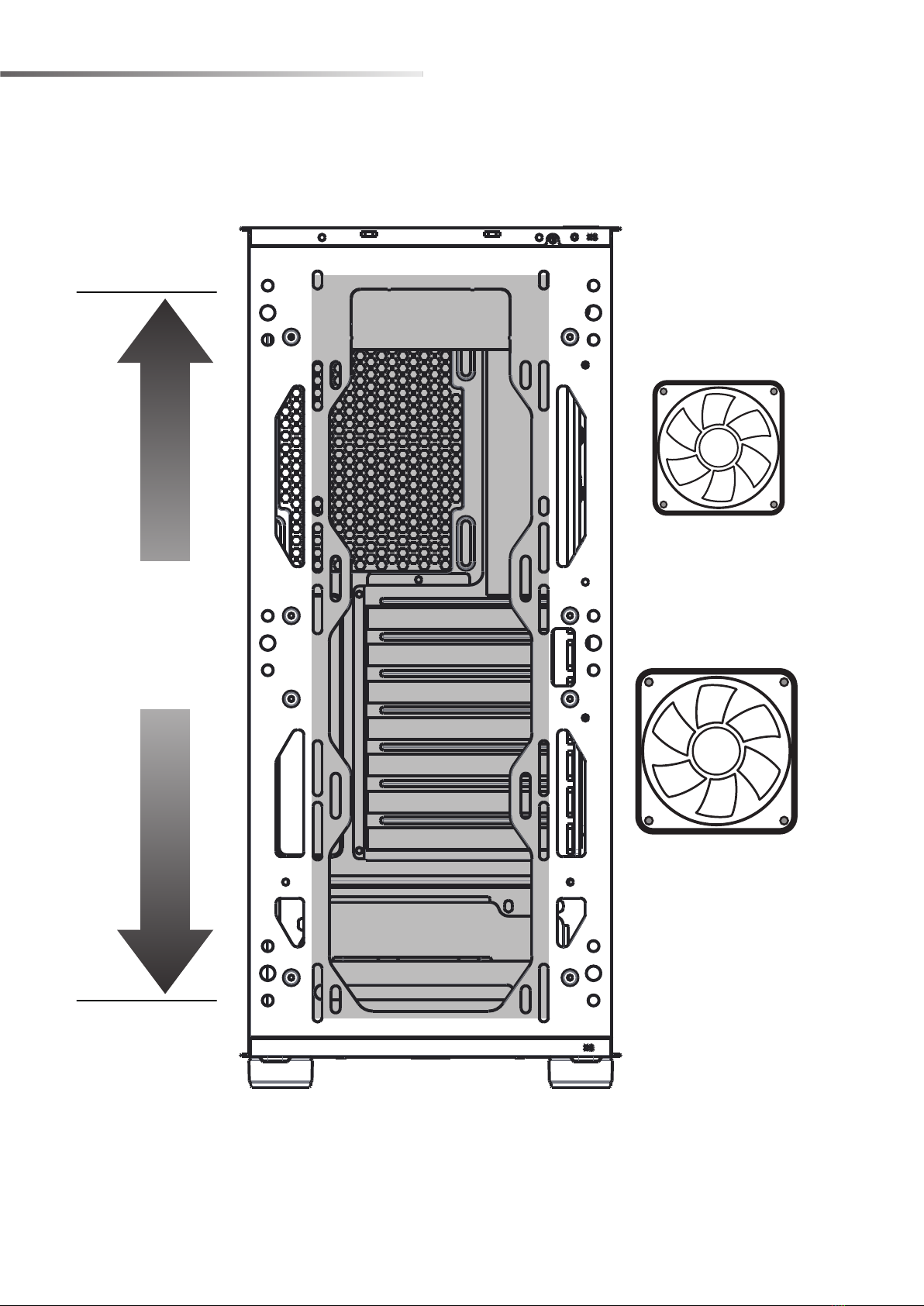

Cooling System Installation

Top

120mm x2 140mm x2

Max Length of

Radiator

240 mm

ARGB Control Modes Switching

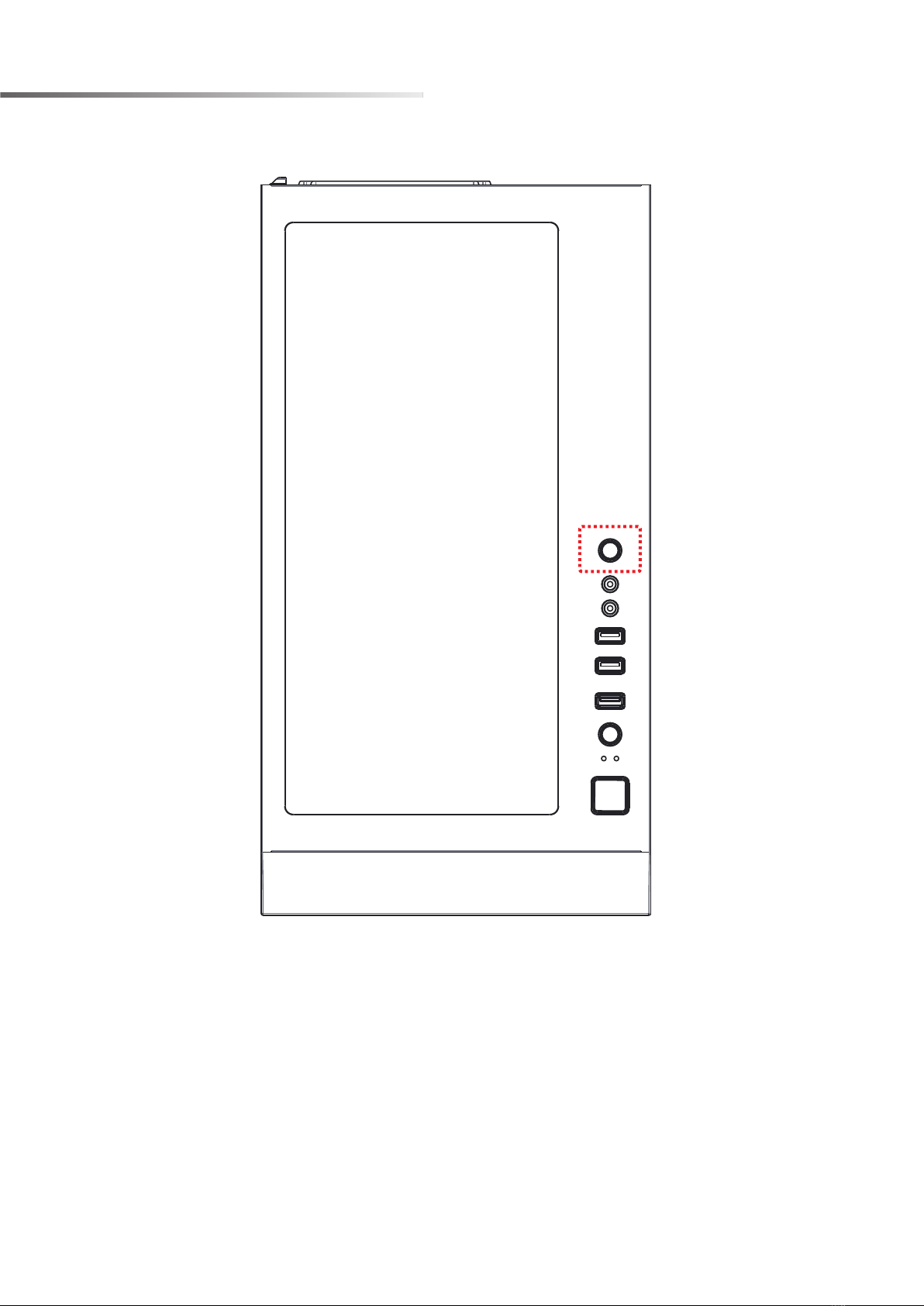

※To control the front panel ARGB lighting modes, press the LED button to cycle through

15 RGB lighting modes.
