Axis A8105-E Manual de usuario

Version: 1.0.2 ENG

Date: 26-08-2022

Conﬁgure the AXIS Network Video Door Station

for the CyberGate service

TechNote:

AXIS and

CyberGate

gf1

Conﬁgure the AXIS Network Video Doorstation for the CyberGate serviceCyberTwice

1

CyberGate

Microsoft Teams is the hub for team collaboration in Microsoft Ofﬁce 365 that integrates people,

content, conversations and tools your team needs. Via the CyberGate application that runs in

Microsoft Azure you can now connect an AXIS Nework Video Door Station to your Microsoft Teams

environment. Microsoft Teams users can answer incoming calls from- or place outgoing calls to the

intercom – with 2-way audio and live video – on the Teams desktop client, Teams desk phone or

Teams Smartphone app and open the door for visitors.

! Note: For instructions on how to purchase and conﬁgure the CyberGate service, see our Tech

Note: ‘Connect a SIP Intercom to MS Teams using the CyberGate service’. !

gf2

Conﬁgure the AXIS Network Video Doorstation for the CyberGate serviceCyberTwice

2

AXIS Network Video Doorstation

For this document the AXIS A8105-E Network Video Doorstation (from now on named ‘AXIS’) is

used to connect to the CyberGate service (from now on named ‘CyberGate’).

This manual also applies to the following Axis Video Doorstations:

• Axis A8004-VE

• Axis A8207-VE

• Axis I8016-LVE

Follow the next steps to conﬁgure the AXIS to connect it to CyberGate.

Connect the AXIS

Connect the AXIS to the network, power it on and open a webbrowser to its IP-address.

Create a password for the ‘root’ user and click ‘OK’

Login as ‘root’ with the just created password

gf3

Conﬁgure the AXIS Network Video Doorstation for the CyberGate serviceCyberTwice

3

Set the Capture Mode:

Set the used power line frequency:

When logged-in, the live view opens

gf4

Conﬁgure the AXIS Network Video Doorstation for the CyberGate serviceCyberTwice

4

At the top, click ‘Setup’

Click on ‘Date& Time’ to set the correct Time zone.

Click the Save button to conﬁrm.

gf5

Conﬁgure the AXIS Network Video Doorstation for the CyberGate serviceCyberTwice

5

Click on ‘VoIP Settings’ and at Account settings ‘Conﬁgure’

Remove the default ‘peer-to-peer entry with ‘Remove’, after that add a new entry by clicking on

‘Add’

gf6

Conﬁgure the AXIS Network Video Doorstation for the CyberGate serviceCyberTwice

6

Provide the following information:

Name Name of the SIP account, in this example ‘CyberGate’

Default account Enable by checking the checkbox

User ID Use the Username provided by the CyberGate service

Authentication ID Will be the same as the User ID

Password Use the Password provided by the CyberGate service

Caller ID Use the Username provided by the CyberGate service

Domain name Use the domain name of your organisation

Register address cybergate.cybertwice.com

Click the Save button to conﬁrm.

gf7

Conﬁgure the AXIS Network Video Doorstation for the CyberGate serviceCyberTwice

7

Click ‘Network’ to set the SIP connection parameters

By default it uses UDP to connect to CyberGate. You can change it to TCP when needed.

To establish a secure connection to CyberGate, modify the following settings:

Transport Mode Change to TLS

Media Encryption Change this to SRTP Mandatory

Click the Save button to conﬁrm.

These settings ensure that the SIP trafﬁc and the audio / video are encrypted.

gf8

Conﬁgure the AXIS Network Video Doorstation for the CyberGate serviceCyberTwice

8

Click ‘Video’ to set the video parameters for SIP

Set the Resolution to 720p and set the View area to Landscape.

Click the Save button to conﬁrm.

gf9

Conﬁgure the AXIS Network Video Doorstation for the CyberGate serviceCyberTwice

9

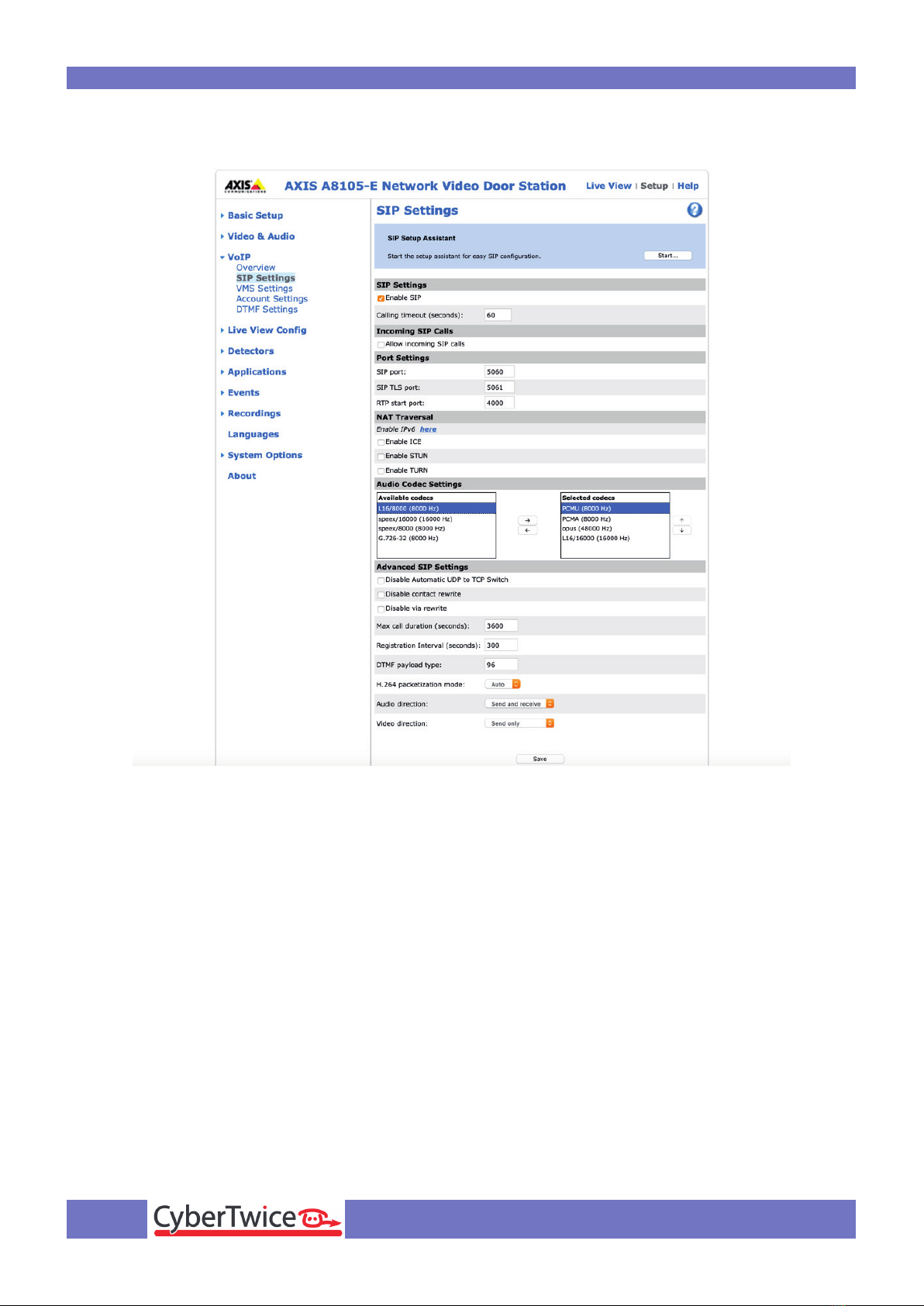

Click on ‘SIP Settings’ and enable SIP by checking ‘Enable SIP’’:

Click the Save button to conﬁrm.
