AXIOMTEK AX93A21 Manual de usuario

4 94193A21000E

Version A1 J nu ry 2020

Printed in T iw n

Applications

The CN10/CN11 are PoE-PSE (Power Over Ethernet-Power Sourcing

Equipment) ports which is compliant with IEEE802.3at standard, providing

both data connection and electrical power to PoE-PD (Power Over

Ethernet-Powered Devices).

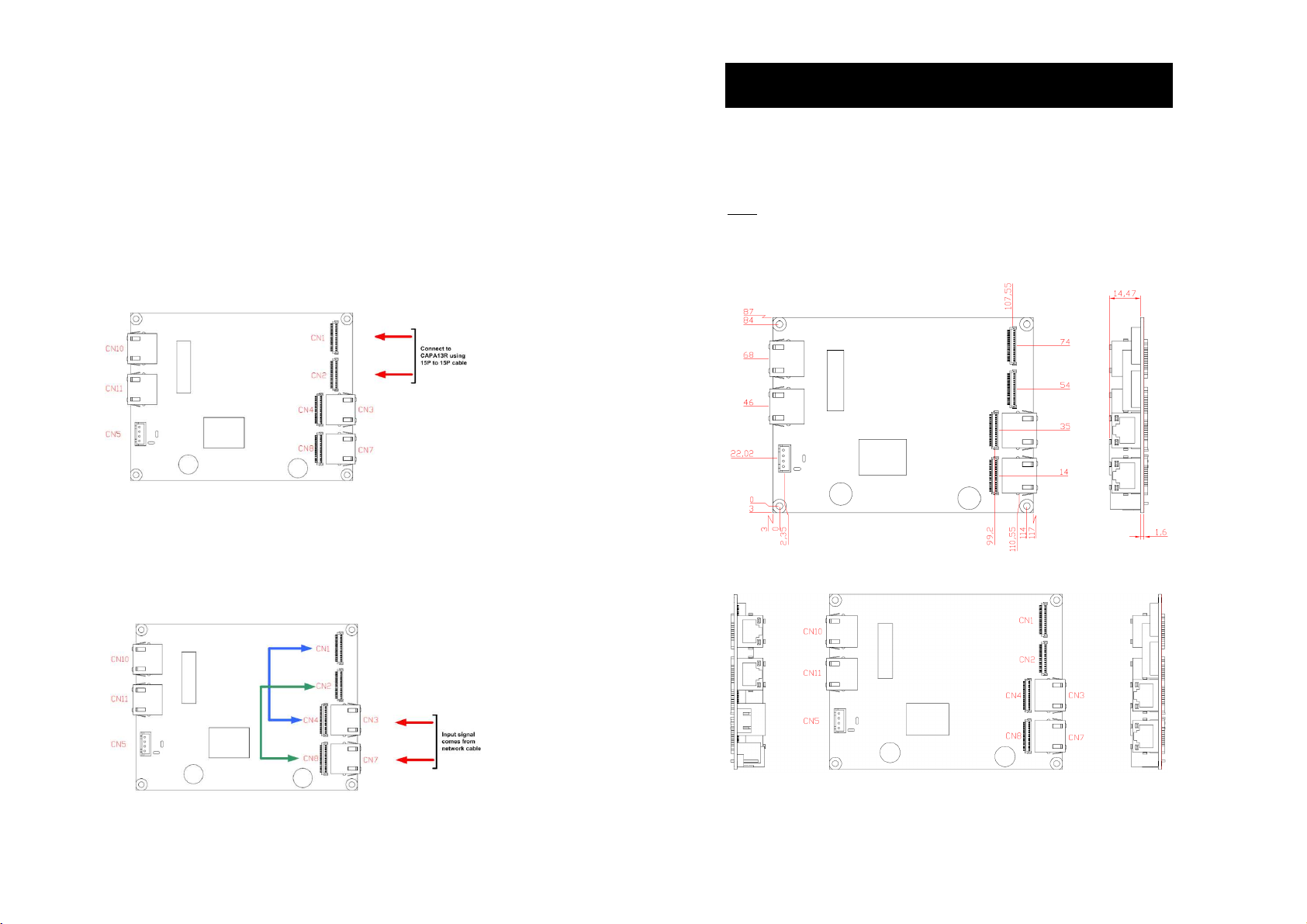

Connection - 1

(1). Connect CN5 to DC 12V power source.

(2). Network signal comes from CPU board. The AX93A21 is connected to

CPU board (i.e. CAPA13R) through CN1/CN2 using 15P-to-15P cable,

see image below.

(3). After (1) and (2), the CN10/CN11 are available to connect the PoE-PD.

Connection - 2

(1). Connect CN5 to DC 12V power source.

(2). Input signal comes through CN3/CN7 from network cable. Connector

CN4 is connected to CN1, CN8 to CN2 by using 15P-to-15P cable.

Please be warned this connection as the below is not allowed to

change.

(3). After (1) and (2), the CN10/CN11 are available to connect the PoE-

PD.

AX93A21 Quick Installation Guide

94193A21000E 1

Version A1 J nu ry 2020

Printed in T iw n

Checklist



PoE

oard x1

or PoE Box x1



Quick Installation Guide



Heatsink x1



15P

15P cable

Note: Please contact your local vendors if any damaged or missing items. DO

NOT apply power to the board if there is any damaged component.

Dimension and Fixing Holes

Board Layout

AX93A21 POE Ethernet Board

2 94193A21000E

Version A1 J nu ry 2020

Printed in T iw n

Assembly Drawing

Box Dimension

Connectors

Connector Description

CN1

Ethernet Wafer

Connector

Port 1

CN2

Ethernet Wafer

Connector

Port 2

CN3

Ethernet RJ

45 Port 1

Ethernet Internal Connector Port 1

12V

Power

Connector

CN7

Ethernet RJ

45 Port 2

CN8

Ethernet Internal Connector Port 2

94193A21000E 3

Version A1 J nu ry 2020

Printed in T iw n

CN10

POE

Port 1

CN11

Port 2

Ethernet Wafer Connector (CN1 and CN2)

This is a 15-pin (pitch=1.0mm) wafer connector (compliant with JST

BM16B-SRSS-TB) for Ethernet interface.

Ethernet Internal Connector (CN4 and CN8)

This is a 15-pin (pitch=1.0mm) wafer connector (compliant with JST

BM16B-SRSS-TB) for Ethernet interface.

12V DC Power In Connector (CN5)

This is a 4-pin (pitch=2.5mm) wafer connector (compliant with JST B4B-

XH-A) for 12V DC power input.

Signal Pin

Signal

1 GND 9 MDI2-

2 LAN_LINK_ACT

10 MDI1-

3 +3.3V_SBY 11 MDI3+

4 GND 12 MDI3-

5 MDI0+ 13 GND

6 MDI0- 14 LAN_100_LED

7 MDI1+ 15 LAN_1000_LED

8 MDI2+

Signal Pin

Signal

1 GND 9 MDI2-

2 N.C. 10 MDI1-

3 N.C. 11 MDI3+

4 GND 12 MDI3-

5 MDI0+ 13 GND

6 MDI0- 14 N.C.

7 MDI1+ 15 N.C.

8 MDI2+

Signal

1 +12V

2 +12V

3 GND

4 GND
