Axiom FMS 16/24 Hoja de especificaciones

FMS 16/24

Quick Setup Sheet

Full Metal Stand

FMS 16 / 24 Quick Setup Sheet

Step 1:

Choose either the spike feet or the rubber feet and attach

those on the base. Spikes or feet make absolutely no

difference in sound quality. They are supplied for your

convenience or stability only.

Step 2:

Locate the round center pillar with the threaded end

and screw the threaded end carefully into the triangular

metal pedestal base, rotating the pillar in a clockwise

direction. Tighten as snugly as you can.

Step 3:

Now place the collar on top of the pillar and

temporarily tighten one of the set screws.

Step 4:

Now you can run the speaker cable through

the center pillar and out the top notch to

connect to the speaker later on.

Step 5:

Attach the platform to the top of the metal collar

(ensure that the metal lips of the plate face

upward) using the three supplied screws.

Step 2

Pillar

Step 3

Step 1

Step 5

Step 4

Collar

Pedestal Base

Spike x 3

Rubber Foot x 3

Metal Lips

Platform To

Collar Screws

Speaker Wire

Collar Set Screw

Visit www.axiomaudio.com/manual_index.html for full owners manual

Step 1

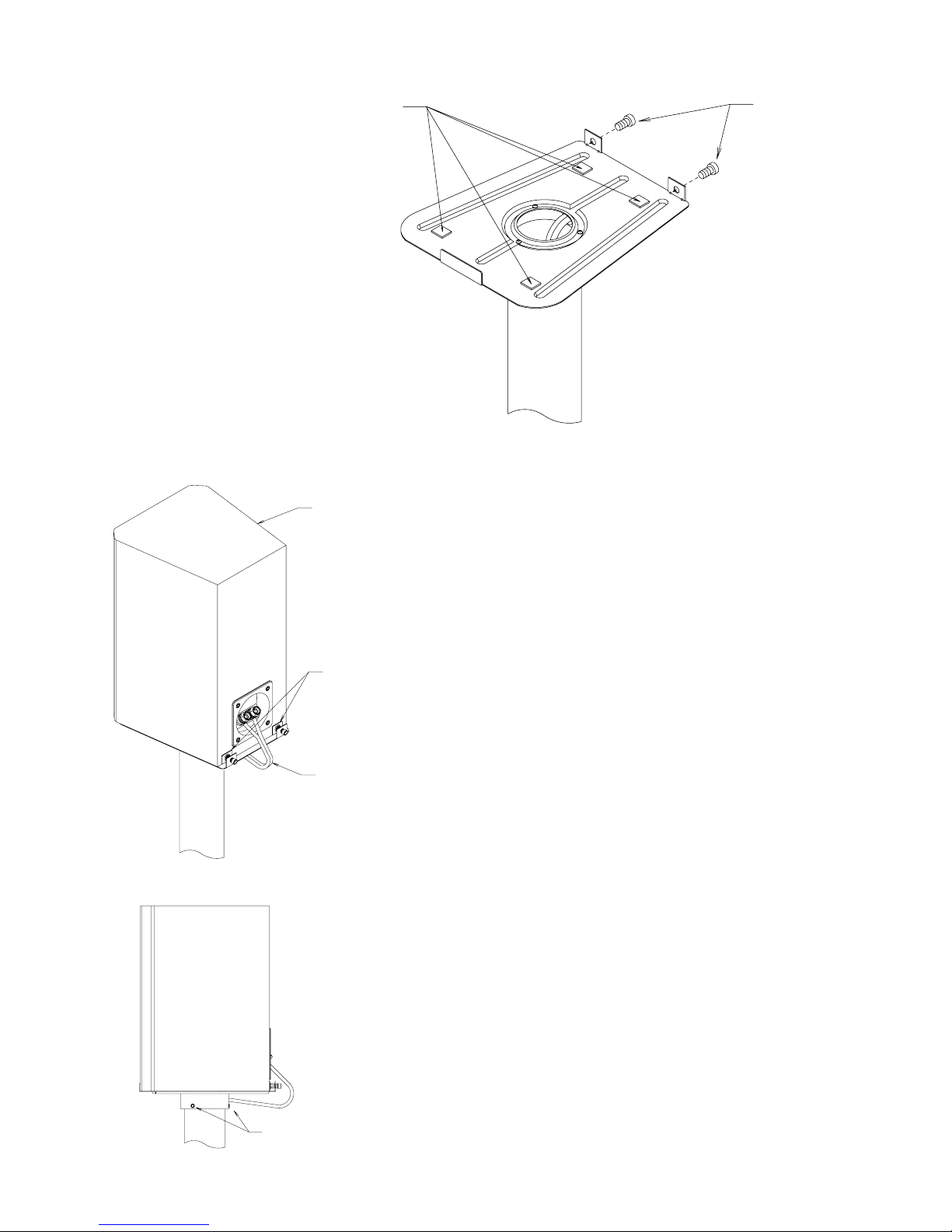

Step 6:

Install rubber pads on platform. Do not

use clear pads supplied with your Axiom

bookself speakers.

Step 7:

Partially install the two set screws that will

move the rear platform tabs up against the

speaker’s rear baffle to secure the speaker

to the top plate.

Step 8:

Now place the speaker on the platform.

Step 9:

Place the platform tabs between the platform set

screws and the speaker then gently tighten the

rear platform set screws to bring the speaker up

against the metal tab at the front of the platform.

Do not over tighten these screws.

Step 10:

Connect the speaker cable to the speaker

binding posts.

Step 11:

Align the speaker so it faces forward by loosening

the collar set screw. Re-tighten all the collar set

screws.

Step 8

Step 9

Step 10

Step 11

Step 7

Step 6

Rubber Pads Platform Set Screws

Cable

Collar Set

Screw

Platform Tabs

Axiom Audio Head Office

2885 Highway 60

Dwight, ON Canada

P0A 1H0

Toll Free (North America) 1-866-244-8796

Worldwide 1-705-635-3090

Email: [email protected]om

www.axiomaudio.com
