MiniK10 LOCK.
USER GUIDE
awm.net.au2
Programming MiniK10 Locker
Programming mode
To make changes to the lock’s settings, you must rst enter programming mode. To enter
programming mode manually via the keypad, simply enter the following sequence.
Changing the master password
Set and test new Master code before installing the lock
Changing between public and private
By Default, the minik10 is set to public user mode. The Minik10 can easily be set to permanent user
mode in 2 simple steps.
Forgotten password
By Default, the minik10 USER PIN IS 1010. If a user has lost /forgotten their pin, you can easily reset it
back to the factory default user code so the user can reset their desired PIN.
Light and audio notication
Password correct: Green LED with 2 repeated audio sounds
Password incorrect: Red LED with 4 repeated audio sounds
Low Battery: Red LED blinks 5 times after every operation
Lock is open: 1 minutes after door is opened, lock gives audible warning 8 times every 5 seconds.
Default master password is 101010
MASTER PASSWORD
MASTER PASSWORD
MASTER PASSWORD
OLD MASTER PASSWORD NEW MASTER PASSWORD
#
#
#
#
# # #
*
*
*
1
4
0
0
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
PROG.
NO
SELECT.
NO
FOR ADMINISTRATOR
Red LED lightGreen LED light
Lock / Unlock
3MiniK10 Lock
MASTER PASSWORD
#*
X X X X X X
PROG.
NO
SELECT.
NO
ACCESSING THE PROGRAM MENU
PROG
NO
0
SELECT
NO
1
EXPLANATION
0-1 Restores factory default settings:
Prog. No 1-1: Locker mode operation (Multiple user operation)
Prog. No 2-1: Audible beeps and conrmations
Prog. No 3-0: Penalty operation is not active
Prog. No 4-0: Sets user password to factory default
Prog. No 5-0: Service password is not active
Prog. No 6-1: Closing without password active
Prog. No 7-0: Warning of open door is not active
Prog. No 8-0: Resetting user password is not active
Prog. No 9-0: Blocking of the lock is not active
10 Personal Operation (Individual Operation)
1 Locker Mode Operation (Multiple User)
20 Mute operation except for warnings
1 Audible operation- button feedback, warnings and conrmations
30 Penalty passive
1 Penalty active (Lock blocked for 5mins if wrong code entered 3 times)
40 Sets user default code to factory default (For forgotten combinations)
1 -
50 Service Password is passive
1 Service Password is active
60 Closing with password required is active
1 Closing without password is active (for personal usage)
70 Warning of door open is passive
1 Warning of door open is active (beeps 8 times every 5 sec.)
80 Resetting user password is passive (if service password is active)
1 Resetting user password is active (if service password is active)
90 Blocking of the lock is passive (if service password is active)
1 Blocking of the lock is active after using service password (if it is active)
awm.net.au4
Programming MiniK10 Locker
First time use
To open the locker, press turn the handle clockwise
Changing the user code
To change user code, press , a conrmation beep and green LED will conrm
Changing back to the default password
To change back to default locker code, press
Forgotten password
By Default, the minik10 User Code is 1010. If a user has lost /forgotten their pin, you can easily reset it back to the factory
default user code so the user can reset their desired PIN.
Default locker code is 1010
CURRENT CODE
CURRENT CODE
NEW CODE
*
*
*
*
X
X
XX
X
XX
X
X
1
1
1
1
X
X
X
0
0
0
0
FOR USER
MASTER PASSWORD
#*4 0X X X X X X
5MiniK10 Lock
awm.net.au8

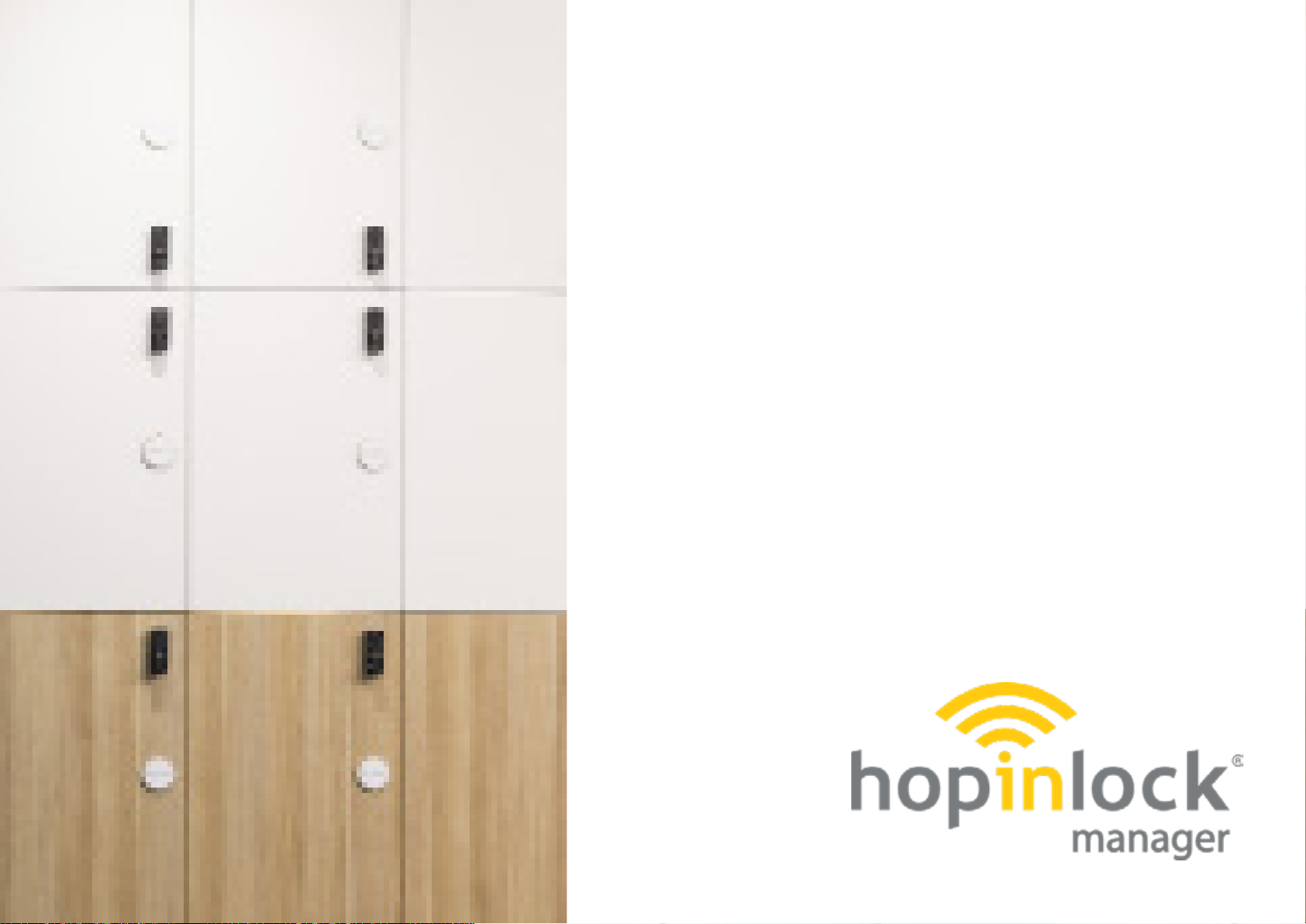

The “Hopinlock” software allows users to easily access multi-
threaded cabinets via a mobile Android device. The user can
manage and control the locks from one central device. This
prevents unauthorized master password sharing, mass changing
of functions and information can be backed up on the tablet.
The “Hopinlock” compatible models of VEMUS products based
mobile application. By downloading the “hopinlock-manager”
your tablet from computer, you can begin to manage your
compatible locks easily while you sit down.
Change your device settings to enable Apps upload
from unknown sources.
Connect your device to the Internet and enter this linked
web browser:
http://hopinlock.com/app/hopinlockmanagerv2.0.apk
The installation will start automatically.
The hopinlock manager App only works on NFC enabled
Android devices, and can only be downloaded via the
link.
APP INSTALL
MiniK10
Integrating Mobile App
LOGIN MENU
Once opening the App, login using the account information provided to
you.
Once you have logged in, you can edit the user information. e only
information that cannot be changed is the user name.
The main menu is where all tasks can be actioned.
Search Icon - This allows you to search for a lock by its assigned
number. Please note that all locks from all zones with the same
number will appear.
Sort Icon - This sort icon will allow you to sort the list of zones by
name, by lock count and by task count. You can also sort locks by
cabinet number, zone or by task.
General Settings - This is where the general settings for the
Hopinlock are set such as remembering the master password and
allowing permanent tasks to be set. It also has the option for a
manual back up.
Main Menu - This is the main menu and has a list of features
including adding zones, deleting zones, opening all locks,
changing the master password to all locks, resetting all locks to
factory default settings, canceling all active tasks and event logs.
9MiniK10 Lock
awm.net.au10
Zone - All the locks that have been
assigned to that zone.
Lock - All the locks that are active
within the app.
Task - All the locks that have tasks
assigned to them.
1.ZONES
Putting the locks into different zones gives you the convenience of
partitioning the locks you will save.
There are 3 different zones that can be used By Zone / By Lock / By Task
To add a zone press on the menu key and then click add
zone. Once the zone has been named it can be edited by using
the options. All the zones are visible on the opening screen.
MiniK10
Integrating Mobile App
SPECIFYING AREAS FOR THE APPLICATION AND LOCKS ADDING ZONES
