Avtech AVN2503 Instrucciones de operación

AVN2503

Wireless Network Camera

Tutorial

Prerequisites

Before using the camera, make sure the following items are ready:

Network camera (no microSD card)

DC12V adapter

Router

Mobile phone / tablet

(Optional) PC / laptop

(Optional) Recorder

And also check and write down the mac address of your camera:

System Diagram

There are four system diagrams suitable for four scenarios for you to build your own

surveillance system with this camera:

Diagram 1

I’m installing this camera to simply see my pet or properties at home when I’m away and I

do not need to keep video footage for later checking.

(This camera itself is only able to save up to 40 seconds of event footage.)

Diagram 2

I need video recording and I have a redundant PC / laptop which can operate continuously

Diagram 3

I need long time video recording and it’s easy to do re-cabling at my home

Diagram 4

I need long time video recording and it’s not easy to do re-cabling at my home; the wireless

support is preferable.

Diagram 1 (Wireless) camera + router + mobile phone / tablet

Recommended installation steps: software setup hardware installation

Diagram 2 (Wireless) camera + router + PC + mobile phone / tablet

Recommended installation steps: hardware installation & setup software setup

Diagram 3 (Wired) camera + router + NVR + mobile phone / tablet

Recommended installation steps: hardware installation & setup software installation

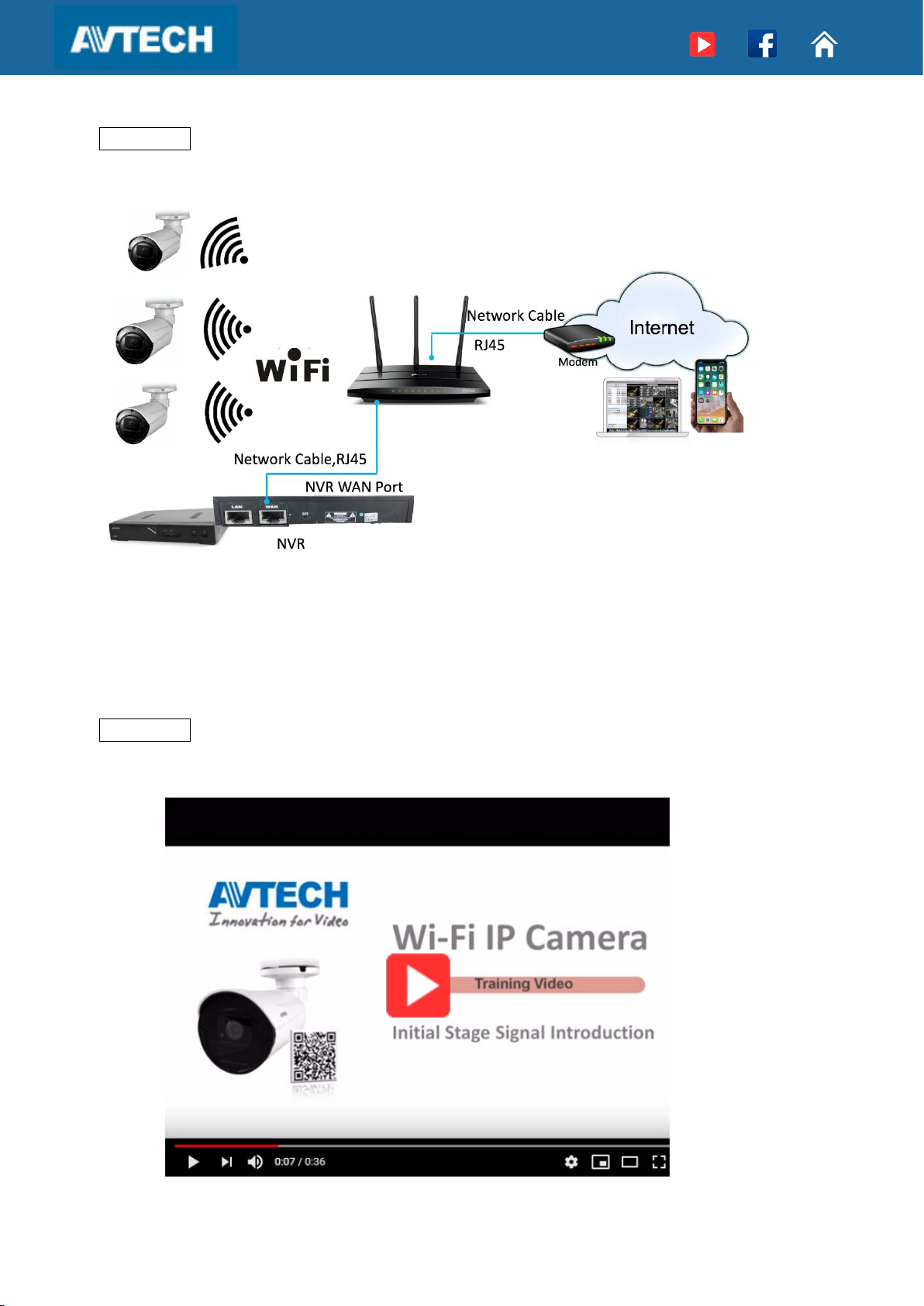

Diagram 4 (Wireless) camera + router + NVR + mobile phone / tablet

Recommended installation steps: software setup hardware installation & setup

Software Setup

Go to Google Play or App Store to search and download the app, EagleEyes, and follow the

instructions below based on the system diagram you’re using.

Diagram 1 (Wireless) camera + router + mobile phone / tablet

Step1: Power on your camera and wait for the LED status indicator to start flashing.

Step2: Install EagleEyes on your mobile phone / tablet.

Step3: Instead of using your mobile network (such as 4G / 5G network), please connect

your mobile phone / tablet to your wireless network first.

Then, open EagleEyes and click + (Add) to add a device. (

Figure 1

)

Step4: Select EaZy (

Figure 2

Step5: Select Wireless IP Camera (

Figure 3

Figure 1

Figure 2

Figure 3

Video demo for Step3 ~ Step5

Step6: Show the QR code to the camera within the distance of 20~30 cm for scanning.

Check

Figure 4

or the video demo below to know more details.

Figure 4

If you can’t add your camera by scanning the QR code successfully, please add the

device manually (Manual Setup).

Video Demo:

Diagram 2 (Wireless) camera + router + PC (CMS Lite) + mobile phone / tablet

Step1: Power on your camera and wait for the LED status indicator to start flashing.

Step2: Install EagleEyes on your mobile phone / tablet.

Step3: Instead of using your mobile network (such as 4G / 5G network), please connect

your mobile phone / tablet to your wireless network first.

Then, open EagleEyes and click + (Add) to add a device. (

Figure 1

)

Step4: Select EaZy (

Figure 2

Step5: Select Wireless IP Camera (

Figure 3

Figure 1

Figure 2

Figure 3

Video demo for Step3 ~ Step5

Step6: Show the QR code to the camera within the distance of 20~30 cm for scanning.

Check

Figure 4

or the video demo below to know more details.

Figure 4

If you can’t add your camera by scanning the QR code successfully, please add the

device manually (Manual Setup).

Video Demo:

Step7: Click here to download and install CMS Lite to your PC.

Step8: Open CMS Lite, and scan and search the IP address of this camera.

Video demo:

Diagram 3 (Wired) camera + router + NVR + mobile phone / tablet

Step1: Power on the camera.

Step2: Check & write down the mac address of your camera.

Step3: Search and add the camera to the NVR (takeAVTECH NVR as an example).

Video demo:

Step4: When the camera is added successfully, you’ll be able to see the camera images.

Diagram 4 (Wireless) camera + router + NVR + mobile phone / tablet

Step1: Power on your camera and wait for the LED status indicator to start flashing.

Step2: Install EagleEyes on your mobile phone / tablet.

Step3: Instead of using your mobile network (such as 4G / 5G network), please connect

your mobile phone / tablet to your wireless network first.

Then, open EagleEyes and click + (Add) to add a device. (

Figure 1

)
