Avonic CM55-VCU Manual de usuario

www.avonic.eu

Avonic

CM55-VCU

Full HD 1080p60 Video Conference Camera USB3.0

User Manual

Version 2.2

Update notes:

Added social media accounts

Join Avonic

linkedin.com/company/avonic

twitter.com/avonic

facebook.com/avonic

www.avonic.eu

Safety Notes

•Before installing the device, please read this manual carefully and follow instructions

indicated to ensure proper operation. Please keep this manual for future reference.

•Please powering on the device, please check the input power voltage carefully, the

camera accepts DC12V, otherwise, it may cause damage to the camera.

•Please put power, video and control cables at safe place in order not to cause

malfunction to the device.

•Please put the device into use at required working temperature and humidity,

working condition of the device is 0°C ~ +40°C，humidity at < 90%. Please avoid to

have unrelated objects get into the device like corrosive liquid that may cause

damage or danger.

•Please avoid shock, vibration, soaking may cause to the device when transporting

and installing, otherwise, it may cause damage to the camera.

•Please only refer to authorized personnel to repair the device, do not disassemble

the camera by yourself.

•Only use shielded control and video cables, and the cables should be connected

separately in order to ensure proper use. Do not aim the camera lens at sunlight or

strong lights that may cause damage to the imaging system of the device.

•Please use a soft cloth to clean the device, do not use strong or abrasive detergent to

clean that will damage the device’s housing / lens.





www.avonic.eu
3
Contents

Product Overview ..........................................................................5
Features............................................................................................................................................... 5
Packing List .......................................................................................................................................... 5
PTZ Camera ...................................................................................................................................... 5
DIP Switch Setting................................................................................................................................ 6
SW1 Settings .................................................................................................................................... 6
SW2 Settings .................................................................................................................................... 6
Remote Control.................................................................................................................................... 7
Installation.....................................................................................9
Cable Connecting................................................................................................................................. 9
Mounting ............................................................................................................................................. 9
Desktop Mount Installation................................................................................................................. 9
Wall Mount Installation....................................................................................................................... 9
Ceiling Mount Installation ................................................................................................................. 10
Menu Settings.............................................................................. 12
Menu Explanation.............................................................................................................................. 12
Video.................................................................................................................................................. 12
Exposure ............................................................................................................................................ 13
White Balance.................................................................................................................................... 14
Pan/Tilt/Zoom.................................................................................................................................... 14
System................................................................................................................................................ 15
Status ................................................................................................................................................. 15
Restore Defaults ................................................................................................................................ 15
Special Preset Commands.................................................................................................................. 16
Annex 1 Technical Specifications .................................................. 16
Annex 2 Size and Dimension......................................................... 18
Annex 3 SW1 Definition................................................................ 19

www.avonic.eu

Troubleshooting........................................................................... 22

www.avonic.eu

Product Overview

Features

•2.14MP, 1/2.8” CMOS sensor;

•USB3.0 high speed raw data output,

supports USB2.0 output;

•Standard UVC1.1 protocol;

•Support full HD output at maximum

1080P60 format;

•12x optical zoom;

•72.5 degree wide view angle;

•Provide one channel USB3.0 and one

channel DVI-D HD video output;

•Has RS232 in, RS232 out and RS485

control interfaces;

•Special PTZ driving system to ensure

precise positioning;

•Built-in OSD menu;

•With an IR remote control;

•Has image flip function, suitable for

stand and suspended installation;

•Supports VISCA and PELCO-D

communication protocols, daisy chain

is possible.

Packing List

When you open the package, please make

sure below items are included. If any items is

missing, please contact your supplier.

PTZ Camera x 1

Power Adapter x 1

Remote Control x 1

RS-232 Control Cable x 1

USB3.0 Cable x 1

manual（1）

Main Parts and Control

Interfaces

PTZ Camera

Front Part

1 Camera Module

www.avonic.eu

2 Remote Control Sensor

3 Power Indicator

4 Communication Indicator

Rear Part

5 USB3.0

6 DVI

7 RS-232IN/IR

8 RS-232OUT/RS-485

9 Power Input（DC12V）

Bottom Part

10 Locating Hole

Used to define installation direction of the camera.

11 Installation Hole

1/4” inch screw, used to fix the camera.

12 DIP Switch

Used to set address, protocol, baud rate and other parameters.

DIP Switch Setting

Before operating the camera, please set camera’s address, baud

rate protocol and etc. through its DIP switch located at the

bottom part of the camera. There are two switches named SW1

and SW2.

Note

The SW1 and SW2 switches look the same, their settings are

different. SW1 is used to set camera’s address and mounting

types, while SW2 is used to set camera’s control protocol and

baud rate

Default Settings

Camera Address

Baud Rate

9600bps

Protocol

VISCA

Video Output Format

1080P25

Mounting Type

Stand

SW1 Settings

Use DIP1 to DIP6 to set 64 address accordingly. DIP7 is reserved.

DIP8 is used to set camera’s mounting type. Please refer to Annex

3 for detailed SW1 definitions.

SW2 Settings

Use SW2 to set camera’s protocol, baud rate. Use DIP1 and DIP2

to set camera’s protocol, use DIP 3 and DIP4 to set camera’s

baud rate. DIP5~DIP8 switches are reserved.

Note

It requires a reboot of the PTZ for the switch setting to take

effect

SW2

DIP No.

Protocol

OFF

VISCA

OFF

PELCO- D

OFF

PELCO- P

DIP No.

Baud

Rate

OFF

2400

OFF

4800

OFF

9600

38400

www.avonic.eu

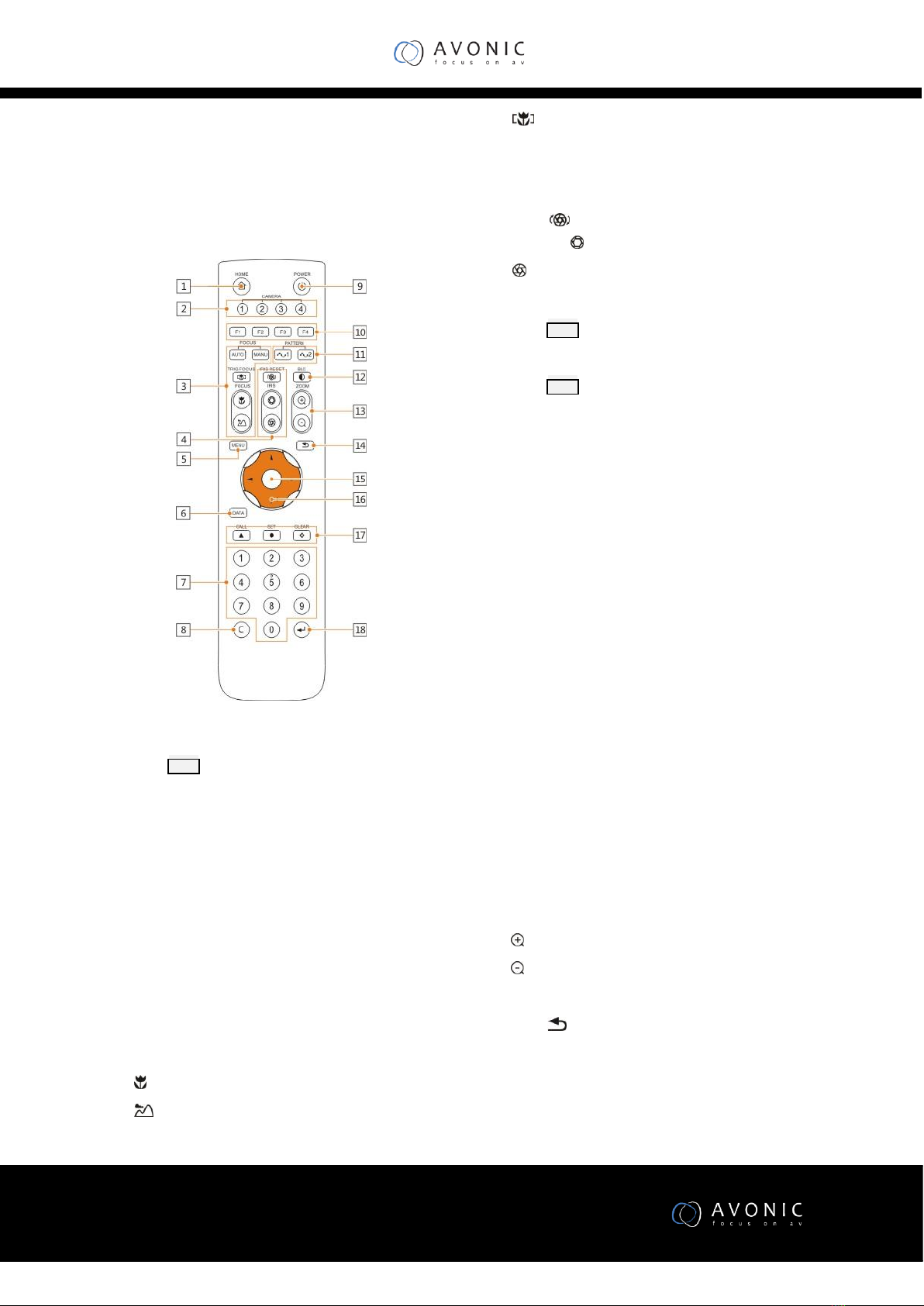

Remote Control

1 HOME button

Press HOME button, camera moves to initial

position where both pan and tilt angle is

zero.

2 Camera Selection Button

Used to switch among 4 cameras, press 1-4

number buttons to control cameras with 1-

4 address respectively. For example, press

button 1 to control the camera with address

3 Focus

Press “AUTO” button to switch to Auto

Focus mode, press “MANU” button to

switch to Manual Focus mode.

“ ”button to Focus Near

“ ”button to Focus Far

“ ”button to Auto Focus once every time

it is pressed, then switch back to Manual

Focus mode.

4 Iris

Press“ ”button to reset iris value to

default. “ ”button to Iris Open

“ ”button to Iris Close.

5 Menu

Press MENU button to enter / exit menu.

6 Data

Press DATA button to turn on / off display of

pan tilt angel, zoom times and title info

7 Number Keys

Used to input numbers, for example, preset

number.

8 Cancel

Used to delete number inputted.

9 Power

After the camera has been connected to

power source, in none-menu status, press

this button to turn on / off the camera.

10 Reserved buttons（F1, F2, F3, F4）

These buttons are reserved for future use.

11 Pattern

Used to activate Pattern Scan1 and Pattern

Scan2.

12 BLC

Used to open / close back light

compensation.

13 Zoom

Used to adjust zooming times.

“ ”button to zoom in

“ ”button to zoom out.

14 Back

Press“ ”button to go back to previous

menu.

15 OK

In None-menu status: press this button to

switch among pan / tilt control speeds.

In Menu status: get into relative menu

option after it has been selected.

www.avonic.eu

16 Direction / Menu Operation

In None-menu status: press these four

buttons to pan left/right and tilt up/down.

In Menu status: or button to select

among menu options, or to change

option / value.

17 Preset Setting

“ ” button to call a preset.

Input number key(s), and then press this

button to call a preset.

“ ”button to set a preset.

Move the camera to a specific position,

adjust focus value and etc., and then press

this button to set a preset.

“ ”button to clear a preset.

Input number key(s), and then press this

button to clear a preset.

18 Enter

After inputting numbers, press this button

to confirm.

www.avonic.eu

Installation

Cable Connecting

Note

If preset 0 has been saved, after powered on,

camera moves to preset 0 automatically; if

preset 0 has not been saved, after powered

on, camera moves to Home position, where

both pan and tilt angle is zero and zooming

time is 1x.

Mounting

The camera has 4 installation types: desktop,

wall (optional), ceiling (optional) and pole

(optional) mount installations.

Note

Before installing, make sure there is enough

space to install the camera and its parts.

Make sure the installed place is strong and

safe enough to hold the camera and relative

parts, it is suggested that the installed place

can withstand 4 times the weight of the

camera and its relative parts

Desktop Mount Installation

1.Put the camera on a flat surface. In case the camera

has to be placed on an inclined surface, make sure the

cline angle is less than 15 degrees to ensure proper

pan /tilt operation.

Note

Take effective measures to avoid camera

from dropping.

Do not grab the camera head when carrying.

Do not rotate the camera head with hand. It

may cause malfunction to the camera.

Wall Mount Installation

(Bracket not supplied with camera)

www.avonic.eu

1.According to diameter and position of the 4 installation

holes (As shown below) on the bracket, drill 4 holes on

the wall and fix the bracket onto the wall by using 4

screws which should be prepared by yourself.

1.Before fixing the camera, set the DIP switches of the

camera correctly.

2.Use inch screws to fix the camera on the bracket, fix

the limit screw

3.According to actual requirement, and make sure the

camera is tightly fixed onto the bracket before your

hands leave the camera.

Ceiling Mount Installation

(Bracket not supplied with camera)

1.According to diameter and position of the 4 installation

holes (As shown below) on the bottom plate, drill 4

holes on the ceiling.

2.Fix the plate onto the ceiling by using 4 screws which

should be prepared by yourself.

3.Before fixing the camera, set the DIP switches of the

camera correctly.

4.Use inch screws to fix the bottom plate on the ceiling,

fix the limit screw

5.Slide the PTZ camera via the slot of the plate and fix

the camera to the plate.

Tabla de contenidos

Manuales populares de Cámara web de otras marcas

Digitus

Digitus DA-70815 Manual de usuario

Logitech

Logitech C510 Manual de usuario

D-Link

D-Link DCS-5025L Manual de usuario

BTC

BTC PC160S Manual de usuario

Philips

Philips SPC715NC Manual de usuario

Trust

Trust 12440 Manual de usuario

FS FC270S Manual de usuario

Adesso

Adesso CyberTrack V10 Manual de usuario

MAGINON

MAGINON M-Cam 1 Manual de usuario

RoboCam

RoboCam SPARK Manual de usuario

Logitech

Logitech C170 Manual de usuario

Real-El

Real-El FC-225 Manual de usuario

Logitech

Logitech TV Cam Manual de usuario

Gigaware

Gigaware 25-1176 Manual de usuario

birddog

birddog EYES P200 Manual de usuario

Dicota

Dicota Contact Manual de usuario

Afidus

Afidus ATL-200 Manual de usuario

Connectland

Connectland CAM-CNL-C119 Manual de usuario
