Avipas AV-1250 Manual de usuario
2
Preface
Thanks for using this HD Video Conferencing Camera.
This manual introduces the functions, installation process and operation of the HD camera. Prior to
installation and usage, please read the manual thoroughly.
Precautions
This product should only be used under the specified conditions in order to avoid any damage to
the camera:
◼Do not subject the camera to rain or moisture.
◼Do not remove the cover. Otherwise, you may risk receiving an electric shock. In case of
unintended equipment operation, contact an authorized engineer.
◼Never operate under unspecified temperature, humidity or power supply.
◼Please use soft dry cloth to clean the camera. If the camera is very dirty, clean it with diluted
neuter detergent; do not use any type of solvents, which may damage the surface.
Note:
This is a class A production. Electromagnetic radiation at certain frequencies may affect the image
quality of TV in home environment.
3
Contents
Attentions...........................................................................................................4
SuppliedAccessories .........................................................................................4
Quick Start.........................................................................................................5
Features..............................................................................................................8
Product Specifications .......................................................................................9
Main Units ....................................................................................................... 11
Dimensions ......................................................................................................12
IR Remote Control Menu.................................................................................13
RS-232 Interface..............................................................................................14
Serial Communication Control ........................................................................16
Menu Settings..................................................................................................17
Network Connection........................................................................................23
Maintenance and Troubleshooting...................................................................36
Appendix..........................................................................................................38
4
Attentions
⚫Electric Safety
Installation and operation must accord with electric safety standard.
⚫Use caution to transport
Avoid stress, vibration or soakage in transport, storage and installation.
⚫Polarity of power supply
The power supply of this product is +12V, the max electrical current is 2A. Polarity of the power
supply plug is shown in the drawing below.
⚫Installation precautions
Do not grasp the camera lens when carrying it. Do not touch camera lens by hand. Mechanical
damage may result from doing so.
Do not use in corrosive liquid, gas or solid environment to avoid any cover (plastic material)
damage.
Make sure there is no obstacle within rotation range.
Do not power on before installation is completed.
⚫Do not dismantle the camera
We are not responsible for any unauthorized modification or dismantling.
CAUTION!
Certain frequencies of electromagnetic field may affect the image of the camera!
SuppliedAccessories
When unpacked, check if all supplied accessories are included:
Camera ..............................................................................1PCS
AC power adaptor .............................................................1PCS
Power cord..........................................................................1PCS
RS232 cable........................................................................1PCS
Remote control....................................................................1PCS
User manual........................................................................1PCS
5
Quick Start
1. Camera Interface Illustration (Notice：Each model comes with the corresponding interface. Users
should read the manual according to the particular model)
Fig 1.1 Interface of AV-1250
Interface of SDI Model：
1. Camera Lens
4. Locating Hole
7. SDI Interface
2. Remote Controller Receiver Light
5. RS232 Control Interface (input)
8. A-IN Interface
3. Tripod Screw Hole
6. RS232 Control Interface (output)
9. LAN Interface (PoE supported)
10.DC12V Power Supply Socket
Fig 1.2 Interface of AV-1251
Interface of HDMI Model：
1. Camera Lens
4. Locating Hole
7. HDMI Interface
2. Remote Controller Receiver Light
5. RS232 Control Interface (input)
8. A-IN Interface
3. Tripod Screw Hole
6. RS232 Control Interface (output)
9. LAN Interface (PoE supported)
10. DC12V Power Supply Socket
6
2. Bracket mount
Note: Bracket can only be wall mounted or ceiling mounted (upside down) on concrete wall, It
cannot be installed on plasterboard.

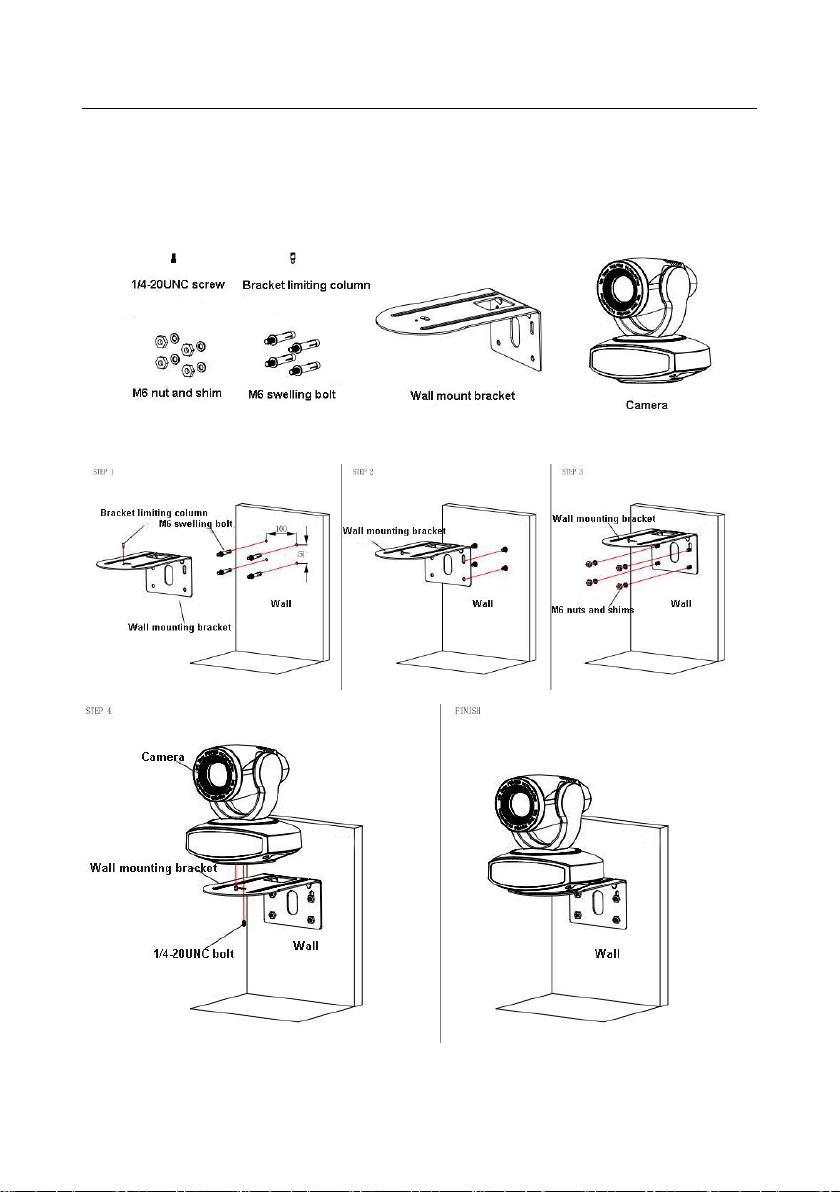

1) Wall mount
7
2) Ceiling mount
8
Features
AV-1250 series camera has 5X optical zoom with RS232 out and PoE. It features advanced ISP
processing algorithms to provide vivid images with a strong sense of depth, high resolution and
fantastic color rendition. It supports H.265/H.264 encoding which makes motion video fluent and clear
even under less than ideal bandwidth conditions.
•Superb High-definition Image: It employs 1/2.8” high-quality CMOS sensor. Resolution is up
to 1920x1080 with frame rate up to 60 fps.
•Optical Zoom Lens: 5X zoom lens is with 83.7° wide view angle without distortion.
•Leading Auto Focus Technology: With innovative algorithm, auto-focusing is fast, accurate and
stable.
•Low Noise and High SNR: Low-noise CMOS effectively ensures high SNR of video. Advanced
2D/3D noise reduction technology is also used to further reduce noise while ensuring image
sharpness.
•Quiet PTZ Mechanism: By accurate step driving motor mechanism, the camera works extremely
quiet and moves smoothly.
•Multi-Format Video Outputs: Support SDI, HDMI and LAN interfaces.
•Multiple Video compression: Support H.265/H.264 video compression.
•Audio Input Interface: Support 16000, 32000, 44100, 48000 sampling rates, and AAC, MP3,
G.711Aaudio coding.
•Multiple Network Protocol: Support ONVIF, RTSP protocols, RTMP push mode, easy to link to
streaming media server (Wowza, FMS…).
•PoE supported: Provide simple and quick installation.
•Low-power sleep function: Support low-power sleep mode, power consumption < 400mW.
•Multiple Communication Protocols: Support VISCA, Pelco-D, Pelco-P protocols.
•RS-232 I/O Cascading Function: Support RS-232 cascading port which is convenient for
multi-camera installing.
•255 presets Positions: Up to 255 presets (10 presets by IR remote).
•Wide Application: Tele-education, Lecture capture, Webcasting, Videoconferencing, Tele-training,
Tele-medicine, Interrogation and Emergency command systems.
9
Product Specifications
Name
AV-1250 Series HD Video Conference Camera
Camera
Sensor
1/2.8'', CMOS, 16:9, Effective Pixel: 2.07MP
Scanning Mode
Progressive
Lens
5x, f＝3.1～15.5mm, F1.8 ~ F2.8
Digital Zoom
5x
Minimal Illumination
0.5 Lux @ (F1.8, AGC ON)
Focus
Auto/Manual/ One Push
Aperture
Auto/Manual
Electronic Shutter
Auto/Manual
White Balance
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K
Backlight Compensation
On/Off
Digital Noise Reduction
2D&3D Digital Noise Reduction
Video SNR
≥55dB
Video Adjustment
Brightness/ Color/ Saturation/ Contrast/ Sharpness/ BW mode/ Gamma
View Angle
20°(tele) ~ 83.7°(wide)
Pan Rotation Range
±135°
Tilt Rotation Range
±30°
Pan Speed Range
0.1° ~ 60°/s
Tilt Speed Range
0.1° ~ 30°/s
Number of Preset
255
Preset Accuracy
0.1°
IPC Features
Video coding standard
H.265/H.264
Video Stream
First stream, Second stream
Video Format
HDMI/SDI: 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94;
720P60/50/30/25/59.94/29.97
Main stream: 1920x1080, 1280x720,640x480
Sub stream: 320x180,320x240,640x360,640x480,1280x720,1920x1080
10
Frame Rate
50Hz: 1fps ~ 25ps; 60Hz: 1fps ~ 30fps
Audio Standard
AAC/ MP3/ G.711A
Sampling Rate
16000/ 32000/ 44100/ 48000
Network Protocols
RTSP/RTMP, ONVIF, GBT28181
Input/Output Interface
Communication Interface
RS232I/O: 8pin Min DIN; Max Distance: 30m
Protocol
Pelco-D/ Pelco-P/ VISCA
Baud Rate
115200/9600/4800/2400
Video Output Interface
AV-1250: SDI, LAN, RS232 I/O, A-IN
AV-1251: HDMI, LAN, RS232 I/O, A-IN
Audio Input
1-ch 3.5mm audio interface, Line In
Network interface
1xRJ45: 10/100/1000M Adaptive Ethernet ports
Power Jack
JEITA type (DC IN 12V), Ethernet (PoE supported)
Generic Specification
Input Voltage
DC 12V
Current Consumption
1.0A (Max)
Operating Temperature
20°F~80°F (-10°C~50°C)
Storage Temperature
20°F~95°F (-10°C~60°C)
Power Consumption
12W (Max)
Size
6”x6”x5” (151.2mmX152.5mmX126.7mm)
Net Weight
3lb (1.4kg)
