Avery Dennison MONARCH 9416 XL Documento técnico

Equipment Manual

TC9416EM Rev. AF 10/09

28028 28028

0 0

® ® ®

Monarch 9416 XL

Printer

9078

hTacs geFin kl

$40

4 62 5

7 9 1

hi cF n Ta

igkl

$0.04 0

4 62 5

ehi cF n Ta

ig kl

$0.0

709 1

hic

Fn Ta

ikl

$0.4 0

Each product and program carries a respective written warranty, the only warranty on which

the customer can rely. Avery Dennison Corp. reserves the right to make changes in the

product, the programs, and their availability at any time and without notice. Although Avery

Dennison Corp. has made every effort to provide complete and accurate information in this

manual, Avery Dennison Corp. shall not be liable for any omissions or inaccuracies. Any

update will be incorporated in a later edition of this manual.

reproduced, transmitted, stored in a retrieval system, or translated into any language in any

form by any means, without the prior written permission of Avery Dennison Corp.

WARNING

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the user will be required to correct

the interference at his own expense.

CANADIAN D.O.C. WARNING

This digital apparatus does not exceed the Class A limits for radio noise emissions from

digital apparatus set out in the Radio Interference Regulations of the Canadian Department

of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites

applicables aux appareils numériques de la classe A prescrites dans le Réglement sur le

brouillage radioélectrique édicte par le ministère des Communications du Canada.

Trademarks

Monarch, 9416, and XLare trademarks of Avery Dennison Retail Information Services

LLC.

Avery Dennison® is a trademark of Avery Dennison Corp.

Microsoft and MS-DOS are registered trademarks of Microsoft Corporation.

Windows is a registered trademark of Microsoft in the U.S. and other countries.

Centronics is a registered trademark of Centronics Data Computer Corporation.

Other products are trademarks or registered trademarks of their respective countries and are

hereby acknowledged.

Avery Dennison Printer Systems Division

170 Monarch Lane

Miamisburg, OH 45342

TABLE OF CONTENTS

GETTING STARTED ................................................................................................................ 1-1

Using This Manual.............................................................................................................. 1-1

Audience ........................................................................................................................... 1-1

Additional Documentation.................................................................................................... 1-1

Unpacking the Printer ......................................................................................................... 1-2

Connecting the Power Supply .............................................................................................. 1-2

Connecting the Communication Cable .................................................................................. 1-3

USB Port........................................................................................................................1-4

Reading the Indicator Light ................................................................................................. 1-4

LOADING SUPPLIES & PRINTING ............................................................................................ 2-1

Loading Supply for Non-Peel Mode ...................................................................................... 2-2

Loading Labels for Peel Mode.............................................................................................. 2-5

Loading Fan-Fold Supplies.................................................................................................. 2-8

Calibrating the Supply ........................................................................................................ 2-9

Adjusting the Black Mark/Die Cut Sensor ............................................................................ 2-10

Printing ........................................................................................................................... 2-10

CARE & MAINTENANCE .......................................................................................................... 3-1

Clearing Supply Jams ......................................................................................................... 3-1

Cleaning the Printhead ....................................................................................................... 3-2

Cleaning the Platen Roller and Printer.................................................................................. 3-3

TROUBLESHOOTING .............................................................................................................. 4-1

Printing Problems and Solutions .......................................................................................... 4-1

Printing Test Labels............................................................................................................4-2

Calibrating the Supply ........................................................................................................ 4-3

SPECIFICATIONS & ACCESSORIES .........................................................................................A-1

Printer Specifications..........................................................................................................A-1

Supply Specifications .........................................................................................................A-2

Printer Accessories ............................................................................................................A-2

Getting Started 1-1

GETTING STARTED 1

The Monarch9416XL® is a desktop thermal direct printer. It can print

labels, tags or receipts (with or without bar codes) in peel mode (one label at a time)

or non-peel mode (labels in strips).

Using This Manual

Following is a summary of the contents of this manual:

Chapter Contents

1 Getting Started Unpacking the printer, connecting the cables, and reading the

indicator light.

2 Loading Supplies &

Printing

Loading labels, tags, and receipt paper and printing.

3 Care & Maintenance Clearing supply jams and cleaning the printer.

4 Troubleshooting Common problems and their solutions.

A Specifications &

Accessories

Printer and supply specifications and accessory part numbers.

Audience

The Equipment Manual is for the person who prints and applies labels.

Information in this document supersedes information in previous versions. Check our

Web site for the latest documentation and release information.

Additional Documentation

The printer uses MonarchPrinter Control Language II (MPCL II) to create labels for

printing. The Packet Reference Manual describes how to create format and batch

packets for printing labels, how to configure the printer, and perform other advanced

techniques.

You can download the online version of the Packet Reference Manual from our Web

site.

Unpacking the Printer

Keep all packaging material in case you need to move or return the printer. After you

unpack the printer, you should have a

♦ 9416 printer

♦ Power Supply

♦ Quick Reference

♦ CD-ROM that contains software and manuals.

If any items are missing, contact Monarch for replacement parts.

Connecting the Power Supply

Caution: Do not touch the electrical connectors while setting up the printer.

Electrostatic discharge can damage or destroy the printhead or electronic

components.

To connect the power supply:

1. Place the printer in a location that allows easy access to the front of the printer.

Note: Never operate the printer while it rests on its side or upside down.

2. Place the power supply in a suitable location, preferably on the floor, near an

electrical outlet.

3. Turn off the printer. Press the switch on the back of the printer to the OFF

position (O).

4. Plug the three-hole end of the AC adapter cable into the three-pronged outlet in

the power supply.

5. Plug the round end of the power supply cable (labeled “printer”) into the socket at

the back of the printer.

6. Plug the three-pronged end of the

AC adapter cable into a grounded

electrical outlet.

WARNING: The printer and power

supply should never be

operated in a location

where either one can get

wet. Personal injury

could result.

1-2 Equipment Manual

Connecting the Communication Cable

Before the printer can accept print jobs from the host, you must

♦ connect the communication cable to the printer and the host.

♦ set the communication values on the printer to match those at the host (only

required if you are using the serial port).

For parallel communication:

1. Turn off the printer before connecting the cable.

2. Connect a parallel printer cable from the computer to the parallel port at the back

of the printer.

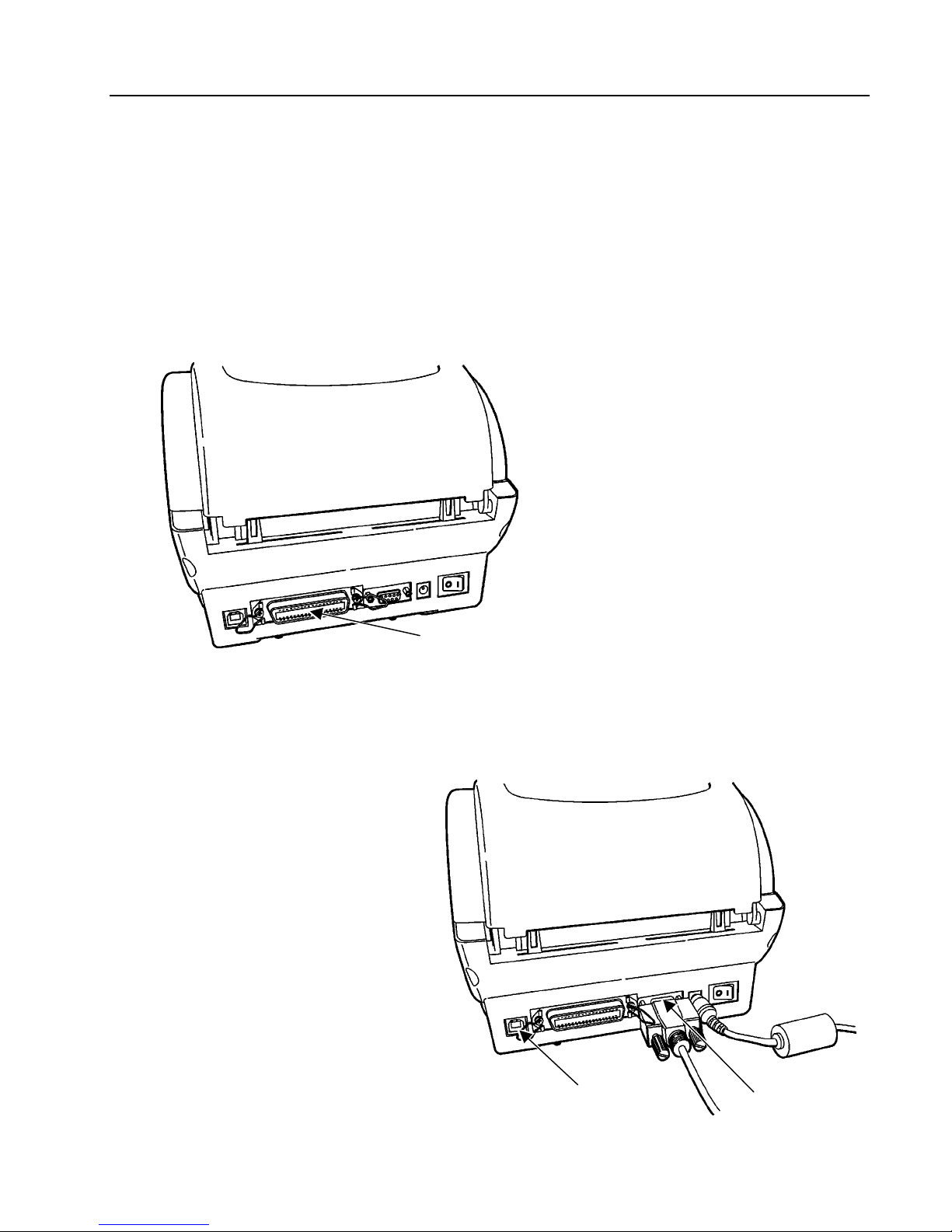

Parallel Port

3. Secure the cable with the spring clips.

For serial communication:

1. Turn off the printer before connecting the cable.

2. Connect a serial printer cable

from the host to the serial port

at the back of the printer.

9-pin

Serial Port

USB Port

3. Secure the cable with the

connecting screws.

The factory defaults are

9600 Baud, 8-bit data frame,

1 stop bit, no parity, and

DTR flow control.

To set communication

values, refer to the Packet

Reference Manual.

Getting Started 1-3

USB Port

The printer has a USB (Universal Serial Bus) Version 2.0 communication port.

Reading the Indicator Light

The indicator light monitors the printer's status.

Feed Button

Indicator Light

Indicator Light Description

GREEN Printer is on and ready to use.

FLASHING GREEN Printer is paused. Press the FEED button to resume printing.

FLASHING RED Printer error condition.

See Chapter 4, “Troubleshooting” for error conditions and

solutions.

ORANGE The system is detecting the supply.

No light Printer is off. Make sure the power supply is connected properly.

See "Connecting the Power Supply" earlier in this chapter.

1-4 Equipment Manual

Loading Supplies & Printing 2-1

LOADING SUPPLIES & PRINTING 2

This chapter describes how to

♦ load a roll of labels or tags for non-peel mode

♦ load a roll of labels for peel mode

♦ load fan-fold supplies

♦ print.

Loading Supply for Non-Peel Mode

The printer can print on thermal-direct labels and tags. Make sure the black mark/die

cut sensor is set correctly for your supply type. See “Adjusting the Black Mark/Die Cut

Sensor,” for more information.

Note: If you run out of supply while printing, do not turn off the printer when

reloading the supply. You may lose your data. The printer resumes printing

when reloaded.

1. Remove and discard the tape from a new roll of supply.

2. Press the cover release levers (located on both sides of the printer) towards the

front of the printer to release the cover.

3. Lift open the cover.

4. Remove the supply holder guide from one end of the supply holder. (The supply

holder is normally attached with a line to the inside of the printer, not free-

standing as shown below. Do not cut the line.)

1.5-inch Supply

Core Adapter

Supply Holder

Supply Holder Guides

2-2 Equipment Manual

Otros manuales para MONARCH 9416 XL

Tabla de contenidos

Otros manuales de Impresora de Avery Dennison

Avery Dennison

Avery Dennison AP5.4 Manual de usuario

Avery Dennison

Avery Dennison MONARCH 9416 XL Manual de usuario

Avery Dennison

Avery Dennison Monarch Pathfinder Ultra Silver 6032 Manual de servicio

Avery Dennison

Avery Dennison Pathfinder6057 Manual de operación y mantenimiento

Avery Dennison

Avery Dennison Monarch 9855 Manual de usuario

Avery Dennison

Avery Dennison Monarch 9460 Manual de servicio

Avery Dennison

Avery Dennison AP 2.4 Manual de usuario

Avery Dennison

Avery Dennison Monarch SIERRA SPORT4 9493 Manual de servicio

Avery Dennison

Avery Dennison Monarch Pathfinder Ultra Platinum 6039 Manual de usuario

Avery Dennison

Avery Dennison Monarch 9419 Manual de usuario

Avery Dennison

Avery Dennison SNAP 700 Manual de usuario

Avery Dennison

Avery Dennison Pathfinder 6059 Manual de servicio

Avery Dennison

Avery Dennison TC9820PHI Manual de usuario

Avery Dennison

Avery Dennison Monarch 9493 SNP Manual de servicio

Avery Dennison

Avery Dennison SNAP 700 Manual de funcionamiento

Avery Dennison

Avery Dennison MONARCH 9416 XL Documento técnico

Avery Dennison

Avery Dennison Monarch 9485 Manual de usuario

Avery Dennison

Avery Dennison MONARCH 9416 XL Instrucciones de instalación y funcionamiento

Avery Dennison

Avery Dennison Monarch 9825 Manual de usuario

Avery Dennison

Avery Dennison Monarch 9460 Manual de usuario

Avery Dennison

Avery Dennison Monarch 9906 Manual de usuario

Avery Dennison

Avery Dennison Pathfinder 6059 Documento técnico

Avery Dennison

Avery Dennison Monarch 9419 Manual de servicio

Avery Dennison

Avery Dennison Monarch 9854 Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario
