AVer M11-8MV Manual de usuario



M11-8MV

Instruction Manual 安裝指南

取扱説明書 Bedienungsanleitung

Manuel d’instructions Manual de instrucciones

Manuale di istruzioni



English……..……………………………………………..…............1

繁體中文....…………………………………………………...….......28

日本語…..……………………………..……………………....…......55

Deutsch.......................................................................................83

Français………………………………………………..……...........110

Español...……………………………………………..….............138

Italiano..........…………………………….….…………….....….....166



English-1

Package Contents

The items below are included with this product. If any item is missing, contact the

dealer from whom you purchased this product.

M11-8MV unit USB Cable QR Code Card

Warranty card*

* Only for Europe, Japan, and Taiwan

Optional Accessories

Carrying Bag Anti-glare Sheet

English-2

Overview

Camera Head

LED Lighting

Arm

Built-in MIC

Functional

Buttons

Status Indicator

Stand Base

Micro SD Card Slot

USB Port

Mini USB/Power Port

VGA Out Port

HDMI Out Port



Function Buttons

Control Panel

Button Function



Lamp on/off

Press and hold 3 seconds to call out OSD menu.

Zoom in

Zoom out



Rotate 0/180°

Press and hold 3 seconds to freeze the screen. To un-freeze,

press and hold 3 seconds again.



Auto focus

Press and hold 3 seconds to start recording.

To stop recording, press and hold 3 seconds again.

Power on/off



English-3

OSD Mode

Button Function



Back to last menu level page

Exit from OSD menu

Up (selection item)

Down (selection item)

Selection enter

English-4

Compound Key

Press keys to operate the compound key function.

Button Function

+Back to factory default settings

+  Capture image

[Note] For Recording and Capture, please change to “Power Supply Only”

mode.

LED Indicator

Power Solid green: Power on

Solid red: Standby

Flashing red: The camera is in start-up process.

English-5

Device Connection

Power Connection to Wall Outlet

Plug in power and turn on M11-8MV.

Wall Outlet

USB Power adapter

(Not included)

USB cable



[Note]

Use the USB cable included in the package to connect to mini USB/

Power port of M11-8MV with USB power adapter (not included) to

wall outlet.

User needs to purchase a 5V/1A USB power adapter (not included)

to connect the USB cable to wall outlet.

When the camera is start-up, the power indicator is in flashing red.

English-6

Power Connection to PC/Laptop



Connect to USB port of PC/laptop for power supply.

USB cable



[Note]

Use the USB cable included in the package to connect to mini

USB/ Power port of M11-8MV with laptop/PC.

When the camera is start-up, the power indicator is in flashing

red.

USB power requirement of M11-8MV is USB 5V/1A.

For Storage, Format, Capture, Recording and Playback functions,

please change to “Power Supply Only” mode



English-7

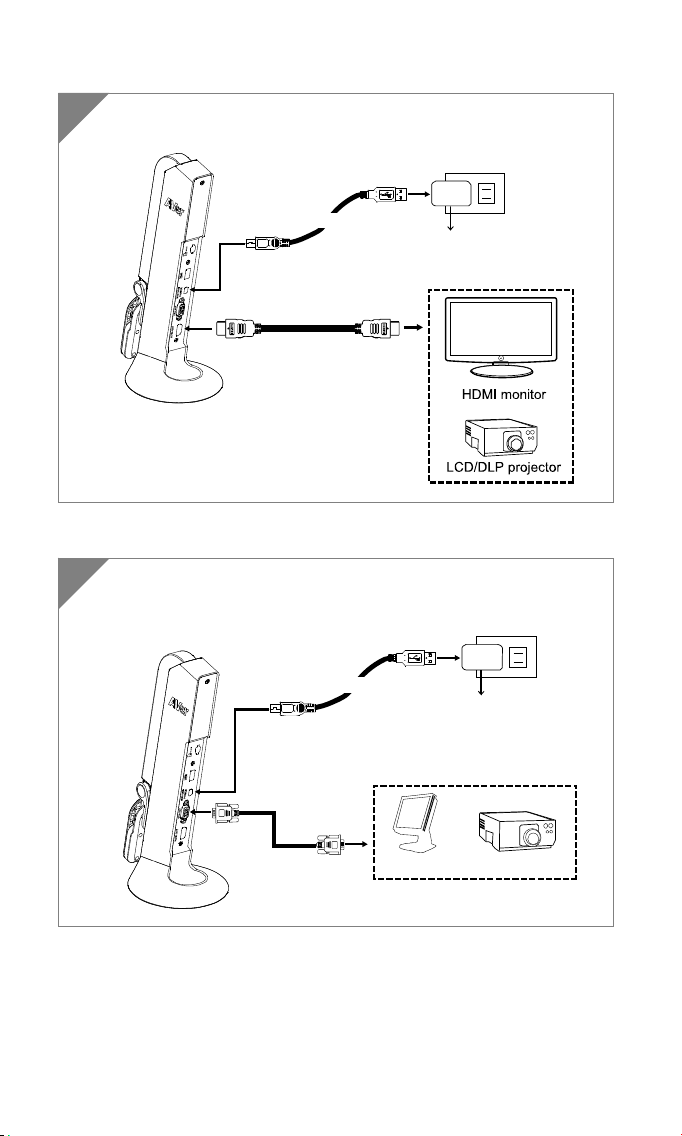

HDMI Connection



VGA Connection



1 Connect M11-8MV to HDMI display with HDMI output port.

HDMI cable

(Not included)

Wall Outlet

USB Power adapter

(Not included)

USB cable

1 Connect M11-8MV to VGA display with VGA output port.

LCD monitor LCD/DLP projector

Wall Outlet

USB Power adapter

(Not included)

USB cable

VGA cable

(Not included)

English-8

USB Connection



Insert a Micro SD Card



Connect USB flash drive to USB port to save the capture and

recording file.



[Note] The supported USB flash drive maximum is 32G (FAT32).

1 Insert the card to micro SD card slot.



[Note]

Micro SD card can store capture images and recording files.

The supported micro SD card capacity maximum is 32G (FAT32).
