Avalue Technology SID-15W03 Manual de usuario

Part No. E2017D153A0R

SID-15W03

SID-15.6" w/Atom z8350 2G RAM/32G eMMC

Quick Reference Guide

1st Ed –26 November 2020

SID-15W03

2 SID-15W03 Quick Reference Guide

FCC Statement

Federal Communication Commission Interference Statement

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE

FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT

MAY CAUSE UNDESIRED OPERATION.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate

radio frequency energy and, if not installed and used in accordance with the instruction, may cause

harmful interference to radio communications. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

Notice:

(1) A Unshielded-type power cord is required in order to meet FCC emission limits and also to prevent

interference to the nearby radio and television reception. It is essential that only the supplied

power cord by used.

(2) Use only shielded cables to connect I/O devices to this equipment.

(3) Changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

Quick Reference Guide

SID-15W03 Quick Reference Guide

FCC RF Radiation Exposure Statement

This Wireless LAN radio device has been evaluated under FCC Bulletin OET 65 and found compliant

to the requirements as set forth in CFR 47 Sections 2.1091, 2.1093, and 15.247 (b) (4) addressing RF

Exposure from radio frequency devices. The radiated output power of this Wireless LAN device is far

below the FCC radio frequency exposure limits. Nevertheless, this device shall be used in such a

manner that the potential for human contact during normal operation is minimized. When nearby

persons has to be kept to ensure RF exposure compliance, in order to comply with RF exposure limits

established in the ANSI C95.1 standards, the distance between the antennas and the user should not

be less than 20 cm.

WARNING

“CAUTION –Use suitable mounting apparatus to avoid risk of injury.”

“CAUTION - Use a power cord that matches the voltage of the power outlet, which has been

approved and complies with the safety standard of your particular country.”

“WARNING –To avoid risk of electric shock, this equipment must only be connected to a supply

mains with protective earth.”

Notice

This guide is designed for experienced users to setup the system within the shortest time.

For detailed information, please always refer to the electronic user's manual.

No part of this document may be reproduced, copied, translated, or transmitted in any form

or by any means, electronic or mechanical, for any purpose, without the prior written

permission of the original manufacturer.

Trademark Acknowledgement

Brand and product names are trademarks or registered trademarks of their respective

owners.

Disclaimer

Avalue Technology Inc. reserves the right to make changes, without notice, to any product,

including circuits and/or software described or contained in this manual in order to improve

design and/or performance. Avalue Technology assumes no responsibility or liability for the

use of the described product(s), conveys no license or title under any patent, copyright, or

masks work rights to these products, and makes no representations or warranties that

SID-15W03

4 SID-15W03 Quick Reference Guide

these products are free from patent, copyright, or mask work right infringement, unless

otherwise specified. Applications that are described in this manual are for illustration

purposes only. Avalue Technology Inc. makes no representation or warranty that such

application will be suitable for the specified use without further testing or modification.

Life Support Policy

Avalue Technology’s PRODUCTS ARE NOT FOR USE AS CRITICAL COMPONENTS IN

LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE PRIOR WRITTEN APPROVAL

OF Avalue Technology Inc.

As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for

surgical implant into body, or (b) support or sustain life and whose failure to perform,

when properly used in accordance with instructions for use provided in the labeling, can

be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose

failure to perform can be reasonably expected to cause the failure of the life

support device or system, or to affect its safety or effectiveness.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

Quick Reference Guide

SID-15W03 Quick Reference Guide

Content

1. Getting Started............................................................................................................6

1.1 Safety Precautions ................................................................................................6

1.2 Packing List...........................................................................................................6

1.3 System Specifications ...........................................................................................7

1.4 System Overview.................................................................................................10

1.4.1 I/O View...................................................................................................................................... 10

1.5 System Dimensions.............................................................................................11

2. Hardware Configuration...........................................................................................12

2.1 SID-15W03 connector mapping...........................................................................13

2.1.1 Serial port connector (COM)...................................................................................................... 13

2.1.2 RJ-45 Ethernet connector (LAN) ............................................................................................... 13

2.1.3 HDMI connector (HDMI) ............................................................................................................ 14

2.1.4 USB2.0 connector (USB2.0)...................................................................................................... 14

2.1.5 USB3.0 connector (USB3.0)...................................................................................................... 15

SID-15W03

6 SID-15W03 Quick Reference Guide

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

1.2 Packing List

1 x SID-15W03 Panel PC

1 x AC/DC adapter 12V/5A 90 Screw Type

1 x Power cord

1 x WiFi Antenna

4 x Screw-Flat M4* 4mm

Quick Reference Guide

SID-15W03 Quick Reference Guide

1.3 System Specifications

Component

Mother Board

ACP-CHT3

CPU

Intel Atom x5-8350 Quad Core 1.44GHz up to 1.92GHz

CPU Cooler (Type)

Aluminum shielding cover

Memory

2GB / 4GB DDR3L on board

Power Supply

12V~24V wide voltage DC-input

Adapter

12V/5A is default power adapter

Wireless LAN

802.11 ac/b/g/n Wireless LAN on board

Bluetooth

Bluetooth 5.0 on board

Operating System

Windows 10 2019

Expansion Card

1 x Micro SD slot (internal)

Storage

Solid State Drive

32GB eMMC on board, optional 64GB MMC

Panel

LCD Panel

15.6” TFT LCD, 16:9, 1920 x 1080

eDP interface

Touch Screen

-Projective Capacitive Touch,10 points

-Hardness:7H

-Transmission: 86%

External I/O

LAN Port

1 x 10/100Mbps Fast Ethernet(RJ-45 connector)

USB Port

1 x USB 3.0, 2 x USB 2.0 Ports

Video Port

1 x HDMI (type A)

Audio Port

1 x Line out (3.5mm Phone jack/Green)

Serial Port

Optional 1 x RS-232((Tx/Rx) or RS-485

Wireless connector

1 x SMA type connector for dipole antenna

Mechanical

Power Type

Support 12V~24V DC-Input

Power Connector

Type

2.5mm DC-in jack

Construction

Metal

Color

Black

Dimension

391.2 x 239.2 x 48.1mm

Weight

3.7 kg

Fanless

Yes

Reliability

SID-15W03

8 SID-15W03 Quick Reference Guide

EMI Test

CE/FCC Part 15, Subpart B

Safety

IEC-60950-1 & EN 60950-1

Dust and Rain Test

Front Panel IP65, Rear IP41 except I/O

Random Vibration

Test

Test Standard: Reference IEC60068-2-64 Testing procedures

1. System condition: Operation mode

2. PSD: 0.00454G²/Hz , 1.5 Grms

3. Test Frequency : 5-500Hz

4. Test Axis : X,Y and Z axis

5. Test time: 30 minutes per each axis

6. Storage : eMMC

Sine Vibration Test

(Non-operation)

Test Standard: Reference IEC60068-2-6 Testing procedures

1. System condition : Non-Operating mode

2. Test Acceleration : 2G

3. Test frequency : 5~500 Hz

4. Sweep：1 Oct/ per one minute. (logarithmic)

5. Test Axis : X,Y and Z axis

6. Test time :30 min. each axis

Packing Vibration

Test

Test Standard: Reference IEC60068-2-64 Testing procedures

1. Non-operation mode

2. PSD: 0.026G²/Hz , 2.16 Grms

3. Test Frequency : 5-500Hz

4. Test Axis : X,Y and Z axis

5. Test time: 30 min. per each axis

Mechanical Shock

Test

Test Standard: Reference IEC60068-2-29 Testing procedures

1. System Condition: Operation

2. Wave form: Half-Sine wave

3. Acceleration: Rate: 10g

4. Duration: Time: 11ms

5. No. of Shock: Z axis 300 times

6. Test Axis: Z axis

Packing Drop Test

Reference ISTA 2A, Method: IEC-60068-2-32 Test:Ed

1. Test Phase: One comer, three edges, six faces

2. Packing weight: around 1.5kg

3. Test high: 96.5cm (Based on product weight

Operating

Temperature

0°C ~ 40°C (32°F ~ 104°F)

Operating Humidity

40°C @ 95% Relative Humidity, Non-condensing

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Quick Reference Guide

SID-15W03 Quick Reference Guide

Note: Specifications are subject to change without notice.

SID-15W03

10 SID-15W03 Quick Reference Guide

1.4 System Overview

1.4.1 I/O View

Connectors

Label

Function

Note

Line out

Audio line-out connector

Head phone jack

HDMI

HDMI connector

HDMI type A

USB2.0

2 x USB2.0 connector

USB3.0

USB3.0 connector

DCIN

DC power-in connector

DC jack

LAN

RJ-45 Ethernet connector

COM

Serial port connector

DB-9 male connector

Tabla de contenidos

Otros manuales de PC industrial de Avalue Technology

Avalue Technology

Avalue Technology SLP-WHG-C1 Manual de usuario

Avalue Technology

Avalue Technology SLP-WHG Manual de usuario

Avalue Technology

Avalue Technology VMS-APL Manual de usuario

Avalue Technology

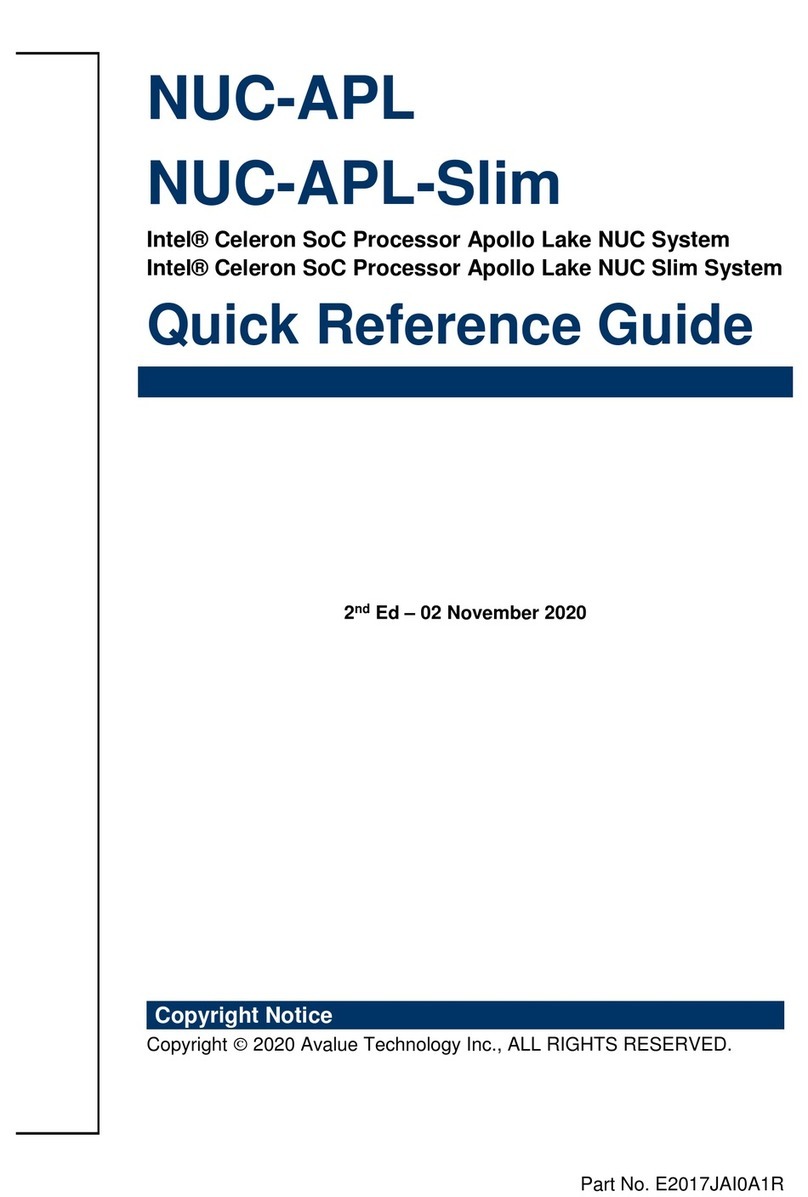

Avalue Technology NUC-APL Manual de usuario

Avalue Technology

Avalue Technology ERS-AT270-A2 Manual de usuario

Avalue Technology

Avalue Technology ECM-TGU Manual de usuario

Avalue Technology

Avalue Technology EPS-AT270 Manual de usuario

Avalue Technology

Avalue Technology SID-10W9 Manual de usuario

Avalue Technology

Avalue Technology SID-15W9 Manual de usuario

Avalue Technology

Avalue Technology EPC-SKLU Manual de servicio

Avalue Technology

Avalue Technology EPC-SKLU-39-C2-1R Manual de usuario

Avalue Technology

Avalue Technology EMS-SKLU Manual de usuario

Avalue Technology

Avalue Technology SLP-WHG-TSN Manual de usuario

Avalue Technology

Avalue Technology EPX-APLP Manual de usuario

Avalue Technology

Avalue Technology EPC-EHL Manual de usuario

Avalue Technology

Avalue Technology EPC-EHL-DIN Manual de usuario

Avalue Technology

Avalue Technology EPS-QM67E Manual de usuario

Avalue Technology

Avalue Technology OFT-21W03 Manual de usuario

Avalue Technology

Avalue Technology ERS-A50M Manual de usuario

Avalue Technology

Avalue Technology ERS-AT270-A2 Manual de usuario

Avalue Technology

Avalue Technology EMS-BYT Series Manual de usuario

Manuales populares de PC industrial de otras marcas

Chipsee

Chipsee PPC-A72-101 Manual de usuario

Advantech

Advantech UNO-2184G Manual de usuario

MSI

MSI MS-9A76 Manual de usuario

Stackrack

Stackrack THOR200 Manual de usuario

Moxa Technologies

Moxa Technologies DA-682C Series Manual de usuario

Nodka

Nodka eBOX-3000-ETC Manual de usuario

Siemens

Siemens SIMATIC IPC627E Manual de usuario

MSI

MSI MS-9A89 Manual de usuario

Artila

Artila Matrix-516 Manual de usuario

Siemens

Siemens SIMATIC Rack PC 840 V2 Manual de usuario

Advantech

Advantech IPPC-6152A Manual de usuario

Beckhoff

Beckhoff CX9020 Manual de usuario

Dell

Dell Embedded Box PC 5000 Manual de usuario

IBASE Technology

IBASE Technology ASB200-918 Series Manual de usuario

Lenovo

Lenovo ThinkCentre M90q Manual del propietario

IXXAT

IXXAT Econ 100 Manual de usuario

Kontron

Kontron KBox A-151-TGL Manual de usuario

AXIOMTEK

AXIOMTEK ICO500-518 Series Manual de usuario
