Avalon Bay AB-WINE12S Manual de usuario
AB-WINE12S
Thermoelectric Wine Cooler
OWNER’S MANUAL
Read and save these instructions.
2
www.avalon-bay.com
Discover the Difference with Avalon Bay
When value matters, Avalon Bay is ready to deliver. As a family-run
business, we haven’t lost sight of what really matters to our customers.
Our exclusive line of home appliances is both stylish and affordable, so
you can create the homescape you desire without having to empty your
wallet. Products you can rely on –that’s what value means to us.
Please read this manual thoroughly and follow all instructions and
safety guidelines. With proper care and maintenance, this appliance will
provide you with many years of trouble-free use.
When you need help, our expert team of customer service
representatives is here to offer support, answer questions, and quickly
resolve any problems. Contact us today at:
1-844-528-2566
support@avalonbay.com
For future reference, we recommend you attach a copy of your sales
receipt below and record the following information, which is located on
the manufacturer’s nameplate on the rear of the unit. You will need this
information if it becomes necessary to contact the manufacturer for
service inquiries.
Date of Purchase: ___________________________________________
Serial Number: ____________________________________________
Model Number: ____________________________________________
3
www.avalon-bay.com
Contents
IMPORTANT SAFETY INSTRUCTIONS.........................................................4
ELECTRICAL WARNINGS ................................................................................. 4
IMPORTANT SAFETY INSTRUCTIONS.........................................................5
ADDITIONAL SAFETY TIPS ............................................................................... 5
GETTING TO KNOW YOUR WINE COOLER .................................................6
FEATURES .................................................................................................... 6
SPECIFICATIONS ............................................................................................ 6
LIST OF MAIN PARTS ..................................................................................... 7
ASSEMBLY & INSTALLATION .....................................................................8
OPERATING INSTRUCTIONS ......................................................................9
HOW TO SET THE TEMPERATURE ..................................................................... 9
CLEANING & MAINTENANCE...................................................................10
CLEANING YOUR WINE COOLER...................................................................... 10
MOVING YOUR WINE COOLER ....................................................................... 10
DISPOSAL .................................................................................................. 10
TROUBLESHOOTING ...............................................................................11
DETAILED PARTS DIAGRAM ....................................................................13
ELECTRICAL DIAGRAM.................................................................................. 13
LIMITED MANUFACTURER’S WARRANTY................................................ 14
4
www.avalon-bay.com
IMPORTANT SAFETY INSTRUCTIONS
DANGER: Risk of Child Entrapment
Junked or abandoned appliances are dangerous. Before you throw away
your old wine refrigerator, take off the door, but leave the shelves in
place so that children may not easily climb inside. Never allow children
to operate, play with, or crawl inside the appliance.
Electrical Warnings
This unit should be properly grounded for your safety. The power
cord of this appliance is equipped with a three-prong plug, which is
compatible with standard three prong wall outlets to minimize the
possibility of electric shock.
This appliance requires a standard 120 volt, 60Hz electrical outlet
with a three-prong ground.
Plug the wine cooler into a dedicated, grounded wall outlet. Do not,
under any circumstances, remove the third (grounded) prong from
the power cord. Direct any questions concerning power and/or
grounding to a certified electrician.
Your safety and the safety of others are very
important. We have provided many important
safety messages in this manual regarding your
appliance. Please read and obey all safety messages.
Serious injury or even death can occur if these
instructions are not carefully followed.
Electrical Shock Hazard
Improper use of the grounded plug can result in
electrical shock. If the power cord is damaged,
please contact customer service.
5
www.avalon-bay.com
IMPORTANT SAFETY INSTRUCTIONS
Do not operate this appliance if it has a damaged cord.
If the power cord is damaged, it must be replaced by the
manufacturer, its service agent, or a similarly qualified person in
order to avoid a hazard.
Only connect the wine cooler to a properly polarized outlet. No
other appliance should be plugged into the same outlet. Make sure
the plug is fully inserted into the receptacle.
Do not run the power cord over carpeting or heat insulators. Do not
cover the cord. Keep the cord away from high traffic areas and
never submerge it in water.
Additional Safety Tips
Never clean appliance parts with flammable fluids. The fumes can
create a fire hazard or explosion.
Do not store or use gasoline or any other flammable vapors and
liquids in the vicinity of this or any other appliance. The fumes can
create a fire hazard or explosion.
Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
Do not store food in this wine refrigerator, as the interior
temperature may not get cold enough to prevent spoilage.
This appliance is not intended for use by persons (including
children) with reduced physical sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
6
www.avalon-bay.com
GETTING TO KNOW YOUR WINE COOLER
Features
Holds up to 12 bottles of wine
Can age favorite vintages at ideal storage temperatures
External LED display and digital control panel provide easy
monitoring
Set interior temperatures between 51° and 64°F for perfect storage
or serving temperatures
Thermoelectric cooling system is quiet and vibration free
Shelves slide in and out for easy access, or can be removed to
accommodate larger bottles
The attractive design complements most home and bar decor
This appliance is intended to be used in household and similar
applications such as:
Staff kitchen areas in shops, offices and other working
environments.
Farm houses and by clients in hotels, motels and other residential
type environments.
Bed and breakfast type environments.
Catering and similar non-retail applications.
Specifications
MODEL NO.
AB-WINE12S
RATED VOLTAGE:
120V / 60Hz
CURRENT:
.9 A (77°F/25°C)
POWER CONSUMPTION:
70 watts
STORAGE CAPACITY:
12 bottles
TEMPERATURE RANGE:
51 - 64°F (11 - 18°C)
7
www.avalon-bay.com

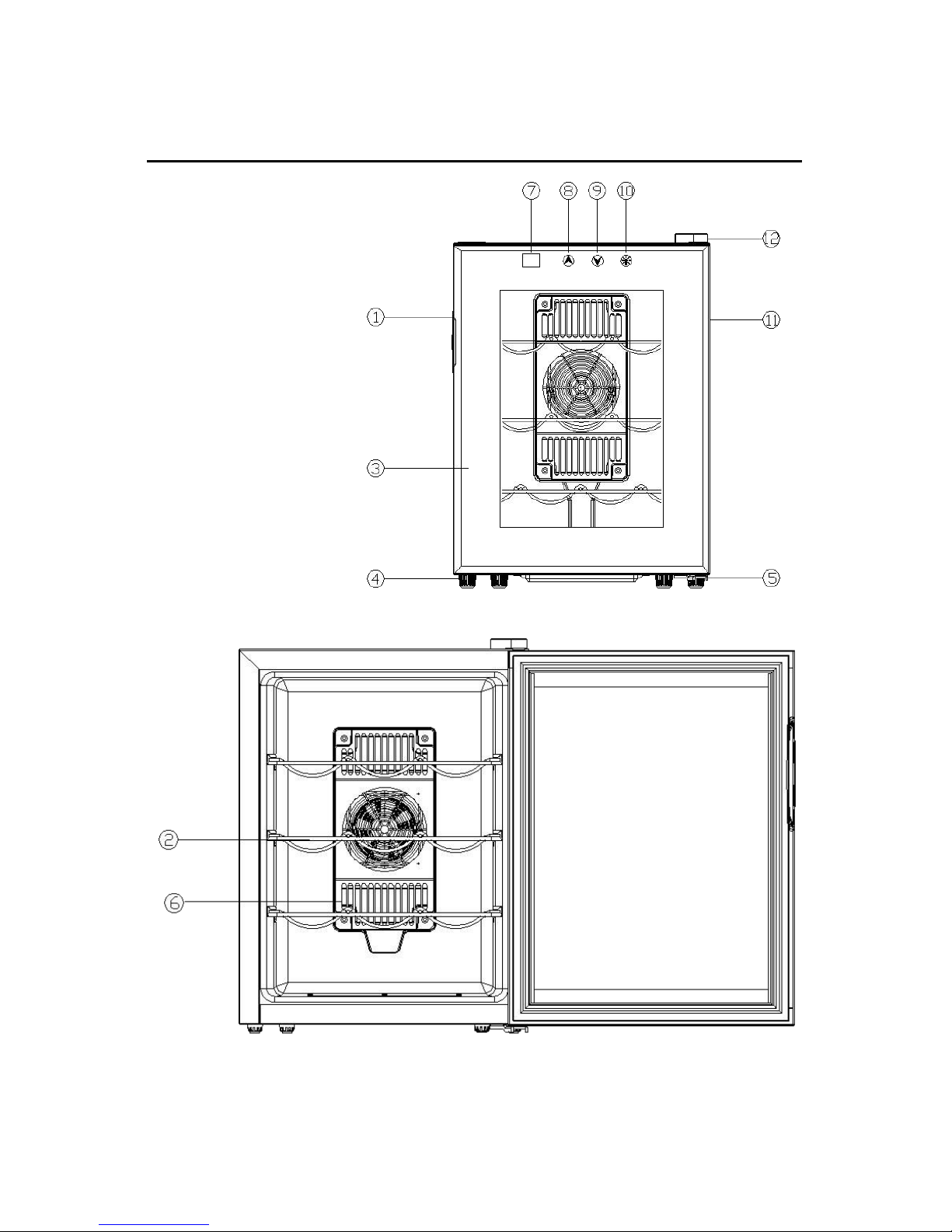

List of Main Parts
1. HANDLE
2. SHELF
3. GLASS
4. FOOT
5. LOWER DOOR HINGE
6. FAN MASK
7. LED DISPLAY
8. TEMPERATURE UP
BUTTON
9. TEMPERATURE DOWN
BUTTON
10. LIGHT
11. DOOR FRAME
12. HINGE COVER
8
www.avalon-bay.com
ASSEMBLY &INSTALLATION
1. Remove the exterior and interior packaging. Check that 3
shelves are included. If any parts are missing, please contact the
dealer where you purchased the unit or Avalon Bay customer
service.
2. Clean the interior surface with lukewarm water using a soft
cloth.
3. Place your wine cooler on a surface that is strong enough to
support the appliance when it is fully loaded. To level your
cooler, adjust the front legs at the bottom of the appliance.
4. For proper ventilation, allow at least 2 inch clearance between
the back of the unit and any adjacent walls
5. For best results, install away from direct sunlight and sources of
heat (stove, heater, radiator, etc.). Direct sunlight may affect
the acrylic coating and heat sources may increase electrical
consumption. Extreme cold or hot ambient temperatures may
also cause the cooler not to perform properly.
6. This cooler is not designed for placement in attic or basement.
The appliance is for indoor use only.
9
www.avalon-bay.com
OPERATING INSTRUCTIONS
It is recommended that you install the wine cooler in a place where the
ambient temperature is between 50- 80°F (10-26°C). If the ambient
temperature is above or below the recommended temperatures, the
performance of the unit may be affected. For example, placing this wine
cooler in extreme cold or hot conditions may cause interior
temperature to fluctuate. The desired range of 51-64°F (11-18°C) may
not be reached.
The temperature may fluctuate depending on whether or not the
interior light is on or off or whether the bottles are located on the
upper, middle or lower section.
How to Set the Temperature
There are three touch-buttons on the control panel:
Increase set temperature by 1°F
Decrease set temperature by 1°F
Turns on or off the interior light
This product will provide maximum cooling of 25 degrees below the
external temperature. When the external temperature is at 77°F (25°C)
or less, this unit can maintain an interior temperature range between
51-64°F (11-18°C).
10
www.avalon-bay.com
CLEANING &MAINTENANCE
Cleaning your wine cooler
1. Unplug the wine cooler and remove the bottles.
2. Wash the inside with a solution of warm water and baking soda.
The solution should be about 2 tablespoons of baking soda to a
quart of water.
3. The outside of the wine cooler should be cleaned with mild
detergent and warm water.
4. Pull out the condensation tray at the bottom of the unit and
wash it.
Moving your wine cooler
1. Remove all the bottles.
2. Securely tape down all loose items inside your wine cooler.
3. Turn the leveling legs up to the base to avoid damage.
4. Tape the door closed.
5. Be sure the wine cooler stays in the upright position during
transportation.
Disposal
Do not dispose of this product as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary. Take the
cabinet to a recycling plant.
Please remove the door before you dispose of your refrigerator.
