XX-XXX

User’s Guide

Please read

this User’s

THE PERFORMANCE YOU NEED

TM

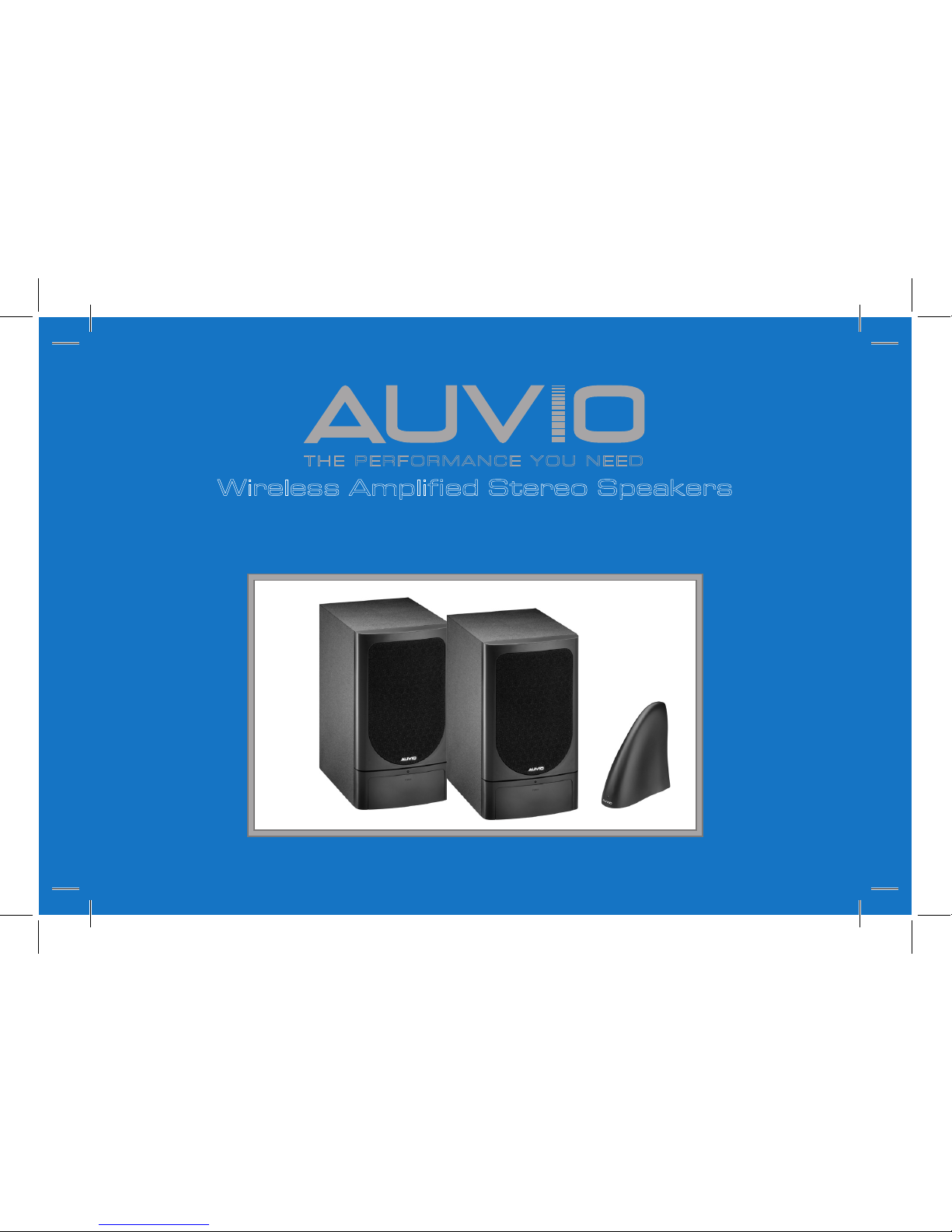

Wireless Ampliﬁed Stereo Speakers

User’s Guide 40-268

Please read this user’s guide before using your new speakers

2

Contents

Package Contents.................................................................................................. 4

Features ................................................................................................................. 5

Setup...................................................................................................................... 5

1. Select a location........................................................................................... 5

2. Attach rubber feet to speakers.................................................................... 6

3. Power the system ........................................................................................ 6

4. Connect to an audio source........................................................................ 8

5. Stereo/Mono Setup ................................................................................... 10

6. Select Channel ............................................................................................11

7. Mount the Speakers................................................................................... 12

Basic Operation................................................................................................... 13

Turn On........................................................................................................... 13

Additional Information ....................................................................................... 14

Listening Safety ............................................................................................. 14

Care................................................................................................................. 14

Troubleshooting............................................................................................. 15

Speciﬁcations................................................................................................. 16

FCC Information............................................................................................. 17

Limited Warranty............................................................................................ 18

3

Contents

Package Contents.................................................................................................. 4

Features ................................................................................................................. 5

Setup...................................................................................................................... 5

1. Select a location........................................................................................... 5

2. Attach rubber feet to speakers.................................................................... 6

3. Power the system ........................................................................................ 6

4. Connect to an audio source........................................................................ 8

5. Stereo/Mono Setup ................................................................................... 10

6. Select Channel ............................................................................................11

7. Mount the Speakers................................................................................... 12

Basic Operation................................................................................................... 13

Turn On........................................................................................................... 13

Additional Information ....................................................................................... 14

Listening Safety ............................................................................................. 14

Care................................................................................................................. 14

Troubleshooting............................................................................................. 15

Speciﬁcations................................................................................................. 16

FCC Information............................................................................................. 17

Limited Warranty............................................................................................ 18

4

Features

Ideal for use as rear-channel speakers in your surround-sound home theater.

Enables you to listen to your stereo in any room of your home.

True stereo sound, with individual bass and treble controls.

Setup

1Select a location

In order to achieve the best performance:

Position the transmitter as far as possible from other electronic devices such

as TVs, receivers, or DVD players. Radio interference from these devices could

affect your system’s performance.

Position the transmitter away from large metal objects, as these could block

the transmitter’s signals.

Try several locations for the transmitter and select the location that provides

the best performance.













Package contents

Speaker Transmitter

AC Adapter for Speakers (2)

Stereo audio cable

RCA jack to 3.5mm Plug

(Y-Adapter)

Quick Start

User’s

Guide

AC Adapter for Transmitter

3.5mm to 6.3mm adapter

Rubber feet (8)

5

Setup

Features

Ideal for use as rear-channel speakers in your surround-sound home theater.

Enables you to listen to your stereo in any room of your home.

True stereo sound, with individual bass and treble controls.

Setup

1Select a location

In order to achieve the best performance:

Position the transmitter as far as possible from other electronic devices such

as TVs, receivers, or DVD players. Radio interference from these devices could

affect your system’s performance.

Position the transmitter away from large metal objects, as these could block

the transmitter’s signals.

Try several locations for the transmitter and select the location that provides

the best performance.













Package contents

RCA jack to 3.5mm Plug

(Y-Adapter)

Quick Start

3.5mm to 6.3mm adapter

6

Setup

2Attach rubber feet to speakers

Remove the backing on the bottom of the rubber feet and

attach them to the four corners on the bottom of each speaker.

3Power the systemPower the system

Connect the supplied AC power adapters into the DC 12V jacks on the transmitter

and speakers, then plug the adapters into standard AC outlets.

You also can use 16 (8 for each speaker) D size

batteries (not supplied) to power the speakers.

To install the batteries:

1. Remove the battery cover.

2. Insert 8 batteries for each speaker with

correct polarities.

3. Replace the cover when ﬁnished.

w Caution:

You must use a Class 2 power source that supplies 12 volts DC and delivers at

least 250mA or 1250mA. Its center tip must be set to positive and its plug must

ﬁt the transmitter’s DC 12V jack. The supplied adapter meets these speciﬁcations.

Using an adapter that does not meet these speciﬁcations will damage the

transmitter or the adapter.

Always connect the AC adapter to the transmitter before you connect it to AC

power. When you ﬁnish, disconnect the adapter from AC power before you

disconnect it from the transmitter.

Speakers 12V, 1250mA

AC Adapter

Transmitter 12V, 250mA

AC Adapter

nNote: Use the adapter labeled “12V 250 mA” for the transmitter, and the one

marked “12V, 1250 mA” for the speakers.

7

Setup

2Attach rubber feet to speakers

Remove the backing on the bottom of the rubber feet and

attach them to the four corners on the bottom of each speaker.

3Power the systemPower the system

Connect the supplied AC power adapters into the DC 12V jacks on the transmitter

and speakers, then plug the adapters into standard AC outlets.

You also can use 16 (8 for each speaker) D size

batteries (not supplied) to power the speakers.

To install the batteries:

1. Remove the battery cover.

2. Insert 8 batteries for each speaker with

correct polarities.

3. Replace the cover when ﬁnished.

w Caution:

You must use a Class 2 power source that supplies 12 volts DC and delivers at

least 250mA or 1250mA. Its center tip must be set to positive and its plug must

ﬁt the transmitter’s DC 12V jack. The supplied adapter meets these speciﬁcations.

Using an adapter that does not meet these speciﬁcations will damage the

transmitter or the adapter.

Always connect the AC adapter to the transmitter before you connect it to AC

power. When you ﬁnish, disconnect the adapter from AC power before you

disconnect it from the transmitter.

LR20LR20

LR20LR20

LR20 LR20

LR20 LR20

nNote: Use the adapter labeled “12V 250 mA” for the transmitter, and the one

marked “12V, 1250 mA” for the speakers.

8

Setup

bBattery Notes

Using the AC adapter overrides any installed batteries.

When the speakers POWER LED blinks, replace the batteries.

Do not burn or bury batteries. Do not puncture or crush. Do not disassemble.

Use only fresh batteries of the required size and recommended type.

Do not use batteries of different types, capacities, or chemistry.

Remove the batteries if you do not plan to use the product for an extended

time.

If the electrolyte in the cells gets on your skin, thoroughly wash with soap

and water. If in the eyes, rinse thoroughly with cool water. Immediately seek

medical attention.

4Connect transmitter to an audio sourceConnect transmitter to an audio source

Connect the transmitter to your audio source’s left and right audio output jacks or

to its headphone jack.















1. Connect one end of the supplied audio cable to the transmitter’s audio jacks

(white plug to L AUDIO IN and red plug to R AUDIO IN).

2. Connect to your audio source’s output jacks:

Connect the white and red plugs at the other end of the cable into the

corresponding left (white) and right (red) audio jacks on your audio source.

Connect to your audio source’s stereo headphone jack:

Connect the audio cable’s white and red plugs to the white and red jacks on

the stereo side of the Æ-inch (3.5mm) supplied adapter.

If your audio source has a Æ-inch (3.5mm) headphone jack:

Insert the adapter’s Æ-inch (3.5mm) stereo plug into the headphone jack.

9

Setup

bBattery Notes

Using the AC adapter overrides any installed batteries.

When the speakers POWER LED blinks, replace the batteries.

Do not burn or bury batteries. Do not puncture or crush. Do not disassemble.

Use only fresh batteries of the required size and recommended type.

Do not use batteries of different types, capacities, or chemistry.

Remove the batteries if you do not plan to use the product for an extended

time.

If the electrolyte in the cells gets on your skin, thoroughly wash with soap

and water. If in the eyes, rinse thoroughly with cool water. Immediately seek

medical attention.

4Connect transmitter to an audio sourceConnect transmitter to an audio source

Connect the transmitter to your audio source’s left and right audio output jacks or

to its headphone jack.















1. Connect one end of the supplied audio cable to the transmitter’s audio jacks

(white plug to L AUDIO IN and red plug to R AUDIO IN).

2. Connect to your audio source’s output jacks:

Connect the white and red plugs at the other end of the cable into the

corresponding left (white) and right (red) audio jacks on your audio source.

Connect to your audio source’s stereo headphone jack:

Connect the audio cable’s white and red plugs to the white and red jacks on

the stereo side of the Æ-inch (3.5mm) supplied adapter.

If your audio source has a Æ-inch (3.5mm) headphone jack:

Insert the adapter’s Æ-inch (3.5mm) stereo plug into the headphone jack.





Audio Out

Stereo

Headphone

Jack

Æ-inch (3.5 mm)

Headphone Jack

RL

10

Setup

w Caution:

Do not connect the transmitter to your audio source’s speaker output. It could

damage the transmitter and the audio source.

If you connected the transmitter to an audio source’s headphone jack, set the

audio source’s volume control to its middle position.

5Stereo/mono setup





For normal stereo use, set STEREO/

MONO on the back of the transmitter

to STEREO. If you are using a monaural

system, set STEREO/MONO to

MONO.

If you select STEREO:

Set SPEAKER on the back of each speaker

to either L(for the Left stereo speaker) or

R(for the Right stereo speaker).

6Select channel

1. Set the transmitter to a frequency channel (CHANNEL 1, 2, or 3) that has no

interference.

2. Set the speaker to the same channels as the transmitter.

n Note: If you receive interference, try changing the channel number on the

transmitter and the speakers.
