1.0 USER OPERATING CONTROLS
Sectional Door Openers
Quick Operation Guide
05 06 07
01
02
03 04
08091011

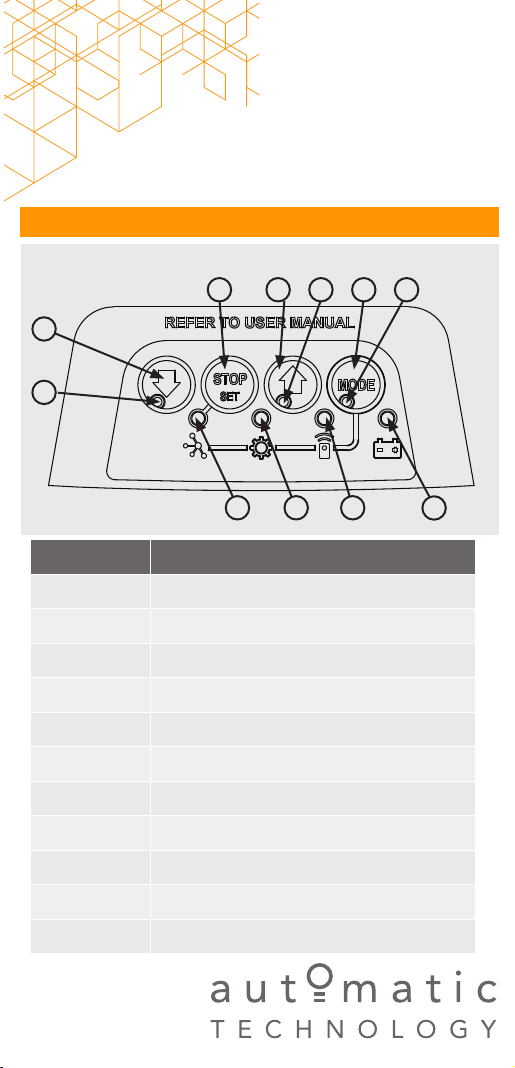

Button Function
01 Close
02 Close indicator
03 Stop
04 Open
05 Open indicator
06 Mode
07 Status indicator
08 Battery status indicator
09 Remote status indicator
10 Adjustment indicator
11 Network indicator
Syncro & Tempo
TO DISENGAGE THE OPENER
2.0 MANUAL DOOR OPERATION
CAUTION: When the opener is manually
disengaged, the door is no longer
locked. To lock the door manually,
re-engage the opener after the door is
closed.
TO ENGAGE THE OPENER
CAUTION: Do not use the string handle
as a mechanism to open the door.
Failure to comply may cause serious
injury.
It is recommended to disengsgre the door with the
door in the closed position.
tip
DOOR
Pull towards, until you
hear a click Manually operate
door
DOOR
Pull away, until you
hear a click Press to test
Light StatusBattery
Solid OK
Flashing Replace
No light Replace
3.0 CODING A REMOTE CONTROL
STEP ONE
The opener can only be operated from remote
controllers that have been programmed into its
memory. Up to 64 remotes can be programmed.
Battery Type: 1 x CR2032.
WARNING!: The battery is hazardous and must
be kept out of reach of children. The battery can
cause severe of fatal injuries within 2 hours or less
if swallowed or placed inside any part of the body.
If you suspect the battery has be swallowed or
placed inside any part of the body, SEEK
IMMEDIATE medical attention.
STEP TWO
STEP THREE
Switch power on and
remove controls cover
till remote
LED lit
Press
repeatedly
HOLD
Opener flashes
& beeps
HOLD for 3 sec
HOLD for 3 sec
RELEASE
Release both
buttons
STEP FOUR
OFF
STEP FIVE
Press to test
tip
Then replace controls cover
STEP ONE
4.0 CHANGING A BATTERY
HOLD
Check Light
Status Table
STEP TWO
tip
Use screwdriver
to remove scews
and open
STEP THREE
Use non-metallic
object to push
out.
STEP ONE STEP TWO
Take a pre-coded
remote and press the
button to duplicate
REMOTELY CODING A REMOTE CONTROL
Remotely coding works when you have a
pre-coded remote control and are in range of the
opener.
tip
Use a pen,
HOLD for 2 sec
the middle button
through the
coding hole
STEP THREE
Opener ashes & beeps
HOLD for 3 sec
HOLD for 3 sec
RELEASE
Take new
remote
RELEASE
STEP FIVE
Press to test
Opener stops ashing &
beeping
(Syncro Only)
5.0 SMART PHONE CONTROL
BEFORE YOU START
STEP ONE STEP TWO
Download the ATA App
to your smartphone
STEP FOUR
Ensure limits are
set prior to connecting
to wifi
Remove controls cover &
Press repeatedly LED will turn PURPLE
(HOTSPOT ON)
STEP THREE
Open APP
and click START Set up new
Smart Hub in app
!
WARNING!: This device allows for operation of
the door when not in line-of-sight of the door and
opener. The door may operate unexpectedly,
therefore do not allow anything to stay in or near
the path of the door.
till network
LED is lit HOLD for 5 sec
Go to phone settings, then
WiFi and select
(ATA000000)
The home WiFi router
is within range of
opener
The Smart Phone Control works via your home’s WiFi network.
Initial set up involves linking your phone app and smart opener to
your home network.
STEP FIVE
Smart Hub connect
appears, ensure WiFi
network =
(ATA000000)
Network LED and
light will flash. Press Follow
instructions in the app
Network LED will turn Blue then
return controls cover
IssueRemedy
1 Normal operation (door is fully open)
2
3-
4 Wireless PE battery is low Change PE Battery
5
6
7Standby battery is faulty
8 Door was obstructed
9 Motor overloaded or
stalled
10
6.0 TROUBLESHOOTING
PE is precenting door from
moving
Clear away any obstructions.
Test Door. If unable to move
the door and suspect beam is
faulty, enter Safety Beam
Emergency Close by pressing
and holding a pre-coded
transmitter button until the
door closes.
Main Light = Service / Warning Indicator:
Requirements for a service and user warnings are indicated after
operation by the main light repeatable flashing OFF a number of
times followed by a pause.
The below table identifies the issues and remedies
Not Available
Not Available -
Maintenance is due after
pre-set number of cycles.
Contact dealer to arrange
service.
Contact 1300 769 850 within
Australia for assistance.
Clear away any obstructions
and test door opens/closes
correctly. (if the door is
damaged, contact a door
professional)
Contact dealer to arrange a
door service.
Unit running on battery
power (Only available with
ATS-3)
Main light will flash (3) three
times at the start of the cycle to
indicate the opener is running
from battery backup and 10
flashes at the end of cycle.
Check power supply.
7.0 CARING FOR YOUR OPENER
Preventative servicing of your garage door and opener, is
important. Your garage door is made up of numerous moving parts
designed to lift and lower your door safely and efficiently.
Ongoing preventative servicing ensures that your door continues
to function within factory specifications, greatly reduces the risk of
failure and repair bills down the track and ensure you maintain
your Warranty.
Refer to your Owners Opener Handbook for your service schedule
available HERE.
Refer to the installation manual for monthly testing
procedures in Section 13 to ensure garage door is fit
for use available HERE.
tip
Online warranty details are available HERE.
8.0 NEED A SERVICE CALL?
If the opener needs a service please call the dealer who installed
the garage door opener (their contact details are usually on a
sticker on the back of your garage door).
For product assistance, general enquiry or
more information, please visit:
ata-aust.com.au
or call 1300 133 944.
