Autel MaxiDAS DS708 Manual de usuario

Safety Precautions and Warnings

To prevent personal injury or damage to vehicles and/or the MaxiDAS, read this

instruction manual first and observe the following safety precautions at a

minimum whenever working on a vehicle:

zAlways keep attentive while driving.

zAlways perform testing or repairing in a safe environment. Wear safety eye

protection that meetsANSI standards.

zKeep clothing, hair, hands, tools, test equipments, etc. away from all moving or

hot engine parts.

zOperate the vehicle in a well ventilated work area. Exhaust gases are poisonous.

zPut blocks in front of the drive wheels and never leave the vehicle unattended

while testing or repairing.

zUse extreme caution when working around the ignition coil, distributor cap,

ignition wires and spark plugs. These components create hazardous voltages

when the engine is running.

zKeep a fire extinguisher suitable for gasoline/chemical/electrical fires nearby.

zPut the transmission in PARK (for automatic transmission) or NEUTRAL (for

manual transmission) and make sure the parking brake is engaged.

zRefer to the user’s manual for the vehicle being serviced and adhere to all

diagnostic procedures and precautions. Otherwise personal injury or unneeded

repairs may result.

zDO NOT mount the MaxiDAS in a position which can obstruct the view of the

driver.

zDO NOT use the MaxiDAS and drive the vehicle at the same time. Any

distractions may cause an accident.

zDO NOT mount the MaxiDAS in a position which could cause it to be propelled

through the vehicle during an accident causing injury, such as over or near an

airbag.

zDO NOT route the cable in a position which would interfere with the operation of

the vehicle controls.

zDO NOT connect or disconnect any test equipment while the ignition is on or the

engine is running. Failure to so could result in control unit damage.

zKeep the MaxiDAS dry, clean, free from oil/water or grease. Use a mild detergent

on a clean cloth to clean the outside of the MaxiDAS when necessary.

FCC Information：

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

1. this device may not cause harmful interference, and

2. this device must accept any interference received; including interference that may

cause undesired operation.

This Equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC RF Radiation Exposure Statement:

1. This Transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with a

minimum distance of 20 centimeters between the radiator and your body.

SAR Statement:

1. The antenna used for this transmitter must not be collocated or operating in conjunction

with any other antenna or transmitter within a host device. End users must be provided

with operating instructions for satisfying RF exposure compliance requirements. The

highest reported body SAR value per band for this FCC ID is: 2.4 GHz 0.421 W/kg.

Chapter 1 Using This Manual

Congratulations on purchasing the MaxiDAS 708!

1. Conventions

9Note

Provide helpful information such as additional explanations and tips.

Example:

Note: Do not force the SD card into the card slot. This may damage the card slot.

9Important

Suggest you to avoid the situation which may result in damage to the unit or vehicle.

Example:

Important: Free Frame data and manufacturer enhanced data and codes from the vehicle’s

on- board computer will be erased once you confirm to erase Trouble Codes. (Free Frame

data PIDs are information used to help the technician verify the condition at the time a fault

is set.) Further, the I/M Readiness Monitor Status, for all vehicle monitors, is reset to INC

(Incomplete) status.

9Possible

Provide the description for the screen which might appear on the scan tool.

Example:

Possible 1: For some of the vehicle, identify vehicle process is not needed. Component test screen

appear at this stage already and allows you to perform the component test.

Possible 2: For the others, continue selecting the vehicle from the scan tool is needed. To identify

the vehicle, you may need to complete a series of selections, which may include any of the

followings. (Benz as an example) Select one of the attributes from each screen and highlight the

attribute to enter to the next page. The screens continue appearing until the selecting process

complete.

9Option

Provide the description for the options which are available

Example:

Option 1:

1. Press the Pause button to view the fault without completing the test.

2. Highlight the fault you wish to view and then click OK button.

Option 2:

1. Wait until the scanning process complete.

2. Highlight the fault and then click OK.

Bold Text

Used to emphasis the selectable items such as buttons and menu options.

Example:

Click OK to save the change, or click Cancel to exit without save changes.

2. Symbols

9( )

Indicates vehicle which used as an example in the chapter.

Example:

Chapter 5 Auto Scan (HONDA)

Note: The chapters show in this manual are only the possible options. During

testing, only the options available for the vehicle and ECU being tested will

appear on screen of the scan tool.

9< >

Indicates those vehicles who are able to use the specially function show in the following

chapter.

Chapter 12 On- Board Mon. Test <OBDII>

Chapter 2 General Information

Introduction

1. Icon Description

The table below gives brief description of the control button on this software.

Name Button Description

Page Down

Used to scroll through the text and data

Page Up Used to scroll through the text and data

Data

Logging

Allows you to record the useful data when problems occurred

to your vehicle. These data assists the engineer in updating

the MaxiDAS 708 Software. Refer to Notice the followings

about the MaxiDAS Screen Icon on Page 5 for details.

Snapshot Used to return to the main menu of the MaxiDAS.

Home

Page Allows you to save the picture of current screen to the

memory card.

WIFI The shortcut that allows you to change the internet setting, it

is also a Signal Strength icon shows your current signal

strength. More lines indicate more signal strength. Five lines

indicate maximum strength, and one line indicates least

strength.

Internet Open a webpage

Notice the followings about the MaxiDAS Screen Icon,

1. Data logging

The Data logging function is used to report the problem that cannot be detected or solved

by the MaxiDAS 708. To perform a data logging, follow the instruction below to operate the

data logging while the vehicle is being scan. The error report will be sent to the technical

support center automatically. The engineer will try to solve the problem and get back to

you within 48 hours with the update function. You can finally upgrade your MaxiDAS 708.

Note: The following picture shows the process of the data logging.

1. Click the Data logging button from the toolbar.

2. The following dialog box shows.

3. Click the Start Logging button and use the information box for extra information.

4. The pervious error report record appears in the History Report Manage box.

5. To delete one of the history reports, highlight the history report as you desire and click

Del Select button at History Report Manage.

6. Optionally, click Del All button at History Report Manage to delete all of the history

report.

2. Screen with Virtual Keyboard

Virtual Keyboard

You can touch or click a key on the screen viewable keyboard, the chosen character will

be written to the place of the cursor. It allows you to input text for the information you

desired.

1. Drag the virtual keyboard with stylus to relocate.

2. Use the keyboard to fill in the dialog box with all the information as desired.

Press UP/ Down button to change value.

Press Left/ Right button to change character.

Press ? To view help information on the screen or to exit help menu.

3. Select OK to finish and close the Dialog Box.

Note: The new item now appears on the list and is highlighted

Drop-down dialog box

Optionally, use the drop-down dialog box to find the item as desired if there is a previous

record. Highlight the item as desired. Select OK to finish and close the Dialog Box.

3. Scanner Layout

Location – Displays on top of the screen to assist you to identify the component location.

Main menu - The main menu displays in the left-hand panel of the screen.

The following sections are detailed below:

Highlight one of the following sections (USA, European and Asian) and you will find a

screen lists all available vehicle manufacturers. These Items are shown in the order in

which they were entered. For example, the vehicle manufacturer you choose more often

will display in the front, while those which used less or never used will be displayed at the

end.

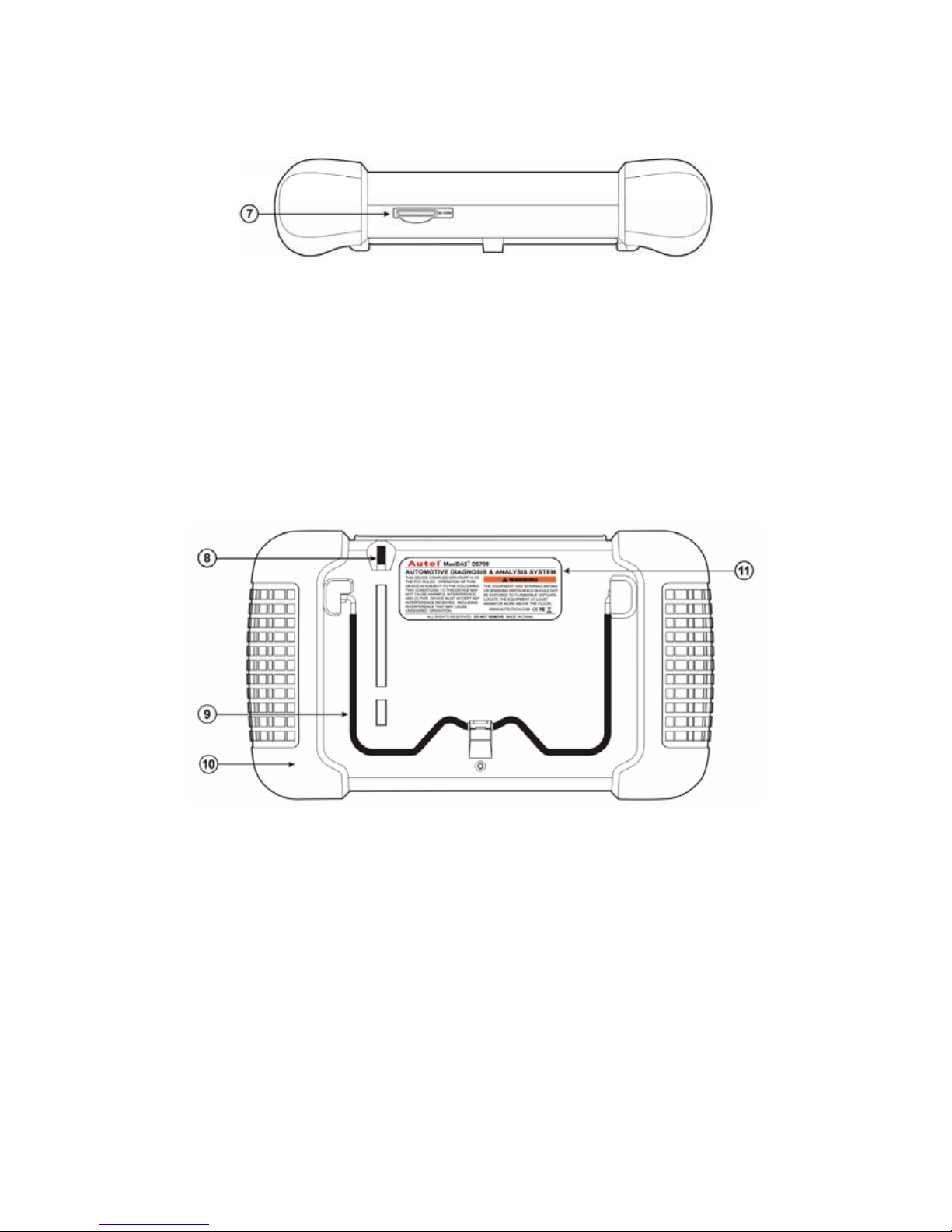

Component Descriptions

1. Main Connection Port Connect to the mains for power supply of updating, printing

data logging and internet access after disconnecting from the vehicle.

2. USB Connection Port Connect to the computer for updating and printing.

3. Diagnostic Socket Provides power supply and connection to the vehicle via

diagnostic cables and connectors supplied.

4. Internet Connection Port Provides internet access for updating, printing and data

logging and brings the internet resource of your choice at your fingertips.

5. ON/ OFF Button Powers on/ off the diagnostic tool.

Note: The scan tool will not turn off automatically; it stays on until you turn it off.

6. LED Indicators

The three light-emitting diodes indicate certain system conditions,

Communication LED – Green LED light in middle shows when the unit is in service.

Wireless LAN activity LED – Green LED light in the left shows when a wireless local

area network in enabled, flashes when data is being sent or received.

Main Power LED – Red LED light in the right shows when the unit is powered on.

7. SD Card Slot

The standard SD (Secure Digital) card slot enables the unit to read and write data to

the card inserted in the slot. To use the software, insert the card with the metal

contacts facing down and pointing toward the MaxiDAS.

Note: Do not force media into the SD card slot. This may damage the SD card

slot. To Remove SD Card, press the card again and slot will pop out card

automatically.

8. Stylus The Stylus is used for typing and selecting. To calibrating Touch Screen, refer

to chapter 7 – 8, Calibrating Touch Screen.

9. Stand The built- in metal stand allows the unit to rest for hands-free viewing when

extended. It is attached to the back of the scan tool and can be secured to the back

again unit when not in use.

10. Handgrip The handgrips are attached to both sides of the MaxiDAS unit. Hold the

handgrips to stabilize the unit while using. The handgrip also eliminates the damage

when you drop the tool accidentally.

11. MaxiDAS 708 Label

The Label includes the notice and warning.

12. LCD Screen Displays the menus and data screens.

Otros manuales para MaxiDAS DS708

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipo de diagnóstico de Autel

Autel

Autel MaxiTPMS TS508 Manual de usuario

Autel

Autel MaxiTMPS Manual de usuario

Autel

Autel MaxiSys Elite II Pro Manual de usuario

Autel

Autel MaxiPro MP808 Manual de usuario

Autel

Autel MaxiPro MP808 Manual de usuario

Autel

Autel MaxiPRO MP808BT Manual de usuario

Autel

Autel MaxiDiag MD808 Manual de usuario

Autel

Autel MaxiIM KM100E Manual de usuario

Autel

Autel OTOFIX EvoScan Ultra Manual de usuario

Autel

Autel Maxiscan MS509 Manual de usuario

Autel

Autel MaxiTPMS TS508K Manual de usuario

Autel

Autel MaxiPRO MP808K Manual de usuario

Autel

Autel MaxiCheck MX808 Manual de usuario

Autel

Autel MaxiAP AP2500 Manual de usuario

Autel

Autel MaxiSys MS908SP Manual de usuario

Autel

Autel MaxiVideo MV301 Manual de usuario

Autel

Autel MaxiTPMS TS401 Manual de usuario

Autel

Autel MaxiTPMS TS508 Hoja de información del producto

Autel

Autel MaxiDAS DS708 Manual de usuario

Autel

Autel MaxiSys MS906S Manual de usuario

Autel

Autel MaxiSys MS906TS Manual de usuario

Autel

Autel OTOFIX D1 Pro Manual de usuario

Autel

Autel AutoLink AL629 Manual de usuario

Autel

Autel MaxiBAS BT609 Manual de usuario

Manuales populares de Equipo de diagnóstico de otras marcas

Mindray

Mindray M7Vet Guía de inicio rápido

TEXA

TEXA TMD2 Manual de usuario

Sealey

Sealey BT2012 Manual de usuario

Diagnoptics

Diagnoptics Age Reader Manual de usuario

LAUNCH TECH

LAUNCH TECH X-431 PRO5 Manual de usuario

Hella Gutmann

Hella Gutmann Mega macs X Manual de usuario

Foxwell

Foxwell I80TS Manual de usuario

KaVo

KaVo 3D eXam Manual de usuario

ATEQ

ATEQ VT46 Manual de usuario

Hella Gutmann

Hella Gutmann mega macs X Manual de usuario

Qiagen

Qiagen QIAcube Connect MDx Manual de usuario

Alber

Alber BDSU Manual de usuario

St. Jude Medical

St. Jude Medical QUANTIEN Manual de usuario

Bosch

Bosch DCU 100 Manual de usuario

Launch

Launch CNC-602A Manual de usuario

Innova

Innova 3568 Manual de usuario

FujiFilm

FujiFilm ED-580XT Manual de usuario

Snap-On

Snap-On Zeus Manual de usuario
