Instruction manual
SPM24
Vetec
Press-Fit, Drainage & Tooling Solutions
127 Corunna Avenue, Melrose Park SA 5039
Phone: 1300 287 773
Email: [email protected]
Visit us at: www.auspress.com.au
Vetec SPM24
English
Please read this instruction manual carefully before you use our product. If
you have any doubt or problem, contact our Servicecenter.
(Informations are on the last cover page)
2BLUSPM24
SPM24
Vetec SPM24
ENGLISH
BLUSPM24 3
Index
1. Technical data 4
2. Definition of components 4
3. Accessories supplied with the basic unit 5
4. Description of signs and symbols 6
5. General indications 6
6. Application and use not in conformity with the intended purpose 6
7. Precautions in using the equipment 7
8. Storage and transportation 8
9. Start up of the equipment 8
10. Instructions for the use of the power pack and battery charger 9
11. Application ranges 10
12. Insertion of pressing jaws 10
13. Work process pressing 11
14. Maintenance instructions 11
15. Technical and Functional Features 12
16. Instructions for installation of software 12
16.1 System requirements 12
16.2 Plug & Play 12
17. What to do in case of breakdown 13
17.1 Error codes Service 13
17.2 Error codes battery 13
17.3 Error codes battery charger 13
18. Extraordinary maintenance/disposal 14
19. Guarantee 15
20. Guarantee/Repair 15
yllatotebtinacronAusPressfonoitasirohtuanettirwsuoiverpehttuohtiwmrof
or partially sold or distributed.
SPM24
Vetec SPM24
E
4 BLUSPM24
1. Technical data
2. Defi nition of components
Shearing force: 24 kN
Max. Lift: 30 mm
Battery voltage: 18 V DC
Motor: with permanent magnets in continuous current
Battery capacity: 1,5 Ah (optionally 3,0 Ah)
Time of pressing cycle approx. 3-4 sec.
Type of battery: Li-Ion (without memory eff ect)
Charging tim: approx. 30 min.
Noise level: 75 dB (A) at a distance of 1 m
Acceleration: < 2,5 m/s² (eff ective weighted value of acceleration)
Hydraulic oil: Typ „Shell-Naturelle HF-E 15“
Operating temperature: from -10 °C to +40 °C
Dimensions basic unit: approx. 371 x 100 x 74 mm (without power pack)
Mass basic unit: approx. 1,8 kg (without power pack)
Item Definition Item Definition

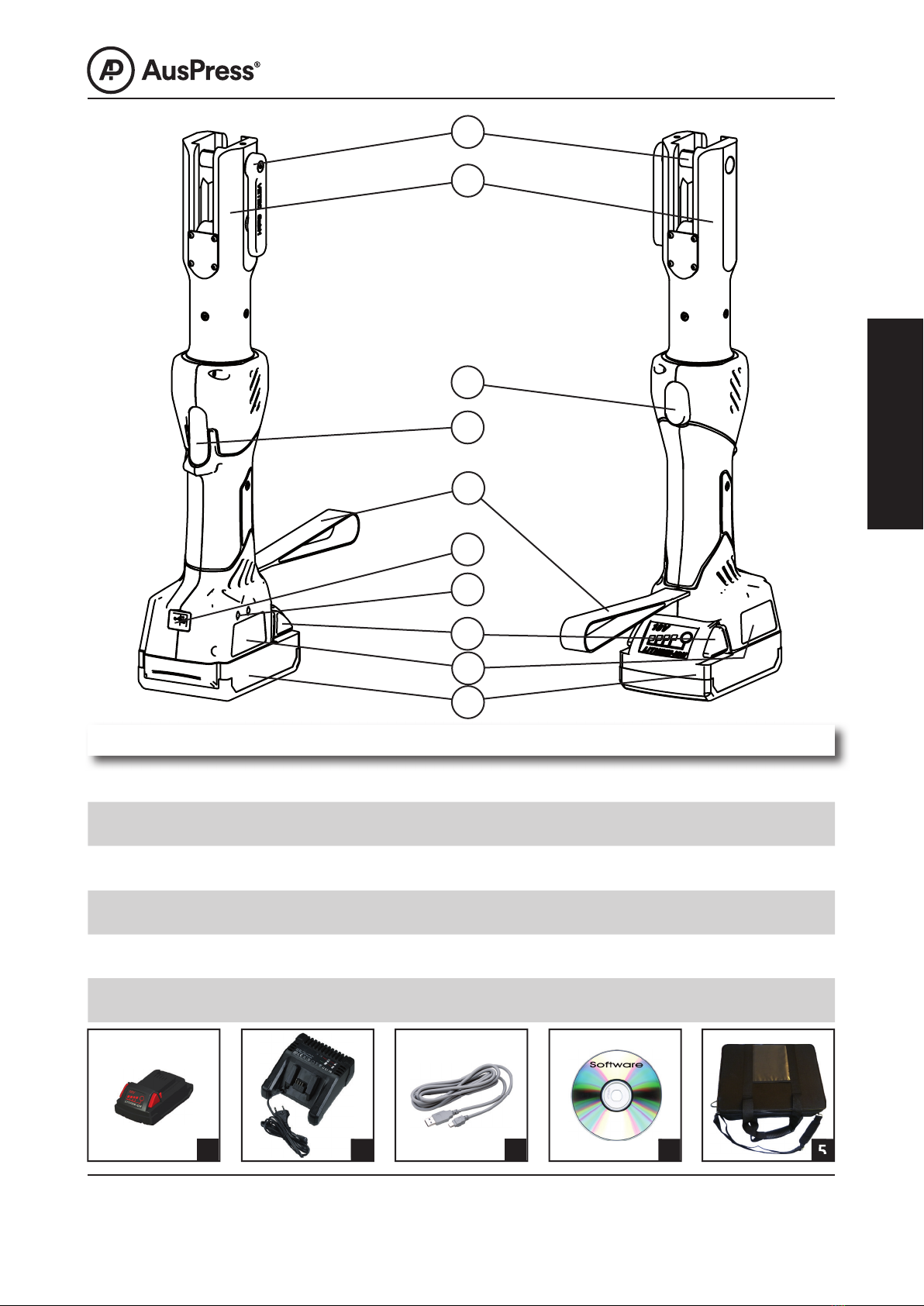

[ 1 ] Tool holder [ 6 ] Power pack
[ 2 ] Location bold [ 7 ] Battery lock-out release
[ 3 ] LED operating indicator lights [ 8 ] USB Interface
[ 4 ] Start/Stop [ 9 ] Name of model & technical data
[ 5 ] Reset key [ 10 ] Loop
ACaution: e mechanical return switch allows the operator to restore the tool to the star-
ting position in emergency cases and thus to remove the pressure from the compression
head.
SPM24
Vetec SPM24
E
BLUSPM24 5
3. Accessories supplied with the basic unit
Item Definition
[ 1 ] Power pack
[ 2 ] Battery charger
[ 3 ] USB 2.0 cable with 5 pole mini type connectors: A plug and B socket
[ 4 ] CD-ROM
[ 5 ] Optionally Cotton bag
1 32 4 5
2
1
5
4
10
8
3
7
9
6
5
SPM24
Vetec SPM24
E
6 BLUSPM24
4. Description of signs and symbols
5. General indications
LDanger: is indicates a warning; lack of observance may lead to injury or death.
PParagraphs: Product safety information.
ACaution/Important: is indicates a warning; not following this warning may lead to da-
mage of the equipment or materials.
MOperation and maintenance: Advice and indications in order to maintain the product´s
value.
NInformation: Useful information for the correct usage of this product.
Wear goggles
Read the instruc-
tion manual before
usage
L e manufacturer is not responsible for damage to persons or property caused by non-
observance of the instructions.
is device must be used exclusively for its intended use. is product may be used only
by personnel who have received training.
e instruction manual must be carried with the machine for its entire life period.
e user is required to:
• make the instruction manual available to operators
• ensure that the operator has read and understood the instructions
PFor all legal intents and purposes this instruction manual is valid.
Caution!
Danger of squee-
zing
6. Application and use not in conformity with the intended purpose
e electro-hydraulic press tool BLUSPM24 is exclusively used for the production of a perma-
nent connection between tubes and press fi ttings in all usual types of material, such as PE-X-,
miltilayer composite and metal systems. e tool is only suitable for manual operation and af-
ter a series of approx. 40-50 press cycles, it must be allowed to cool down for about 10 minu-
tes. See table on page 10 for the corresponding range of application e hydraulic powered
compression tool may be used exclusively in environments with illumination of at least 400
lux, or in daylight.
SPM24
e electro-hydraulic press tool SPM24 is exclusively used for the production of a permanent
connection between tubes and press fittings in all usual types of material, such as PE-X-,
multilayer composite and metal systems. e tool is only suitable for manual operation
and after a series of approx. 40-50 press cycles, it must be allowed to cool down for about
10 minutes. See table on page 10 for the corresponding range of application. e hydraulic
powered compression tool may be used exclusively in environments with illumination of at
least 400 lux, or in daylight.
Vetec SPM24
E
BLUSPM24 7
ACaution: e non-observation of the safety instructions may create a situation of danger
for the life and health of persons, or may cause material damage to the machine and the
surrounding environment!
ACaution: Never place fi ngers or other parts of the body into the working area of the pres-
sing jaws!
ACaution: Keep away from other persons. Keep unauthorised persons away from the wor-
king area while the battery-powered tool is operating!
ACaution: Wear appropriate working attire, gloves and safety shoes!
ACaution: Inspect the battery powered tool to make sure it has not been damaged. Place
the machine in service only if it is free of defects!
ACaution: If situations of danger for persons or for the machine occur during operation,
stop the press tool by pressing the return button.
ACaution: e battery powered tool BLUSPM24 is not suitable for continuous operation.
ACaution: Accessing the danger zone of the pressing tool is only permissible when the tool
is completely opened and the battery removed.
ACaution: Inspect the area of danger before turning the tool on. Only start the tool if no
hazards result from it and if no person is in the danger zone of the pressing tool.
ACaution: e battery may be removed when the hydraulic battery powered press tool has
been shut down safely.
ACaution: During work performed at heights the tool must be adequately protected from
falling.
ACaution: Before using the equipment, it is necessary to perform a visual inspection to
ascertain the condition of the battery powered press tool. e equipment may not be used
if it has been damaged.
ACaution: Reverse movement is activated exclusively with the relative key. e mechanical
release lever located on the equipment must be used in emergency situations.
ACaution: Do not open the machine! All guarantee rights are forfeited if the seal is dama-
ged. e equipment must not be operated without protective covering.
ACaution: If the service light turns on the machine must be sent to the manufacturer. e
customer is not authorised to perform maintenance, as this would entail loss of guarantee
7. Precautions in using the equipment
SPM24
e battery powered tool SPM24 is not suitable for continuous operation.
Vetec SPM24
E
8 BLUSPM24
8. Storage and transportation
In order to protect the battery powered press tool BLUSPM24 from possible damage it is ne-
cessary to clean it after every usage. After operation stow away the tool in the provided cotton
bag and make sure it is securely closed.
and can cause situation of danger.
Caution: e typical A-weighted noise level can exceed 70dB (A) during the working pro-
cess. - wear ear protection!
ACaution: e equipment may be operated only with the original BLUCHER power packs.
ACaution: e equipment must not be operated in explosive atmospheres.
ACaution: Complete shutdown of the equipment takes place exclusively upon removal of
the battery.
ACaution: If oil leaks from the press tool, it must be sent to the BLUCHER customer service
department.
ACaution: e press tool must not be operated in case of heavy rain or underwater.
ACaution: Hydraulic oils are dangerous for ground water. Uncontrolled loss or disposal of
hydraulic oils not in conformity with norms may be persecuted under environmental pro-
tection laws.
ACaution: It must be demonstrated that the applied components withstand the tempera-
tures that occur.
9. Start up of the equipment

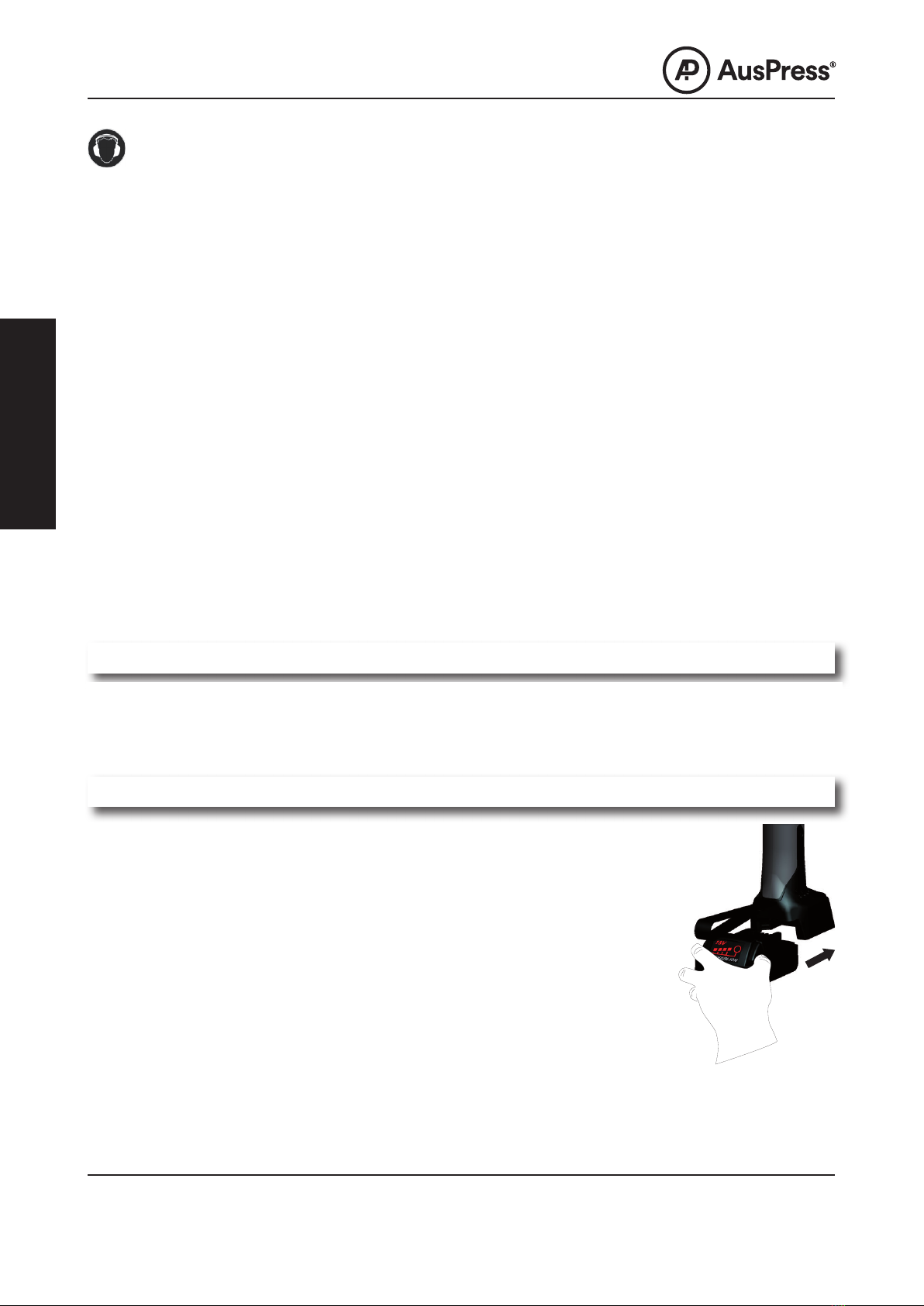

Insert the battery and push until the safety switch clicks as shown in the
illustration.
For safety reasons, the battery shall only then be inserted, when a corres-
ponding pressing jaw is installed.
e press tool mustn´t be operated without a pressing jaw.
SPM24
e equipment may be operated only with the original power packs.
If oil leaks from the press tool, it must be sent to an authorised customer service
In order to protect the battery powered press tool SPM24 from possible damage it is necessary
to clean it after every usage. After operation stow away the tool in the provided case/bag and
make sure it is securely closed.
Vetec SPM24
E
BLUSPM24 9
10. Instructions for the use of the power pack and battery charger
e battery charger has dimensions for 230 V CA 50-60 Hz. e new batteries are provided
partially charged and must be charged before the machine is used for the fi rst time. In order to
recharge the battery charger plug must be inserted in a wall socket and the power pack must
be placed in the battery charger. A 1.5 Ah power pack can be recharged in approximately 30
minutes. e status of the charge for the power pack is indicated by the luminous diode on the
battery charger.
ACaution: When the power pack is not being used keep it away from paper clips, coins,
keys, nails, screws and other small metal objects which could act as contact bridges. A short
circuit between the battery contacts could cause combustion or fi res.
ACaution: Do not charge the power pack in the presence of easily infl ammable gas or mate-
rials. After charging, remove the battery charger plug from the wall socket. Do not disas-
semble the battery charger.
ACaution: If the power packs are stored for long periods of time, their charge status must
be checked periodically. e optimum charge is between 50% and 80%. e power packs
should be recharged every 12 months at most to avoid complete discharge which could
cause damage.
ACaution: Discharged power packs should not be stored for periods of more than one
month to avoid their complete depletion which could destroy the battery.
ACaution: Use only the battery charger advised by the manufacturer. e use of a battery
charger suitable for a specifi c type of battery to recharge other batteries are a cause of
danger of fi re.
ACaution: Use only the batteries foreseen for the purpose in the tools. e use of other bat-
teries could cause injury and the danger of fi re.
ACaution: In case of incorrect usage liquid could leak from the battery. Avoid contact with
the liquid. In case of contact with the skin wash with abundant water. Consult a physici-
an if the liquid comes into contact with your eyes. Liquid that has leaked from the battery
may cause irritation to the skin or burns.
e charge status can be read by pressing the relative button on the power pack. While do-
ing so the battery may remain in the crimping tool which must be shut
off beforehead, however, and remain shut off for at least one minute
(otherwise the reading will be imprecise). e number of illuminated LEDs
indicates the charge status. A fl ashing LED indicates a maximum power
reserve of 10%. e purpose of this indication is only to determine whe-
ther there is a reserve of power and how much power the battery still has
available.
SPM24
Vetec SPM24
E
10 BLUSPM24
11. Application ranges
Stainless steel, steel max. DN 35*
Copper, copper alloys max. DN 35*
Multilayer pipe max. DN 40*
PEX-pipe max. DN 40*
*Specifications/data are system-bound
For further information please contact your systems provider
12. Insertion of pressing jaws
1
Open lever [1] by rotating it 180° and pull it out
to the stop
2
Stick pressing jaws [2] centrally into the hol-
ding fi xture [3], slide in lever [1] completely and
close it by rotating it 180°.
1
2
3
1
SPM24
