Auria EQ266 Manual de usuario

26” Wide Screen

TFT-LCD Monitor

Model : EQ266

EQ 266 User’s manual

FCC

This equipment has been tested and found to comply with limits for Class B digital device

pursuant to Part 15 of Federal Communications Commission (FCC) rules.

This equipment has been tested and found to comply with the limits of the European Council

Directive on the approximation of the law of the member states relating to electromagnetic

compatibility (89/336/EEC) according to EN55022 Class B.

FCC and CE Compliance Statement

These limits are designed to provide reasonable protection against frequency interference

in residential installation. This equipment generates, uses and can radiate radio frequency

energy, and if not installed or used in accordance with the instructions, may cause harmful

interference to radio communication. However, there is no guarantee that interference will

not occur in television reception, which can be determined by turning the equipment off and

on. The user is encouraged to try and correct the interference by one or more of the

following measures:

* Reorient or relocate the receiving antenna

* Increase the separation between the equipment and the receiver

* Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected to .

Caution!

The federal Communications Commission warns the user that changes or

modifications to the unit not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

EQ 266 User’s manual

Precaution

Read all of these instructions and save this manual for later use.

Follow all warnings and instructions on the product.

1.Do not cover or block the ventilation holes in the case.

2. Do not insert sharp objects or spill liquid into the LCD monitor through the cabinet slots;

this may cause accidental fire, electric shock or failure.

3. Unplug the unit when not in use for an extended period of time.

4. Do not attempt to service this product yourself, as opening or removing the cover may

expose you to potential electric shock. Only a qualified technician should service this

product.

5. Do not touch the screen directly with your fingers as it may damage the screen ; the oil

from your skin is difficult to remove.

6. Do not apply pressure to the screen, the LCD is very delicate.

7. Keep the monitor away from extreme heat, cold or humid places.

8. Do not place directly under sunlight, dusty surroundings or near equipment, which may

generate strong magnetic fields.

9.Please keep at least 2 seconds between each time turn ON/OFF the monitor.

EQ 266 User’s manual

Introduction

Product Description

Thank you for choosing the Flat Panel TFT-LCD Color Monitor. It combines the features

of a MONITOR with a THIN FILM TRANSISTOR Liquid crystal display ( TFT-LCD).

This new generation of TFT-LCD incorporates a high quality display in lightweight module.

※ Unlike CRT displays, the LCD panel has a fixed pixel format over a set area.

So, for best performance the “native resolution” setting is recommended.

For wide LCD monitor:

The native resolution of the LCD panel is 1920 x 1200

Recommended resolution is 1920 x 1200 @ 60Hz

Package Contents

Please check the TFT-LCD Monitor Package to make sure it contains the following items :

EQ 266 User’s manual

Before setting up the monitor, ensure that the power to

the monitor, the computer system, and other attached devices

is turned off.

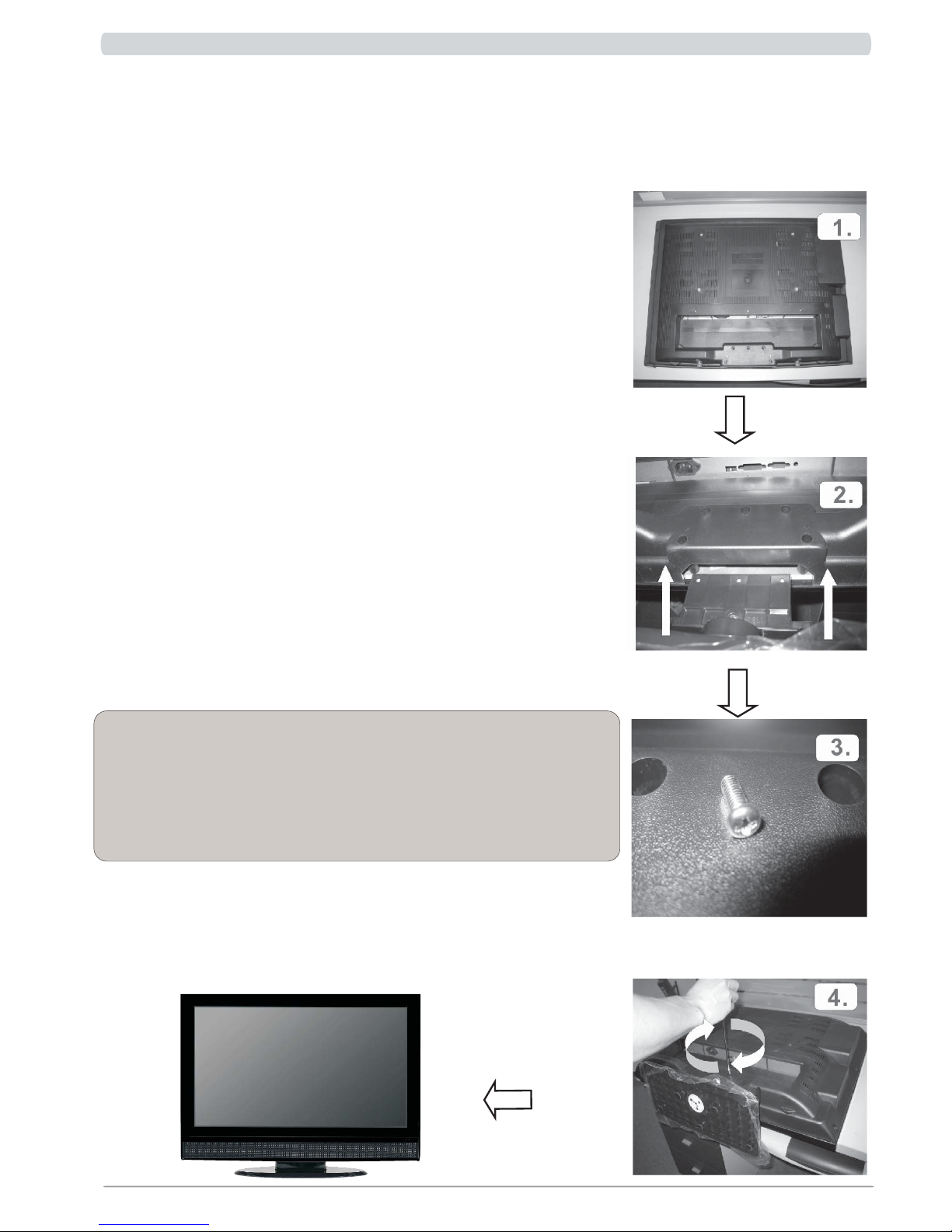

Connecting the stand

1. Place the monitor with its front facing

downward ona soft cloth.

2. Check the direction of the Stand and

connect it into the LCD Monitor.

4. Use the screwdriver fix the screw between

the stand and monitor.

3. Take the screw and put them in

screw aperture.

5. Once assembled take the monitor up carefully

and face the front side.

Important

* This illustration depicts the general model of connection.

Your monit or may dif fer from theitems shown in the pic ture.

* Do not carry the product upside down holding only the stand base.

The product may fall andget damaged or injure your foot.

EQ 266 User’s manual

Specification:

Display Area

Pixel Patch

Resolution (Max.)

Brightness

Contrast Ratio

Response Time

Color Support

View Angle(H/V)

Aspect Ratio

Input Signal

Connector

Power Input

Power Consumption

Speaker

Plug & Play

VESA Mount

Controls Basic

OSD

Operate Conditions

Weight Net

Gloss

Certificate

Menu , Left , Right , Auto , Power

Brightness, Contrast, Color

Adjust , Sharpness, Phase ,Colck ,

H/V Position , Auto Color ,

Auto adjust , OSD Timer ,

OSD H/V Positon , Language .

Temperature 0 C ~ 40 C

Humidity 20% -90%

7.5 Kgs

8.5 Kgs

CE , FCC

EQ 266 User’s manual

Preset Modes (Resolution) - D-sub(Analog) / DVI(Digital) INPUT

HDMI Vedio INPUT

EQ 266 User’s manual

Menu Control Buttons

STANDBY

VOL+

VOL-

CH+

CH-

AV/TV

Menu : Select command function

Decreases Volume value.

Increase Volume value.

Standby : Power on/off control.

AV/TV : Select Input Signal (VGA , DVI or HDMI)

CH- : Contrast Express Key

CH+ : Brightness Express Key

VOL- :

VOL+ :

LED : Power On : Blue Light

Power Saving or No Signal : Red Light.

EQ 266 User’s manual

On Screen Display(OSD) Selection and Adjustment

You were introduced to the procedure of selecting and adjusting an itemusing

the OSD system. Listed below are the icons, icon names, and icondescriptions

of the all items shown on the Menu.Touch the MENU Button, then the main menu

of the OSD appears.

Brightness

To adjust the brightness of the screen.

Contrast

To adjust the contrast of the screen.

Auto Color

To Auto adjust the color of the screen.

Cool

This option changes the screen to be cool tone.

Standard

This option changes the screen to be standard tone.

Warm

This option changes the screen to be Warm tone.

User

This option changes the screen by user’s requirement . ( Red , Green , Blue setup)

Image adjust

To Auto adjust Image of the screen.

H. Position

To adjust Image H. Position of the screen.

V. Position

To adjust Image V. Position of the screen.

Clock

To adjust Image Clock of the screen.

Phase

To adjust Image phase of the screen.

Sarpness

To adjust Image Sharpness of the screen.

EQ 266 User’s manual

Signal Source

To select the input signal .

VGA Signal input— Analog signal

DVI Signal input — Digital signal

HDMI Signal input — Digital signal

Language

To select the OSD language.

OSD H.Position

To adjust the OSD Menu H.Position.

OSD V.Position

To adjust the OSD Menu V.Position.

OSD Timer

To adjust the OSD Menu show time.

Translucence

To adjust the OSD Menu translucence.

Volume

To adjust the sound volume .

Reset

Restore all factory default settings excep

※ Normally , for VGA analog signal input , after “ AUTO” can get the

optimal image performance. No necessary to manual adjust.
