AUGHTDOM SA300 Manual de usuario
PORTABLE POWER STATION
Where you are, where power is
PRODUCT MANUAL
（SA300 & SA500 & SA1000）
※It is a portable energy storage power supply, not a toy for children to play.
※Please read the product instructions carefully before using.
※If it is stored for a long time (more than a month), please charge the product to
about 70% of the electricity.
※Do not charge, use or place the product near the source of fire or overheating.
※Products and accessories are subject to change without notice.
1
CATALOG
(1) Spare parts list-------------------------------------------------------------------------------------- 2
(2) Product introduction---------------------------------------------------------------------------- 2~3
(3) Product diagram--------------------------------------------------------------------------------- 4~5
(4) Product parameters---------------------------------------------------------------------------- 5~6
(5) Product protection function--------------------------------------------------------------------- 7
(6) Operating instruction for the products--------------------------------------------------- 7~10
(7) Precaution------------------------------------------------------------------------------------- 11~12
(8) Solution for the common problems------------------------------------------------------ 12~13
(9) Trouble shooting----------------------------------------------------------------------------- 13~14
(10) After-sales service------------------------------------------------------------------------- 14~15
2
1
1.
Spare parts list
4
NO.
Name
Accessories description
1
mainframe
SA300, SA500 or SA1000. There are
differences in appearance, as shown in the figure is SA1000.
2
Adapter
Charging products with municipal electricity
3
Power cord
Adapter to connect to city power
4
Car charger cable
12V car charging cable
5
Instructions
Operational Guidance and Warranty Card
2.
Product introduction
This product is a portable multi-functional power source that can store energy, and it
is equipped with high-efficiency power lithium-ion battery, safe lithium battery
management system (BMS), high-efficiency energy conversion circuit, and it is
wrapped by high-strength aluminum alloy. After being repeatedly tested and verified
for a long time by R&D team of our company, the product has obtained international
certifications such as CE\FCC\ROHS\PSE\UN38.3. The top design and mature
production control, the products are safe and reliable, which can be powered by solar
power, vehicle power generation, and electric supply charging. The product features
light weight, small volume and high power, which can provide customers with
convenient mobile energy. The main features of the product are:
AC100V~240V/50~60HZ Pure sinusoidal output * 4 (Setting according to national or
regional power standards)
Solar energy MPPT Charging system (Maximum Power Point Tracking)
Automatic Adaptive Adapter for Electric Charging
3
Car charging
12V10A cigarette lighter output
12V5A DC5.5 output port*4
USB-C PD 45W/5~15V output
USB-A QC3.0 18W/5~12V output *2
USB-A 2.4A Intelligent recognition output port*2
Charging the Start Battery of a Vehicle，Auxiliary Start-up Vehicle
90%-97%High conversion efficiency（Reduce heat，Increase actual output energy）
LED High-brightness Display Screen（Real-time power, power, remaining time, etc.）
LED High-brightness Lighting Lamp
BMS Multilevel protection system
Intelligent identification device power, accurate display of remaining usage time
With overcharge, over-discharge, high and low temperature, multilevel over current,
short circuit and other protection functions
Ultra-long cycle life, 800 + cycles
Fanless design，product silence, safer
Waterproof for outdoor. IP rating IP65（Test data from factory laboratory）
Sandblasting oxidation treatment of industrial aluminum alloy shell
Products can meet the demand of power supply for most household appliances, such
as rice cookers, mini - refrigerators, speakers, televisions, mobile phones, computers,
digital cameras, tablet PC, LED lights, emergency lights, outdoor lighting, outdoor
construction, electric tools, pumps, medical equipment, etc. It includes a wide range
of applications, such as rescue and relief work, emergency rescue, first aid,
excavation, decoration, construction, tourism, camping, solar power generation and
other fields.
4
3.
Product diagram
3.1 Product function description

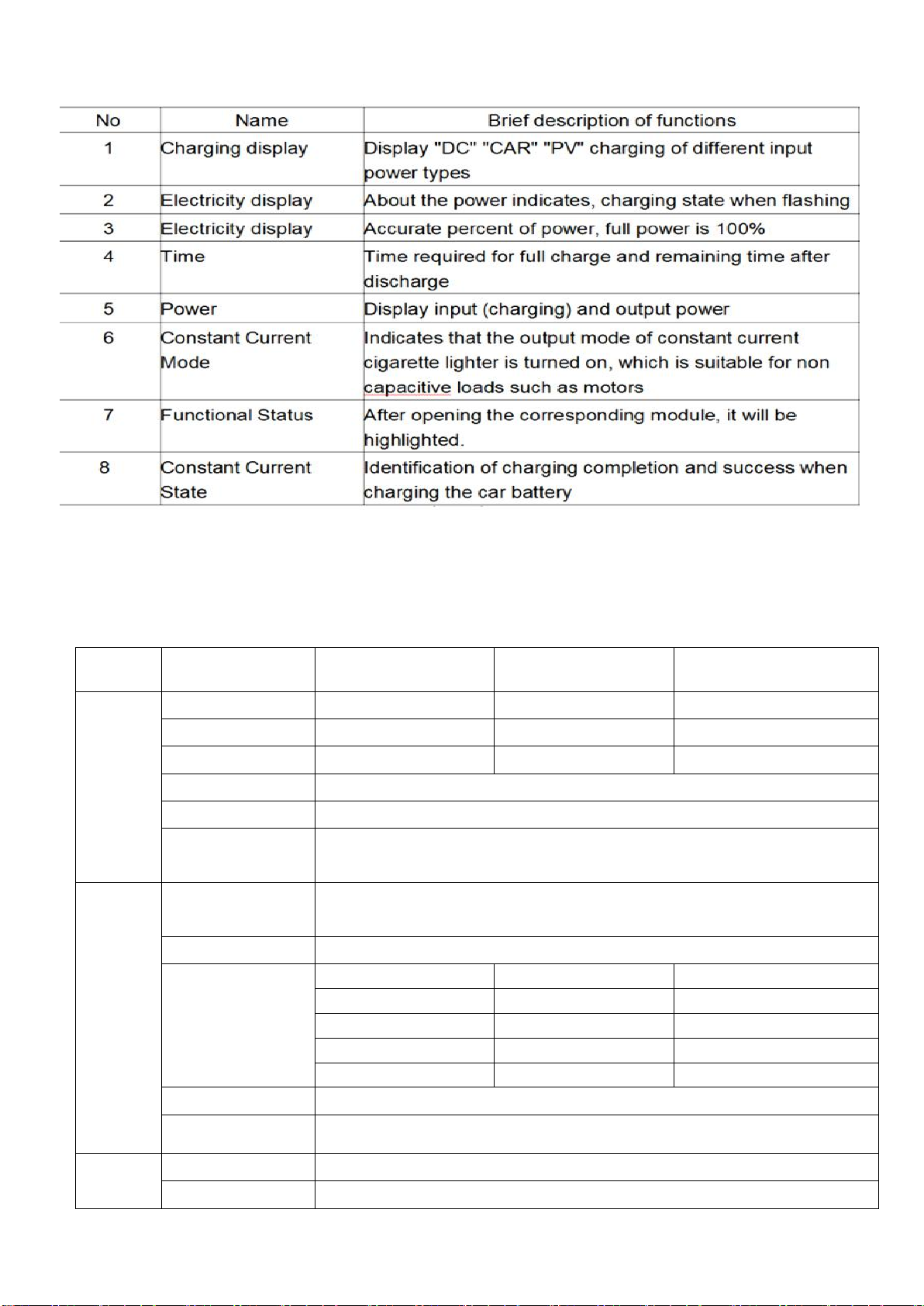

3.2 Display screen description.
5
4.
Product parameters
Project
parameter
SA300
SA500
SA1000
Battery
Battery class
Lithium-ion battery
Lithium-ion battery
Lithium-ion battery
Battery power
300Wh
500Wh
1000Wh
Total capacity
83200mAh
135200mAh
270000mAh
voltage
14.8V
cycle life
800cycle
BMS protect
Over pressure, under pressure, high and low temperature, level 3
overcurrent, short circuit protection
AC
output
output voltage
100-240V（According to the factory setting of various countries and
regions）
Output frequency
50-60HZ（Manual switching）
Duration
AC300W about 40 mins
AC500W about 40 mins
AC1000W about 40 mins
AC200W about 65 mins
AC400W about 65 mins
AC800W about 60 mins
AC100W about 85 mins
AC300W about 85 mins
AC500W about 100 mins
AC50W about 130 mins
AC200W about 130 mins
AC300W about 160 mins
AC100W about 270 mins
AC100W about 540 mins
waveform
pure sine wave
Cigarette lighter port
70% load ＞90%
DC
output
DC5.5 port
DC12V5A
Cigarette lighter
DC12V10A
6
port
USB
output
USB1
5V2.4A
USB2
5V2.4A
USB3
QC3.0,5-12V,18W(MAX)
PD3.0
50-20V,60W(MAX)
LED
light
Low bright
5W(MAX)（On/SOS/flash light/OFFF）
High bright
10W(MAX)（On/SOS/flash light/OFFF）
Input
/charge
DC（No.1）
18-24V/5A Max120W
18-24V/5A Max120W
18-24V/5A Max120W
USB-C(No.2)
PD 60W Max
PD 60W Max
PD 60W Max
DC（No.6）
12-24V/5A Max120W
12-24V/5A Max120W
12-24V/5A Max120W
Quick charge port
(GX20 on the
back side)
200W Max
200W Max
200W Max
Charge
Adapter（No.1
&No.6）
20V5A about 4h
20V5A about 6h
20V5A about 13h
Car（No. 7）
13V8A about 4h
13V8A about 6h
13V8A about 13h
Quick charge port
（selective
purchasing）
16.8V12A about 2h
16.8V12A about 3h
16.8V12A about 7h
PV（DC No.1
&No.6）
18V100W about 5h
（Ideal sunshine）
18V100W about 8h
（Ideal sunshine）
18V100W about 16h
（Ideal sunshine）
TYPE-C
（No.3）
PD 60W about 6h
PD 60W about 10h
PD 60W about 20h
Dual adapter
（No.1 +No.6）
20V5A+20V5A about
2h
20V5A+20V5A about
3h
20V5A+20V5A about 7h
Dual adapter +
charger charge
20V5A+20V5A+16.8V
12A about 1h
20V5A+20V5A+16.8V
12A about 1.5h
20V5A+20V5A+16.8V12A
About 3h
Adapter+TYPE-C
20V5A+PD 60W
about 2h
20V5A+PD 60W
about 4h
20V5A+PD 60W about
8h
power
consump
tion
Quiescent current
＜100uA
＜100uA
＜100uA
Product
weight
Net weight
4.6KG
6.0KG
11.0KG
Gross weight
6.5KG
8.0KG
13.0KG
Product
volume
Host
200*142*146mm
200*176*146mm
200*294*146mm
Packaging
265*265*210mm
340*295*250mm
450*355*300mm
temperat
ure
Charge
0~40℃（32~104℉）
Dischareg
-20~50℃（-4~122℉）
Storage
-20~45℃（-4~113℉）
7
5.
Product function description
Products for multi-functional output power, in order to reduce the waste of "multifunctional"
redundant circuit, we will have some functions for combined design, so more energy saving
and environmental protection, and the combined design will also bring the other side is some
functions used at the same time, the system will take the initiative to reduce power,
reasonable operation normal conditions will not affect the use.Your understanding is to
support our company's "environmental action."
6.
Operating instruction for the products
6.1 How to charge
The product has a charging protection function,
and it will automatically stop charging, after the
product is fully charged according to the normal
charging operation. In order to avoid other
unexpected events, it is recommended to
disconnect the charging connection in time after
the product shows it is fully charged. While it is
used, it needs to be charged, if the output power
is less than 100W, the product will be fully
charged gradually according to the internal
battery cell capacity, if the output power is greater
than 100W, the product will slowly use up the
internal battery capacity, and the product can be
used normally after a full charge. The product
features design of one charging interfaces, the
DC5.5 input port in the front side. The Input interface supports adapter charging and solar
panel charging that meets voltage requirements 18V-24V/ 5A Max, car charging 12V/ 8A.
After any charging mode is activated, the last grid of the battery indicator ring will flash.
DC 5521（No.1）
18-24V/5A Max120W
TYPE-C1(No.2)
PD 60W Max
DC 5521（No.6）
12-24V/5A Max120W
Quick charge port
(selective purchasing
16.8V12A 200W Max
8
6.1.1 Solar power charging
Insert the plug of the unfolded solar panel into the “DC input” interface, after charging mode is
activated, the last grid of the battery indicator ring will flash.
The solar panel power is greatly affected by the light, and the generated power will change,
so it can result in the remaining time dynamically changes, which is normal.
6.1.2 Adaptor charging
STEP 1. Insert the adapter AC input plug into the electric supply.
STEP 2. Insert the adapter DC output plug into the “DC input” interface, the last grid of the
battery indicator ring will flash, and the remaining time of fully charging is displayed. when
charging is started, the system will automatically detect the input power, the remaining time
will change dynamically, which is normal.
6.1.3 Vehicle power supply charging
STEP 1. Start the car,
STEP 2. Insert the car charger cable into the car cigar lighter,
STEP 3. Insert the DC end into the "DC input" interface on the front of the product, the last
grid of the battery indicator ring will flash and display the remaining time for full charge.
9
6.1.4 Charge warning
The tank icon will light up and flash when the remaining power is 10%, reminding the userto
charge in time.
6.2 Product output (electricity consumption)
The product has high low voltage, high low temperature, multiple over-current, short circuit
and other protection circuits. If the output is suddenly interrupted, first check whether the
peripheral electrical equipment exceeds the power or short circuit occurs, restart the machine
to check whether there is power. After the power is used up, in order to save the power,
please manually shut down the machine after using, if there is any abnormal phenomenon,
please contact the manufacturer or dealer.
This product is designed with 4 regional function outputs, which are DC area, USB area, AC
area and Light area. Each area is provided with a corresponding button for turning on or off
the function output and all interfaces of the corresponding area. Press and hold the button of
the corresponding area for about 1 second to open all the interfaces of the corresponding
area, and the corresponding button will be lit and it is blue, and press the button again for
about 1 second to shut down all interfaces in the corresponding area. If the button is pressed
for more than 3 seconds during the shutdown process, the entire system will be shut down.
6.2.1 AC output
Press and hold the AC button in the AC area for about 1 second, the AC output will be turned
on, and the AC icon will be displayed on the interface discharging icon on display. In this case,
long press on the AC button for about 1 second, the AC output will be turned off. If the button
is pressed for more than 3S during the shutdown process, the whole system will be shut down.
6.2.2 AC output frequency switching
After the AC output function is turned on, frequency can be switched by pressing twice on AC
switch. Screen display corresponding frequency 50Hz or 60Hz. Automatic memory of last
frequency after shut down.
