Audiovox FRS-WP1 Manual de usuario

Customer Service

1-800-290-6650

Model FRS-WP1

Two Way Family Radio

with Headset and

Boom Microphone

Owner’s Manual

PUSH TO

TALK

CALL

VOL VOX

OFF

LOW

Your FRS-WP1 Family Radio is a portable, easy to use, two-way radio that

you can carry almost anywhere. It is skillfully constructed to give you reliable

communications and FM radio listening enjoyment. It is intended for use with

the supplied headset assembly with PTT switch. When used in this manner,

the FRS-WP1 is ideal for hands-free use around the house, in your boat, on

hunting and camping trips, on the ski slopes or at the mall. Some of the

FRS-WP1 features are:

No Air Time Fees and No License Required

Up to 2 Mile Range

Carry-Clip for Hands-Free Operation

14 Channels

FM Radio Receiver

VOX Capability with Two Sensitivity Settings

LCD Display

Call/Ring Button

FEATURES

-2-

-3-

Your transceiver will achieve its maximum operating range when communi-

cating with other transceivers in a flat open area with no trees or buildings

obstructing its signal. Range may be up to two miles under such conditions.

Obstacles such as buildings, trees or mountains will tend to reduce the

transceiver’s effective range.

FCC WARNING

Replacement or substitution of transistors, diodes or other parts of a unique

nature, with parts other than those recommended by the manufacturer, may

cause a violation of the technical regulations of Part 15 of FCC Rules.

SAFETY INFORMATION

Your wireless portable transceiver contains a low power transmitter. When

the headset PTT button is pushed, or the VOX mode is in effect, it sends out

radio frequency (RF) signals. The device is authorized to operate at a duty

factor not to exceed 50%.In August 1996, the Federal Communications

Commissions (FCC) adopted RF exposure guidelines with safety levels for

hand-held wireless devices.

Important: To maintain compliance with the FCC’ s RF exposure guidelines,

use the Audiovox supplied carry clip for belt attachment to ensure

that the antenna is at least 1 inch (2.5 centimeters) from your

body when transmitting. If you choose to hold the unit, maintain

the same antenna distance from your body as indicated above.

Unauthorized antennas, modifications, or attachments could

damage the transmitter and may violate FCC regulations.

PERFORMANCE

-4-

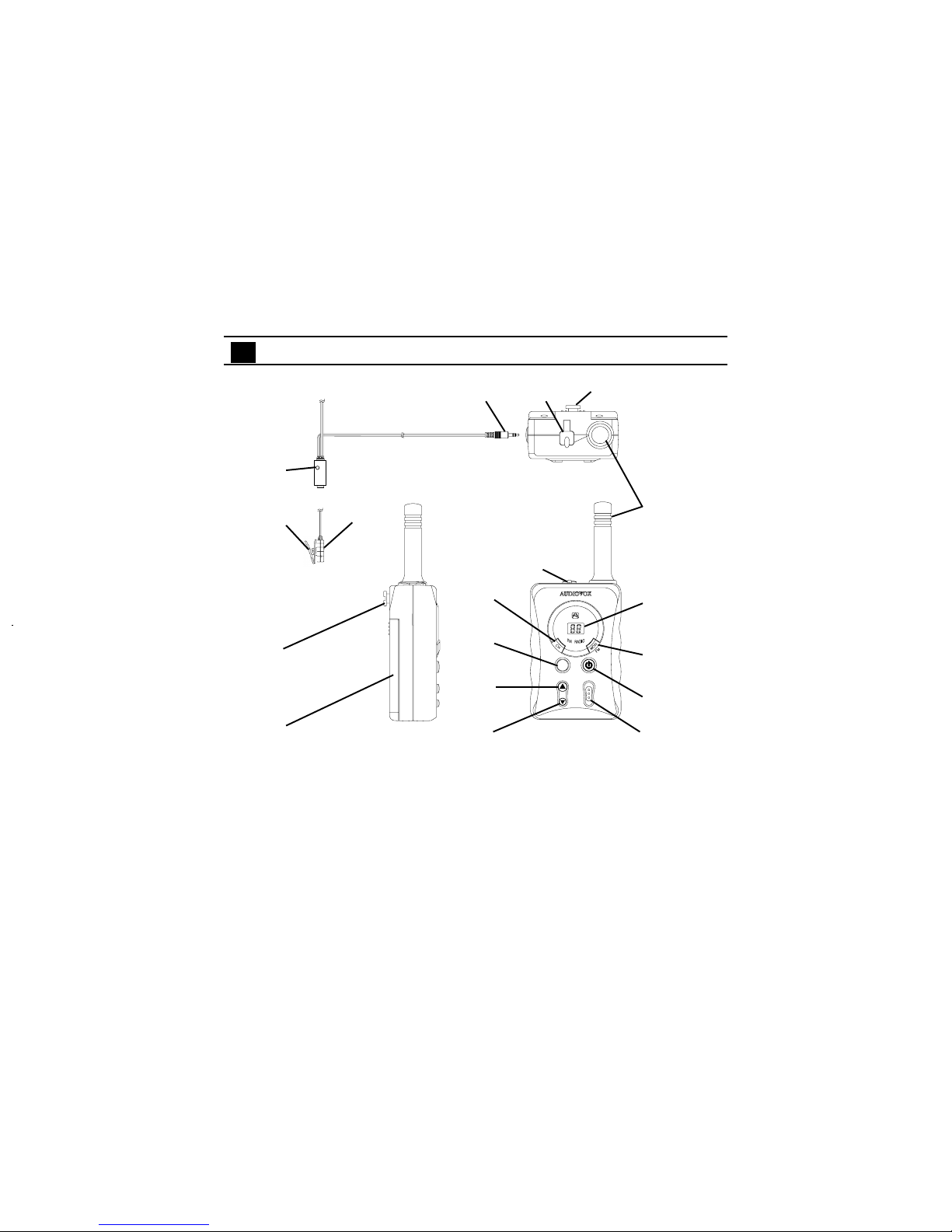

FUNCTION AND LOCATION OF THE CONTROLS

1. Battery Compartment Cover: Four (4) AAA batteries acces-

sible when cover is removed.

2. Carry Clip Stud: Attaches to carry clip.

3. Headset PTT Switch: With unit VOX switch set to OFF, press

to transmit; release to receive.

SPK

MIC

PUSH TO

TALK

CALL

VOL VOX

OFF

LOW

REF

HEADSET 56

REF

-5-

4. Lapel/Clothes Clip: Attaches headset PTT switch to convenient area.

5. Headset Microphone/Speaker Plug: Connects headset assembly

to SPK/MIC jack on radio.

6. Headset SPK/MIC (CHG) Jack: For use with the supplied Audiovox

headset assembly; accepts headset connector plug (5). Also accepts

wall charger (sold separately) DC input for battery charging.

7. Antenna

8. LCD Display: Displays the current FRS channel number as well as

various control function indications.

9. Monitor/FM (MON/FM) Button: Momentarily press to bypass the

squelch and listen to channel activity. Press and hold to access the FM

radio mode.

10. Power Button ( ): Press and hold this button for 2 seconds to

turn the transceiver on or off.

11. VOX HI/LOW/OFF Switch: Enables VOX mode in the HI or LOW

sensitivity position.

12. Down Button ( ): Press this button to decrease the volume or chan

nel setting.

13. Up Button ( ): Press this button to increase the volume or channel

setting.

14. Call Button (CALL): Momentarily press this button to send a ringing

sound to other radios tuned to the same channel.

15. Channel (CH) Button: Press this button to access the FRS channel

select function.Press this button to access the FM radio search (SE)

function when the FM radio mode is active.

POWERING THE TRANSCEIVER

Your FRS-WP1 radio transceiver operates on four AAA batteries. Alkaline

batteries will provide slightly better performance than rechargeable batteries

and will ensure optimum performance for the FRS-WP1.

Batteries

There are three methods of powering the FRS-WP1:

1.Alkaline Batteries.

WARNING: Do not attempt to recharge Alkaline batteries.

2.Audiovox Rechargeable Ni-MH Batteries - (Rechargeable NiMH

batteries (P/N FRSRBAT) and Charging Adapter (Model No.

YKA3515-08010) sold separately.) Use only Audiovox approved

rechargeable batteries and charger when charging batteries internal

to the unit. For additional optional equipment and accessories for the

FRS-WP1, visit the Audiovox web site at www.audiovox.com, or

call Customer Service at 1-800-290-6650

NOTE: To extend battery life, avoid overcharging the batteries.

3. Various Brands of Rechargeable Batteries - Use of the supplied

Audiovox charger with other brands of rechargeable batteries is

not recommended, as battery charging times will vary with different

brands of batteries. Refer to the manufacturer’s instructions for

charging other brands of batteries.

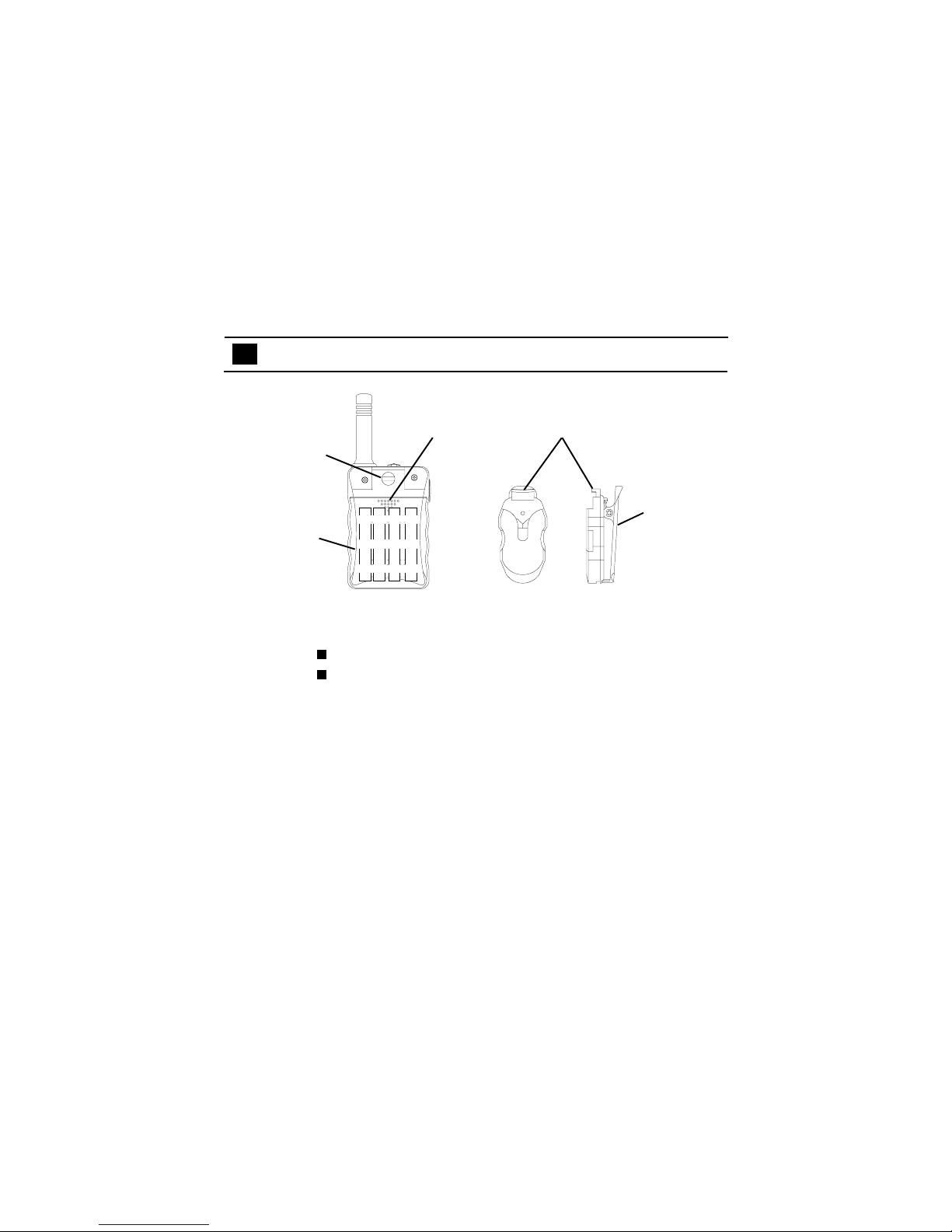

Installing the Batteries:

Battery installation is made more convenient when the carry clip is removed.

To do this, release the spring latch securing the clip to radio and slide the clip

downward and away from the mounting stud.

-6-

1.Press down on the spring latch securing the clip to radio and slide the

clip downward and away from the mounting stud.

2.At battery cover, press downward with thumb on embossed arrow and

slide battery cover down and off the radio.

3.Insert four “AAA” batteries. Position batteries according to polarity

markings. Reverse the procedure outlined in steps 1 and 2 to reas-

semble.

NOTE: Make sure the battery + and - terminals are aligned as shown.

Your FRS-WP1 requires four “AAA” cells. Alkaline batteries will provide the

best performance from your transceiver.

CAUTION: Incorrect battery installation can damage the unit.

Never attempt to charge alkaline batteries.

BATTERY INSTALLATION

-7-

CARRY CLIP

MOUNTING

STUD

BATTERY

COVER

SPRING

LATCH

CARRY

CLIP

EMBOSSED

ARROW

-8-

The following guidelines will improve performance and provide longer operat-

ing times for the FRS-WP1:

1. Do not mix old and new batteries.

2. The use of alkaline-type batteries is recommended to provide the

longest operating time.

3. Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries.

4. If the unit is not to be used for an extended period of time, remove

the batteries. Old or leaking batteries can cause damage to the

unit and will void the warranty.

AUDIO OX

E203081

65NM

LISTED

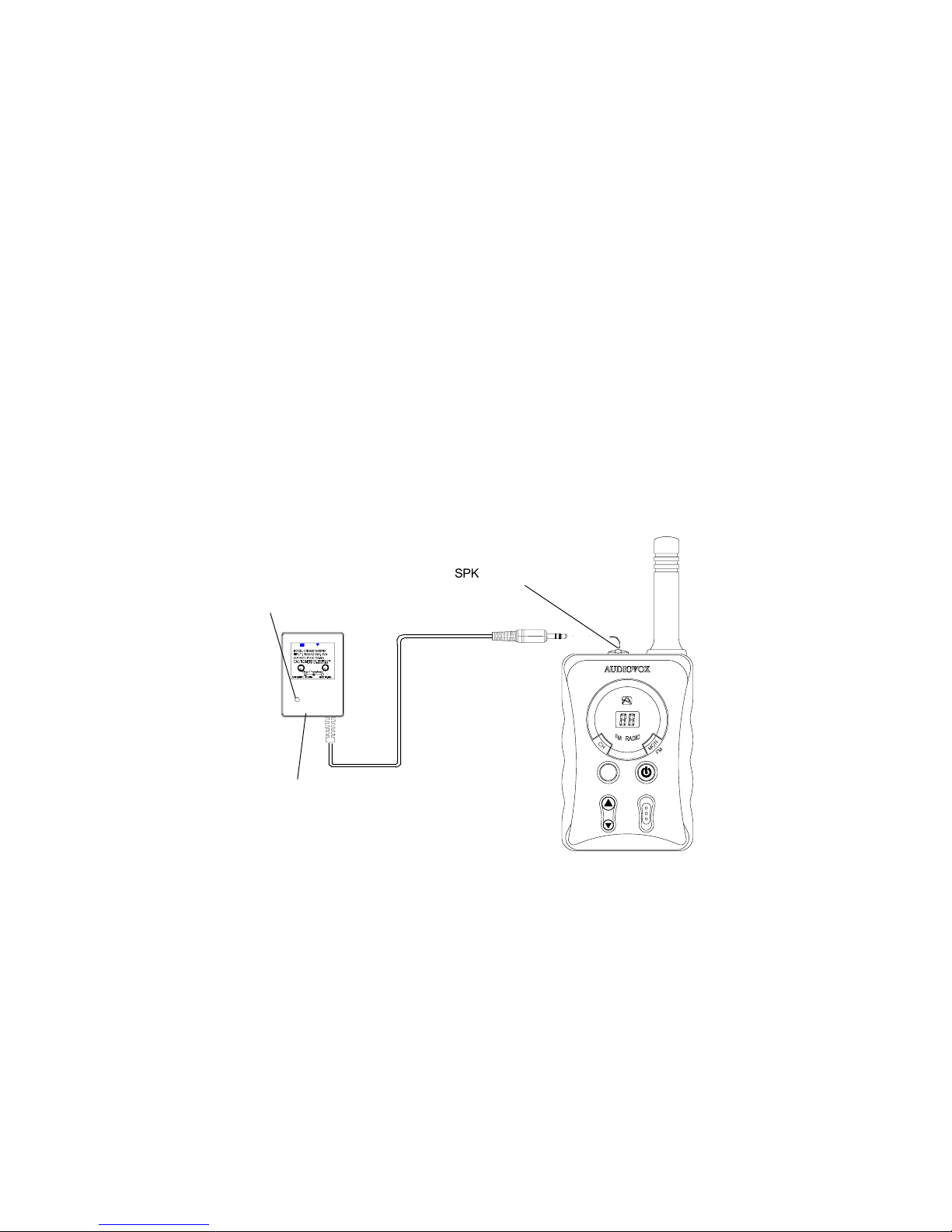

Direct Plug-In Transformer Unit

○○○

SPK/MIC (CHG) JACK

AC WALL CHARGING

ADAPTER, MODEL

YKA3515-08010 (SOLD

SEPARATELY)

INPUT: 120 VAC

OUTPUT: 8 VDC

CALL

VOL VOX

OFF

LOW

RED CHARGE

LED

NOTE: Only Audiovox

approved rechargeable

batteries (P/N FRSRBAT)

can be recharged in the

radio transceiver.

-9-

Turning the Transceiver On and Off ( )

Pressing the Power button (10) for 2 seconds will activate the unit and the

self-test display momentarily appears followed by the frequency standby

display. The headphones will sound a short melody to confirm the transceiver’s

activation and the LCD backlight will come on for about 2 seconds. To turn

the unit off, simply press and hold the power button for 2 seconds then

release it; a short tone will be heard as the unit powers off.

Volume Level

Audio reception volume is controlled by the Up (13) and the Down (12) channel/

volume buttons. Momentarily pressing either button will increase or decrease

the volume level, with each step accompanied by a beep tone whose volume

increases or decreases accordingly. The display will indicate U1 (lowest

setting) to U7 (highest setting).

Call Button (14)

When the call button is pressed, the FRS-WP1 will transmit a 3-second

ringing sound to other transceiver’s tuned to the same channel. This

feature can be used to signal other parties that voice communication is

desired. The LCD backlight comes on for about 3 seconds, indicating the

call transmission has been initiated.

Low Battery Alert

When the battery level becomes low, the LCD channel display will flash at a

1-second rate, indicating that the batteries should be changed.

Monitor/FM (MON/FM) Button (9)

You can monitor channel activity by momentarily pressing the Monitor (MON)

button (9). If pressed for more than 2 seconds, the FM function is accessed,

whereby Fr appears momentarily on the display. You can now use the CH

button (15) to search (SE) the FM band for a desired station.

USING YOUR FRS-WP1

-10-

Channel Selection

Momentarily press the CH button so the two-digit channel display flashes.

Press the VOL Up ( ) or Down ( ) button to select the desired channel

(01–14).

VOX Function

This feature enables you to have hands-free conversation.

To enter the VOX mode:

1.With the headset plugged into the SPK/MIC jack on the radio, from the

FRS standby mode, position the VOX switch to the HI or LOW

position from the OFF position.

2. When using the headset microphone, your voice signal is detected and

is automatically transmitted by the radio; the LCD backlight comes on

while VOX transmission occurs and goes off 3 seconds after the last

voice transmission. The reply audio is received by the radio and is

transferred to the headset.

VOX Sensitivity Level

The VOX sensitivity level can be set to the high or low position on the radio.

A HI VOX sensitivity is the most sensitive, and should be used in a relatively

quiet surrounding. A LOW sensitivity is the least sensitive and should be

used in a noisy surrounding.

FUNCTIONS
